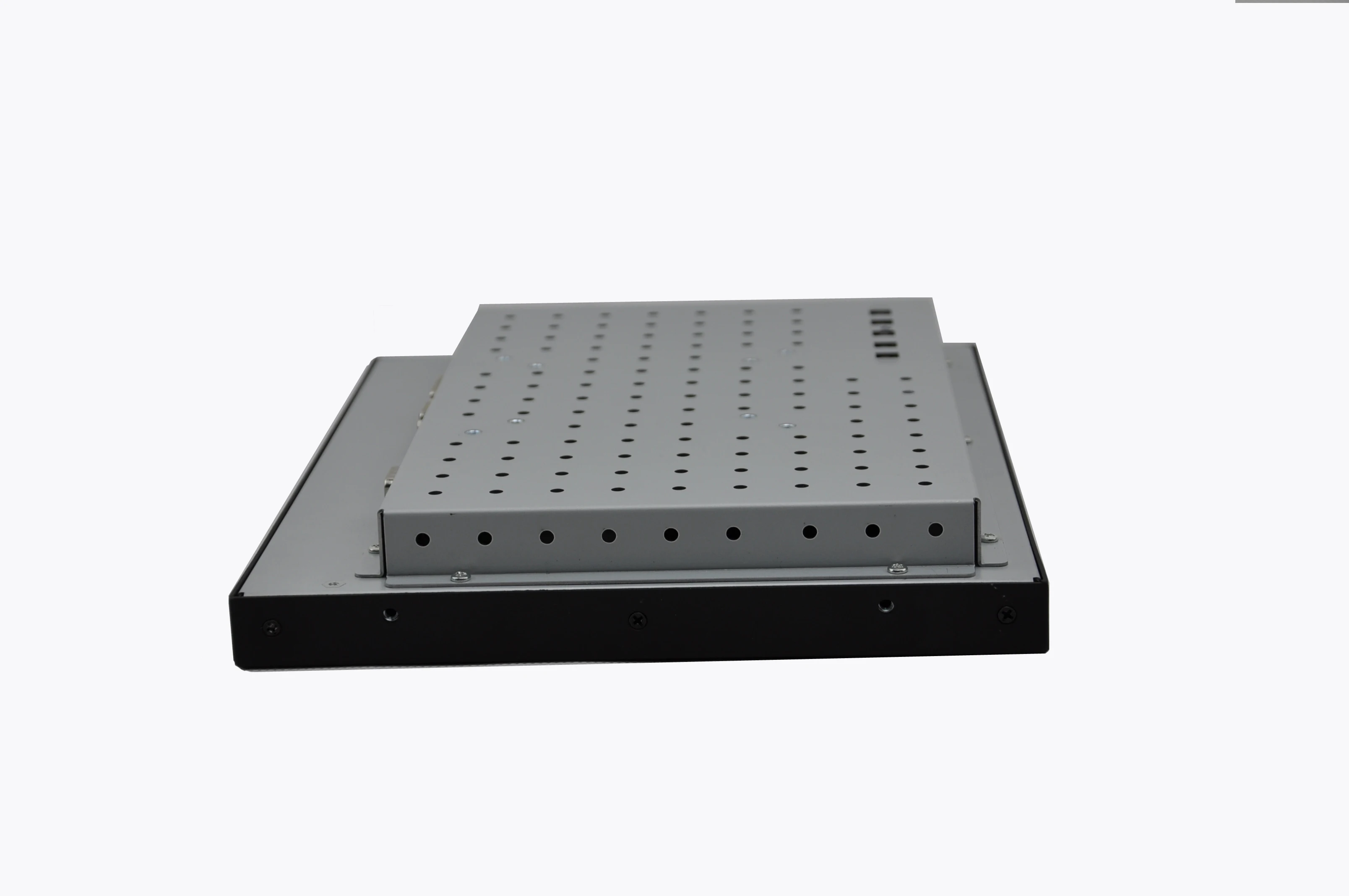

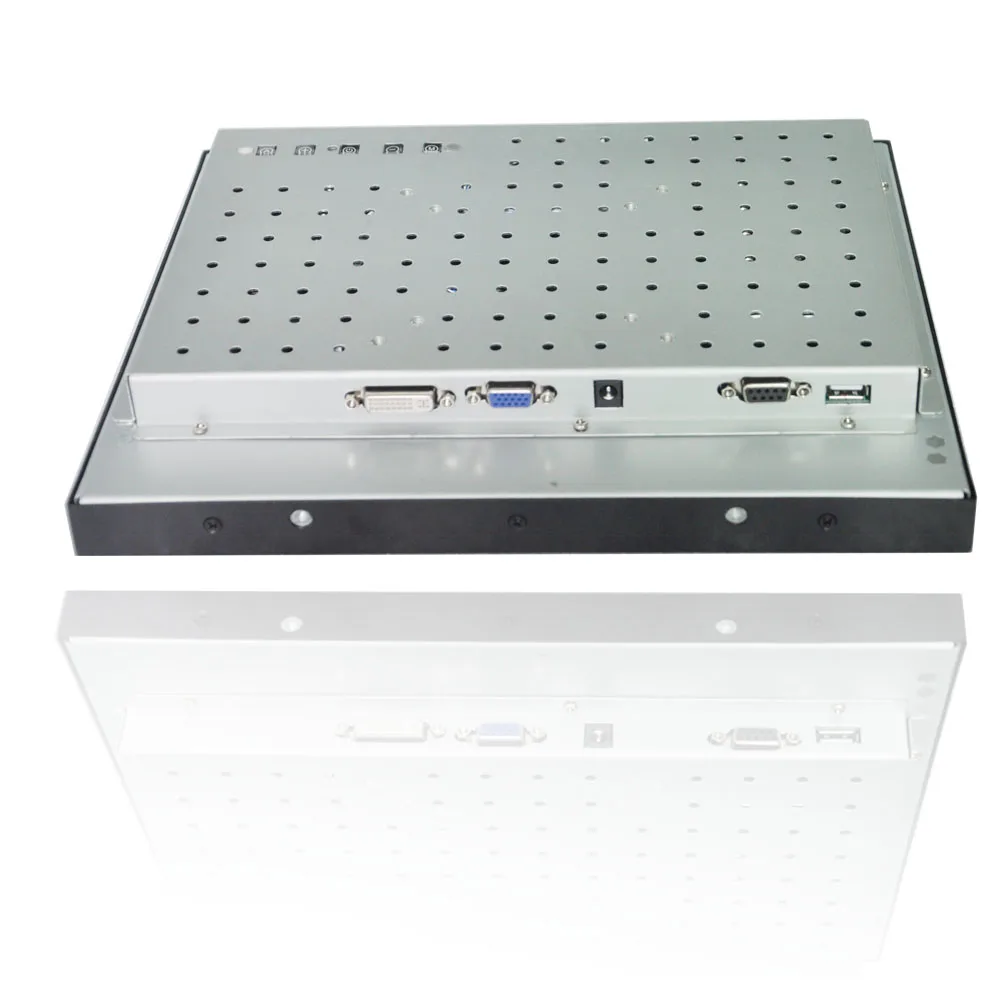

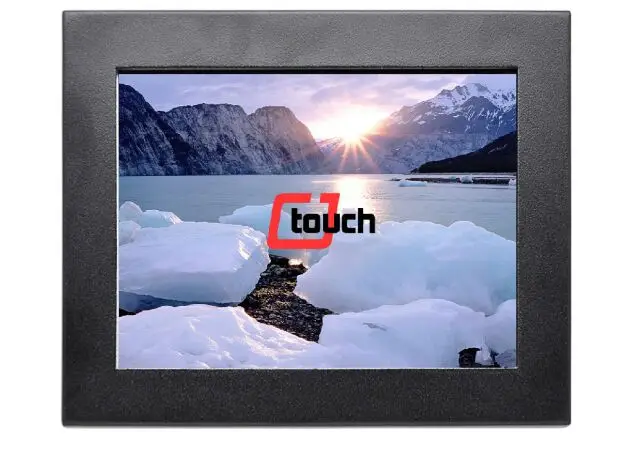

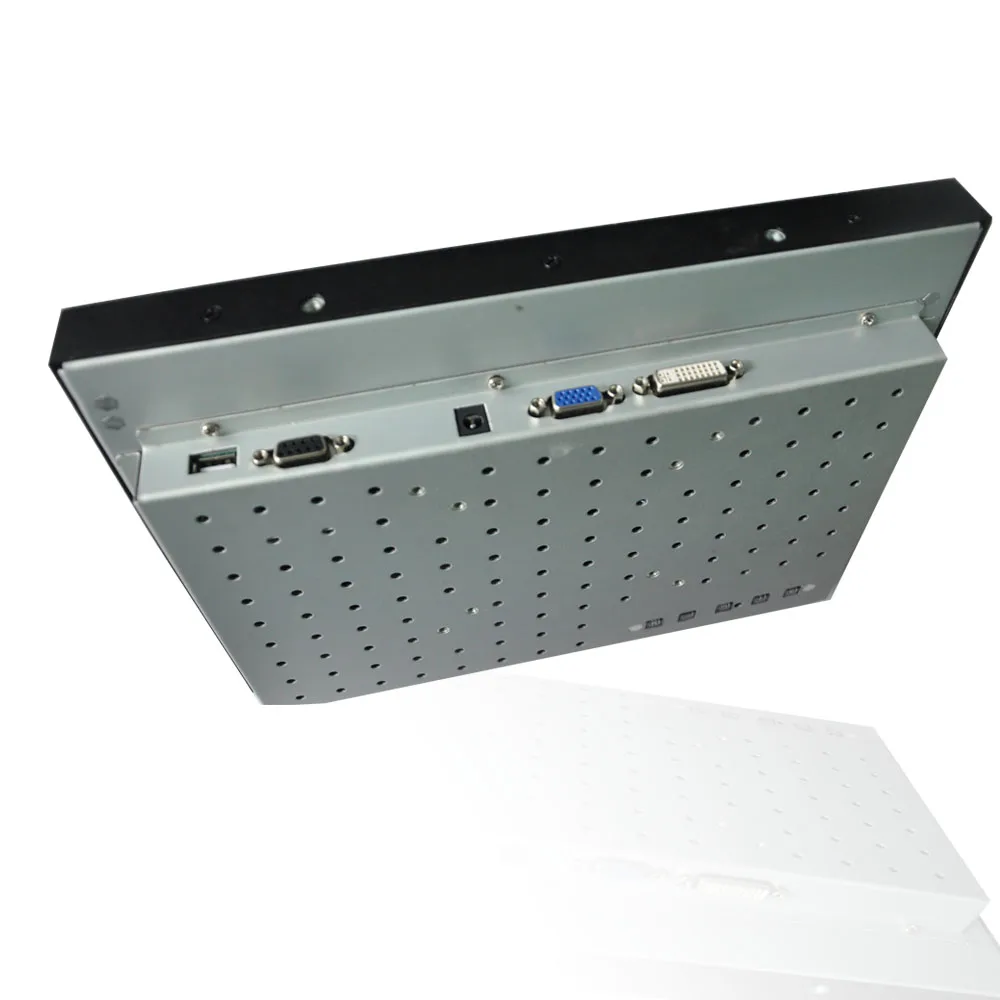

Oem Odm Square screen 12.1 Inch Industrial Touch Screen LCD Monitor POS touch screen Medical Android 13 Touch Control monitor

Share on (1601040878056):


Price:$190.00 - $198.00

Quantity:


Product Overview

Description





Product Description




Specification


General
Model
COT121-APF02
Series
Metal Case Open Frame
Monitor Dimensions
Width: 294mm Height: 234mm Depth: 44.5mm
LCD Type
12.1" Active matrix TFT-LCD
Video Input
VGA ,DVI
OSD controls
Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface
1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)
246.0(H)×184.5(V)
Resolution
800×600@75Hz
Dot Pitch(mm)
0.3075×0.3075
Nominal Input Voltage VDD
+3.3V(Typ)
Viewing angle (v/h)
70°/70°/50°/60°(CR>5)
Contrast
600:01:00
Luminance(cd/m2)
400
Response Time(Rising/Falling)
5ms/5ms
Support Color
16.2M colors
Backlight MTBF(hr)
40000
Touchscreen Specification
Type
Cjtouch SAW touch screen
Resolution
4096*4096
Light Transmission
92%
Touch Life Cycle
50 millions
Touch Response time
8ms
Touch System Interface
USB interface
Power consumption
+5V@80mA
External AC Power Adapter
Output
DC 12V /4A
Input
100-240 VAC, 50-60 Hz
MTBF
50000 hr at 25°C
Environment
Operating Temp.
0~50°C
Storage Temp.
-20~60°C
Operating RH:
20%~80%
Storage RH:
10%~90%


Production Line




Packing & Delivery




1 unit in one carton
EPE packing inside


Application




Company Profile






Dongguan CJtouch Electronic Co., Ltd. Construction was established in 2009, is a dedicated surface acoustic wave touch screen, infrared touch screen and touch whole product development, production, sales, service and high-tech enterprise touch programs. The company has strong technical strength, professional development, production, sales and after-sales service team. Brought together a group of experienced, committed to innovation, and application interested in the touch-screen technology research and program development of the industry elite.

We advocate the "quality of the Societe Generale," the concept of quality, in-depth understanding of customer needs, to grasp the direction of touch technology and trends. Touch of the most stable of today's technology and industry applications touch the perfect combination to achieve in the shortest time customization of the diverse needs of industrial customers. At present, our company design and development of touch products and solutions have been widely used in government agencies, banks, exhibition halls, shopping malls, schools, hospitals, hotels, tourism, railway stations, advertising, media, telecommunications, libraries, recreation and leisure, games, etc. occasions.

"Absorbing the advance of others to improve ourselves", By learning the advantages of the forerunners in this field, CJtouch designs and manufactures the most stable touch products to achieve the rapid growth of its own.While at the achievement of self, it also brings new concept and strengths to the development of touch technology industry, and provides more choices and more cost-effective products to customers. Always grasp the development trend of touch technology and by use of this technology in people's daily life to greatly facilitate people's lives become the mission and target of CJtouch.
