Nano Motherboard 12th/13th cpu i5 1240p/i7 1260p 2*HD 2.1 DDR5 ram m.2 2280 ssd wifi /4g/5g industrial mini pc nano motherboard
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601040888153):
Product Overview
Description
Product Description
Features:

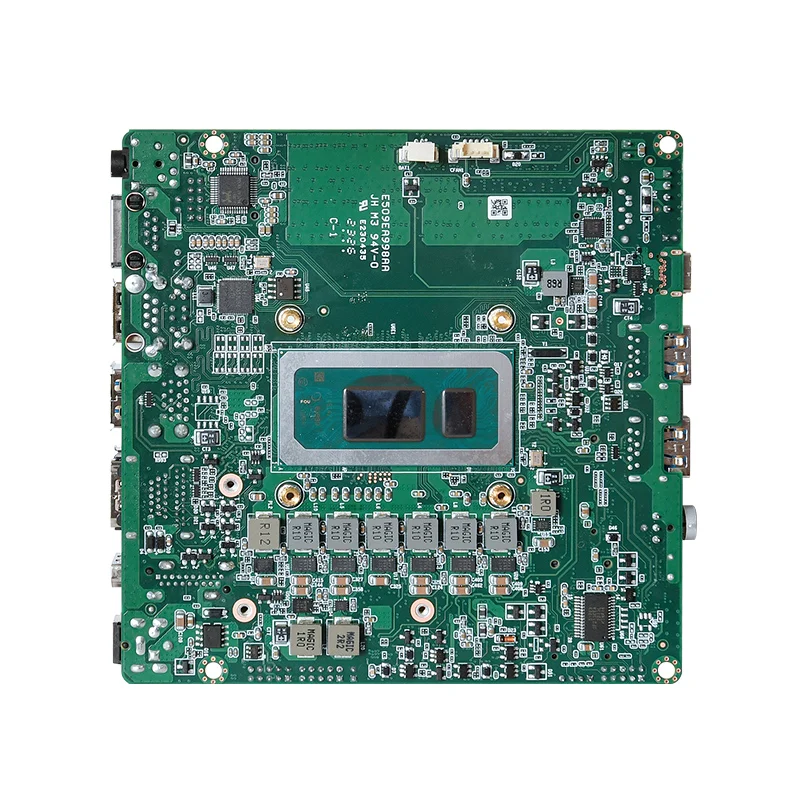

Onboard Intel Alder Lake-U/-P series processors
2*DDR5 SO-DIMM, total max. 64GB
Intel 2.5G network, single and dual network optional
TPM2.0, 2*M.2 2280 SSD, M.2 WIFI
2*HDMI2.0, 1*DP, 2*Type-C (USB3.2+DP)
DC 12-19V; Size: 120x120mm
2*DDR5 SO-DIMM, total max. 64GB
Intel 2.5G network, single and dual network optional
TPM2.0, 2*M.2 2280 SSD, M.2 WIFI
2*HDMI2.0, 1*DP, 2*Type-C (USB3.2+DP)
DC 12-19V; Size: 120x120mm
Processor System | Onboard Intel Alder Lake-U/-P series processor, TDP 28W |
EFI BIOS | |
Memory | 2*DDR5 SO-DIMM, up to 64GB total |
Storage | 2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes |
1*SATA3.0 interface, 2Pin 5V power supply | |
Display | 2*HDMI2.0 interface, support 4096x2160@60Hz |
1*DP, support 7680x4320@60Hz | |
Type-C interface, support DP 7680x4320@60Hz和USB3.2 Gen2 | |

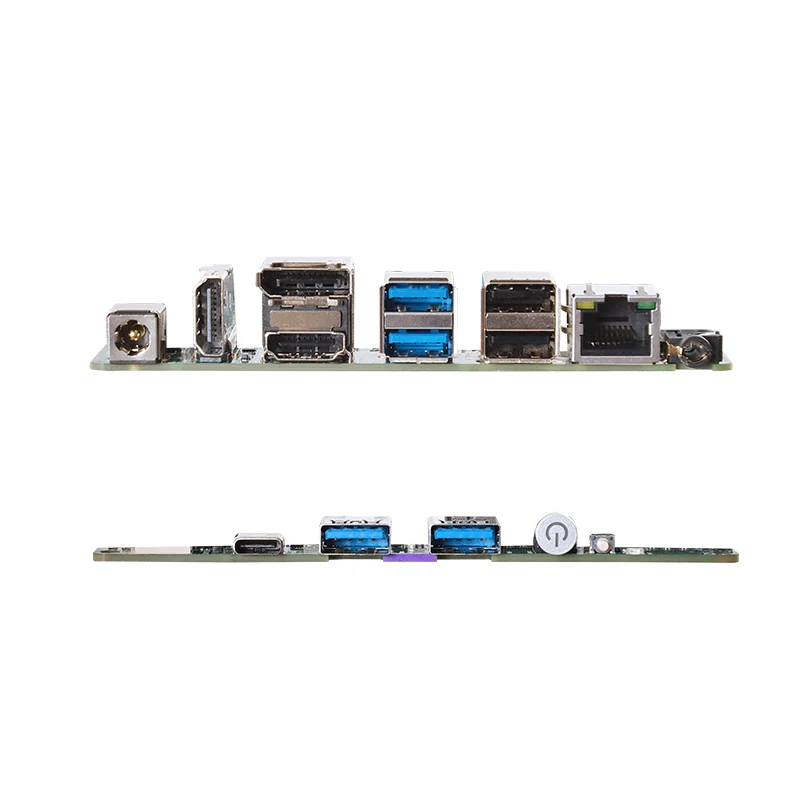

Board Side I/O Interface | Power on button, 2-in-1 audio jack, reset button, 4*USB3.0 |
DC JACK, 2*HDMI, 1*DP, 1*Type-C | |
Single and dual-network optional: single-network, rear I/O more than 2 * USB2.0 | |
Expansion Interfaces/Features | External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0. |
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) | |
1*RS232/RS485 pin spacing 2.0mm | |
1*USB2.0 Pin, 2x5Pin, Pitch 2.0mm | |
1*4Pin PWM CPU FAN | |
Power Supply | DC 12-19V, 120W or above |
Operating Environment | Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90 |
Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90% | |
Operating System Support | Windows 10, Windows 11, Linux |
Dimension | 120x120 mm |
Net Weight | Approx. 130g without heat sink, 250g with heat sink |
Module | Optional items | Description of options |
AD600NA | Onboard Intel Alder Lake-U/-P series processors | I3-1215U/I5-1235U/I7-1255U I3-1220P/I5-1240P/I7-1260P |
TPM2.0 | External TPM2.0 optional | |
Single and Dual Network Options | Single and dual network option | |
M.2 SSD protocol | PCIe4.0 x4 and SATA3.0 protocol optional |
