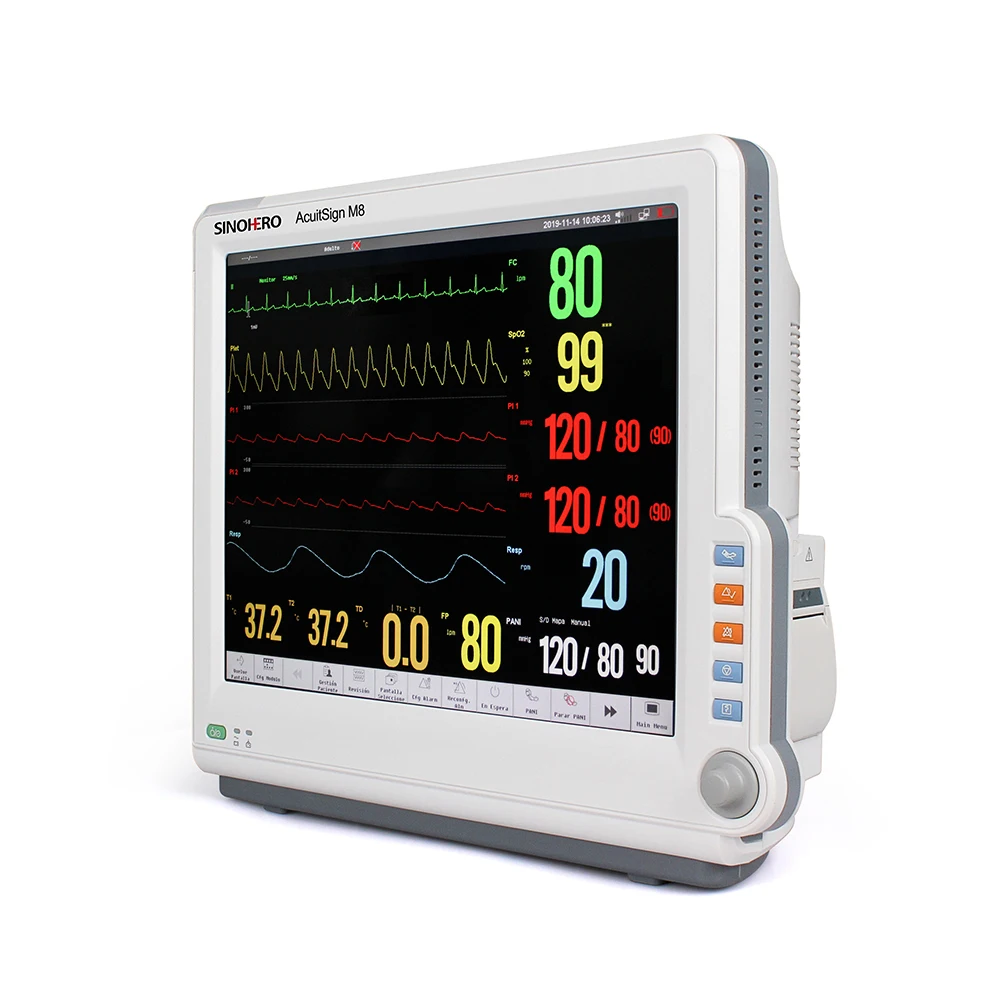

Hospital Ambulance High Resolution 17 inch Full Touch Screen Hospital ICU CCU Multi parameter Portable Patient Monitor
- Category: >>>
- Supplier: Sino-Hero(shenzhen) Bio-Medical Electronics Co. Ltd.
Share on (1601040982909):
Product Overview
Description
Product Description
Product name | M8 modular patient monitor |
High-end Parameters | BIS, CO, ICG, 8-Temp, 8-IBP, EtCO2, AG, etc |
Display | 17"Color Anti-glare TFT-LCD |
Resolution | 1280*1024 pixels |
Size | 434mm*389mm*206mm |
Weight | less than 11kg |
Power Voltage | AC 100-240V 50/60Hz |
Power Input | less than 150VA |
Input Current | 1.7~0.8V |
Safety class | Category I |
Hospital Ambulance High Resolution 17 inch Full Touch Screen Hospital ICU CCU Multi parameter Portable Patient Monitor
17" High resolution LCD display with Full-touch screen option
Unique multi-parameter module ensure seamless information workflow
Advanced modular design with power networking
High-End parameters including: BIS, CO, EtCO2, AG/Multi-gas, ICG, IBP, etc.
Powerful data review with 168 hours of graphic & numeric data review
Up to 12 channels of waveforms with various screen layout
Ultra quite design suitable for night-time operation
Main Unit
Mainunit Display: 17" Anti-glare TFT-LCD Display for M8
Touch Screen: Full-touch screen option for M8
13 Touch buttons standard for M8

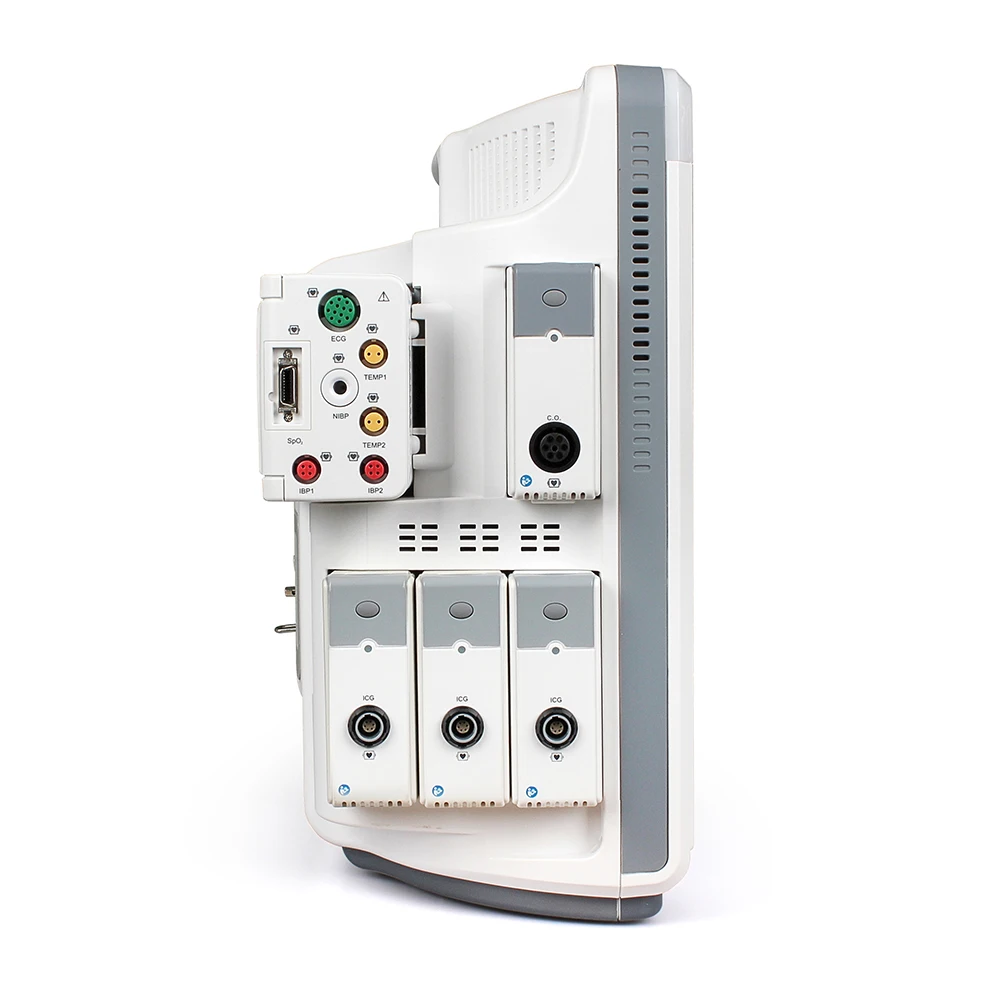

Other Option Modules
BIS Module, CO Module, AG/Multi-gas Module, ICG Module, IBP Module, TEMP Module,
Mainstream EtCO2 Module, Sidestream EtCO2 Module, Microstream EtCO2 Module,
Nellcor SpO2 Module, Masimo SpO2 Module
EMS/MMS Module List:
NO. RESP 2-TEMP NIBP SpO2 Nellcor SpO2 Masimo SpO2 3/5 lead ECG 12 lead ECG 2-IBP
EMS/MMS1 √ √ √ √ √ √
EMS/MMS2 √ √ √ √ √ √
EMS/MMS3 √ √ √ √ √
EMS/MMS4 √ √ √ √ √
EMS/MMS5 √ √ √ √ √ √
EMS/MMS6 √ √ √ √ √ √
EMS/MMS7 √ √ √ √ √
EMS/MMS8 √ √ √ √ √
EMS/MMS9 √ √ √ √ √ √
EMS/MMS10 √ √ √ √ √ √
EMS/MMS11 √ √ √ √ √
EMS/MMS12 √ √ √ √ √
Unique multi-parameter module ensure seamless information workflow
Advanced modular design with power networking
High-End parameters including: BIS, CO, EtCO2, AG/Multi-gas, ICG, IBP, etc.
Powerful data review with 168 hours of graphic & numeric data review
Up to 12 channels of waveforms with various screen layout
Ultra quite design suitable for night-time operation
Main Unit
Mainunit Display: 17" Anti-glare TFT-LCD Display for M8
Touch Screen: Full-touch screen option for M8
13 Touch buttons standard for M8
Other Option Modules
BIS Module, CO Module, AG/Multi-gas Module, ICG Module, IBP Module, TEMP Module,
Mainstream EtCO2 Module, Sidestream EtCO2 Module, Microstream EtCO2 Module,
Nellcor SpO2 Module, Masimo SpO2 Module
EMS/MMS Module List:
NO. RESP 2-TEMP NIBP SpO2 Nellcor SpO2 Masimo SpO2 3/5 lead ECG 12 lead ECG 2-IBP
EMS/MMS1 √ √ √ √ √ √
EMS/MMS2 √ √ √ √ √ √
EMS/MMS3 √ √ √ √ √
EMS/MMS4 √ √ √ √ √
EMS/MMS5 √ √ √ √ √ √
EMS/MMS6 √ √ √ √ √ √
EMS/MMS7 √ √ √ √ √
EMS/MMS8 √ √ √ √ √
EMS/MMS9 √ √ √ √ √ √
EMS/MMS10 √ √ √ √ √ √
EMS/MMS11 √ √ √ √ √
EMS/MMS12 √ √ √ √ √
You may like
Specification
Technical Specifications of AcuitSign M8
Size and Weight
-Size:434mm×389mm×206mm
-Weight:<=11kg
-Standard module slot:4
-Additional module rack Slot:1
Power supply
-Power Voltage: AC 100-240V 50/60Hz
-Power Input: <=150VA
-Input Current:1.7~0.8V
-Safety class: Category I
Display
-17" Color Anti-glare TFT-LCD
-Resolution:1280×1024 pixels
Battery
-Type: Rechargeable Lithium battery,11.1V/4.0AH
-Operating time under the normal use and full charge:>=60minutes
(2 batteries for 120 minutes)

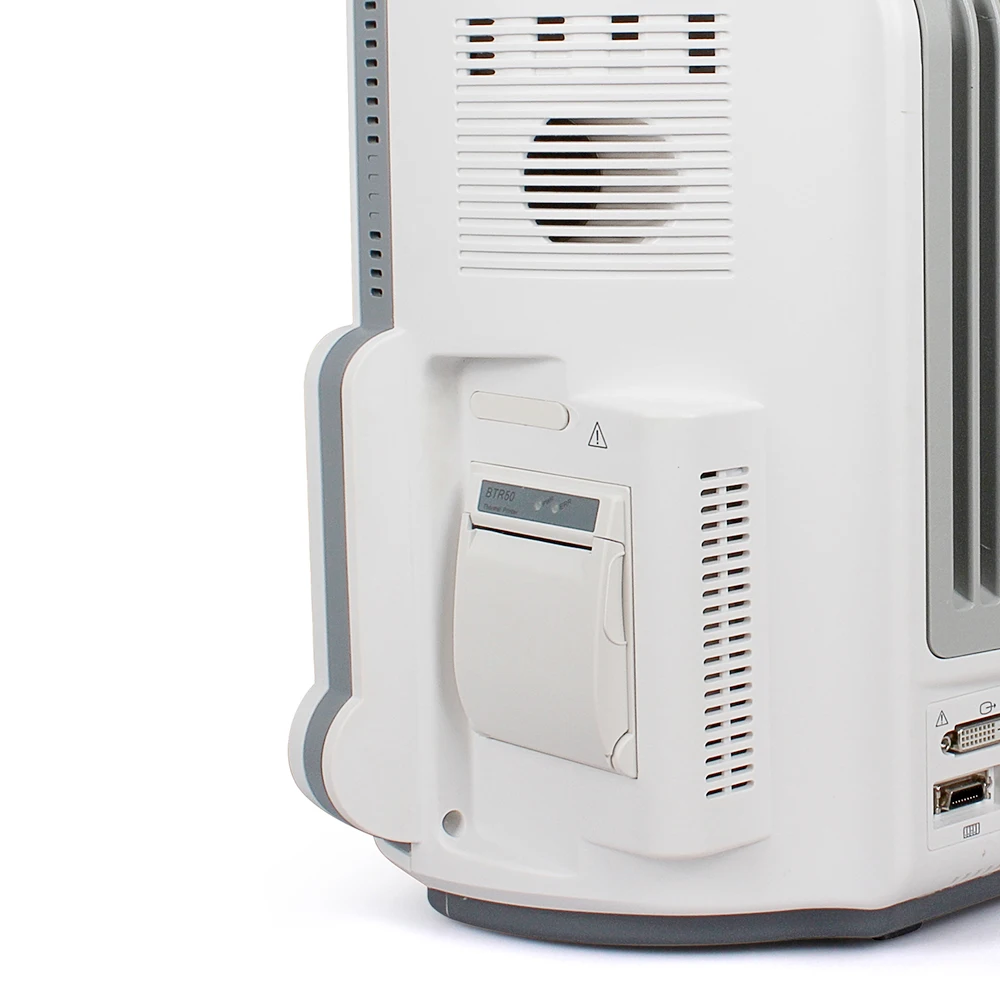

Recorder
-Method: Thermal dot array
-Paper width:50mm(1.97 in)
-Paper length:15m
-Paper Speed:12.5/25/50(mm/sec)
-Traces: Maximum 3 tracks
-Recording way: Real-time recording, Periodic recording, Alarm recording
Alarm
-Level: Low, medium and high
-Indication: Auditory and visual
-Patient Physiological Alarm Light color: Yellow & Red:
-Equipment Technical Alarm Light color: Blue
-Supports Pitch Tone and multi-level volume;
-Supports custom arrhythmia tone
Input device
-Touch button: standard config, support operation of shortcut menu.
-knob: standard config
-Mouse input: Support
-Keyboard input: Support

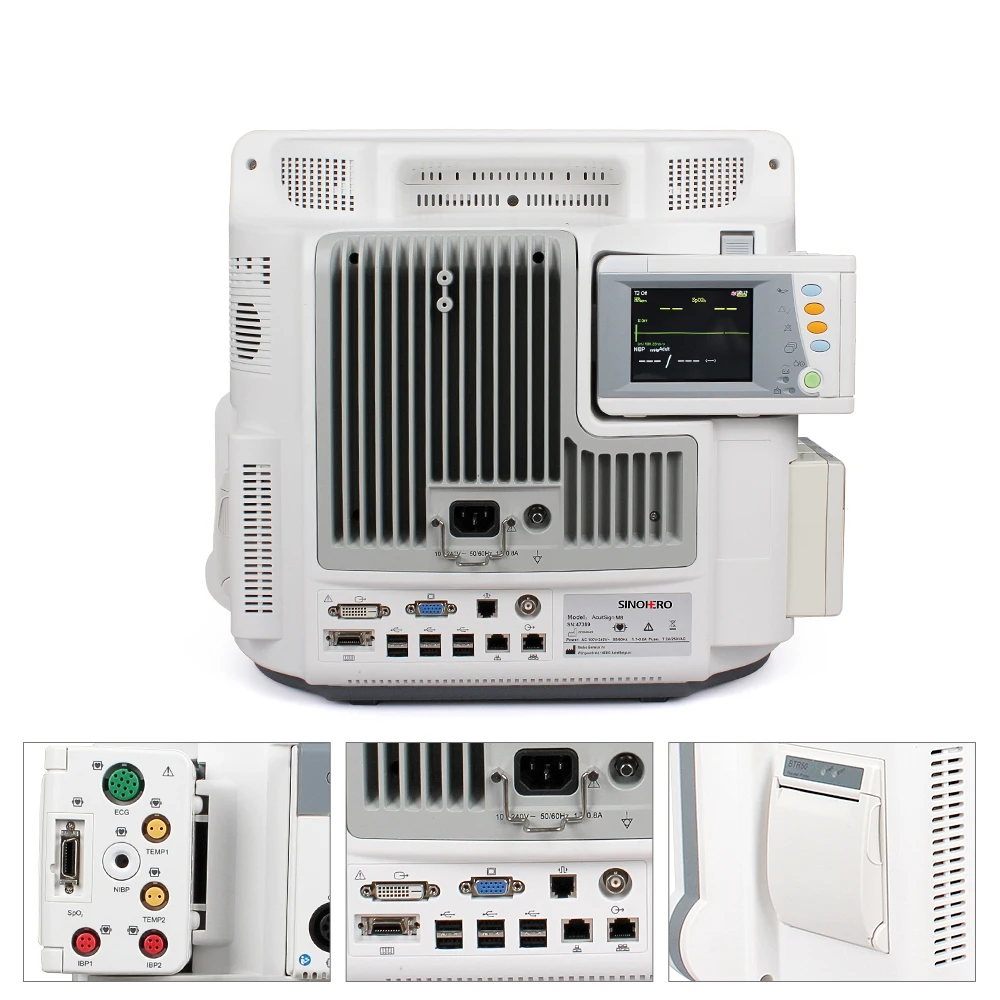

System Output & Extensible Interfaces
-Ethernet Network:2 Standard RJ45 socket
-Defibrillation Output:1 RJ11 socket
-Nurse Call:1 BNC socket
-Video Output:1 DVI port,1VGA port
-USB1.1 port:6
-Auxiliary Module Rack connector.1
-SD memory card:2G (standard config)
-Analog Output(ECG or IBP):Option
Trend & Reviewing
-Trend:168 hours
-NIBP measurement reviewing:1000 groups
-ARR event:128 groups of ARR event and the associated waveform
-Alarm events:128 groups of parameter alarm events and associated parameter
-Waveform at the alarm moment
Holographic waveform: The storage time depends on the stored waveforms and
The quantity of them.
Environment
-Operating temperature:0~+40℃
-Storage temperature:-20℃ to +50℃
-Operating humisity:15%to85%(non condensing)
-Storage humidity :10% to 93%(non condensing)
-Operating atmospheric pressure:860hPa to 1060hPa
-Storage atmospheric pressure:500hPa to 1060hPa
Safety:
-IEC60601-1 Approved, CE marking according to MDD93/42/EEC
ECG
-Lead Mode:3-leads ECG input
5-leads ECG input
12-leads ECG input
-Lead selection:Ⅰ,Ⅱ,Ⅲ
Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V-
Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1~V6(option)
-Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1),
20mm/mV(×2), 40mm/mV(×4),Auto
-RR: Monitor mode>=105dB
Surgery mode<=105dB
Diagnostic mode>=90dB
-Frequency response(-3d B):
Monitor mode 0.5~40Hz
Surgery mode 1~25Hz
Diagnostic mode 0.05~150Hz
-input impedance: >=5.0Mohm
-ECG signal range:±10.0mV
-Electrode offset potential: ±500mV
-Patient Leakage Current:<10uA
-Standardizing signal:1mV±5%
-Baseline recovery:<5s after Defibrillation.(Mon or Surg mode)
-Indication of electrode separation: Every electrode(exclusive of RL)
-Protection: Breakdown Voltage 4000AVC 50/60Hz;defibrillator proof
-Sweep speed:12.5mm/s,25mm/s,50mm/s
HR
-Range: Adult 10~300bpm
Pediatric & Neonate:10~350bpm
-Refreshing time:<=50 bpm Per2 pulses
50~120bpm per 4 pulses
>=120bpm per 6 pulses
-Resolution: 1bpm
-Accuracy: ±1% or ±1bpm,whichever is greater
ST segment
-Measurement range:-2.0mV~2.0mV
-Accuracy:-0.8mV~0.8mV: ±0.02mV or ±10% whichever is greater
Over ±0.8mV:unspecified
-Resolution:0.01mV
RESP
-Method: Thoracic impedance
-Lead Selected from:Ⅰ(RA-LA)orⅡ(RA-LL);Default:Ⅰ
-Gain: ×0.25, ×1, ×2, ×4
-Bandwidth:0.25Hz to 2.0Hz (-3dB)
-Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s
-Measurement Range:0~150 rpm
-Resolution: 1rpm
-Accuracy: ±2rpm or 2% whichever is greater
-Delay of Apnea Alarm:10s,15s,25s,30s,35s,40s,45s,50s,55s,60s
NIBP
-Way of measurement: Automatic oscillometry
-Range of measurement:
Adult: SYS 30~270mmHg
DIA 10~220mmHg
MAP 20~235mmHg
Child: SYS 30~235mmHg
DIA 10~220mmHg
MAP 20~225mmHg
Neonate:SYS 30~135mmHg
DIA 10~100mmHg
MAP 20~125mmHg
-Cuff pressure range:0~300mmHg
-Resolution:1mmHg
-Pressure Accuracy: Static:±2% or ±3mmHg,whichecer is greater
Clinical: ±5mmHg average error
Standard deviation:<=-8mmHg
-Unit: mmHg, kPa
-Measurement mode: Manual, Auto, STAT
-Intervals for AUTO measurement time:1,2,3,4,5,10,15,30,60,90 minutes;
2,4,8,12hours
-STAT mode cycle time: keep 5 minutes, at 5 seconds interval.
-Overpressure Protection: Hardware and software double protections
-Pulse rate range:40~240bpm
Standard SpO2(Digital)
-Measurement Range:0~100%
-Resolution:1%
-Accuracy: At70~100%,±2%
At0~69%,unspecified
PR
-Measurement Range:25~255bpm
-Resolution:1bpm
-Accuracy: ±1% or ±1bpm,whichever is greater
Nellcor-SpO2
-Measurement Range:0~100%
-Resolution:1%
-Accuracy:At70~100%:±2%(Adult)
At70~100%:±3%(Neonate)
At70~100%:±2%(Low Perfusion)
At0~69%,unspecified
PR
-Measurement Range:20~300bpm
-Resolution:1bpm
-Accuracy: 20bpm to 250bpm: ±3bpm
251bpm to 300bpm: unspecified
Masimo-SpO2
-Measurement Range:0% to 100%
-Resolution:1%
-Accuracy: 70% to 100%:±2%(adult/pediatric,non-motion conditions)
70% to 100%:±3%(neonate,non-motion conditions)
70% to 100%:±3%(motion conditions)
0% to 69%, unspecified
-Average time:2-4s,4-6s,8s,10s,12s,14s,16s
PR
-Measurement Range:25bpm to 240bpm
-Accuracy: ±3bpm(non-motion conditions)
±5bpm(motion conditions)
Size and Weight
-Size:434mm×389mm×206mm
-Weight:<=11kg
-Standard module slot:4
-Additional module rack Slot:1
Power supply
-Power Voltage: AC 100-240V 50/60Hz
-Power Input: <=150VA
-Input Current:1.7~0.8V
-Safety class: Category I
Display
-17" Color Anti-glare TFT-LCD
-Resolution:1280×1024 pixels
Battery
-Type: Rechargeable Lithium battery,11.1V/4.0AH
-Operating time under the normal use and full charge:>=60minutes
(2 batteries for 120 minutes)
Recorder
-Method: Thermal dot array
-Paper width:50mm(1.97 in)
-Paper length:15m
-Paper Speed:12.5/25/50(mm/sec)
-Traces: Maximum 3 tracks
-Recording way: Real-time recording, Periodic recording, Alarm recording
Alarm
-Level: Low, medium and high
-Indication: Auditory and visual
-Patient Physiological Alarm Light color: Yellow & Red:
-Equipment Technical Alarm Light color: Blue
-Supports Pitch Tone and multi-level volume;
-Supports custom arrhythmia tone
Input device
-Touch button: standard config, support operation of shortcut menu.
-knob: standard config
-Mouse input: Support
-Keyboard input: Support
System Output & Extensible Interfaces
-Ethernet Network:2 Standard RJ45 socket
-Defibrillation Output:1 RJ11 socket
-Nurse Call:1 BNC socket
-Video Output:1 DVI port,1VGA port
-USB1.1 port:6
-Auxiliary Module Rack connector.1
-SD memory card:2G (standard config)
-Analog Output(ECG or IBP):Option
Trend & Reviewing
-Trend:168 hours
-NIBP measurement reviewing:1000 groups
-ARR event:128 groups of ARR event and the associated waveform
-Alarm events:128 groups of parameter alarm events and associated parameter
-Waveform at the alarm moment
Holographic waveform: The storage time depends on the stored waveforms and
The quantity of them.
Environment
-Operating temperature:0~+40℃
-Storage temperature:-20℃ to +50℃
-Operating humisity:15%to85%(non condensing)
-Storage humidity :10% to 93%(non condensing)
-Operating atmospheric pressure:860hPa to 1060hPa
-Storage atmospheric pressure:500hPa to 1060hPa
Safety:
-IEC60601-1 Approved, CE marking according to MDD93/42/EEC
ECG
-Lead Mode:3-leads ECG input
5-leads ECG input
12-leads ECG input
-Lead selection:Ⅰ,Ⅱ,Ⅲ
Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V-
Ⅰ,Ⅱ,Ⅲ, aVR,aVL,aVF,V1~V6(option)
-Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1),
20mm/mV(×2), 40mm/mV(×4),Auto
-RR: Monitor mode>=105dB
Surgery mode<=105dB
Diagnostic mode>=90dB
-Frequency response(-3d B):
Monitor mode 0.5~40Hz
Surgery mode 1~25Hz
Diagnostic mode 0.05~150Hz
-input impedance: >=5.0Mohm
-ECG signal range:±10.0mV
-Electrode offset potential: ±500mV
-Patient Leakage Current:<10uA
-Standardizing signal:1mV±5%
-Baseline recovery:<5s after Defibrillation.(Mon or Surg mode)
-Indication of electrode separation: Every electrode(exclusive of RL)
-Protection: Breakdown Voltage 4000AVC 50/60Hz;defibrillator proof
-Sweep speed:12.5mm/s,25mm/s,50mm/s
HR
-Range: Adult 10~300bpm
Pediatric & Neonate:10~350bpm
-Refreshing time:<=50 bpm Per2 pulses
50~120bpm per 4 pulses
>=120bpm per 6 pulses
-Resolution: 1bpm
-Accuracy: ±1% or ±1bpm,whichever is greater
ST segment
-Measurement range:-2.0mV~2.0mV
-Accuracy:-0.8mV~0.8mV: ±0.02mV or ±10% whichever is greater
Over ±0.8mV:unspecified
-Resolution:0.01mV
RESP
-Method: Thoracic impedance
-Lead Selected from:Ⅰ(RA-LA)orⅡ(RA-LL);Default:Ⅰ
-Gain: ×0.25, ×1, ×2, ×4
-Bandwidth:0.25Hz to 2.0Hz (-3dB)
-Sweep Speed: 6.25mm/s,12.5mm/s,25mm/s
-Measurement Range:0~150 rpm
-Resolution: 1rpm
-Accuracy: ±2rpm or 2% whichever is greater
-Delay of Apnea Alarm:10s,15s,25s,30s,35s,40s,45s,50s,55s,60s
NIBP
-Way of measurement: Automatic oscillometry
-Range of measurement:
Adult: SYS 30~270mmHg
DIA 10~220mmHg
MAP 20~235mmHg
Child: SYS 30~235mmHg
DIA 10~220mmHg
MAP 20~225mmHg
Neonate:SYS 30~135mmHg
DIA 10~100mmHg
MAP 20~125mmHg
-Cuff pressure range:0~300mmHg
-Resolution:1mmHg
-Pressure Accuracy: Static:±2% or ±3mmHg,whichecer is greater
Clinical: ±5mmHg average error
Standard deviation:<=-8mmHg
-Unit: mmHg, kPa
-Measurement mode: Manual, Auto, STAT
-Intervals for AUTO measurement time:1,2,3,4,5,10,15,30,60,90 minutes;
2,4,8,12hours
-STAT mode cycle time: keep 5 minutes, at 5 seconds interval.
-Overpressure Protection: Hardware and software double protections
-Pulse rate range:40~240bpm
Standard SpO2(Digital)
-Measurement Range:0~100%
-Resolution:1%
-Accuracy: At70~100%,±2%
At0~69%,unspecified
PR
-Measurement Range:25~255bpm
-Resolution:1bpm
-Accuracy: ±1% or ±1bpm,whichever is greater
Nellcor-SpO2
-Measurement Range:0~100%
-Resolution:1%
-Accuracy:At70~100%:±2%(Adult)
At70~100%:±3%(Neonate)
At70~100%:±2%(Low Perfusion)
At0~69%,unspecified
PR
-Measurement Range:20~300bpm
-Resolution:1bpm
-Accuracy: 20bpm to 250bpm: ±3bpm
251bpm to 300bpm: unspecified
Masimo-SpO2
-Measurement Range:0% to 100%
-Resolution:1%
-Accuracy: 70% to 100%:±2%(adult/pediatric,non-motion conditions)
70% to 100%:±3%(neonate,non-motion conditions)
70% to 100%:±3%(motion conditions)
0% to 69%, unspecified
-Average time:2-4s,4-6s,8s,10s,12s,14s,16s
PR
-Measurement Range:25bpm to 240bpm
-Accuracy: ±3bpm(non-motion conditions)
±5bpm(motion conditions)
Package&Delivery
Physical Identity:
Size and Weight
Product size: 43.4x38.9x20.6cm
Packing size: 63x43x56cm
Net weight: 14kg
Gross weight: 17kg
Standard module slot:4
Additional module rack Slot:1
Certification：
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Option of AcuitSign M8:
Module Optio:
12 types of EMS modules,
12 types of MMS modules,
Sidesteam CO2 module,
Microstream CO2 module,
Mainstream CO2 module,
AG module,IBP module,
Temp module,
Nellcor SpO2 module,
Masimo SpO2 module,
BIS module,CO module,
ICG module.
Size and Weight
Product size: 43.4x38.9x20.6cm
Packing size: 63x43x56cm
Net weight: 14kg
Gross weight: 17kg
Standard module slot:4
Additional module rack Slot:1
Certification：
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Option of AcuitSign M8:
Module Optio:
12 types of EMS modules,
12 types of MMS modules,
Sidesteam CO2 module,
Microstream CO2 module,
Mainstream CO2 module,
AG module,IBP module,
Temp module,
Nellcor SpO2 module,
Masimo SpO2 module,
BIS module,CO module,
ICG module.
Company Profile
Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are firmly committed to excellence of professional service, product quality and striving for maximal mutual win-win partnership.
Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market.
SINOHERO's excellent advantages for our valuable international distributors, including:
- To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability
- Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together
- Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind
- More new products will be in the market and available for our distributors in the following days
SINO-HERO business activities focus on product lines below:
1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward
2) Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe
3) ECG machine and its accessories
4) Infusion pump and Syringe Pump system
5) Obstetrical product: Fetal Doppler, Colposcope
6) Medical Imaging Systems: Color Ultrasound Scanner, Portable Ultrasound System
7) A wide range of compatible ultrasound probes and repairable ultrasound probes
Well come to join SINO-HERO big family and grow together!
Sino-Hero has and will continue to put on a great deal of efforts to work towards utmost success mutually with our partners. We are customer-centric and dedicated and want to and work towards being right choice to our worldwide distributors. With years of endless efforts, we have enjoyed growth and continuous success in the international market.
SINOHERO's excellent advantages for our valuable international distributors, including:
- To offer the most competitive offer to our distributors, not only the best price in the market, but also the most cost-effective products with high quality and reliability
- Excellent distribution opportunity to all major markets now is available, we are committed to give our valuable distributors maximal market protection and grow together
- Most responsive and efficient service support to your distributors, we offer extended warranty policy on our products, you will enjoy peace of mind
- More new products will be in the market and available for our distributors in the following days
SINO-HERO business activities focus on product lines below:
1) A wide range of versatile Patient Monitors suitable for all hospital setting, including OR, ER, Recovery Room, General Patient ward
2) Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe
3) ECG machine and its accessories
4) Infusion pump and Syringe Pump system
5) Obstetrical product: Fetal Doppler, Colposcope
6) Medical Imaging Systems: Color Ultrasound Scanner, Portable Ultrasound System
7) A wide range of compatible ultrasound probes and repairable ultrasound probes
Well come to join SINO-HERO big family and grow together!
Certifications
FAQ
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
