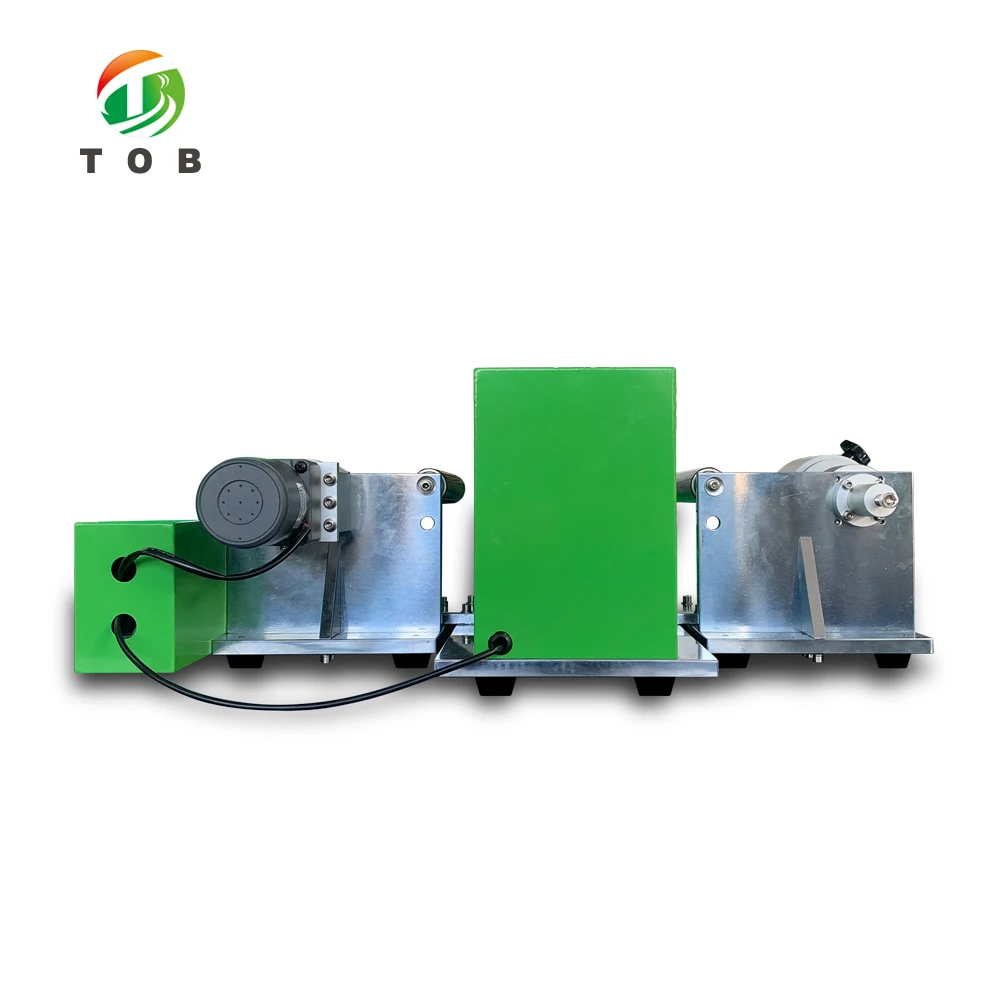

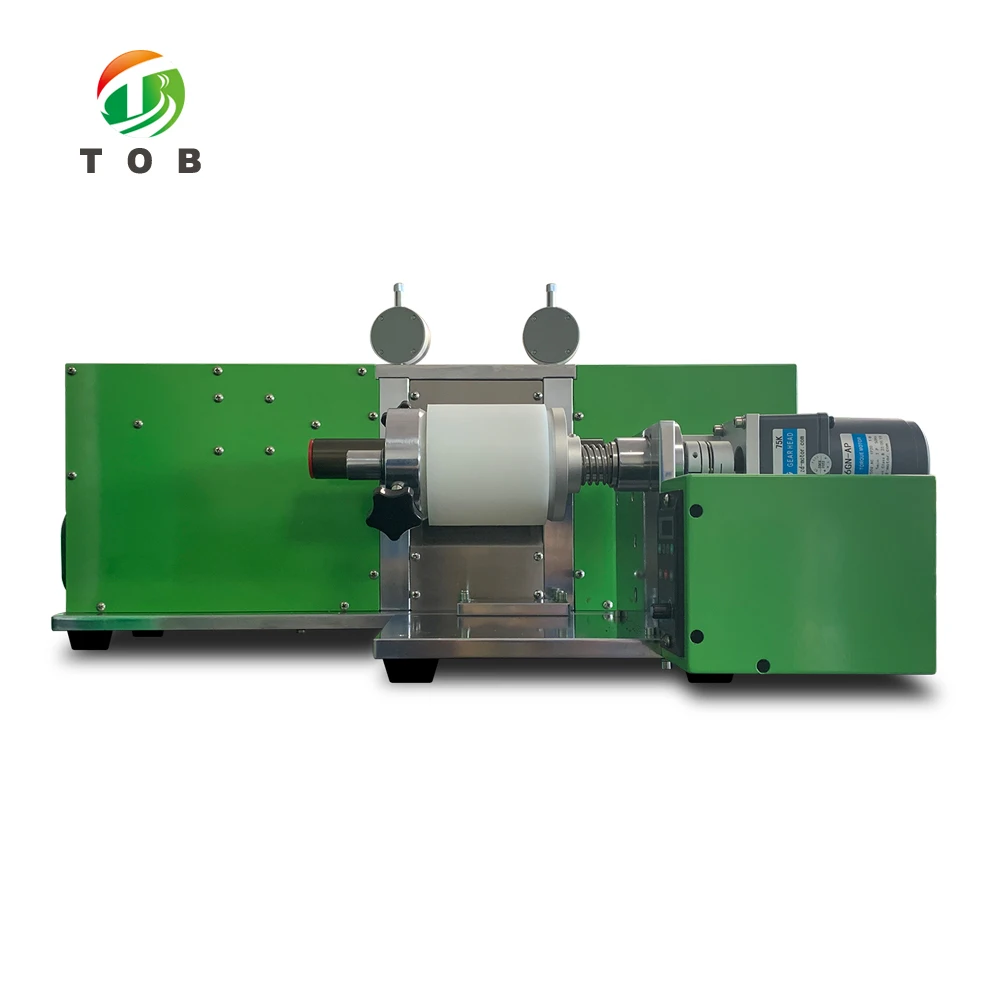

Laboratory Used Small Lithium Cell Battery Electrode Roll To Roll Heat Roller Press Calender Machine
- Category: >>>
- Supplier: Xiamen Tob New Energy Technology Co. Ltd.
Share on (1601040984958):
Product Overview
Description
Laboratory Used Small Lithium Cell Battery Electrode Roll To Roll Heat Roller Press Calender Machine
Products Description

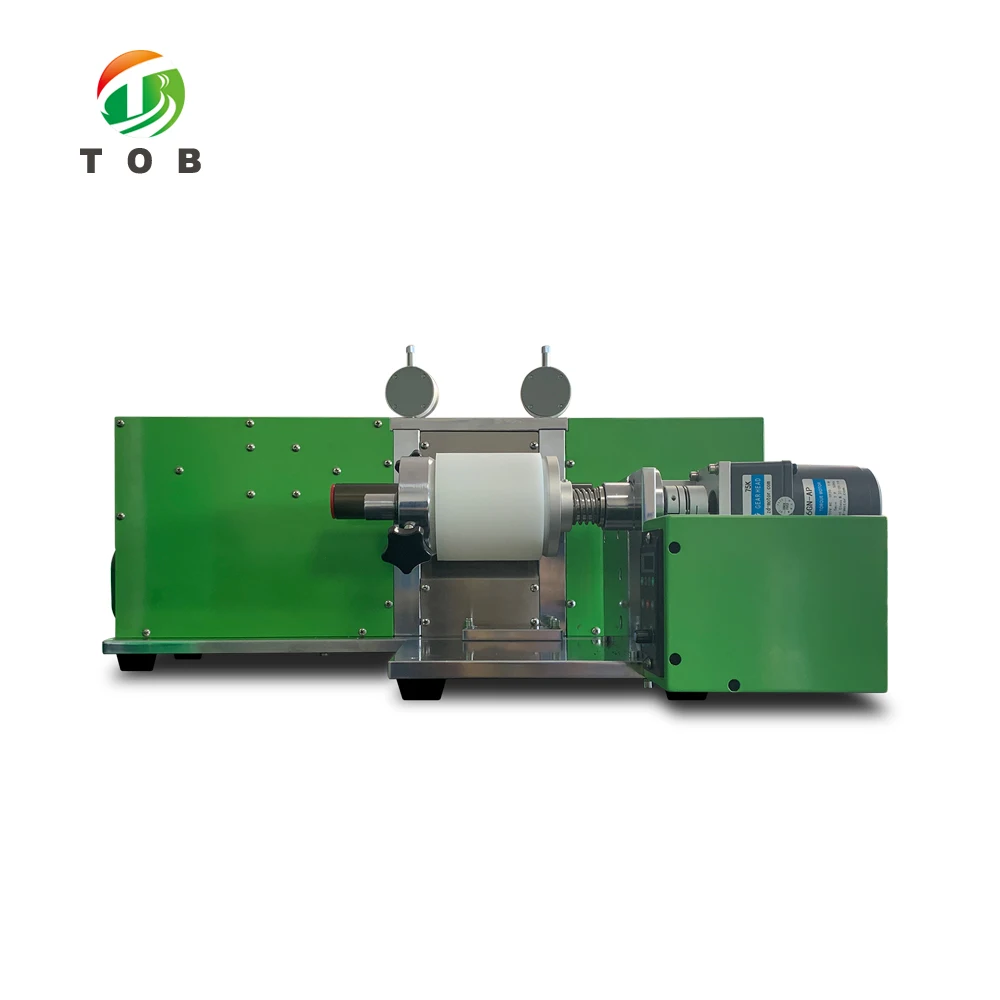

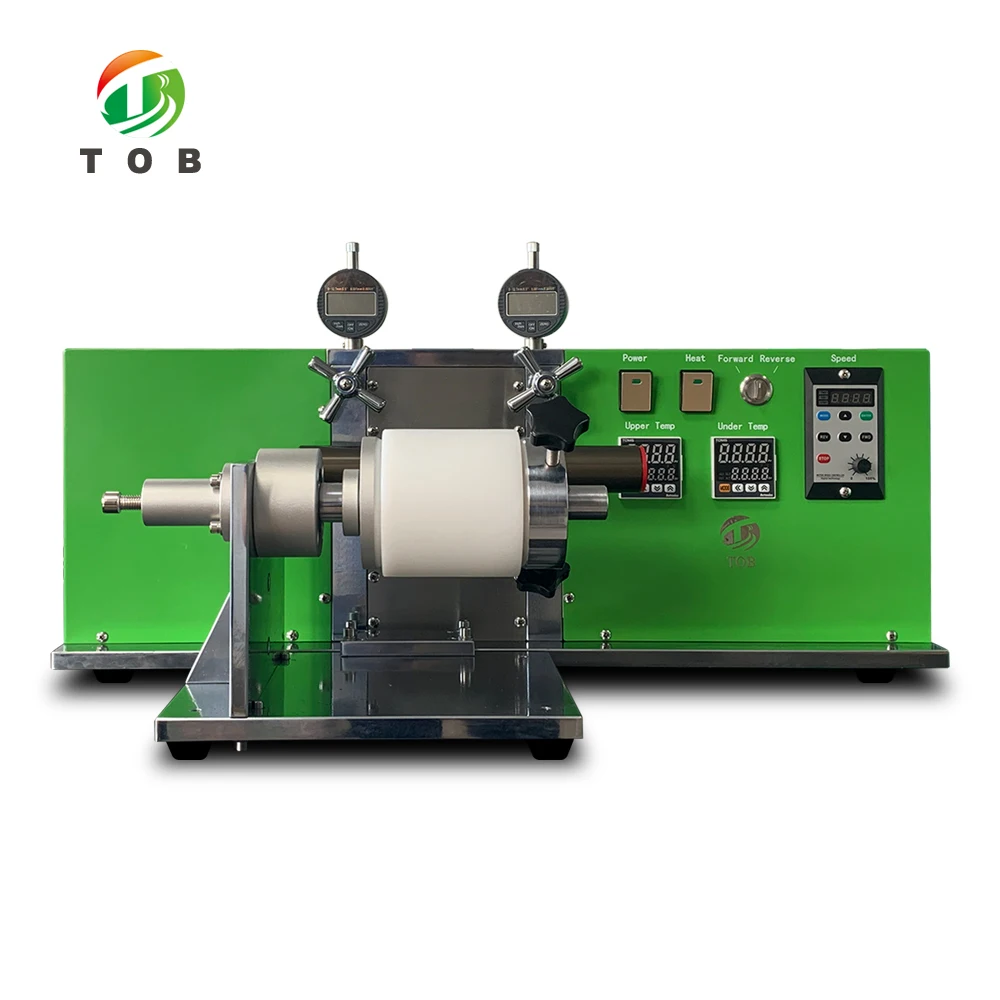

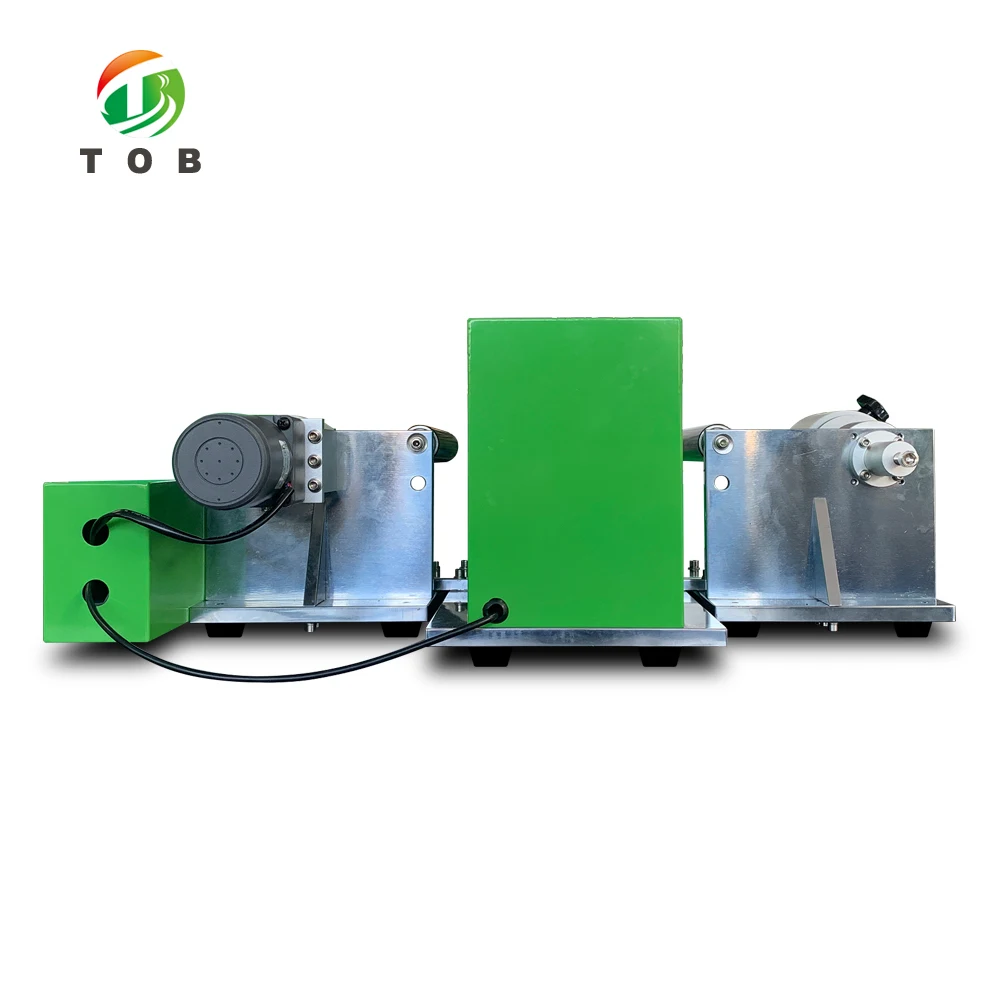

1 TOB-JS100L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C
Model | Roll to Roll Hot Roller Press Machine TOB-JS100L-LX |
Source voltage | AC 110V-220V Customized, 50HZ |
Power | 800W |
Warranty | One Year limited warranty with lifetime support |
Roller temperature | RT-130℃, adjustable and digital display |
Roller diameter | 2 - Φ96mm |
Roller surface hardness | HRC62 |
Roller finish degree | >0.8 |
Rolling press thickness | 0-2mm, Adjustable |
Working speed | 0-40mm/s |
Rolling press width | Max 100mm(Customizable) |
Dimension(L*W*H) | 800*700*350mm |
Weight | About 86kg |
Package size | 940*840*460mm |
Package weight | About 115kg |
Details Images

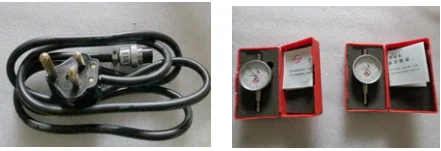

1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs

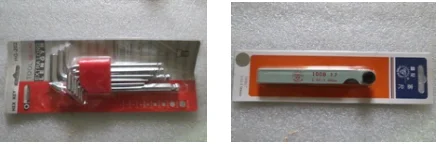

3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs
Frequently Asked Questions
Q1: Are you factory or trading company?
A1: We are an integrated company of industry and trade.
Q2: How to order?
A2: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.
We need to know the fllowing information for your order before sending your PI.
(1)Product information-quantiy, speification(size, material, technical support and packing requirements etc.)
(2)Delivery time required.
(3)Shipping information(company name, street address, phone number, destination sea port.)
(4)Forwarder's contact details.
Q3: How to control quality?
A3: A, All the raw materials by lQC (Incoming Quality Control) before launch whole process into the process after the screening.
B, Process each link in the process of IPQC(Input Process Quality Contollpatrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q4: About price
A4: The price is negotiable. It can be changed according to your quantity or package. when you are making an inquiry, please let us know the quantity you want.
Q5: How long do you need to prepare the item?
A5: 1-3 days for sample orders. 10-30 days for mass production orders (based on different quantities).
