Product Overview
Description

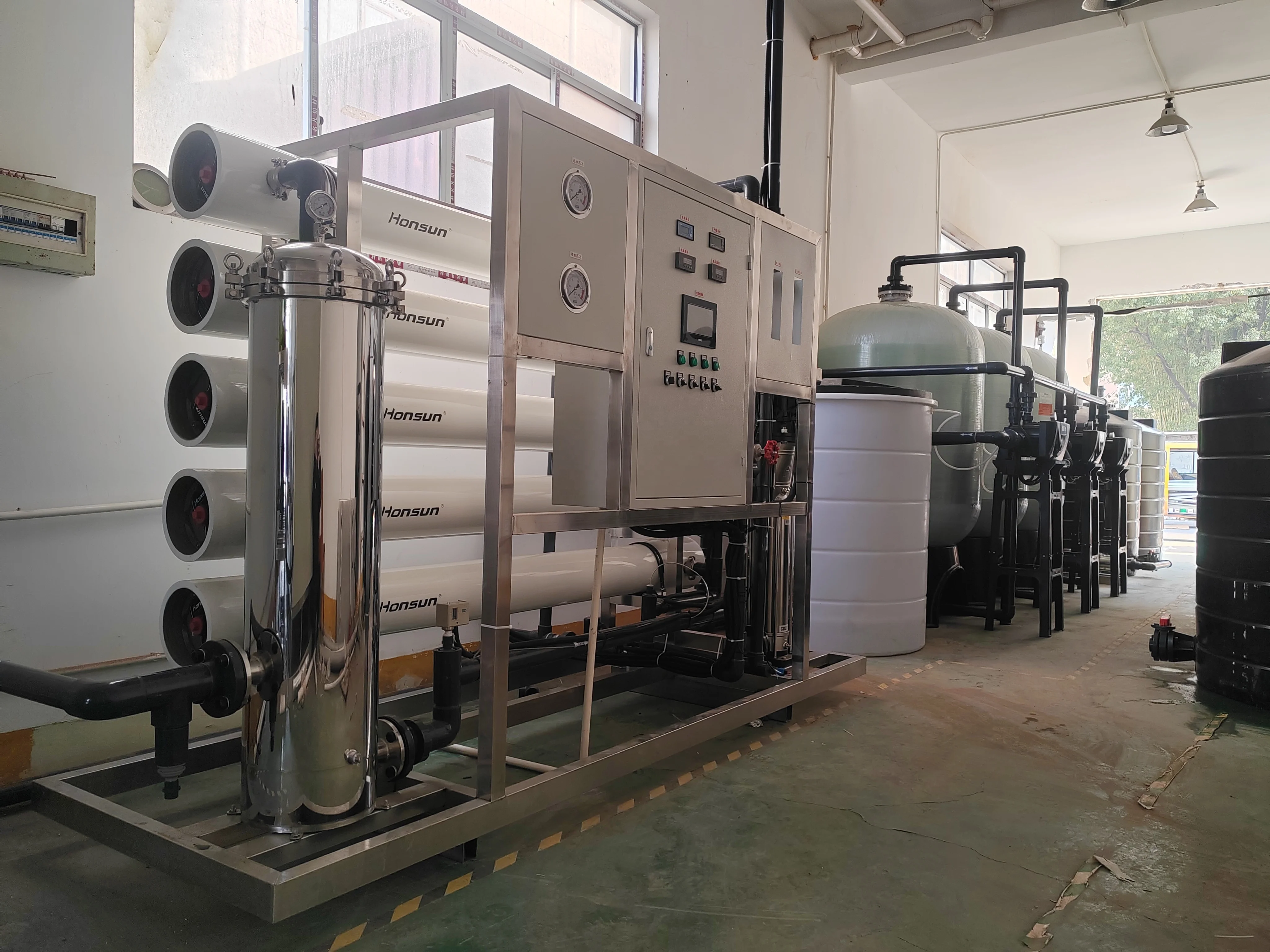

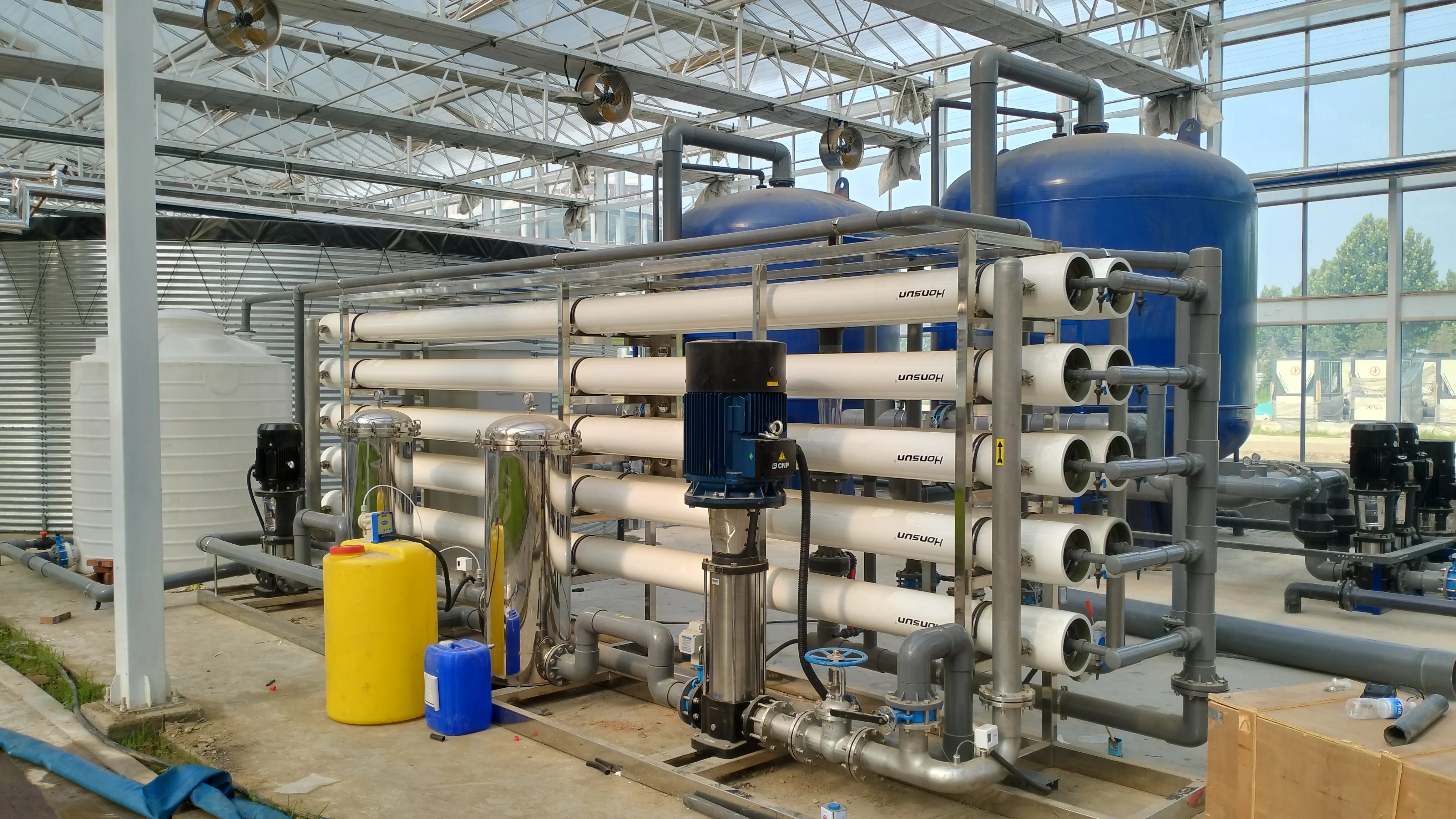

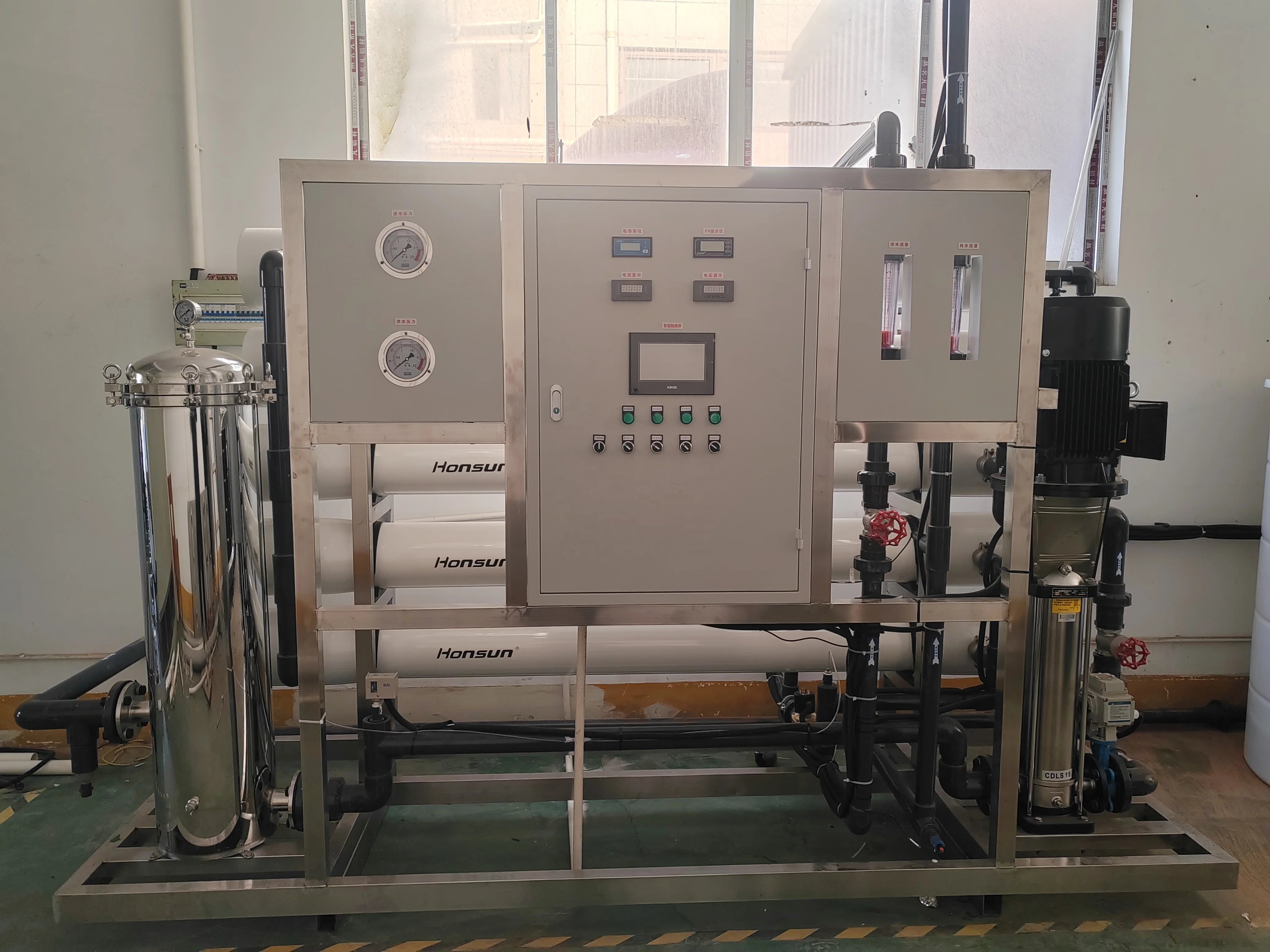

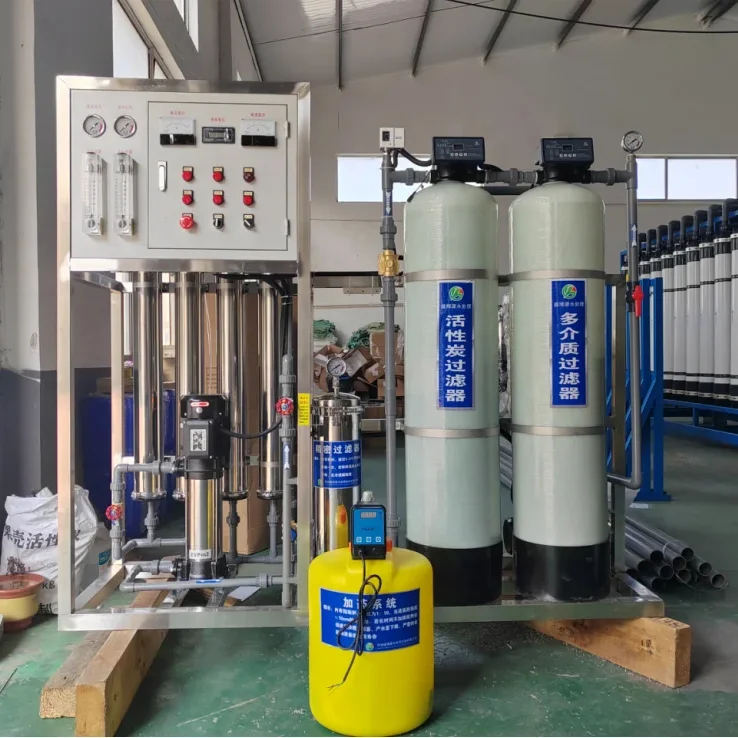

Brief introduction of reverse osmosis system:
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as
purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of
removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart:
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high
pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank.
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as
purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of
removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart:
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high
pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank.
NO. | Name | Function | Remark | |
1 | Raw water tank | Store water ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. | |
2 | Raw water pump or called booster pump | Provide necessary pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps | |

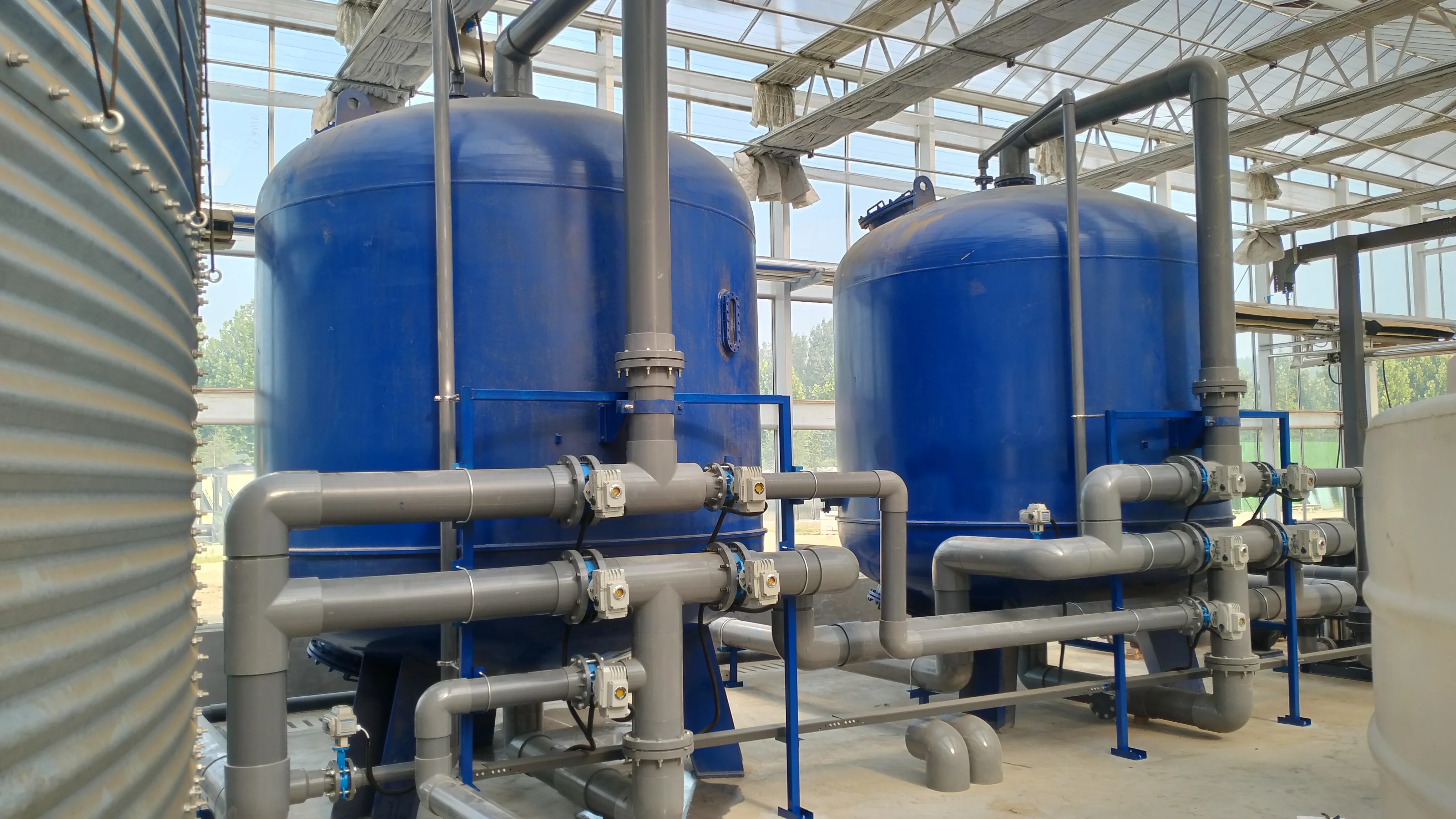

3 | Mechanical filter /quartz sand filter /sand filter | Fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | ||
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | ||
5 | Security filter /pp filter / sediment filter | Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5 micron | ||
6 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional | |
7 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. | RO membranes USA Filmtec Dow,VONTRON |
Brief introduction of reverse osmosis system:
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as
purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of
removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart:
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high
pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank.
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as
purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of
removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart:
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - high
pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank.
NO. | Name | Function | Remark | |
1 | Raw water tank | Store water ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. | |
2 | Raw water pump or called booster pump | Provide necessary pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps | |
3 | Mechanical filter /quartz sand filter /sand filter | Fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | ||
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | ||
5 | Security filter /pp filter / sediment filter | Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5 micron | ||
6 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional | |
7 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. | RO membranes USA Filmtec Dow,VONTRON |
