Product Overview

Description

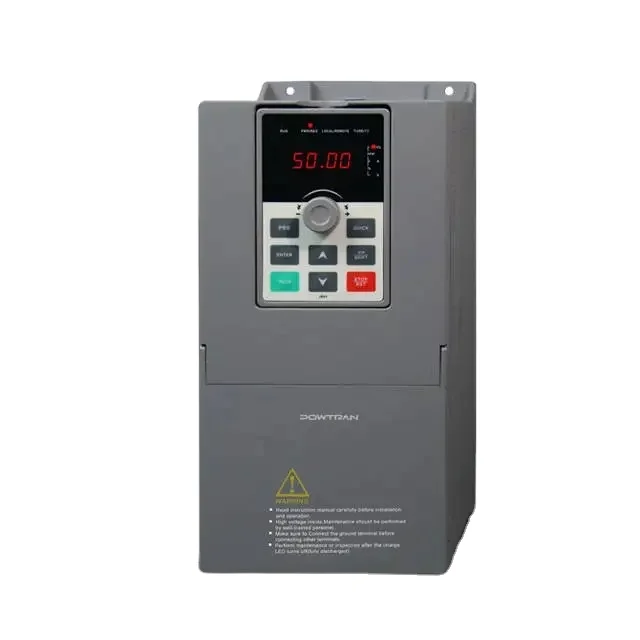

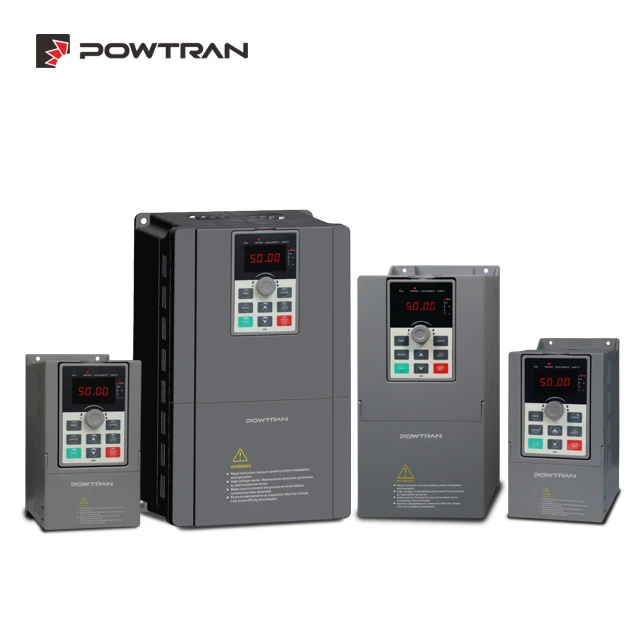

PI500A Basic Frequency Inverter(0.4-22kW)

Small power, small volume and simple speed regulation
Application: textile, paper making, wire drawing, winding, CNC, packaging, food, fan, water pump and other industries as well as small automatic machinery


Brand
POWTRAN
Name
Frequency Inverter
Model
PI500A
Power
0.4-22kW
Voltage
1PH 220V
3PH 220V/380V/480V
Input frequency
50/60Hz


Specifications




Model
Power(kW)
Output current(A)
Dimensions(mm)
  H          H1          W          D            D1
N.W(kg)
PI500A 0R4G1
0.4
2.5

163        185        90       146        154

1.6
PI500A 0R7G1
0.75
4
PI500A 1R5G1
1.5
7
163        185        90       166        174
1.8
PI500A 2R2G2
2.2
10
163        185        90       166        174
1.8
PI500A 004G2
4
16


238        260       120      182        190


2.7
PI500A 5R5G2
5.5
25
PI500A 7R5G3
7.5
17
PI500A 011G3
11
25
PI500A 015G3
15
32

290           /         170       193        201

5.8
PI500A 022G3
22
45
PI500A 004G4
4
8
163       185         90        166        174
1.8
PI500A 7R5G4
7.5
15
238       260       120       182        190
2.7
PI500A 011G4
11
22
PI500A 018G4
18.5
34
290          /         170        193        201
5.8
etc.


Function
Specification
Input voltage
AC 1PH 220V(-15%)~240(+10%)
AC 3PH 220V(-15%)~240(+10%)
AC 3PH 380V(-15%)~440(+10%)
AC 3PH 480V(-10%)~480(+10%)
Input frequency
50/60Hz
Control system
High performance vector control inverter based on DSP
Control method
V/F control, vector control W/O PG
Automatic torque boost function
Realize low frequency (1Hz) and large output control under the V/F control mode
Acceleration/deceleration control
Straight or S-curve mode. Four times available and time range is 0.0 to 6500.0s
Overload capability
G type: rated current 150%-1 minute, rated current 180%- 2 seconds
F type: rated current 120%-1 minute, rated current 150%- 2 seconds
Maximum frequency
Vector control: 0 to 300Hz; V/F control: 0 to 3200Hz
Carrier frequency
0.5 to 16kHz; automatically adjust carrier frequency according to the load characteristics
Torque boost
Automatic torque boost; manual torque boost (0.1% to 30.0%)
DC braking
DC braking frequency: 0.0Hz to max.frequency, braking time: 0.0 to 100.0 seconds, braking current value: 0.0%~100.0%
Jogging control
Jog frequency range: 0.00Hz to max. frequency;Jog acceleration/deceleration time: 0.0 to 6500.0s
Built-in PID
Easy to realize to closed-loop control system for the process control
Common DC bus function
Multiple inverters can use a common DC bus
PID feedback signal
Including DC(0 to10V), DC(0 to 20mA)
Inverter protection
Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, losting-phase protection(optional), external fault, communication error, PID feedback signal abnormalities, PG failure and short circuit to ground protection
etc.


Certificates

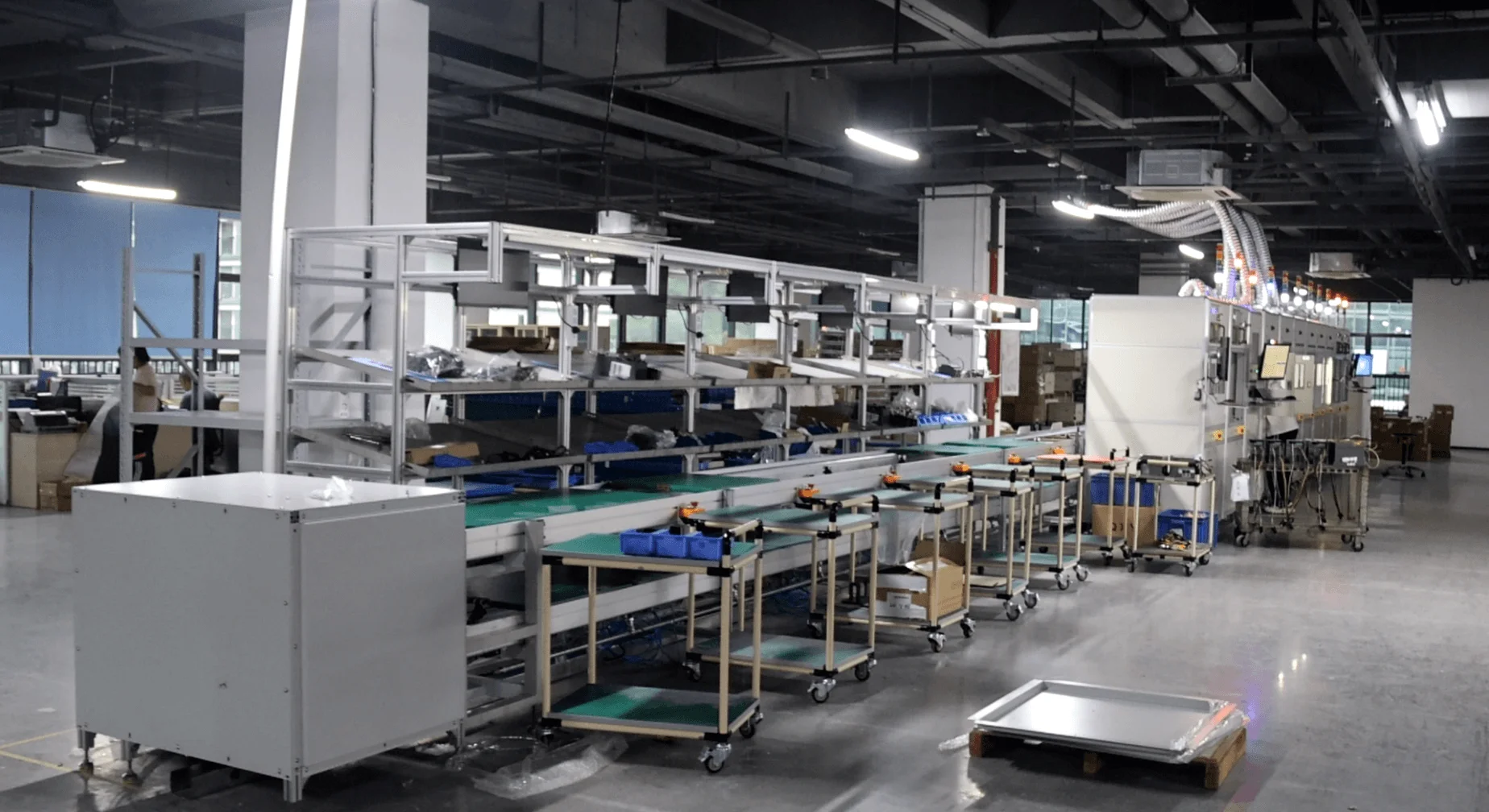

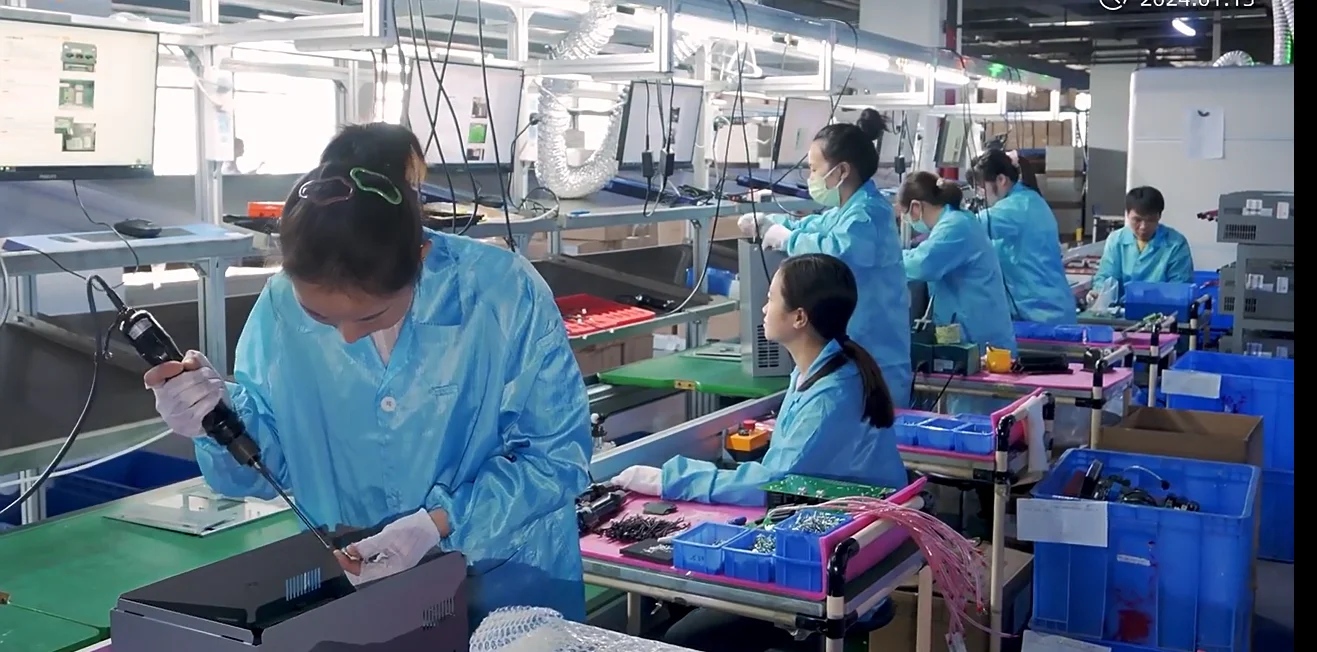

Workshop

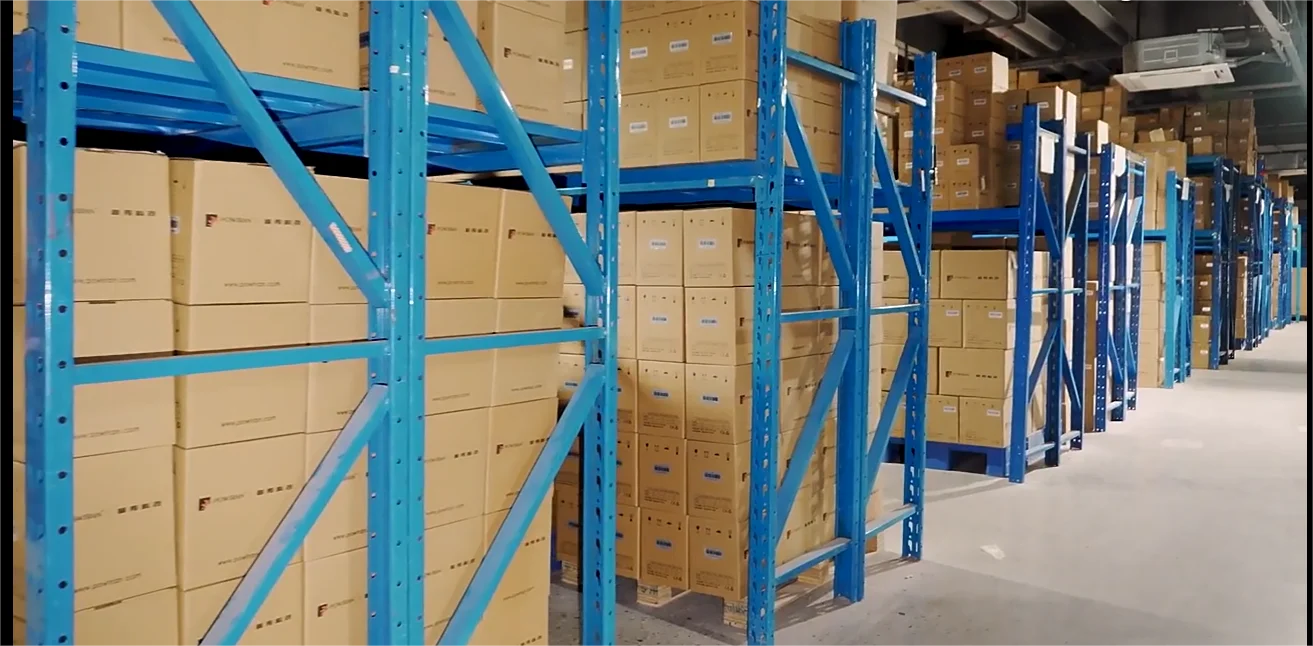

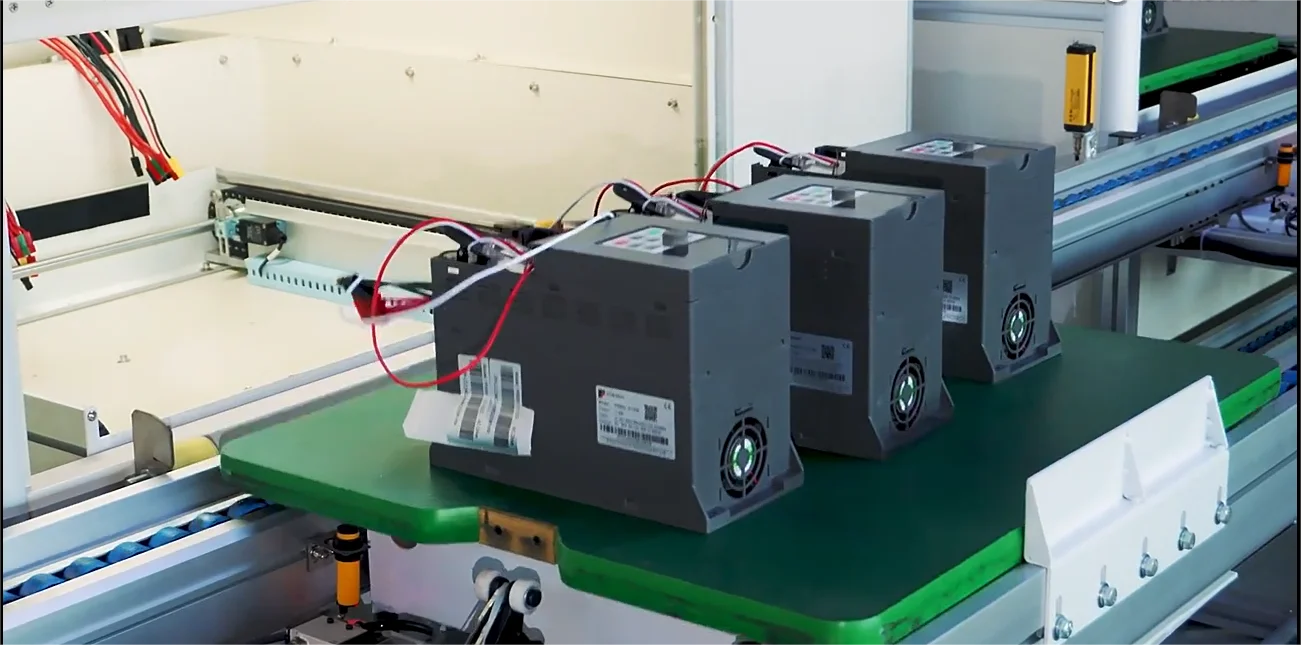

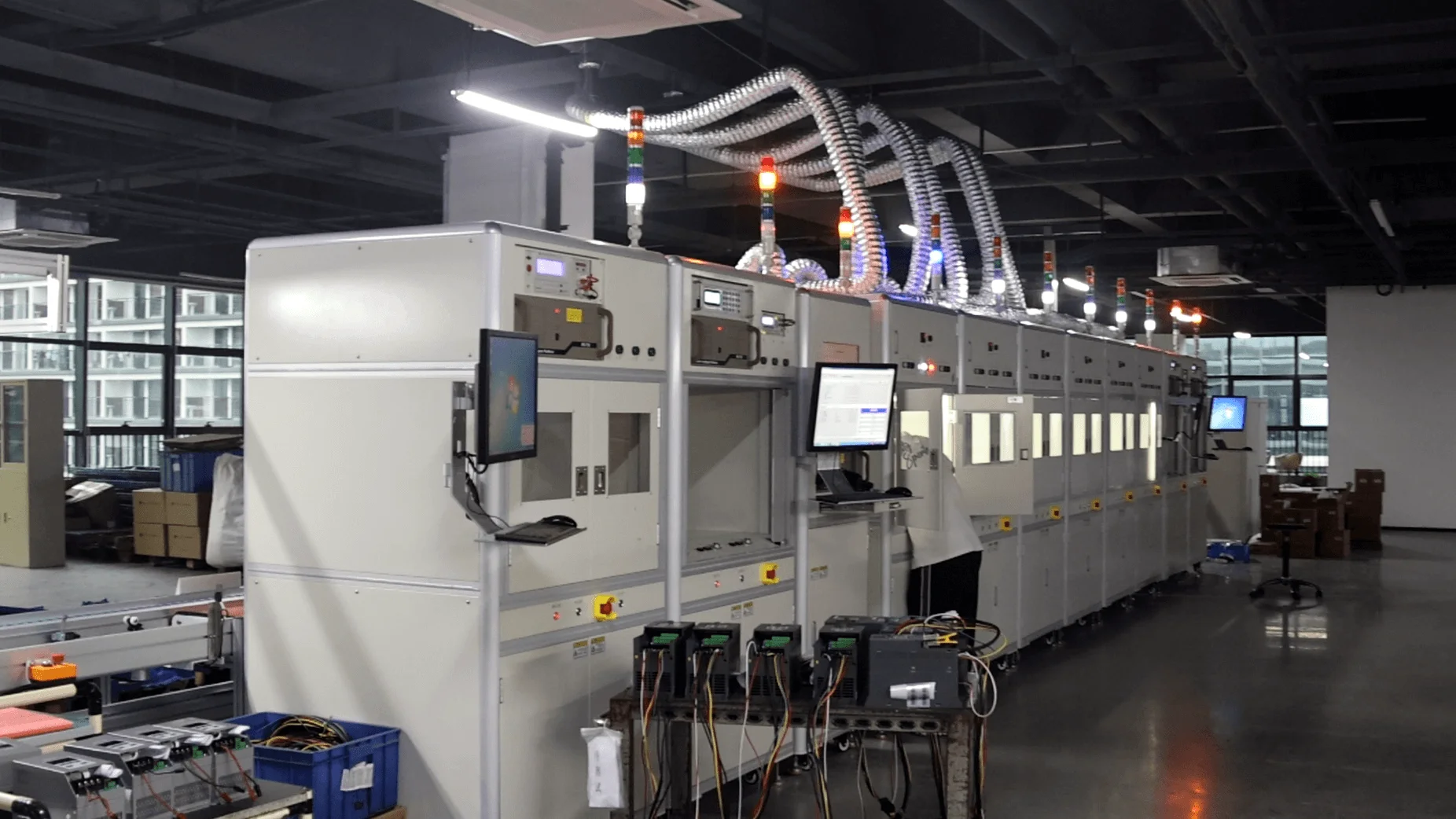

3 production lines; 40-50 factory workers; PCB processing; quality testing; packaging; warehouse, etc.

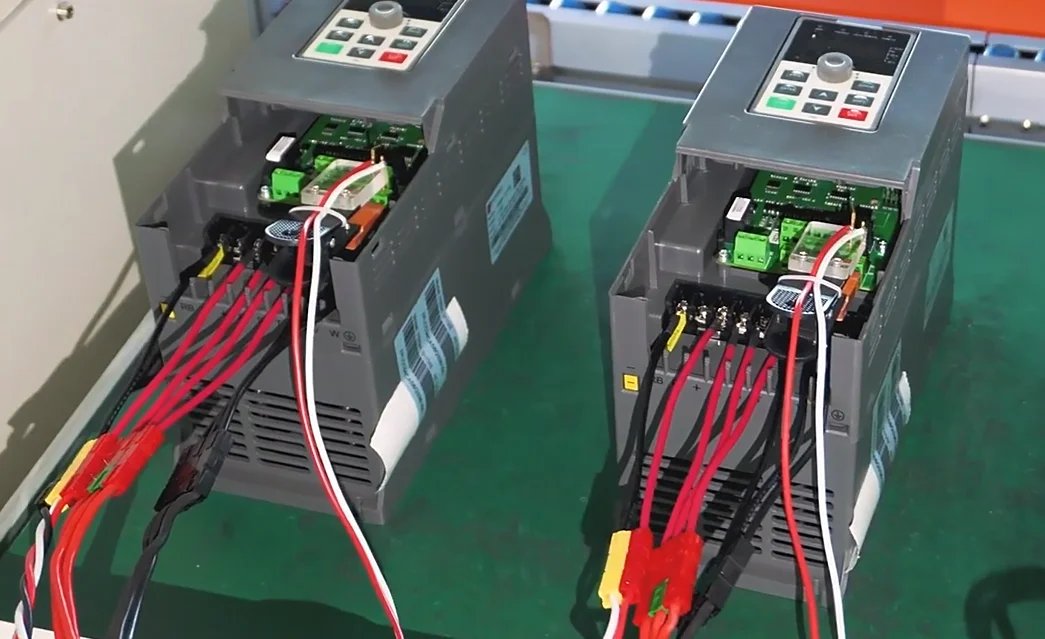

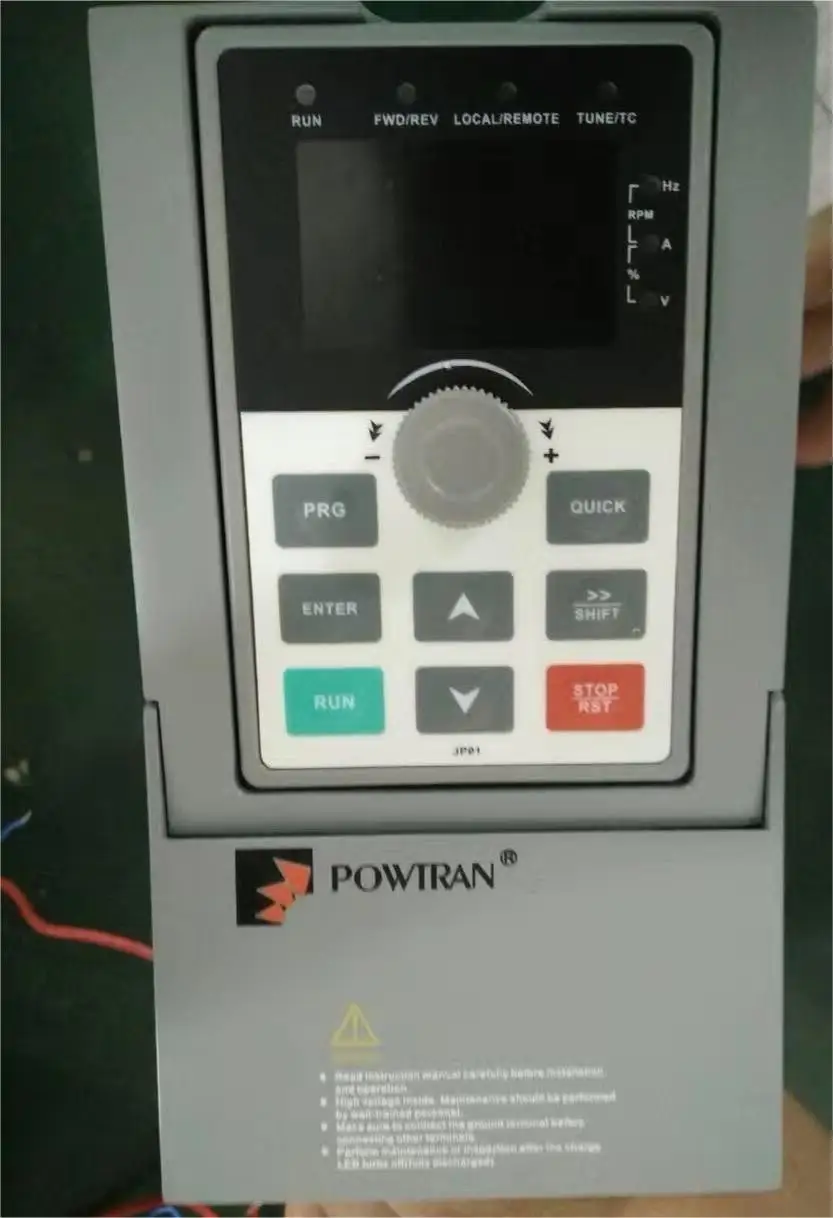

Customer Photos




Why Choose Us


1984 2 30 7
since 1984 Top-10 2 factories & 2 R&D centers 30 branch offices 7 working days fast
famous brand in China delivery

24H 16 25000
24H online-after sales service 16 continuous years on Hannover Messe 25000pcs capacity per year

200000 1000000
provide service for 200, 000 customers 1 million pcs products sold worldwide


FAQs


Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer for frequency inverters with nearly 40 years experience.

Q2: What are the payment terms?
A2: T/T, Western union, L/C.

Q3: What is the delivery time?
A3: It depends on the quantity and models. It usually takes about 3-15 days for production.

Q4: What are the trade terms?
A4: EXW, FOB, CFR, CIF, DAP.

Q5: How long is the warranty period?
A5: 18 months from date of shipment.

Q6: Can I get some samples?
A6: Yes. The samples will be delivered in 2-3 days after receiving the sample charge.

Q7: Whether you could make our brand on your products?
A7: Yes. We can print your logo on both the products and the packages if you can meet our MOQ.
