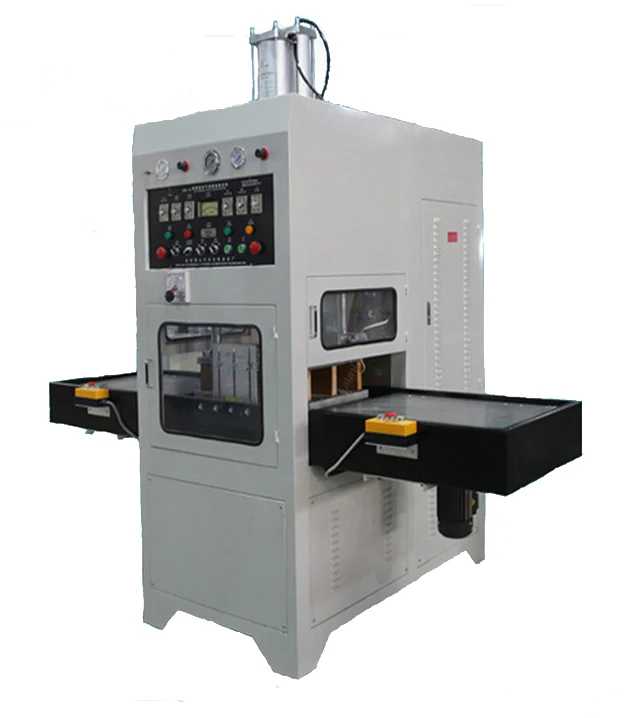

radio frequency rf welding machines,Hot Water Bag Welding Machine,Single head Shoes fabric high frequency logo making machine

Share on (1601041281024):


Price:$8,000.00 - $12,000.00

Quantity:


Product Overview

Description


Product Description

rf welding machines for sale is main for to do PVC blister sealing pacakge ,blister with cardboard ,also PET with PET package.

High frequency (HF) welding method (otherwise known as radio frequency <RF> ) is usually often applied whenever PVC and PU products have to be welded. Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.

High frequency welding is useful for sealing and welding plastics such as:


polyvinyl chloride (PVC),

thermoplastic polyurethanes (TPU),


ethylene-vinyl acetate (EVA),

nylons (polyamide PA),

some ABS resins,

special grades of polyolefins (PP, PE, PET).

\t
                      SPECIFICATION FOR HIGH FREQUENCY PLASTIC WELDING MACHINE
\t
Model
\t
HGP10-K2
\t
HF power
\t
10KW
\t
Frequency
\t
27.12MHz
\t
Usage power
\t
3P 380V 50/60Hz or Customize
\t
Rectifier
\t
Silicon Diode
\t
Oscillation tube
\t
e3069
\t
Max pressure
\t
13t
\t
Pressure mode
\t
vacuum oil
\t
Max distance of electrodes
\t
200mm
\t
Stroke of electrodes
\t
100-150mm
\t
Upper polar plate
\t
400*600mm
\t
Push pedal
\t
550*690mm
\t
Temperature range
\t
0-300 degree Adjustable
\t
Welding time
\t
0.01-9.99 seconds Adjustable
\t
Productsion
\t
Equal or less 5000 times/8H
\t
Net weight
\t
1100kg
\t
Gross weight
\t
1200kg
\t
Packing size of machine
\t
2500*1800*1900mm
Main Features

1) Simple structure in C type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4)with high anti-jamming system ,protect your mould.

Detailed Images

Machine Parts

Name: Magnatic valve

Brand: Airtac

Original: Taiwan

Adopting Airtac air system ,make sure stable machine pressure.

Main Features

Name: Spark system
Brand:5557
Original: USA or China
5557 system could make sure better protect your die or machine.

Machine Parts

Name:all machine parts could be choosed and bought for customer.easily get .



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Packing & Delivery
\t
Packaging
\t
Size
\t
2000 (L) *1900 (W) * 2300 (D)
\t
Weight
\t
1200kg
\t



Packaging Details
\t
The normal package is wooden box or steel frame box (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
