THR VL01 Hospital negatoscope x ray view lamp ultra thin film viewer for sale
- Category: >>>
- Supplier: Suzhou Thriving Medical Equipment Corp.
Share on (1601041319496):
Product Overview
Description
Product Description

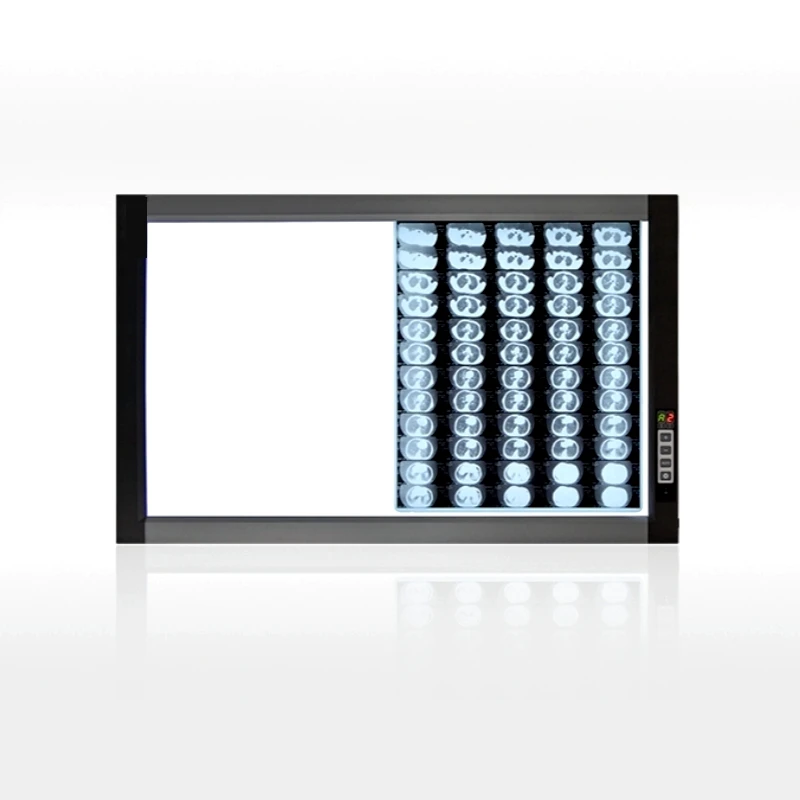

Hospital Side-lit LED Film Viewer
Model：THR-VL01
FEATURES:
1.High efficiency and durable LED light source, the average service life is more than 50000h2.Slim appearance, aviation aluminium profile + ABS structure design, which is good for heat dissipation

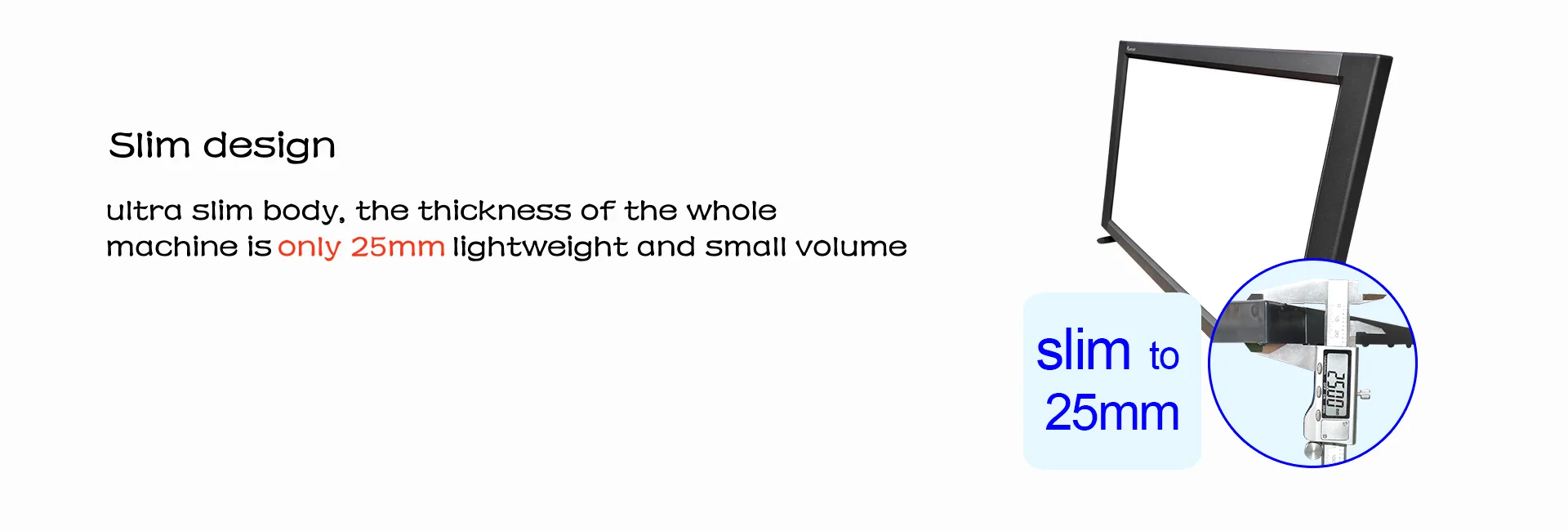

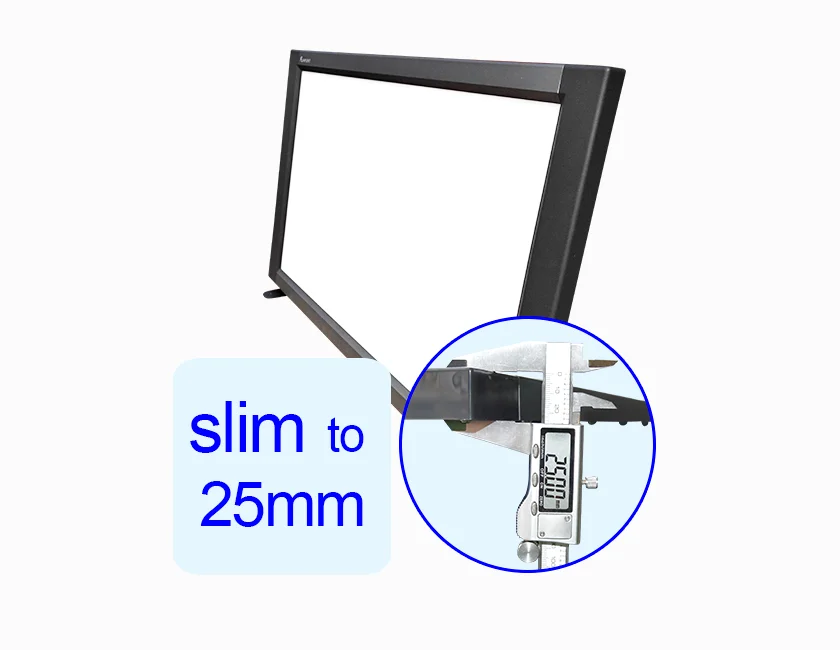

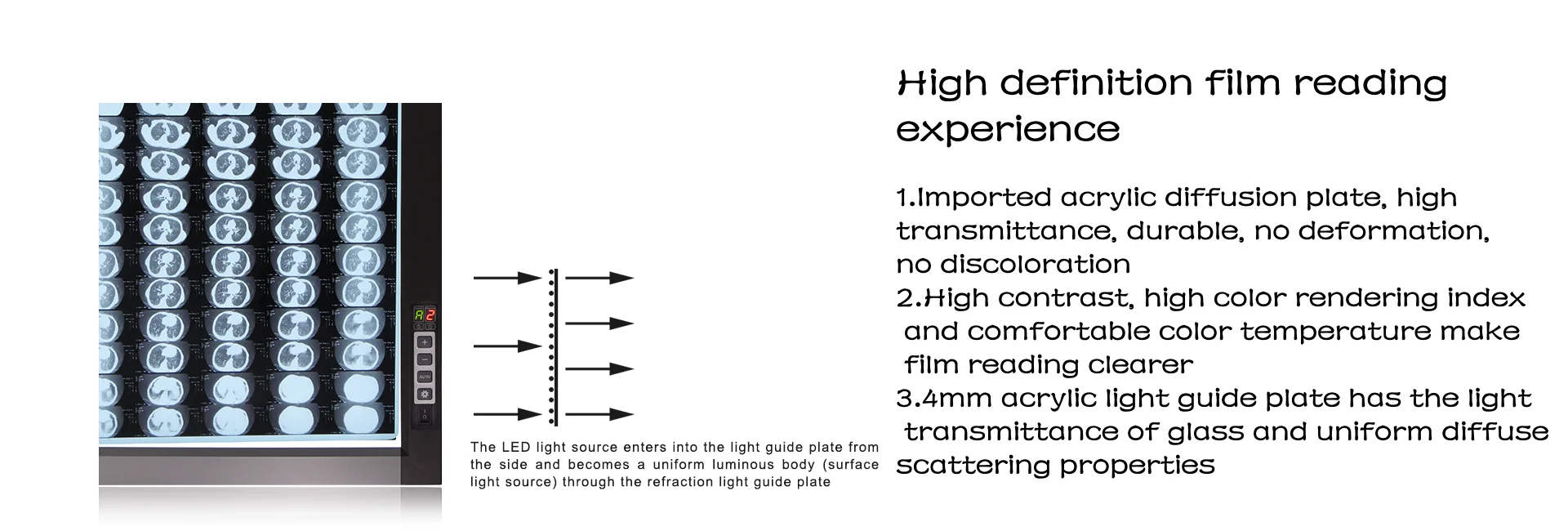

3.Side-light+ light guidance plate technology, optimize the structure and the whole thickness is only 25mm

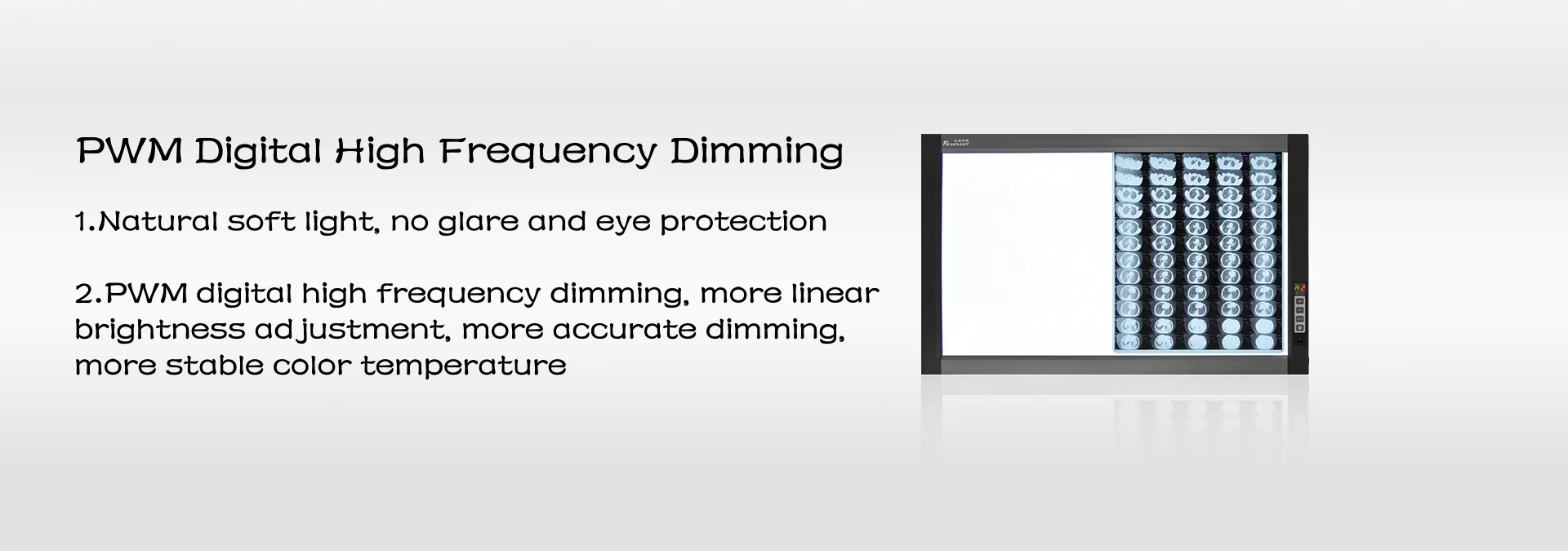

4.PWM digital high frequency dimming technology, dimming color temperature more stable, natural soft light does not hurt the eyes

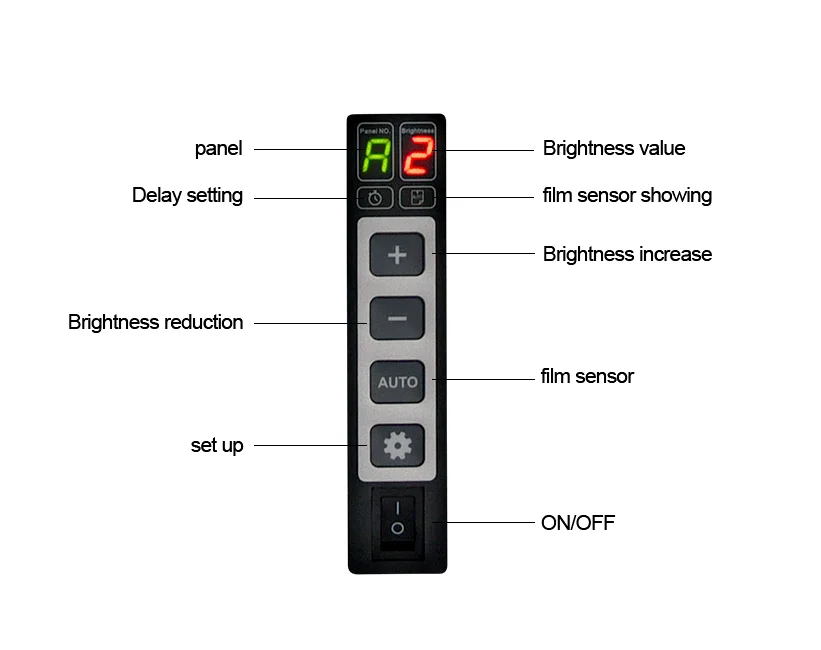

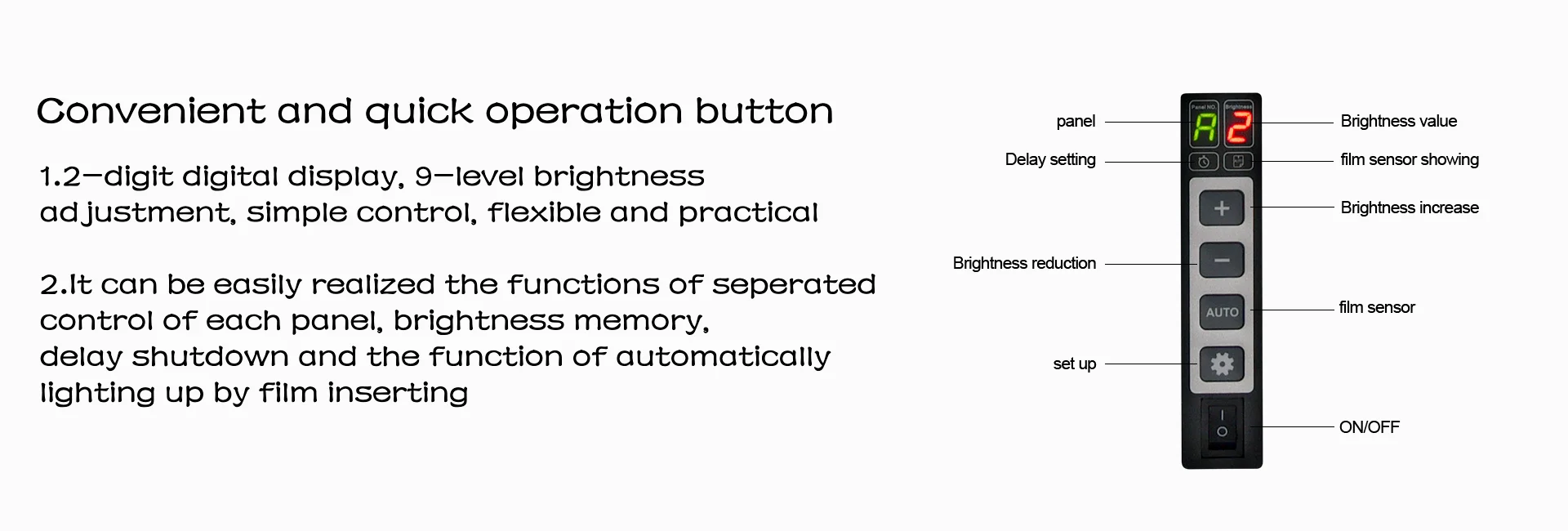

5.Film sensor function, it will light up while inserting film, each panel could be controlled individually, it also has the functions of brightness memory, delay shutdown
SPECIFICATION | ||
external size（mm） | 810*500*25 | |
viewing size（mm） | 720*420 | |
Maximum size of readable film | 17*14 inches（355.6*431.8mm） | |
Max Power Consumption | 60W | |

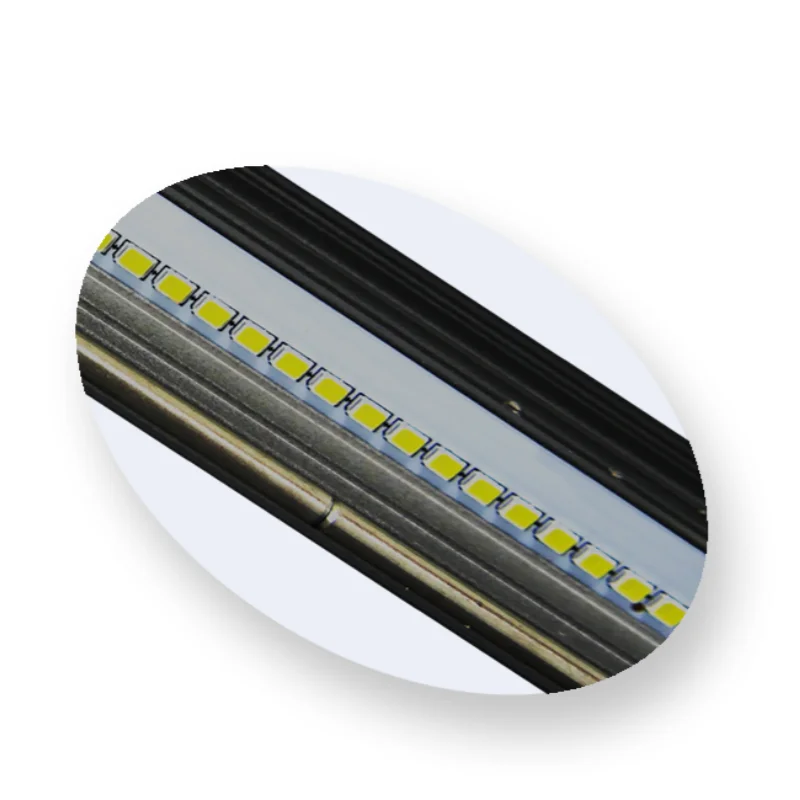

Light source | Super brightness SMD led144 pieces / panel | |
Color temperature | 8000K color temperature | |
Lifespan | Light source lifespan is over 50000h | |
Power supply | Global voltage adaptive built in power supply | |
Voltage | AC90V～240V | |
Frequency | 50/60Hz | |
Brightness adjustment range | 0～4000cd/㎡（customizable brightness） | |

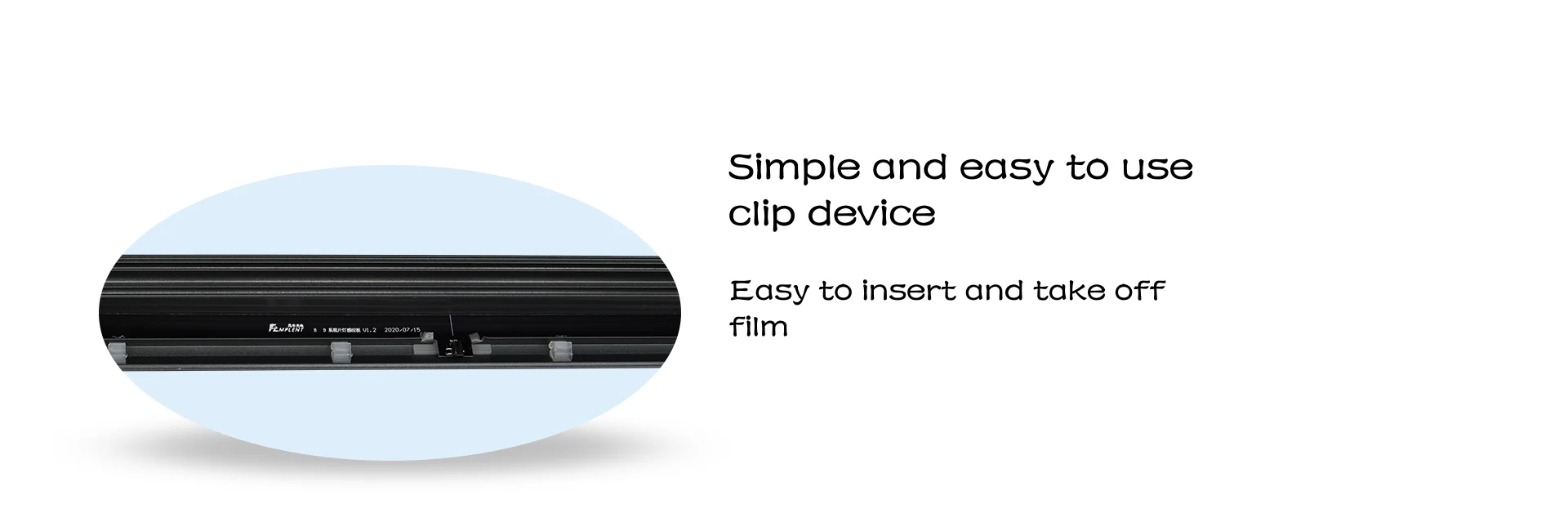

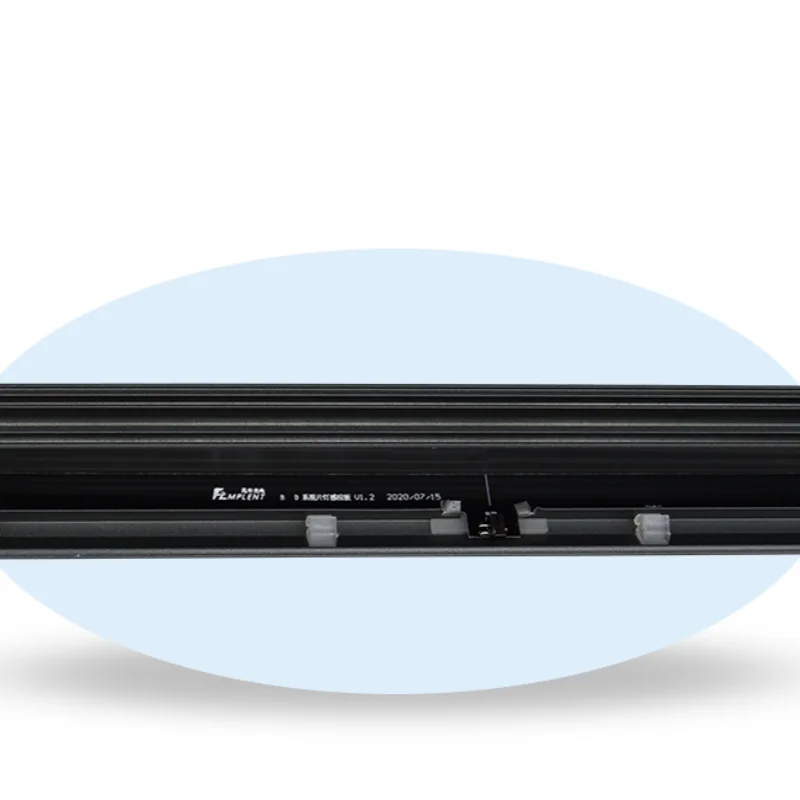

film clip device | Silicone clip device | |
Installation method | wall intallation and barcket installation | |
Applicable film | General analog X-ray film, high-density digital X-ray film, Mammography breast film | |
Application function | seperated control of each panel , film sensor, lighting up by inserting film,brightness memory, delay shutdown | |

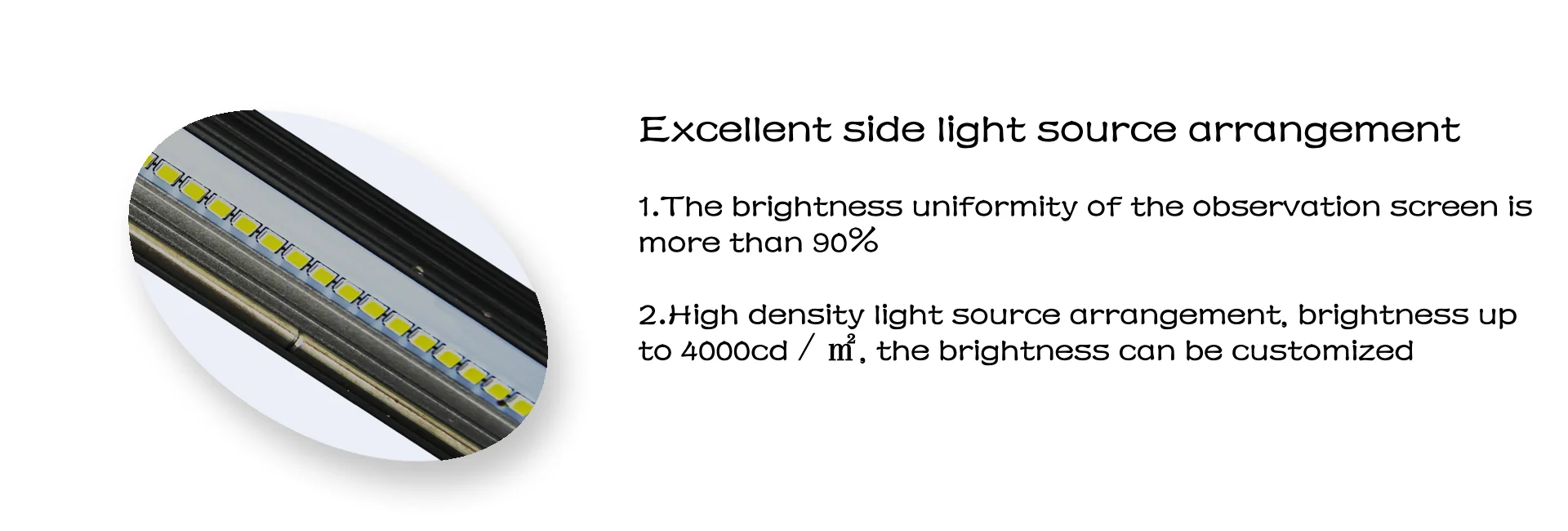

Brightness uniformity of observation screen | ≥90% | |
Environmental conditions for use | It is suggested that the environmental illumination of film reading room should not be greater than 100lx | |
