Product Overview
Description

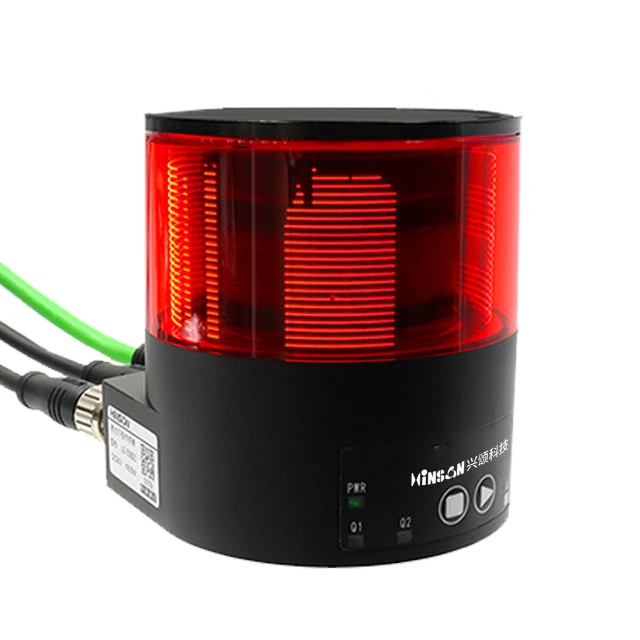

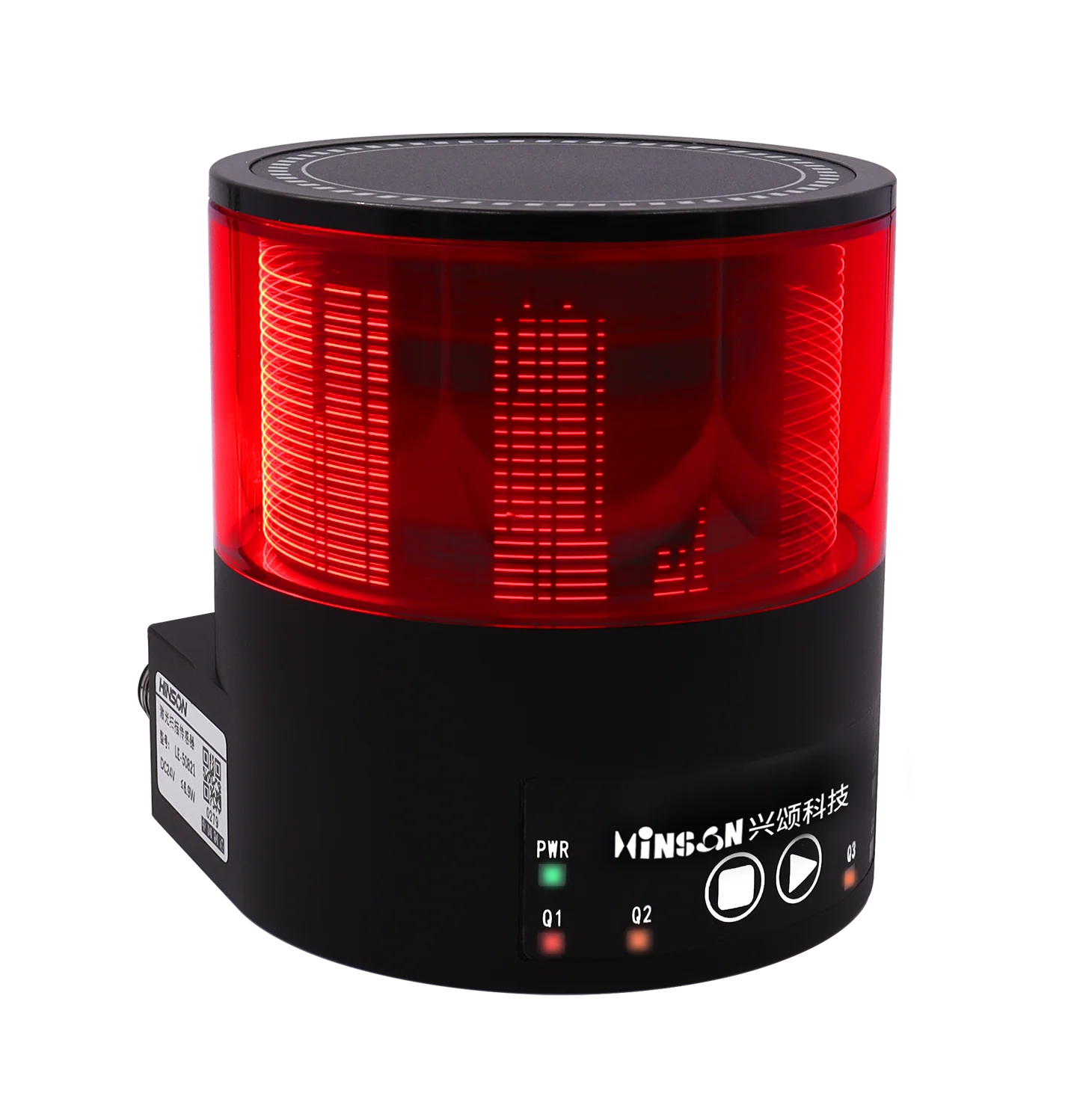

360°Laser sensor LE-50621
1.Ranging method based on TOF 360°detection for object distance and angle
2.Detection range up to 50m
3.Measurement accuracy:±10mm
4.Wireless power supply, low power consumption, less heat
5.High-speed optical communication technology
Cable charge extra
Necessary cable (2-6 m optional)
Ethernet HCX4L20BE
Power cord HCX6L20BX
Switch quantity HCX12L20BX
Switch quantity HCX12L20BX
Product Description
Specification
Product Name | 360°Laser Sensor | |
Model Number | LE-50621 | |
Place of Origin | China | |
Province | Guangdong | |
Brand Name | Hinson | |
Basic characteristics | ||
Detection distance | 0.1m~20m（Reflectivity 10%） | |
0.1m~50m（Reflectivity 90%） | ||
0.1m~50m（Reflector） | ||
Detection angle | 360° | |
Start time | <18s（30Hz） | |
Sensor parameters | ||
Light source | Laser diode | |
Laser class | Class 1（IEC 60825-1:2014,EN 60825-1:2014）（Do not look directly） | |
Wavelength | 905nm | |
Pulse time | 5ns | |
Laser scanning frequency | 50K，100K，150K，200K Four kinds of settings | |
Measurement method | Pulse ranging technology（PRT） | |
Single point sampling times | 1-50 times adjustable | |
Scanning motor speed | 10Hz、15Hz、20Hz、25Hz、30Hz Five kinds of settings | |
Ambient light limit | Resistant to sunlight （<80000 Lux） | |
Measurement accuracy | ||
Absolute accuracy | ±20mm | |
Measurement accuracy | ±10mm | |
Angle resolution | Minimum 0.018°，Determined by laser scanning frequency, scanning motor speed, and single point sampling times | |
Repeat accuracy | <10mm | |
Measurement resolution | 1mm | |
Electrical specification | ||
Working voltage | 18V~60V | |
Working current（DC 24V） | < 300mA | |
Rated power | About 6W | |
Start time | < 30s | |
Interface | ||
Interface | 6 NPN inputs，4 NPN output，through 6 NPN input ports to switch channels (channels 0-63).and 4 NPN output ports to output red, orange, and yellow areas and their fault signals | |
RS485-Modbus Output switch value obstacle avoidance data； | ||
CAN open Output switch value obstacle avoidance data | ||
Ethernet TCP/UDP output 360° raw measurement data | ||
Display | ||
Power indicator | Green | |
Fault status indicator | Red | |
Fault status indicator | Red, yellow, orange | |
Output status indicator | 24*252 Pixel, red | |
Environmental conditions | ||
Ambient temperature | -10℃-50℃，indoor | |
Ambient humidity | <80%RH | |
Storage environment temperature | Storage temperature（-20℃-70℃） | |
Mechanical specifications | ||
Connection port | M12-4 female cable, Ethernet port | |
M12-6 female cable, power supply and communication port | ||
M12-12 female cable, IO port | ||
Material | Base, aluminum alloy | |
Scan window，PUMA | ||
