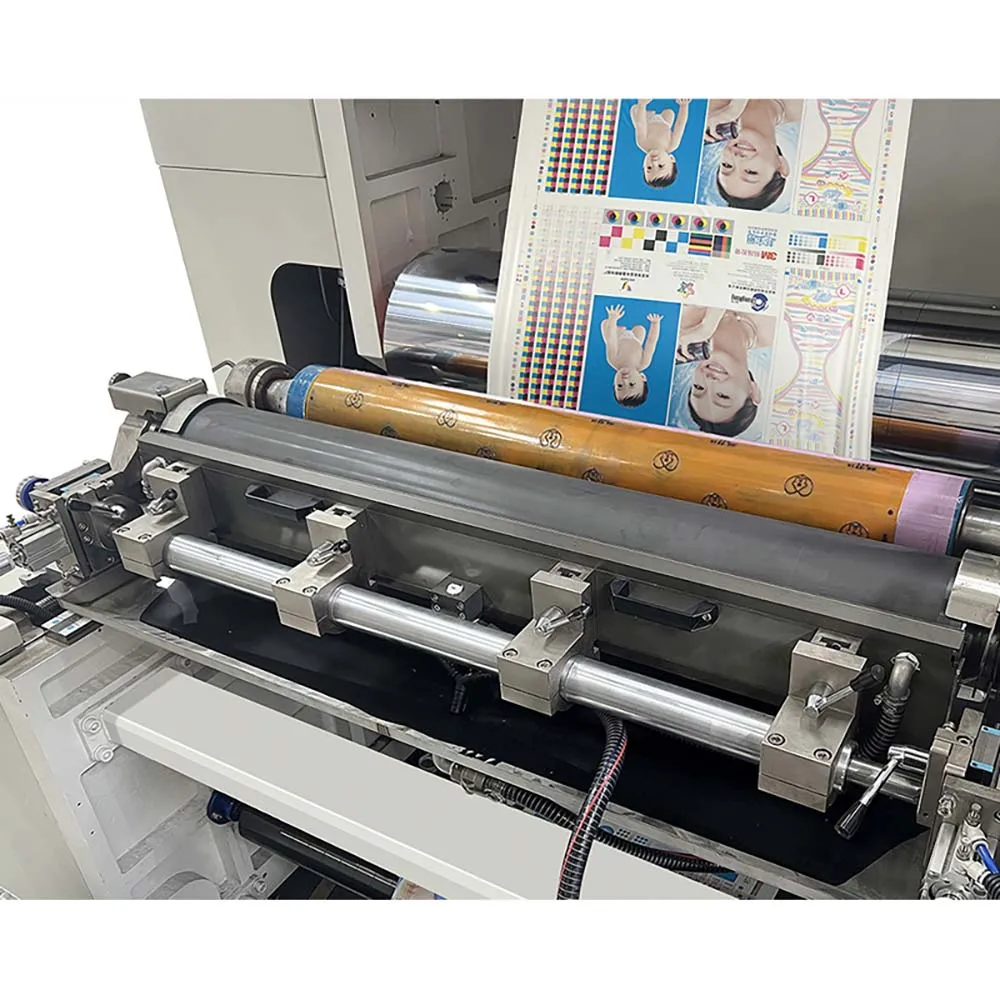

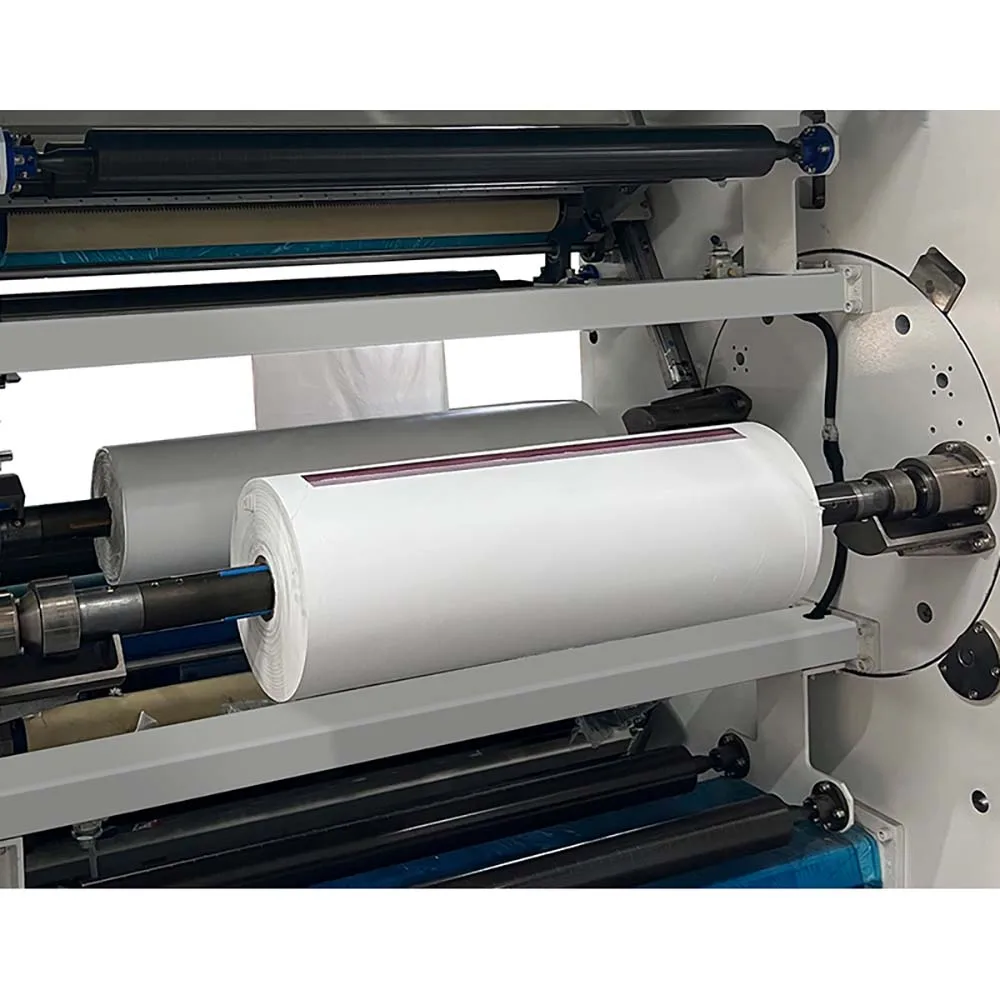

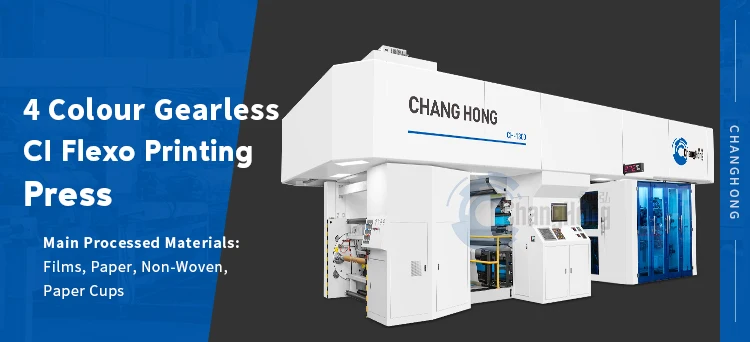

Customize Gearless Central Impression Flexo Press 4 6 Colors Ci Flexo Flexo Printing Machine Price
- Category: >>>
- Supplier: Wenzhou Changhong Printing Machinery Co. Ltd.
Share on (1601041369404):
Product Overview
Description

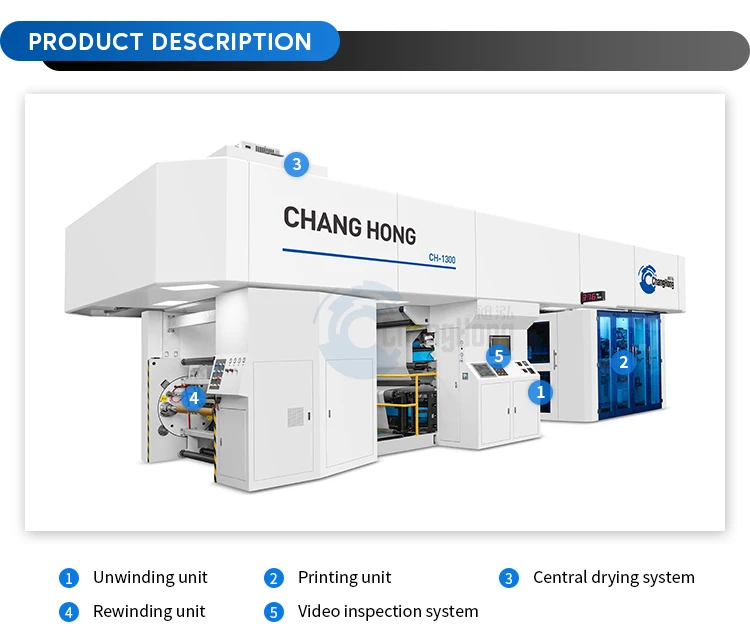

Gearless flexo printing press is an innovative machine that offers advanced printing solutions. Its high-speed capability, precise registration control system, efficient ink delivery system, and user-friendly operation make it the perfect choice for those in need of advanced printing solutions.The high speed and high precision of the gearless flexo printing press make it a perfect choice for printing various materials, such as flexible packaging, labels, paper, non-woven fabrics, etc.
TECHNICAL SPECIFICATIONS | ||||||||
Model | CHCI4-600F | CHCI4-800F | CHCI4-1000F | CHCI4-1200F | ||||
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm | ||||
Max. Printing Width | 550mm | 750mm | 950mm | 1150mm | ||||
Max. Machine Speed | 500m/min | |||||||
Printing Speed | 450m/min | |||||||
Max. Unwind/Rewind Dia. | φ800mm (Special size can be customized) | |||||||
Drive Type | Gearless full servo drive | |||||||
Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||||||
Ink | Water base ink or solvent ink | |||||||
Printing length (repeat) | 300mm-800mm (Special size can be customized) | |||||||
Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN | |||||||
Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||||||
1. Gearless technology: This means that the press operates without any gears, making it quieter, smoother, and more precise in its operation.
2. Superior registration: The gearless technology allows for more accurate and precise registration, resulting in higher print quality.
3. Wide substrate range: The press is capable of printing on a wide range of substrates, including film, paper, and Non Woven.
4. High-speed operation: gearless technology enables faster printing speed of 500m/min, shorten lead time.
5. Environmentally friendly: The press uses water-based inks, which are more environmentally friendly than solvent-based inks.
6. Reduced waste: The press features minimal waste due to its precise registration and reduced setup time.
7.Advanced automation: The press features advanced automation, including automatic registration and substrate handling, resulting in less operator intervention and higher productivity.
2. Superior registration: The gearless technology allows for more accurate and precise registration, resulting in higher print quality.
3. Wide substrate range: The press is capable of printing on a wide range of substrates, including film, paper, and Non Woven.
4. High-speed operation: gearless technology enables faster printing speed of 500m/min, shorten lead time.
5. Environmentally friendly: The press uses water-based inks, which are more environmentally friendly than solvent-based inks.
6. Reduced waste: The press features minimal waste due to its precise registration and reduced setup time.
7.Advanced automation: The press features advanced automation, including automatic registration and substrate handling, resulting in less operator intervention and higher productivity.
Q1: What is a gearless flexo printing press?
A1: A gearless flexo printing press is a type of printing press that uses a direct drive system instead of gears to run the printing plates. This technology allows for greater precision and flexibility in printing operations.
Q2: What are the advantages of a gearless flexo printing press?
A2: The advantages of a gearless flexo printing press include increased printing quality and accuracy, quick job changes, reduced downtime and maintenance, and significant energy savings.
Q3: How does a gearless flexo printing press work?
A3: A gearless flexo printing press uses a direct drive system that allows the printing plates to be mounted directly onto the press cylinder without the use of gears. This system allows for greater control over the printing process, including printing pressure, registration, and drying.
Q4: What industries use gearless flexo printing presses?
A4: Gearless flexo printing presses are used in a variety of industries, including packaging, label printing, flexible packaging,and more.
Q5: What should be considered when choosing a gearless flexo printing press?
A5: When choosing a gearless flexo printing press, consider factors such as printing speed, substrate flexibility, color capability, and ease of use. It's important to choose a press that can meet the specific needs of your business and industry.
A1: A gearless flexo printing press is a type of printing press that uses a direct drive system instead of gears to run the printing plates. This technology allows for greater precision and flexibility in printing operations.
Q2: What are the advantages of a gearless flexo printing press?
A2: The advantages of a gearless flexo printing press include increased printing quality and accuracy, quick job changes, reduced downtime and maintenance, and significant energy savings.
Q3: How does a gearless flexo printing press work?
A3: A gearless flexo printing press uses a direct drive system that allows the printing plates to be mounted directly onto the press cylinder without the use of gears. This system allows for greater control over the printing process, including printing pressure, registration, and drying.
Q4: What industries use gearless flexo printing presses?
A4: Gearless flexo printing presses are used in a variety of industries, including packaging, label printing, flexible packaging,and more.
Q5: What should be considered when choosing a gearless flexo printing press?
A5: When choosing a gearless flexo printing press, consider factors such as printing speed, substrate flexibility, color capability, and ease of use. It's important to choose a press that can meet the specific needs of your business and industry.
