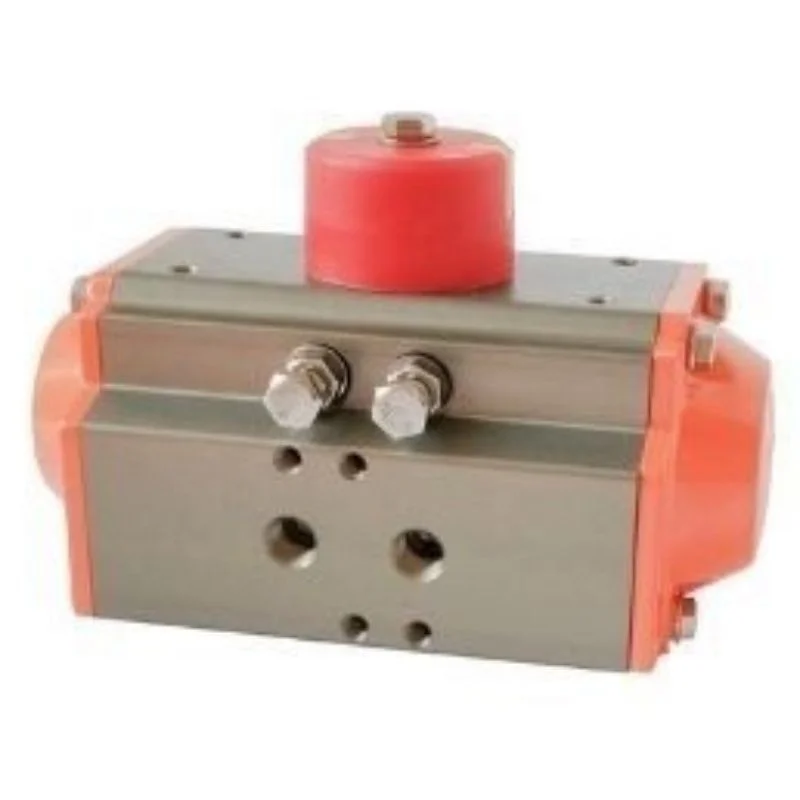

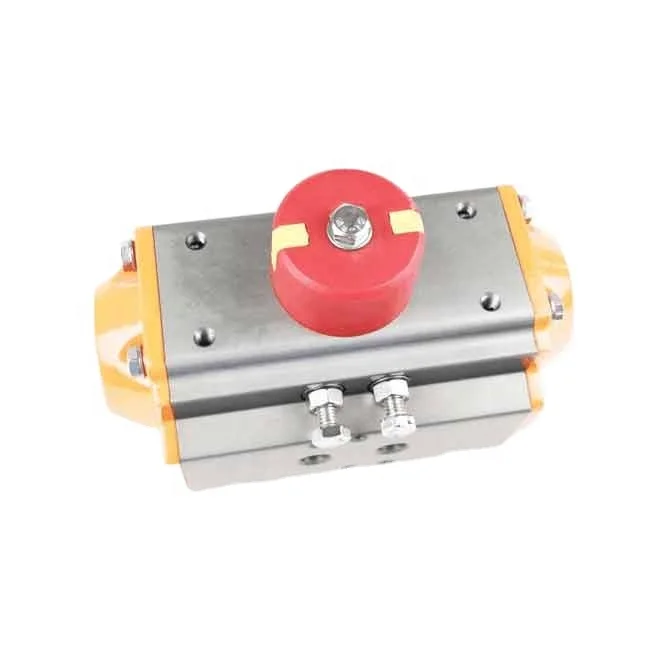

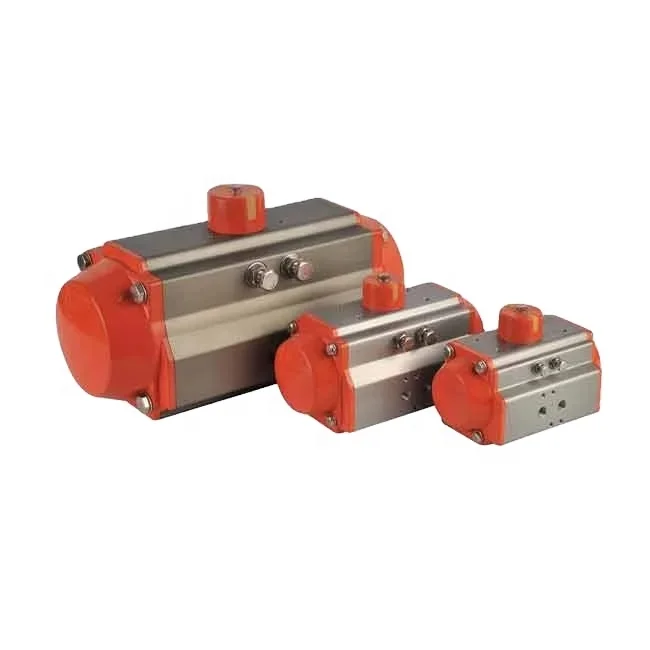

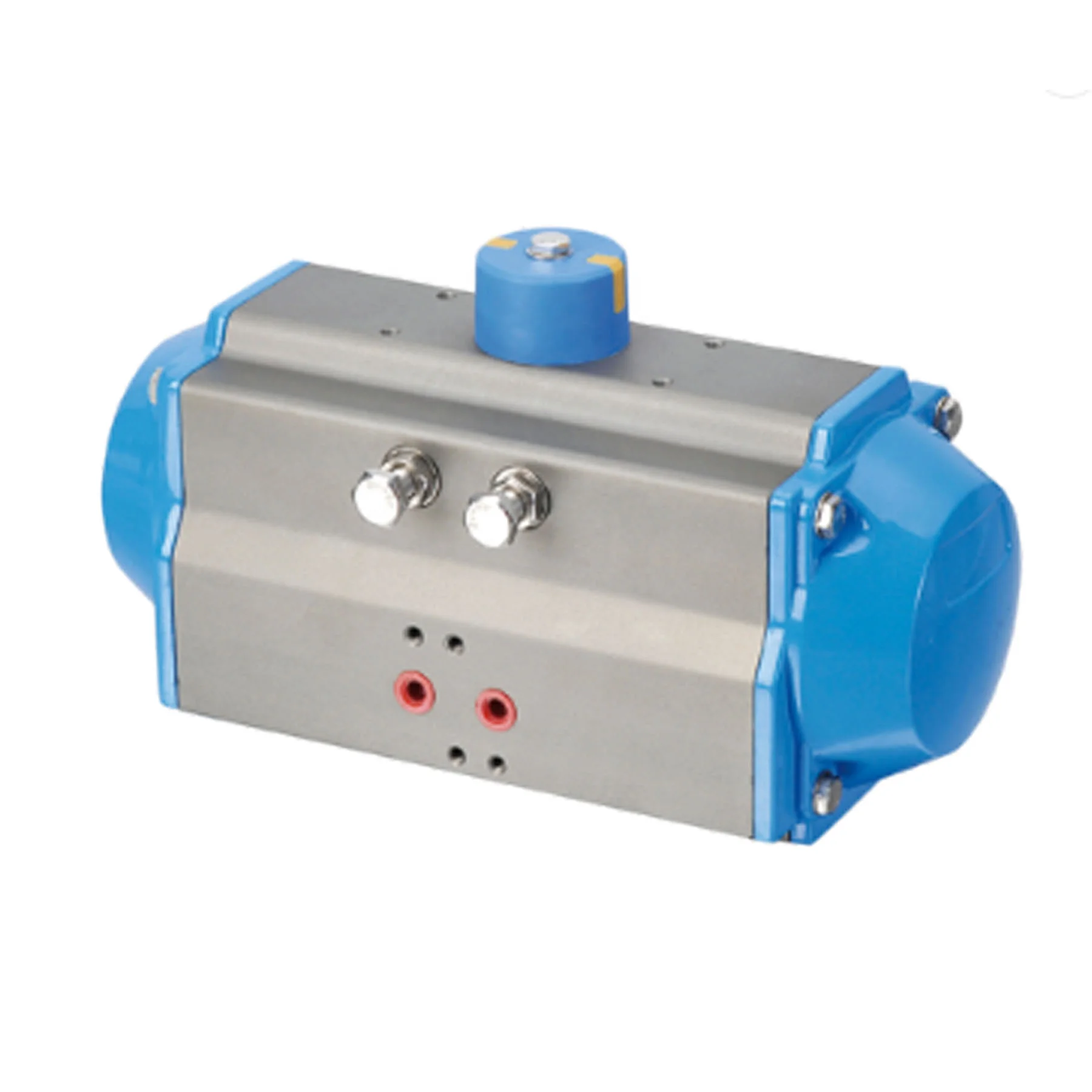

Double/Single Acting Pneumatic Actuator for Ball/Butterfly Valves with OEM Supported
- Category: >>>
- Supplier: Jiangsu BCST Group Co. Ltd.
Share on (1601041374435):
Product Overview
Description
Technical Specification
Pressure Range
Max Working Pressure:10bar
Double acting:2.5bar~8bar
Single acting:4.5bar~8bar
Temperature Range
Standard:-20℃~80℃ Option:-35℃~80℃/-20℃~150℃
Rotate Angle:90°±5%
Lubrication:All the kinetic components are coated with lubricants,make it have a long service life.
Life Time:One million time
Technical Parameter
Pressure Range | Max Working Pressure:10bar |
Double acting:2.5bar~8bar | |
Single acting:4.5bar~8bar | |
Temperature Range | Standard:-20℃~80℃ |
Option:-35℃~80℃/-20℃~150℃ | |
Life Time | One million time |
Rotate Angle | 90°±5% |
Lubrication | All the kinetic components are coated with lubricants,make it have a long service life. |
Design Features
Pneumatic actuator are integrated of new technologies,new materials,new innovative ideas based on the research,development,design,has the following characteristics:
1.Comply with the standard of:ISO5211,DIN3337 and VDE-3845,NAMUR standards.
2.Extruded high-strength aluminium cylinder body,the inner surface of fine grinding and hard anodized,long service life,low friction coefficient,fast action.
3.Beautiful compact,modern styling,multi-standard products make the selection more economical.
4.All active surfaces are made of high quality bearings,low friction,long life,no noise.
5.Two independent stroke adjustment mechanism for easy adjustment of±5deg and fully open or closed position.
6.They are available in double-acting and single-acting(sping return),single-acting with normally closed and normally open.
7.The NAMUR standard multi-function position indicator visualizes and output of all accessories.
8.Pre-compression load spring,installation,demolition of safe and convenient.
9.Piston and end caps using die-cast aluminium alloy,high strength,light weight.
10.Change the seal material can be used in high temperature or low temperature applications.
11.Solenoid valve can be installed without connection plate.
Workshop
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2000,sell to Domestic Market(90.00%),Southeast Asia(2.50%),Southern Europe(2.50%),North America(1.00%),South Asia(1.00%),Eastern Europe(1.00%),Central America(0.50%),South America(0.50%),Northern Europe(0.50%),Western Europe(0.20%),Africa(0.10%),Mid East(0.10%),Oceania(0.10%). There are total about 1-4 people in our office.
For any question, pls contact us.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flowmeter,Level Transmitter,Pressure Transmitter,Temperature Transmitter,Control Valve
4. why should you buy from us not from other suppliers?
BCST Group is the professional supplier for process instruments . Our team has 12 years exported experiences for international business in this industry .Our factory has 20 years manufacturing experiences. Our products are approved by ISO, CE, Rohs SIL2.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese
