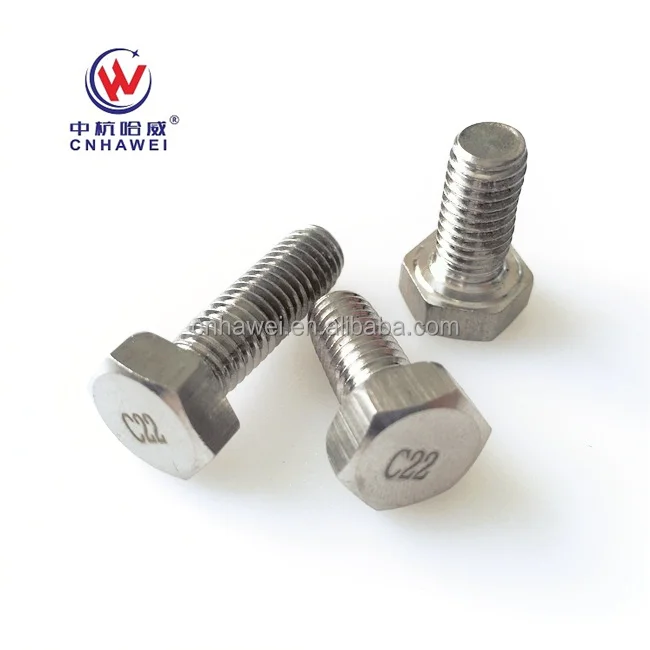

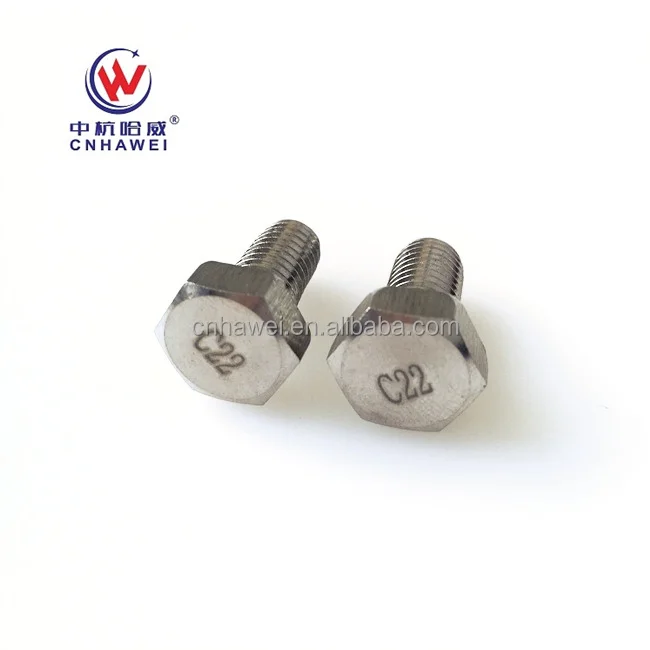

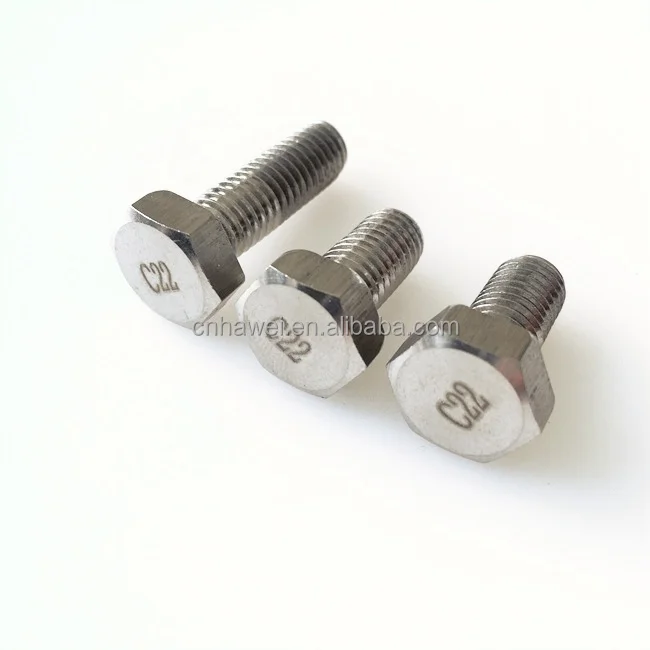

Alley C22 Hexagon bolt hex bolt machine thread for construction, automobile and engineering industries DIN933
- Category: >>>
- Supplier: Hangzhou Hardware Products Co. Ltd.
Share on (1601041382016):
Product Overview
Description
Specification
Wedge anchor bolt
Steel wedge anchor Stud Anchors bolt for Concrete also known as wedge anchors, the base expands as you tighten the nut for a secure hold in concrete.
They're often used to anchor machinery. Pull-out strength and shear strength values are 25% of the ultimate values.
Zinc-plated and zinc yellow-chromate plated steel anchors are corrosion resistant in wet environments.
Galvanized steel anchors are more corrosion resistant than zinc-plated steel anchors. They must be used with other galvanized fasteners.
304 stainless steel known as A2 stainless steel. Stainless anchors have good chemical resistance and may be mildly magnetic.
316 stainless steel known as A4 stainless steel . It have excellent resistance to chemicals and salt water and may be mildly
magnetic.
They're often used to anchor machinery. Pull-out strength and shear strength values are 25% of the ultimate values.
Zinc-plated and zinc yellow-chromate plated steel anchors are corrosion resistant in wet environments.
Galvanized steel anchors are more corrosion resistant than zinc-plated steel anchors. They must be used with other galvanized fasteners.
304 stainless steel known as A2 stainless steel. Stainless anchors have good chemical resistance and may be mildly magnetic.
316 stainless steel known as A4 stainless steel . It have excellent resistance to chemicals and salt water and may be mildly
magnetic.
Products name | Alley C22 stainless steel Hexagon bolt DIN933 | |||||||
Standard: | DIN, ISO, ASTM / ANSI, JIS, GB | |||||||
Brand | CNHAWEI or OEM your head mark by your authorization | |||||||
Material | Carbon Steel : C1018, C1020, C1022, Q235, SWRCH 35K, 10B21, 40Cr, 35CrMo... | |||||||
Stainless Steel: SS201, SS303, SS304, SS316,SS316L, SS410, SS440, SS904L,... | ||||||||
Special Alloy Steel : Hastelloy, Inconel, Monel Series, Nickel, Nitronic Series... | ||||||||
Grade | Steel Grade: Gr.4.6 / 4.8 / 5.6 / 5.8 / 8.8 / 9.8 / 10.9 / 12.9; | |||||||
A2-70, A4-70, A4-80; | ||||||||
SAE: Grade2, Grade 5, Grade 8; | ||||||||
ASTM: 307A, 307B, A325, A394, A490, A449, | ||||||||
Thread | Metric thread: Coarse, Fine, | |||||||
Inch Thread: UNC, UNF, | ||||||||
Finishing | Plain, Cr3 Zinc(Yellow,White, Blue, Black), Hot Dip Galvanized(HDG), Black oxide.... | |||||||
Geomet, Dacroment, Nickel plated, Zinc-Nickel plated.... | ||||||||
Production | M2-M24: Cold Froging, M24-M100 Hot Forging, | |||||||
Process | Machining and CNC for Custom special fastener | |||||||
Stock Products | All DIN Standard stainless steel fastener (Bolts, Nuts, Screw, Washer) | |||||||
CNHAWEI New customer policy: Free Samples can offer of standard fastener. | ||||||||
