V3 X industrial vacuum cleaner with HEPA cyclone separator auto self cleaning pumps cleaning equipment
- Category: >>>
- Supplier: Shanghai Jiansong Industry And Trade Co. Ltd.
Share on (1601041387477):
Product Overview
Description
Contact us :
Mr. Neal
Email: neal@jiansongsh.com
Tel/Whatsapp: +86 182-0527-4398
Product Description
V3-X Industrial Vacuum Cleaner
is suitable for all grinder, please kindly check following:
Cyclones system combined with strainer-filter design, guarantee the dust isolated from the motor and longer motor service life.
Advanced technology for integrating the cyclone systems and bag collecting system; Dust collection efficiency reach to 99%; Dust emission controlled below 30mg/Nm3; High concentrations dust below 100g/Nm3 can be collected; Less than 1% air leakage rate;
Equipped air compressor to provide ancillary air pressure; Apply to floor grinding and polishing, building and construction site.
Equipped air compressor to provide ancillary air pressure; Apply to floor grinding and polishing, building and construction site.
Industrial Vacuum Cleaner | ||||||
Model | V3 | V3-X | V7 | |||
Motor(HP) | 4.4HP | 4.5HP | 10HP | |||
Voltage | 110V/220V | 110V/220V | 220V/380V | |||
CFM | 430m³/h | 430m³/h | 530m³/h | |||
Flitration area | 44000cm² | 47000cm² | 47000cm² | |||
Noise | 67db | 74db | 74db | |||
Dust capacity | Dust bag | Dust bag | Dust bag | |||
Filtration | Electric+HEPA | Electric+Cyclone+HEPA | Electric+Cyclone+HEPA | |||
Weight(KG) | 200KG | 250KG | 270KG | |||
Dust port | 50MM | 50-80MM | 50-80MM | |||
Dimention(mm) | 1080*630*1620 | 1080*1060*1620 | 1340*840* 1770 | |||
Customized | Available | |||||
Dust collector 110V/220V
The performance of the vacuum cleaner depends on the overall design, the filtration, and the air flow.
All JS vacuum cleaners use HEPA filter. It stands for “High Efficiency Particulate Air filter”. This filter is for filtering out particles contained in an airstream, at high efficiencies.
The performance of the vacuum cleaner depends on the overall design, the filtration, and the air flow.
All JS vacuum cleaners use HEPA filter. It stands for “High Efficiency Particulate Air filter”. This filter is for filtering out particles contained in an airstream, at high efficiencies.
Detailed Images
\\ top locks /
\\ dust port /
\\ dust bag /
\\ auto self-cleaning system /
\\ air compressor /
\\ secondary filtering /

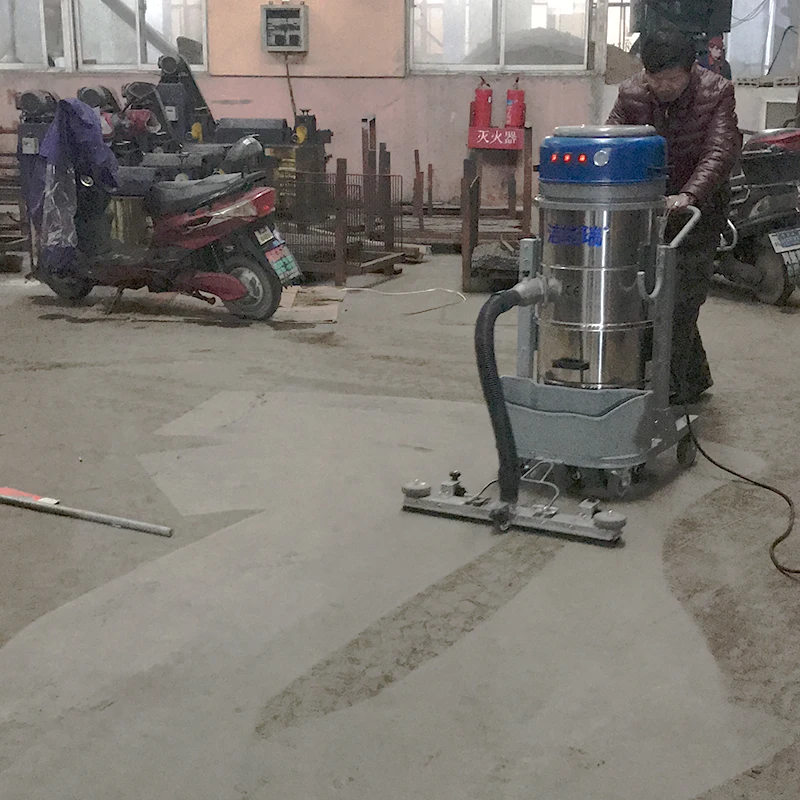

Application
Packing&Shipping
Related Products
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
Certifications
Company Introduction
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service
and products are appreciated by customers all over the world.
Exhibition
Our Services & Strength
2. Prefessional and Technical support on line or video;
3. Certificate: CE, SGS, ISO9001;
4. After-sales: 24hours a day, 7days a week.
