Product Overview
Description
Machine Description
Automatic assembly and screwdriver machine for electric parts
Main Features：
1. this machine is 8-station 2-axis turntable fixing screw machine, installed on the rotary table with 4 jig. Each turntable rotation to complete a product, each time feeding 2 pcs of screw.2. screw dropping with fiber check, guaranteed the number of screws.
3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.
4. by replacing the fixture can be used for other models.
5. screw universal in the case of tooth size unchanged, different length is ok

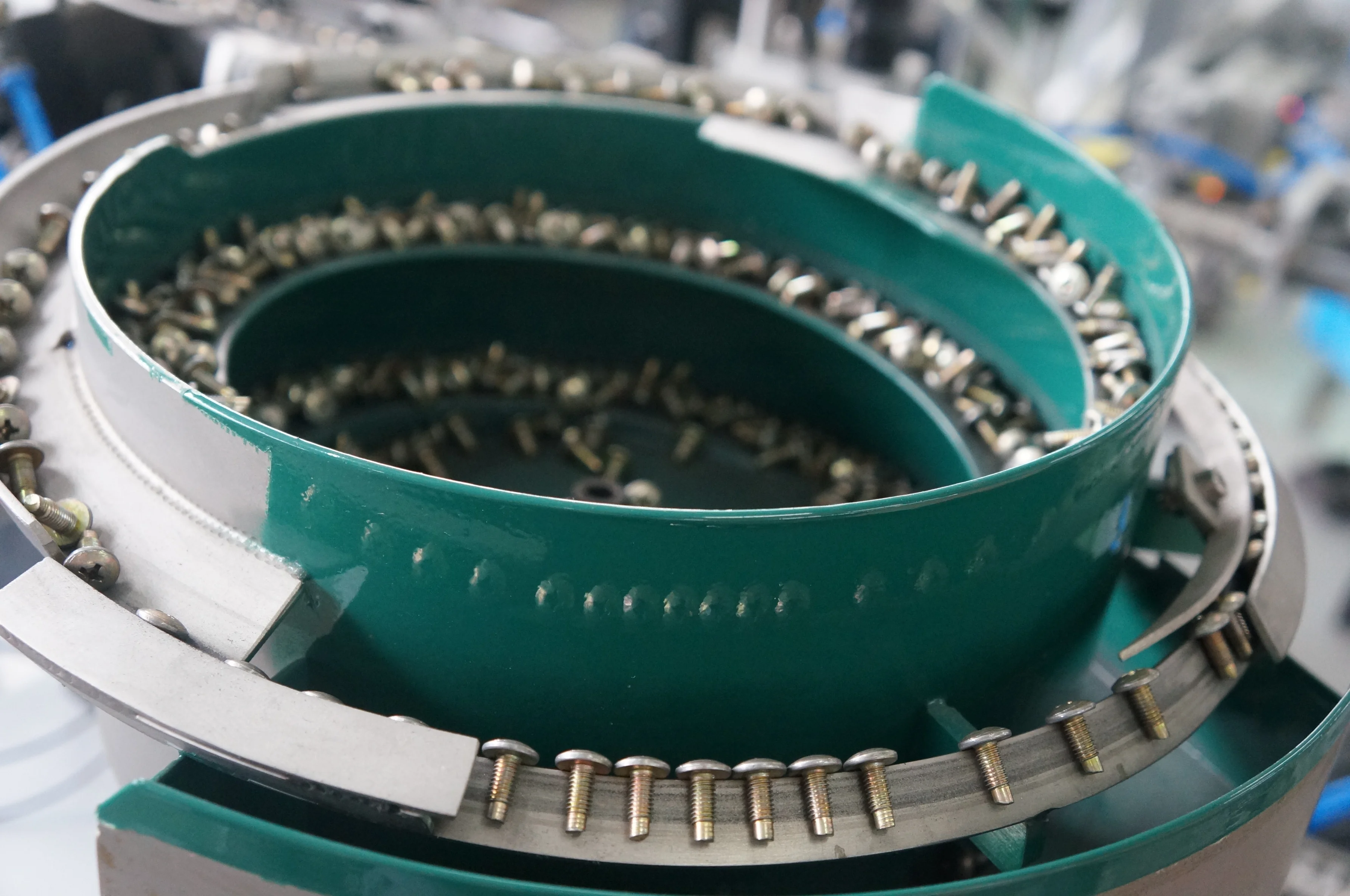

6. Auto loading the product by vibrator bowl, after fitting 2 pcs screw the robot discharge product.
Technical Parameters | ||||
Main parameter Structure | Dimension | 1650*1350*1500 (H* L* W ) | ||
Power supply | AC 220V 50HZ 300W | |||
Air supply | 0.6MPa | |||
Weight | 480kgs | |||
Structure | Disk-driver | Gear motor+ can splitter | ||
Rotary working | 8 working station. 1 products/workstation | |||
Discharge | Manipulator unloading+ conveyor belt | |||
Control system | Host control | Siemens PLC + Touch screen | ||
Efficiency | Screwing speed | 30-40pcs/min | ||
Screwdriver | Screwing number | 2 pcs (1-16 axes optional) | ||
Torque | Adjustable | |||
Screw | Specification | M1.2-M6.0,Cross, triangle and so on | ||
Detection | Screw slip, screw omit screwing | |||
Displayed on the touch screen | ||||

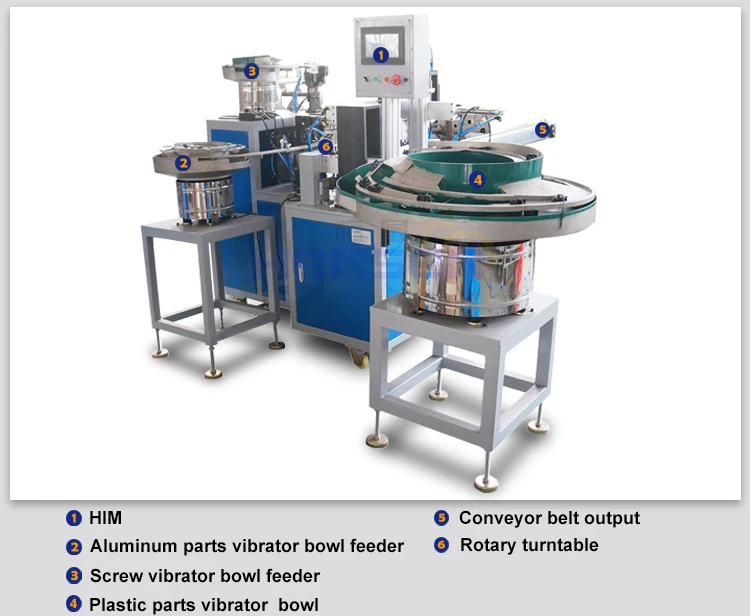

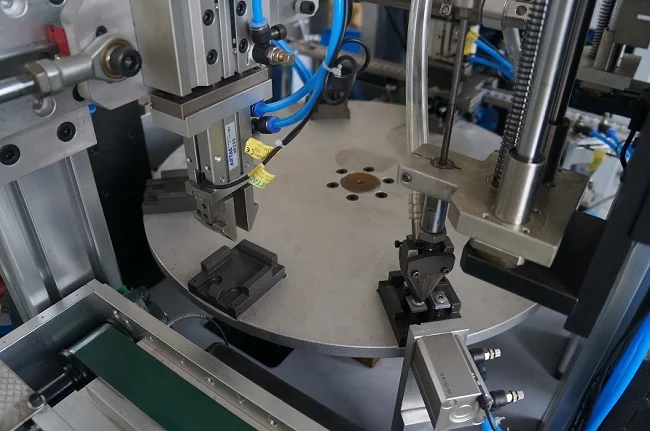

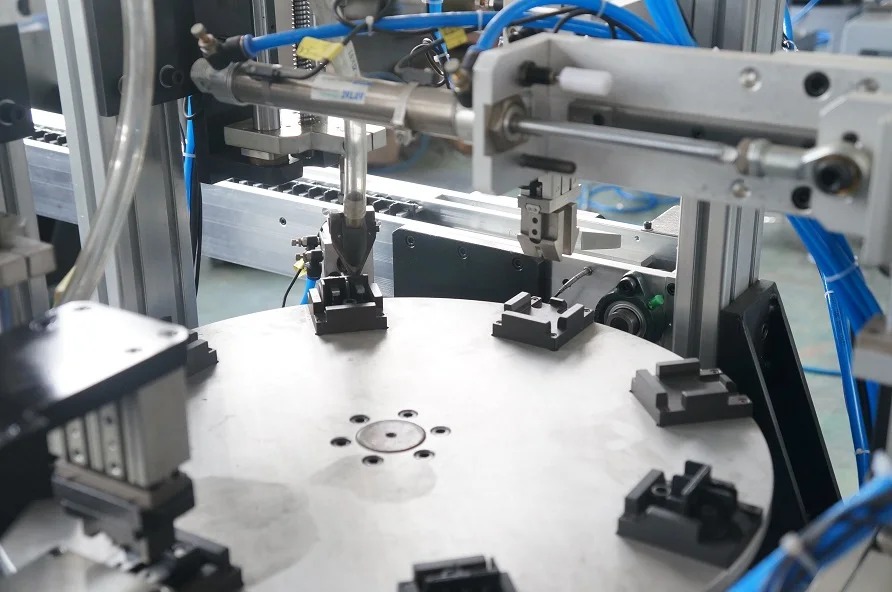

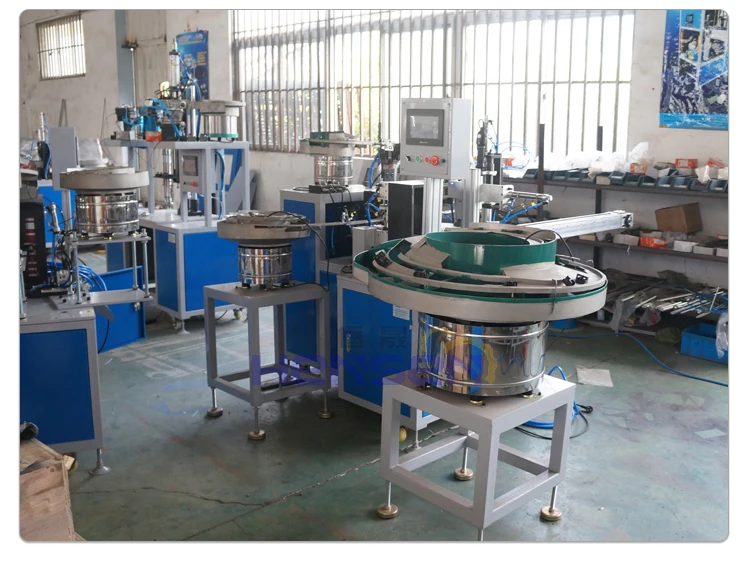

1.Rotary turnplate with jig and screwdriver
2. Aluminum parts auto feeding
3. Feeding aluminum parts and push into plastic body
4. Automatic screwdriving
5. Finished proudct conveyor belt output

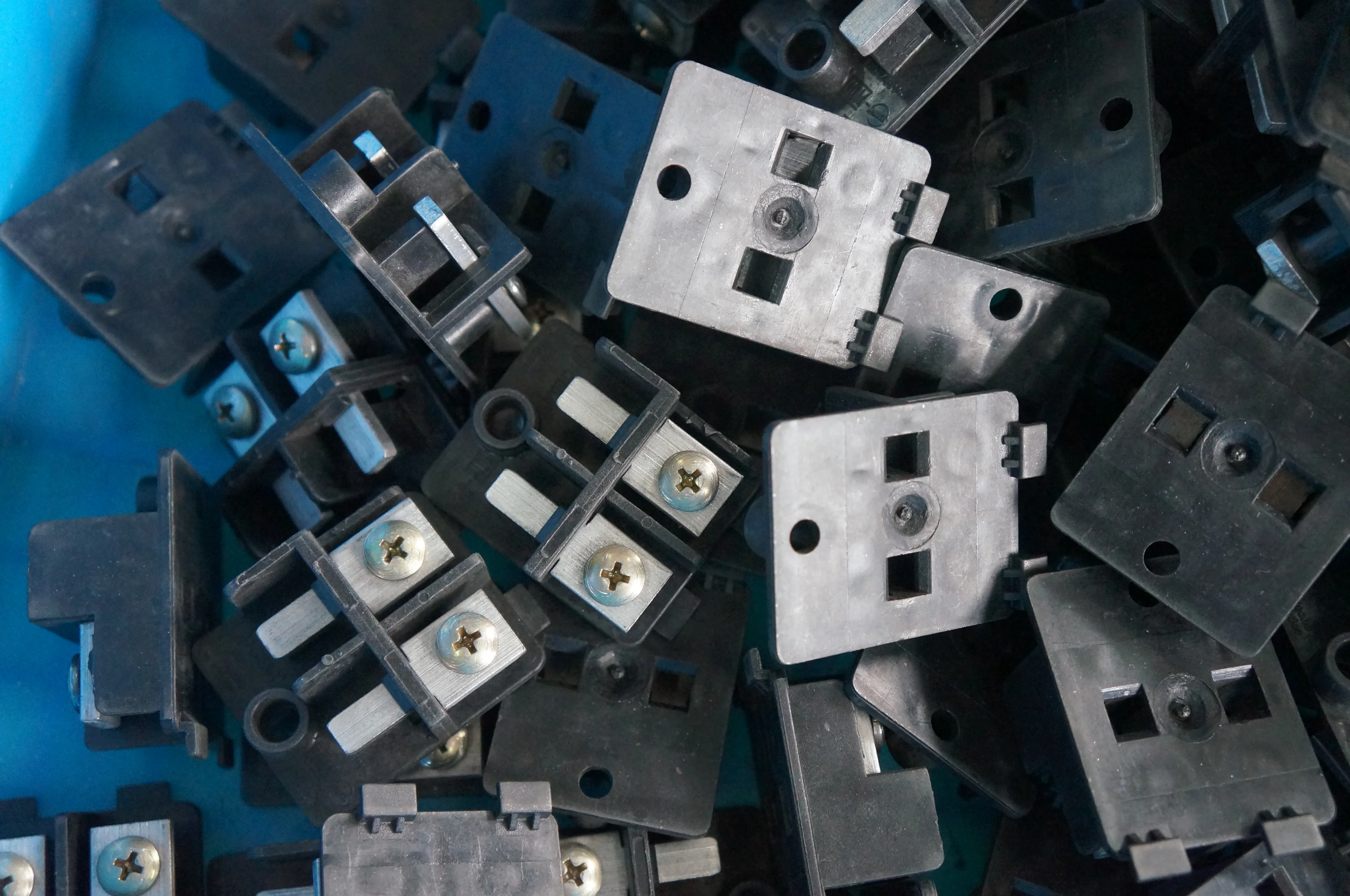

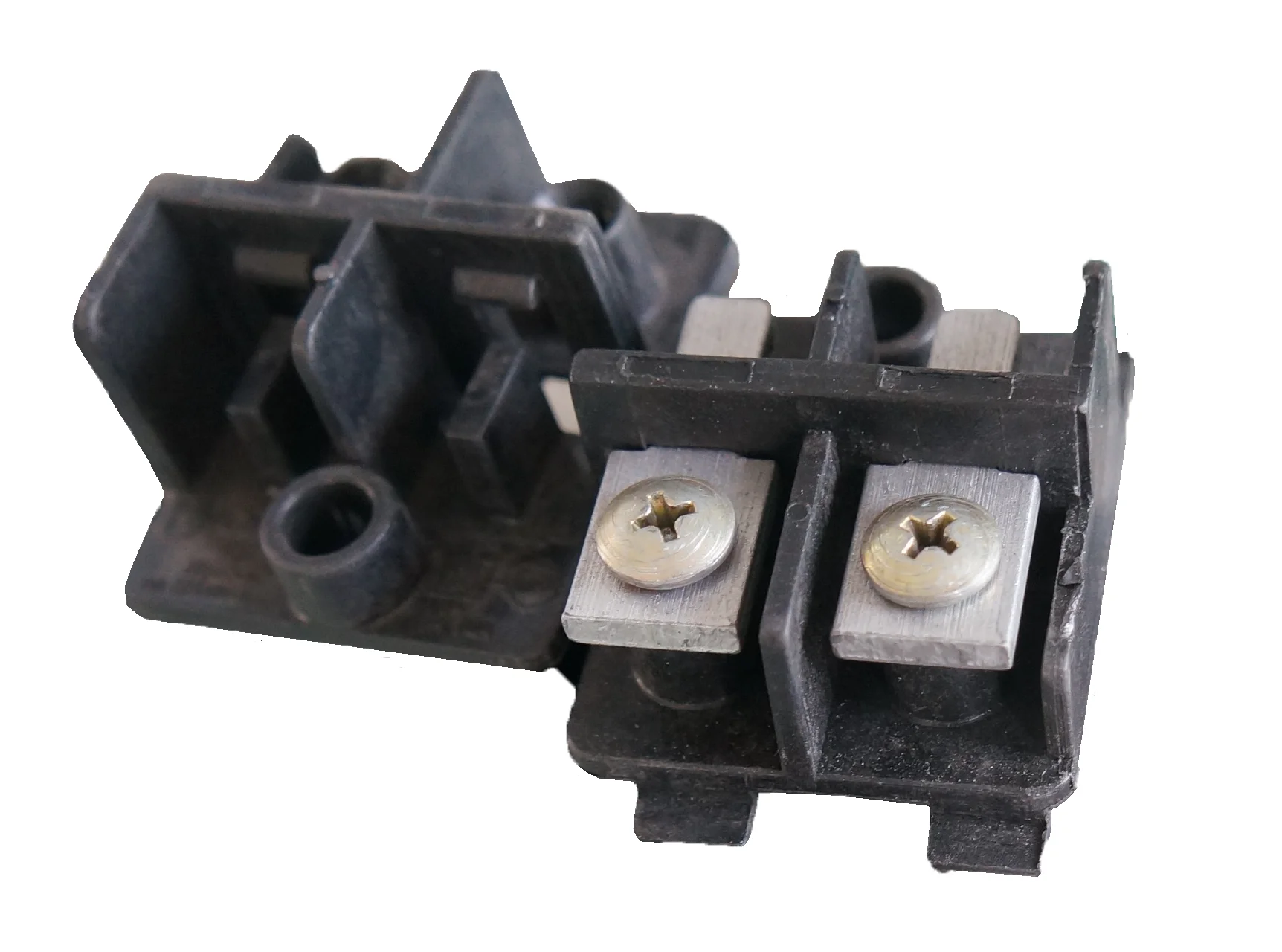

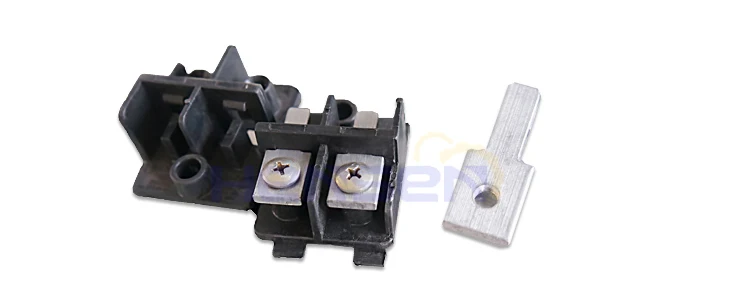

Application and Sample
Other Main Products
Why Choose Us
1.Purchase Service
2.Shipping Service
HENSEN COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
HENSEN COMPANY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HENSEN COMPANY machines. HENSEN COMPANY will dispatch technician to The Buyer's factory to
installation and preoperation of machines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
HENSEN COMPANY advise The buyer could send own technican come to HENSEN COMPANY factory to learn how to operate machines.HENSEN COMPANY
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
HENSEN COMPANY machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
2.Shipping Service
HENSEN COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
HENSEN COMPANY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HENSEN COMPANY machines. HENSEN COMPANY will dispatch technician to The Buyer's factory to
installation and preoperation of machines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
HENSEN COMPANY advise The buyer could send own technican come to HENSEN COMPANY factory to learn how to operate machines.HENSEN COMPANY
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
HENSEN COMPANY machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reach within 3-7 Express working days.
Shipping and Packaging
Packing and shipping | ||
Packing | Export wooden packing | |
FOB price | Please contact for new price | |
Delivery time | 40days | |
Guarantee | One year | |
Payment terms | T/T,L/C at sight | |
