Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine
Retail shop customized cash deposit and withdrawal terminal self payment machine

Retail shop customized cash deposit and withdrawal terminal self payment machine

Share on (1601041434379):


Price:$1,600.00 - $2,000.00

Quantity:


Product Overview

Description

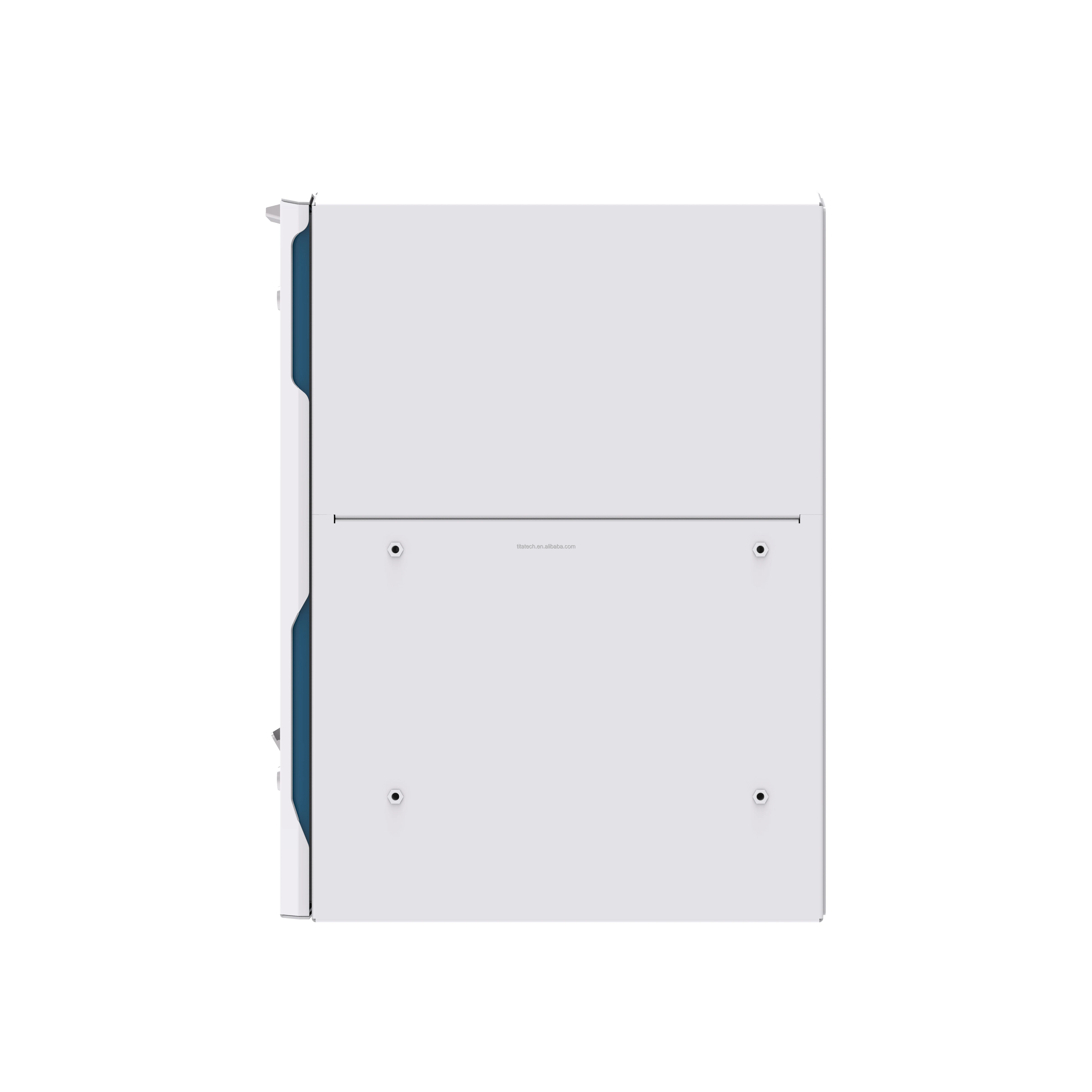

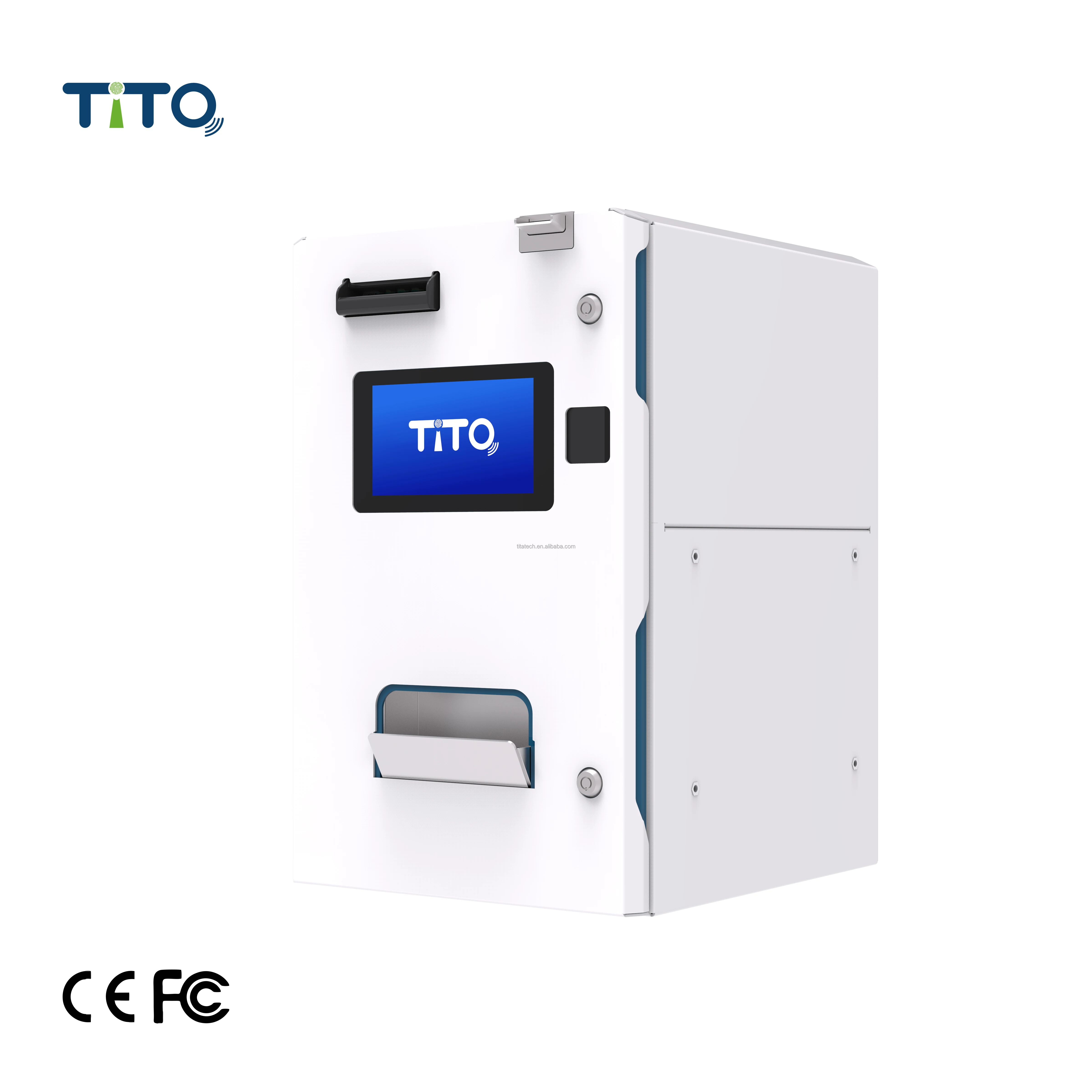

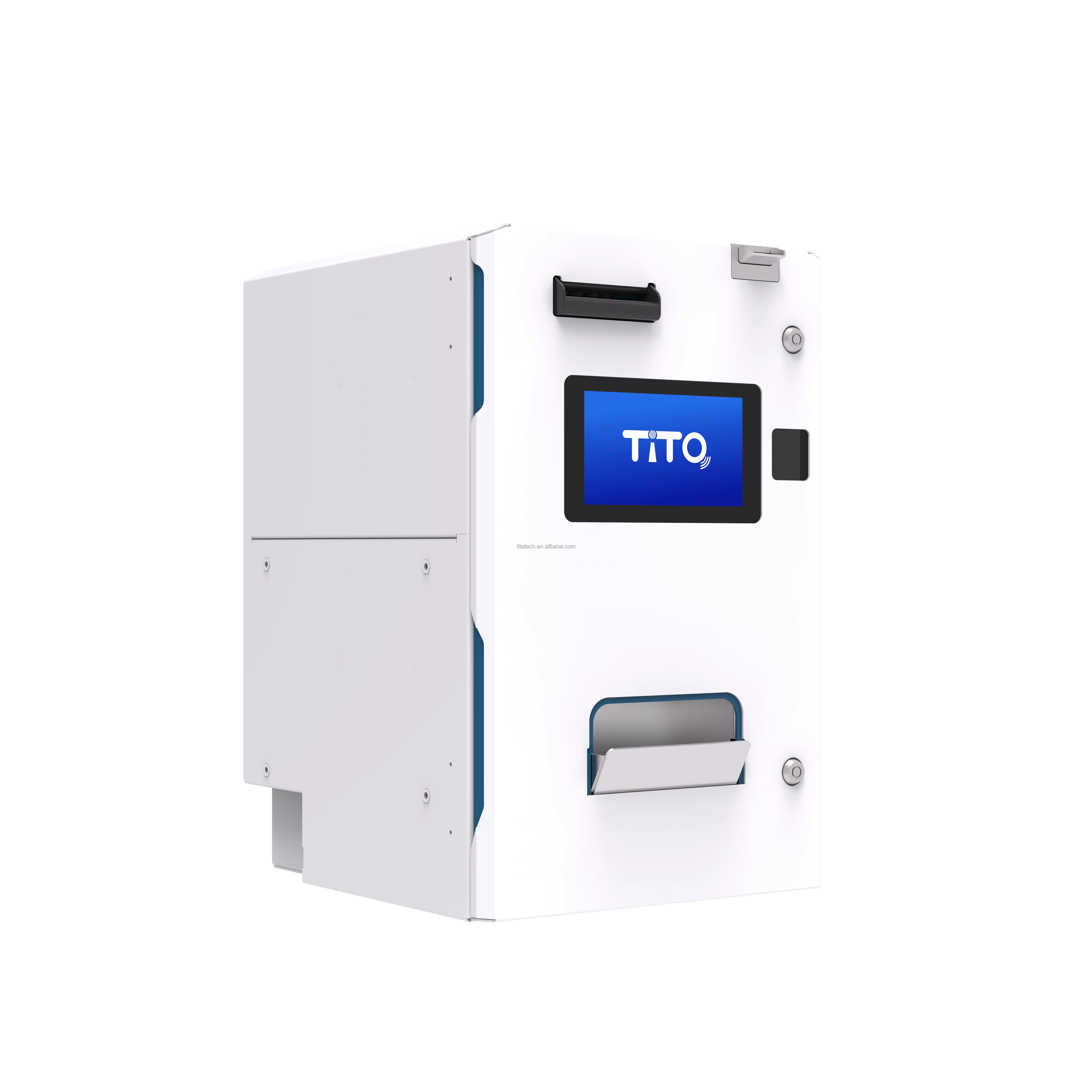

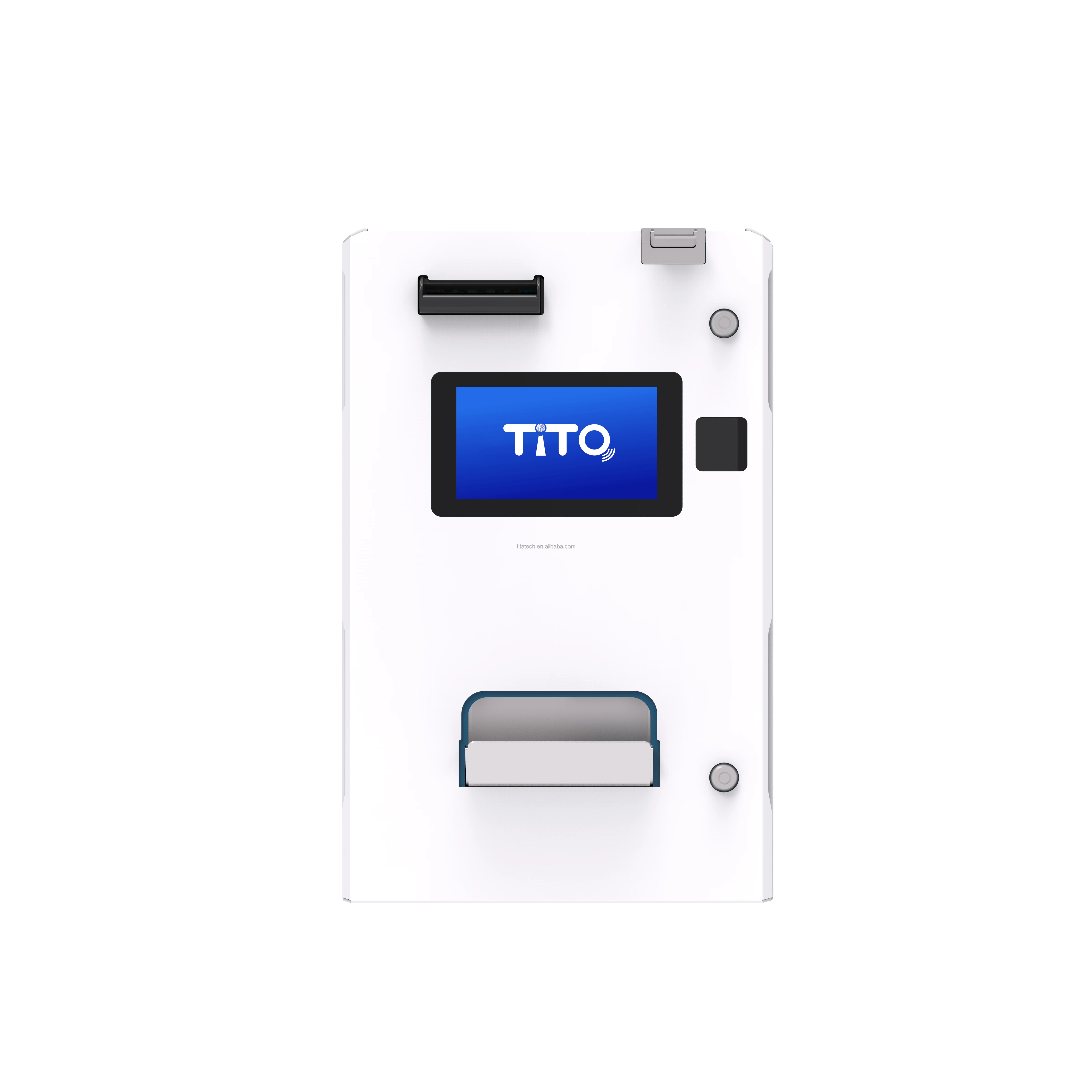

The TCGK1001 Kiosk combines the sleek, modern enclosure design. It attracts customers with its curved edges and clean, seamless face. The design supports quick user adoption and invites an intuitive user experience for today’s connected consumers.

The cabinet accommodates a variety of optional components common to most self-service applications–from card and cash component to scanners, printers, and biometrics. It provides an optimized self-service platform to all your customers and supports strictly touchscreen interaction.






Products Specification


Product Name
TCGK1001
Industrial PC
Industrial level motherboard with wide temperature range: -20℃ ~ 60 ℃

X86 platform supports:
Intel® Core™ Processor i3 / i5 / i7
Intel® Celeron® Processor J4125 / J1900
ARM platform supports:
RK3288 / RK3399 / RK3568
Operation System
Different motherboard supports:
Windows 10 / Windows 11 / Windows IoT
Linux Ubuntu / Debian
Android 7.1 / 8.1 / 9.0 / Android 11
RAM
4G/ 8G/ 16G/ 32G DDR3 / DDR4
Storage
X86 platform:
128G / 256G / 512G SSD / 1T HDD

ARM platform:
16G /32G /64G
Touchscreen Display
15"/ 17" / 18.5" / 19" / 21.5" / 23.5" /27" / 32" /43" / 49" /55" PCAP touchscreen (10 points)
Enclosure
1.6mm Durable Steel Frame,
powder coated;
Slim and smart design;
Easy to install and operate;
Moistureproof / Antirust / Anti-acid / Anti-dust / Static free
Accessories
Switching power supply 12V / 24V
Ventilation Fans
Amplified speakers
Power strip
Dust net
LAN Port on the back
Swinghandle locks
Castor Wheels with locking machanism
Package
Wood box with pallet packing


Optional Modules (Customized by projects)


Printer Module
Thermal Printer 2“ （58MM） / 3” （80MM）
A4 Printer
Label Printer
Card Printer

Brands support:
CUSTOM / MASUNG / SNBC /Zebra
Scanner Module
Document Scanner
QR code Scanner
A4 Scanner
Camera Scanner
Cheque Scanner

Brands support:
Desko /Gemalto / Reiner / SNBC / Newland / Zebra
Card Reader Module
Contact card reader /  NFC card reader / Contactless card reader / Magnetic card reader
Bank card reader with EMV certification

Brands support:
Creator / HID / ACS / MorphoSmart /PROVISION
Camera Module
USB camera
Facial recognition camera with live body detect
Card Dispenser Module
Bank debit card dispenser
SIM card dispenser (full size & half size)

Brands support:
Creator / NORDIC
EPP Module
16 keys EPP PCI certified
65 keys keyboard

Brands support:
Justtide
Cash Module
Cash acceptor / Cash dispenser / Cash recycler
Coin acceptor / Coin exchange / Coin hopper

Brands support:
CPI /ITL / Glory
Biometric Module
Fingerprint with live body detect
IRIS
Facial recognition camera with Algorithm
Signature Pad
Signature Pad

Brands support:
TOPAZ / HANVON
Network Module
3G/ 4G /5G / WIFI Module
4G Modem with WIFI

Brands support:
HUAWEI / ZTE
Payment Terminal
External POS / Unattended terminal

Brands support:
PAX / Centerm / Newland / Ingenico / Verifone / Castles
Other Modules
CASH SAFE
Headset
UPS / SOLAR Powered UPS
IoT Sensor
