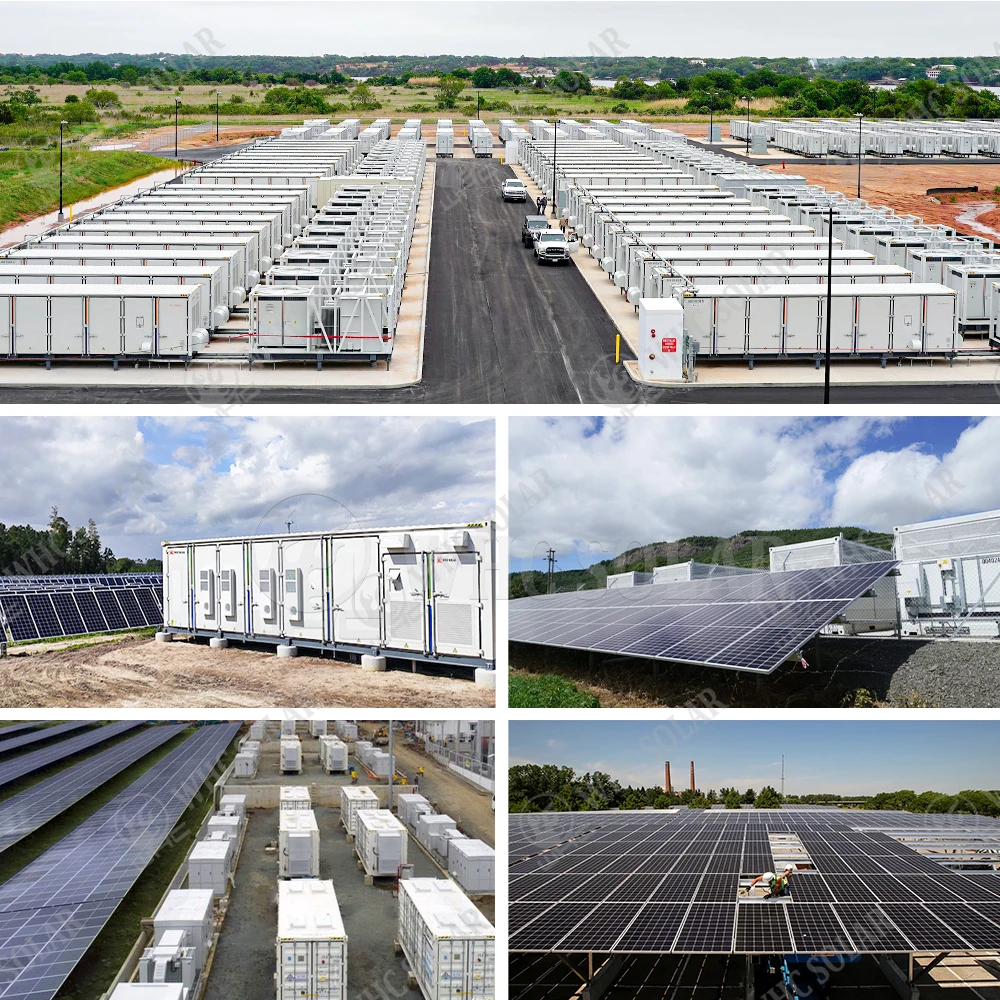

4000kwh Storage Battery 2000kw Solar Energy System 2MW Battery Energy Storage System ESS Container
- Category: >>>
- Supplier: Guangzhou Whc Solar Technology Co. Ltd.
Share on (1601041473333):
Product Overview
Description
Product Paramenters

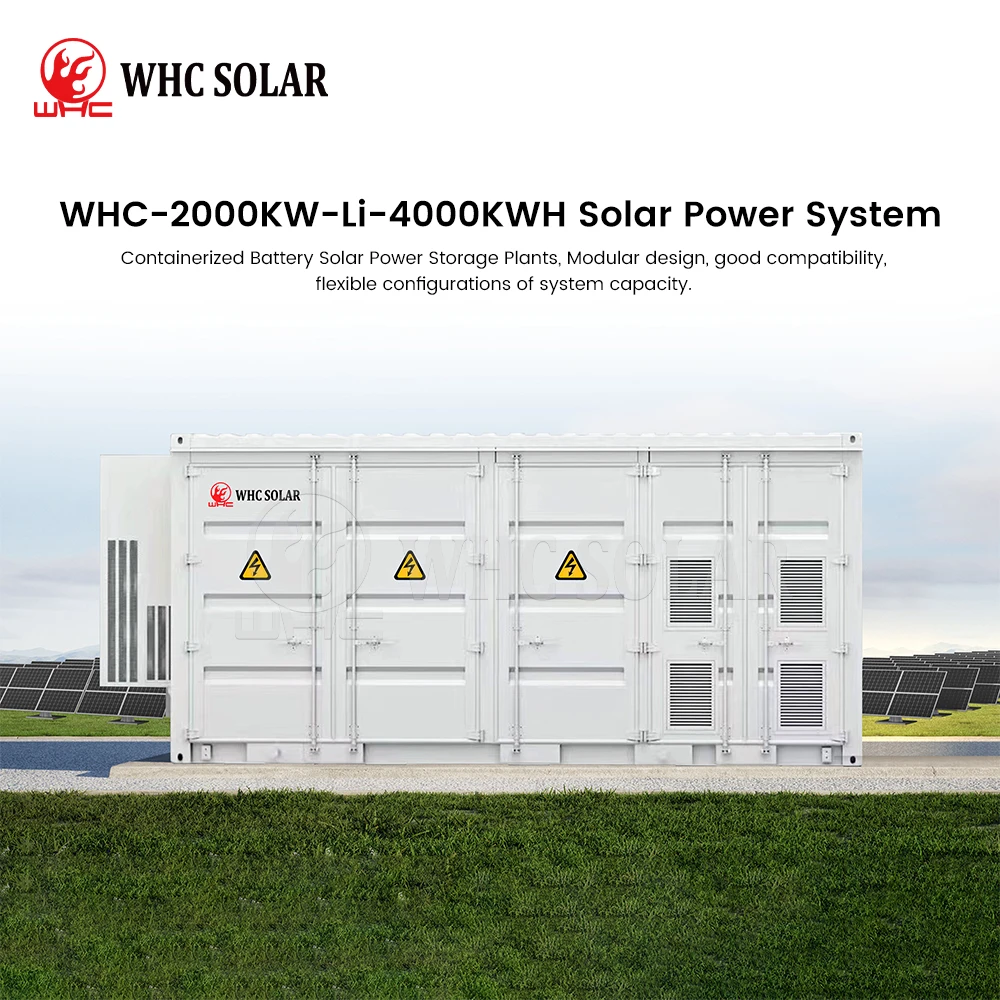

WHC-2000KW-Li-4000KWH Energy Storage Container | ||||
ltem | Description | Quantity | ||
20 Feet Container | One-Piece Pressed (Top-Hung), A1-GradeFireproof Rock Wool, Insulation Material | 4 Sets | ||
400KWH Battery Cluster | single Cluster 1228.8V280AH/12pcs | 12 Clusters | ||
BMS | 3-Stage BAMS, BCMU, BSMU Architecture, High Voltage control Box | 1 Set | ||
PCS | 500KW | 4 Terrace | ||
EMS Management System | Energy Management, Precise Control | 1 Set | ||
Cooling Systems | Air-Cooled/Liquid-Cooled (This is Air-cooled) | 1 Set | ||
Cables And Accessories | AC/DC Cables, Communication Cables, Etc. | 1 Set | ||
Solar Panel | 550W Mono Solar Panel | 3744 Pieces | ||
Solar Inverter | 110KW On Grid Inverter | 20 Pieces | ||
PV Combiner Box | N8 Plus | 26 Pieces | ||
PV Cable | PV Cable 1*10mm 100M | 40 Pieces | ||
PV Mounting support | Hot Galvanizing Ground Mounting Support | 1 Set | ||
Connector | MC4 Connector | 600 Pieces | ||
Tool Set | Solar PV Crimping Tool kit | 10 Sets | ||
Product Details

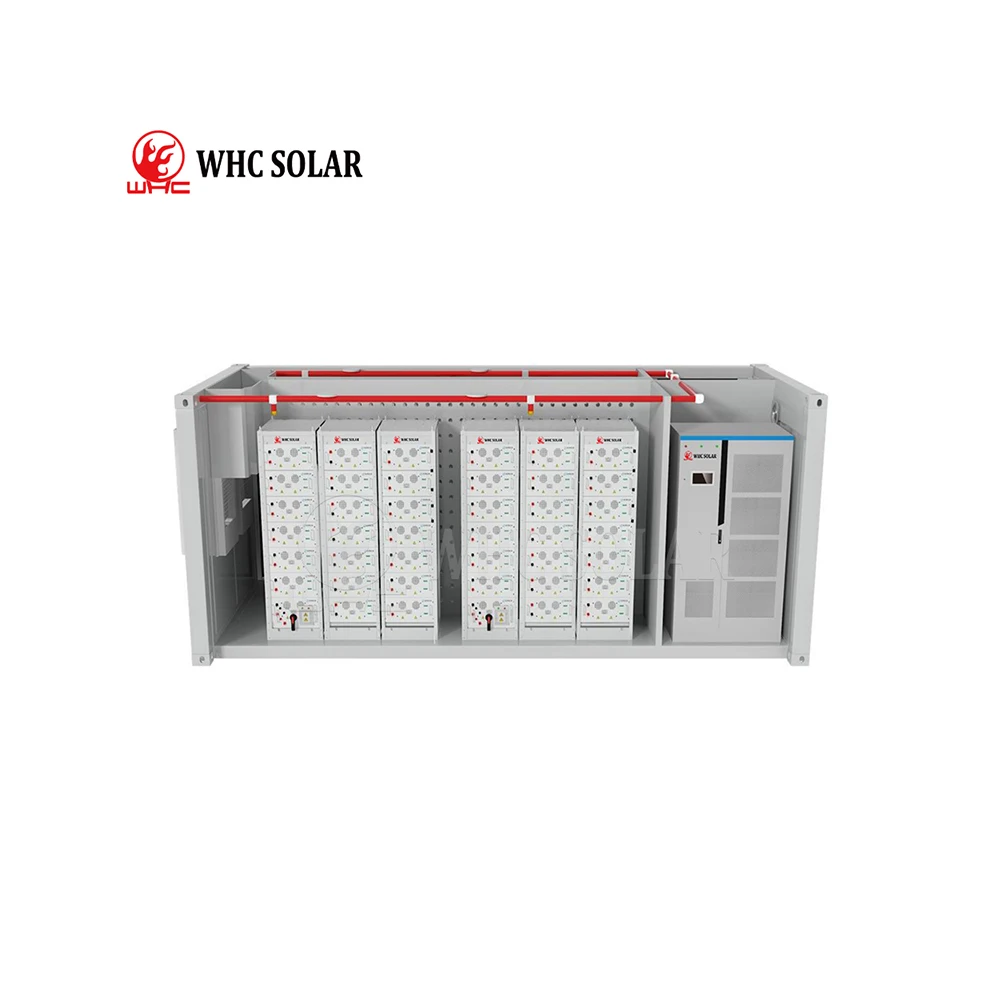

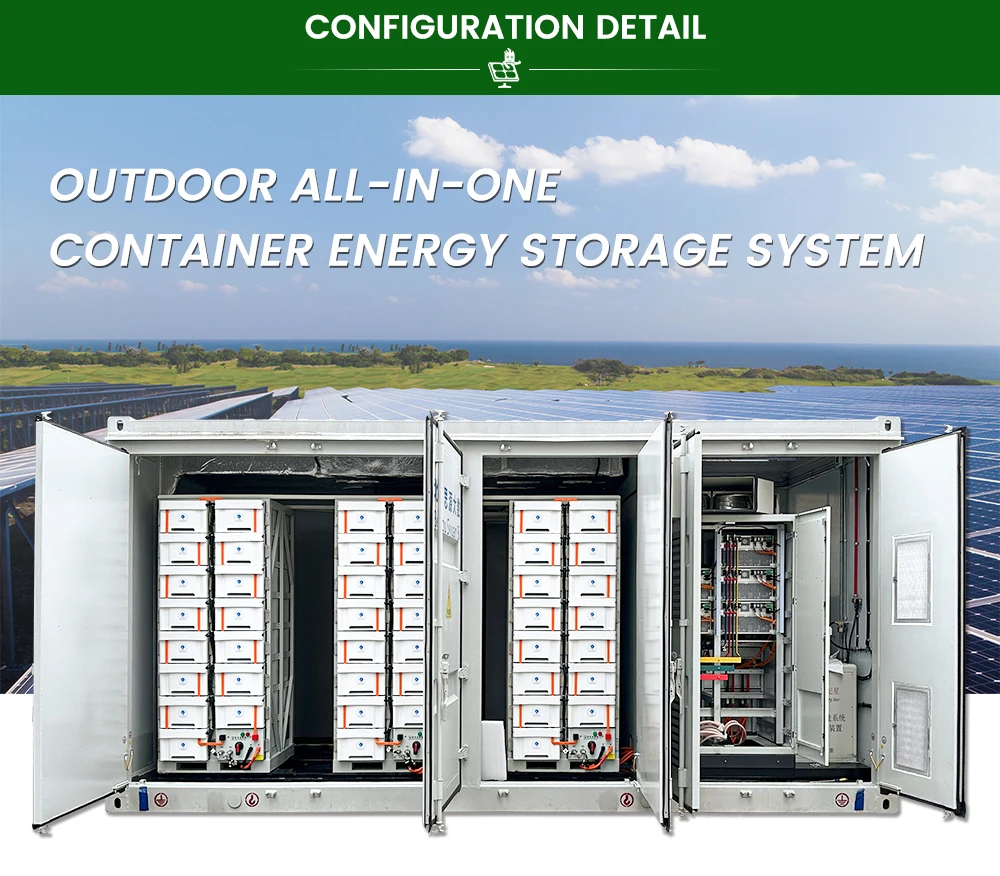

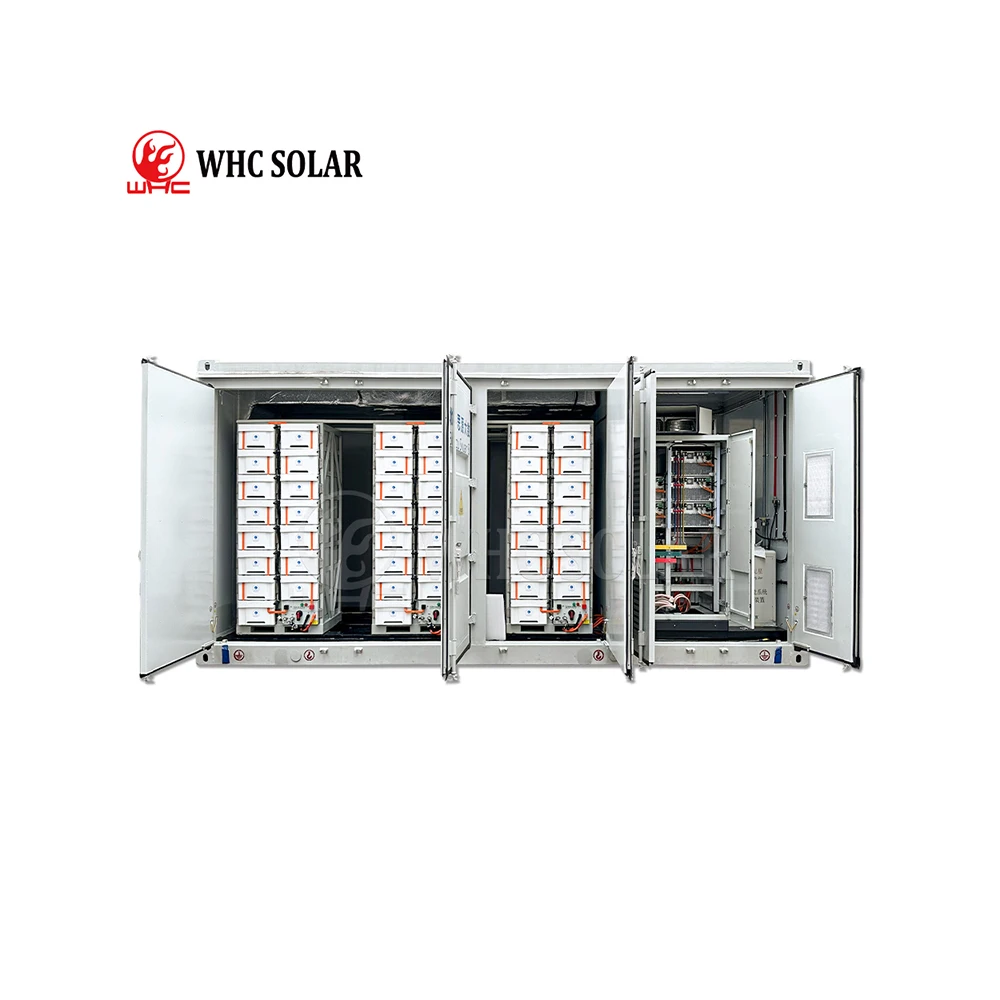

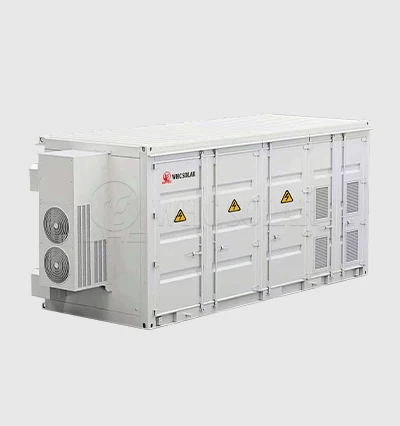

2MW/4000KWH system
1. Battery cluste 1228.8V280AH *12pcs
2. 4*20 feet container Energy storage system cabinet A1-Grade fireproof rock wool, insulation materials
3. PCS system 4*500kw including control cabinet, integrated optical storage, STS, EMS.
4. 3-stage BAMS, BCMU, BSMU architecture. High voltage control box
5.EMS Management System, Energy management, precise control.
6.STS automatic switching-4*500kw(0 seconds switching)
7. Air Cooling systems
2. 4*20 feet container Energy storage system cabinet A1-Grade fireproof rock wool, insulation materials
3. PCS system 4*500kw including control cabinet, integrated optical storage, STS, EMS.
4. 3-stage BAMS, BCMU, BSMU architecture. High voltage control box
5.EMS Management System, Energy management, precise control.
6.STS automatic switching-4*500kw(0 seconds switching)
7. Air Cooling systems

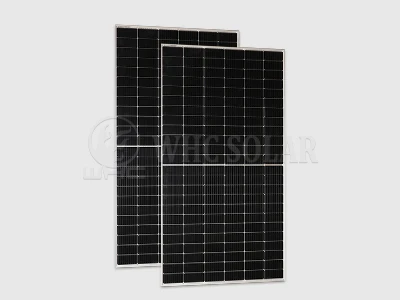

Mono Solar Panel
1.Model: WHC-550M-144
2.Voc:49.95V;Vmp:41.97V
3.IMP:12.97A; ISC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature: -40°C to +85°C
2.Voc:49.95V;Vmp:41.97V
3.IMP:12.97A; ISC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature: -40°C to +85°C
6.Maximum System Voltage:1500V DC

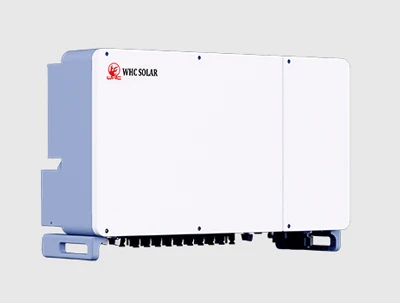

1.110KW ON-GRID INVERTER Efficient Higher Revenue
2.9-12 MPP Trackers, high single circuit trackingaccuracy, fast dynamic response and higherpower generation
3.150% Dc Input Oversizing
4. Maximum efficiency of 98.7%. wide
5. MPPT voltage range: 180v-1000V
6. Compatible with high power modules
4. Maximum efficiency of 98.7%. wide
5. MPPT voltage range: 180v-1000V
6. Compatible with high power modules

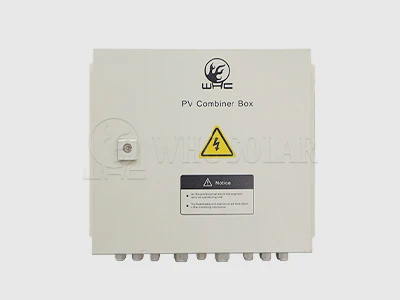

1. Combiner Box: N8Plus
2. Waterproof lP65
3.Max output Voltage: 1000V
4. DC Output Circuit Breake: Yes
5. Lightning Protection: Yes
3.Max output Voltage: 1000V
4. DC Output Circuit Breake: Yes
5. Lightning Protection: Yes

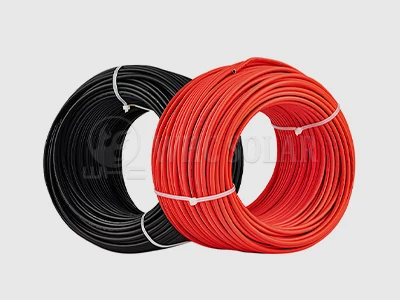

PV Cable
1.PV Cable 1*10mm 100M
2.Withstanding large temperature range
3. Humidity and water resistance
4. UV resistance
5.Acid and alkali resistance6.Ozone resistance
2.Withstanding large temperature range
3. Humidity and water resistance
4. UV resistance
5.Acid and alkali resistance6.Ozone resistance

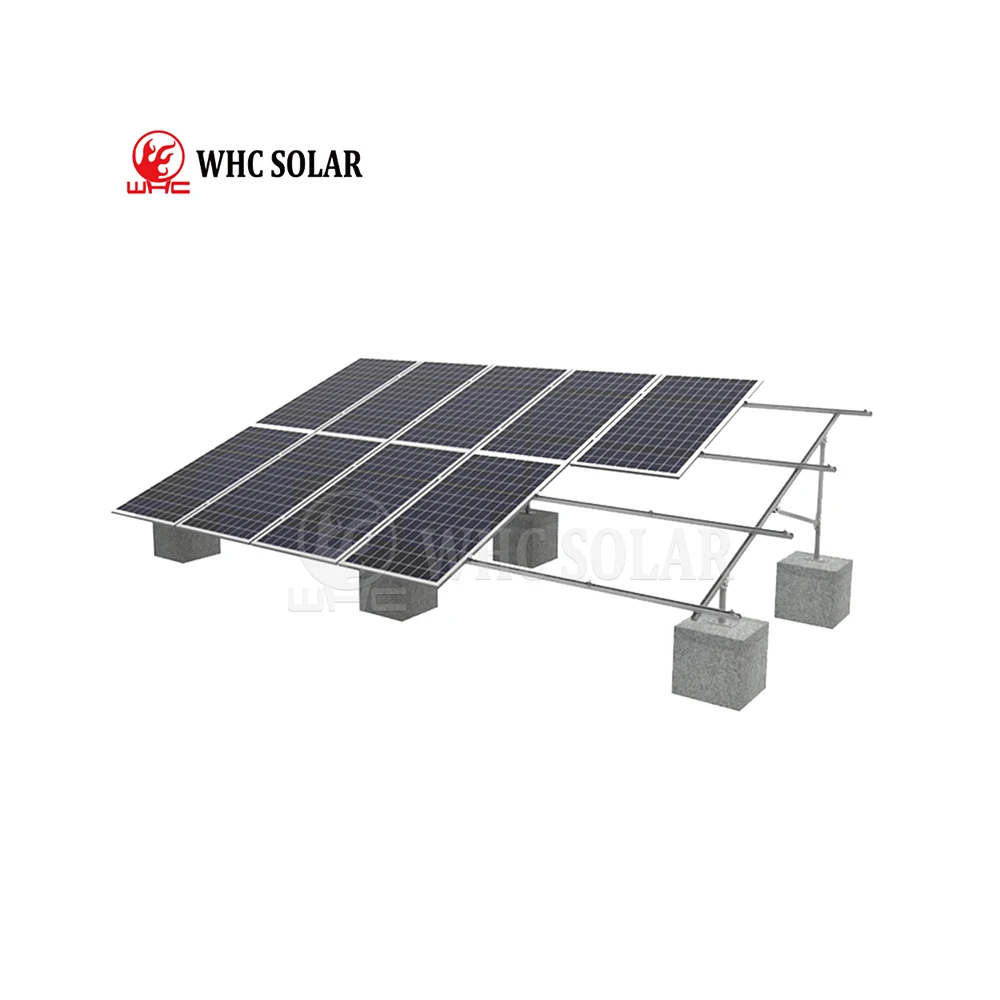

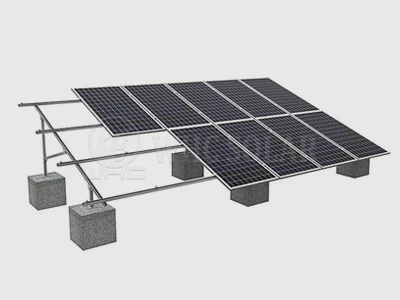

1. Solar Panel Bracket
2.wind load: 55m/s
3.Structure: Anodized Aluminum4. Stainless steel, Angle Adustable
2.wind load: 55m/s
3.Structure: Anodized Aluminum4. Stainless steel, Angle Adustable

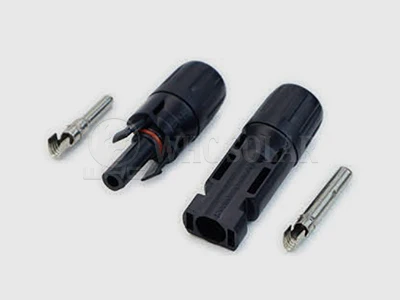

MC4 Solar connector
1. MC4 Solar Connector.
2.IP68 Waterproof
3. High Quality.
4.Safe Protection |Quick Operation.
5.Copper Mc4 solar Connector.
2.IP68 Waterproof
3. High Quality.
4.Safe Protection |Quick Operation.
5.Copper Mc4 solar Connector.

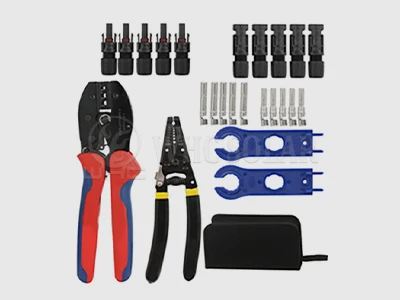

1. Solar crimping tool
2. Wire Stripper
3.Connector spanner Wrench
4.MC4 Solar Cable Connector*5
2. Wire Stripper
3.Connector spanner Wrench
4.MC4 Solar Cable Connector*5

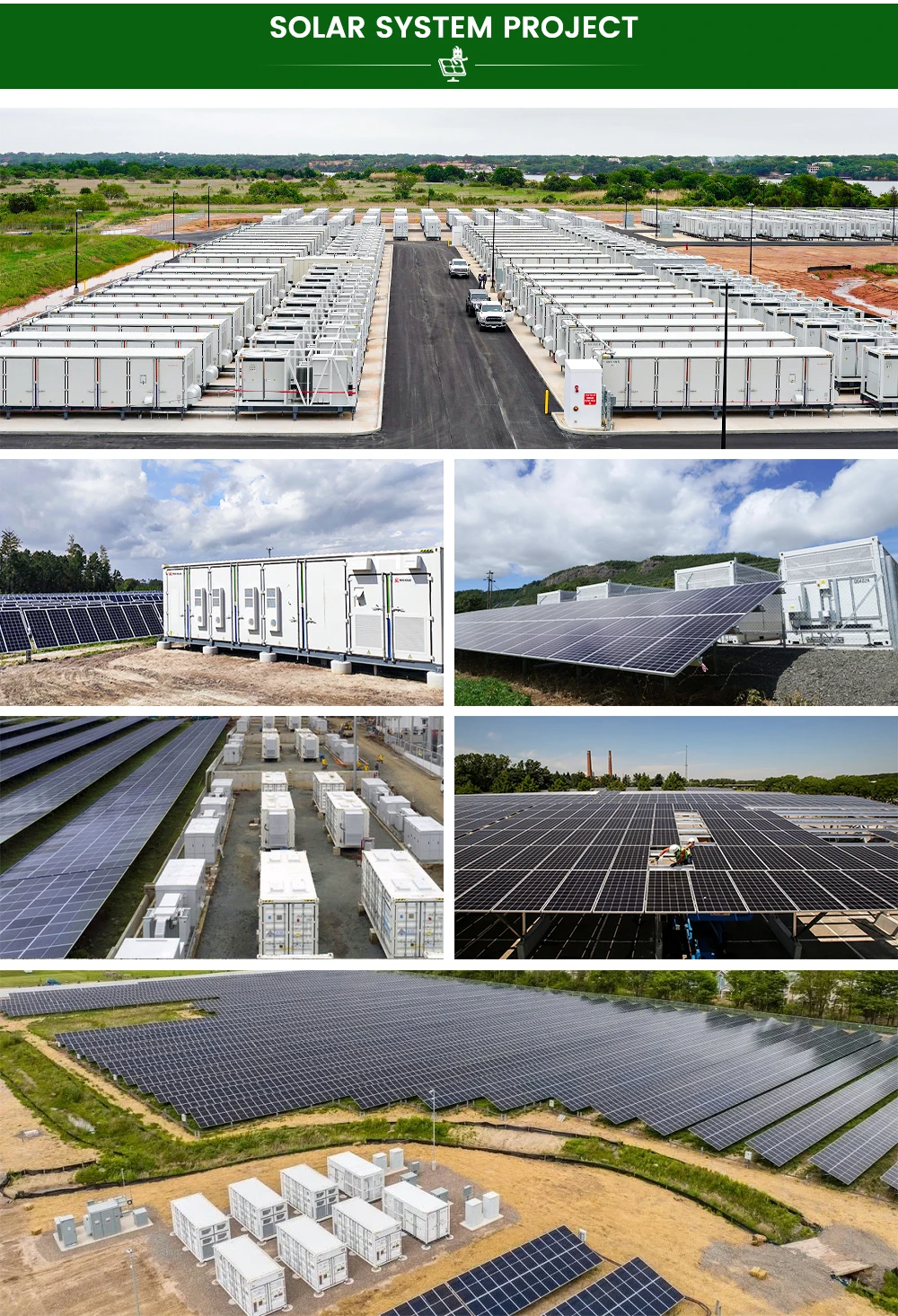

Projects
Company Profile
Guangzhou WHC Solar Technology Co.,Ltd was founded in 2009, which is a professional manufacturer specializing in the solar field for more than 15 years, including solar batteries, solar inverters, solar panels, solar controllers, solar street lights and solar water pump etc.
Our trademark“WHC SOLAR”has registered in 37 countries around the world. And we own 11 invention patents, providing customers with original market protection. We often attend solar energy industry exhibitions in German, USA, South Africa, Nigeria, Philippines, etc.
Our trademark“WHC SOLAR”has registered in 37 countries around the world. And we own 11 invention patents, providing customers with original market protection. We often attend solar energy industry exhibitions in German, USA, South Africa, Nigeria, Philippines, etc.
