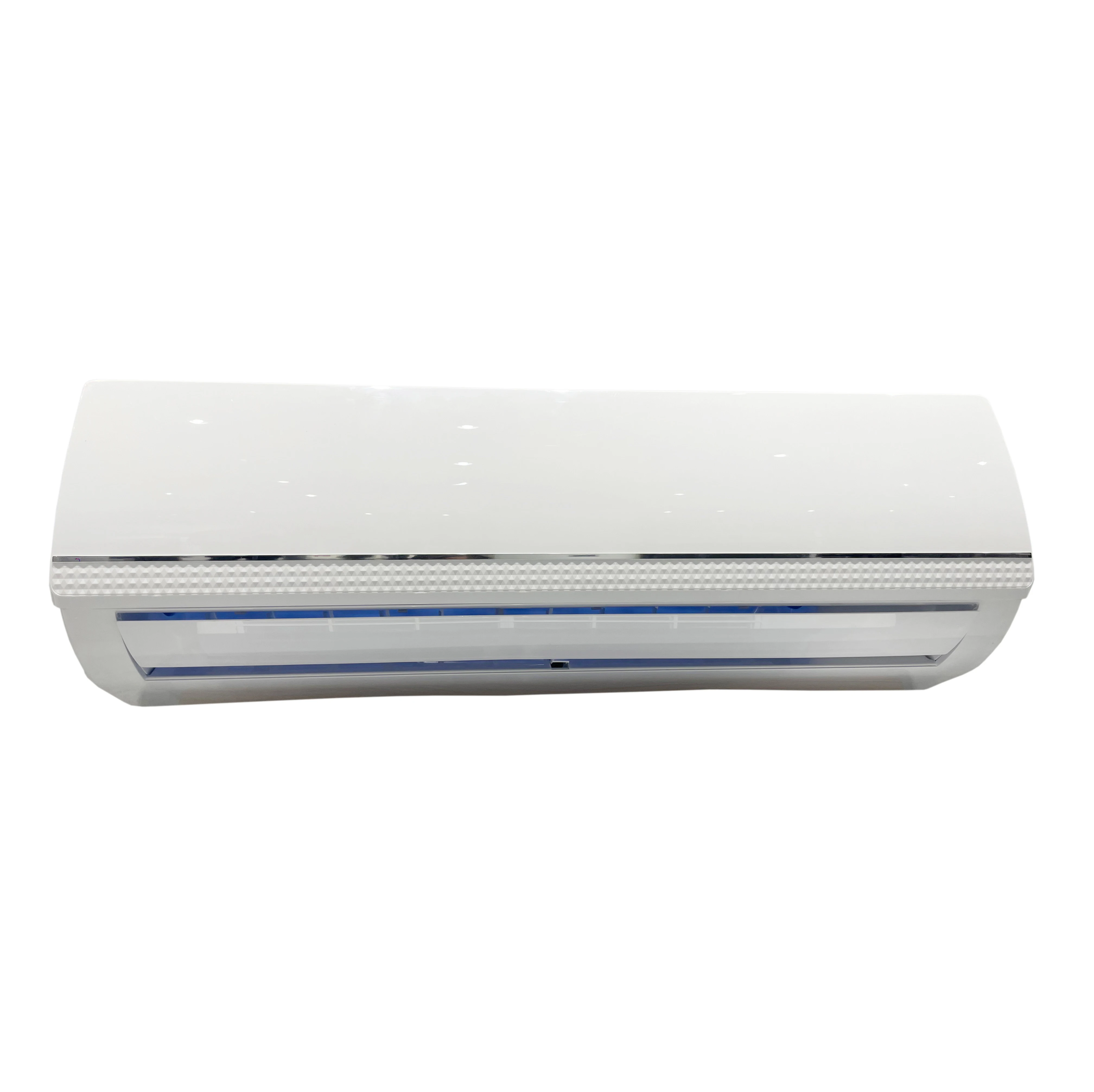

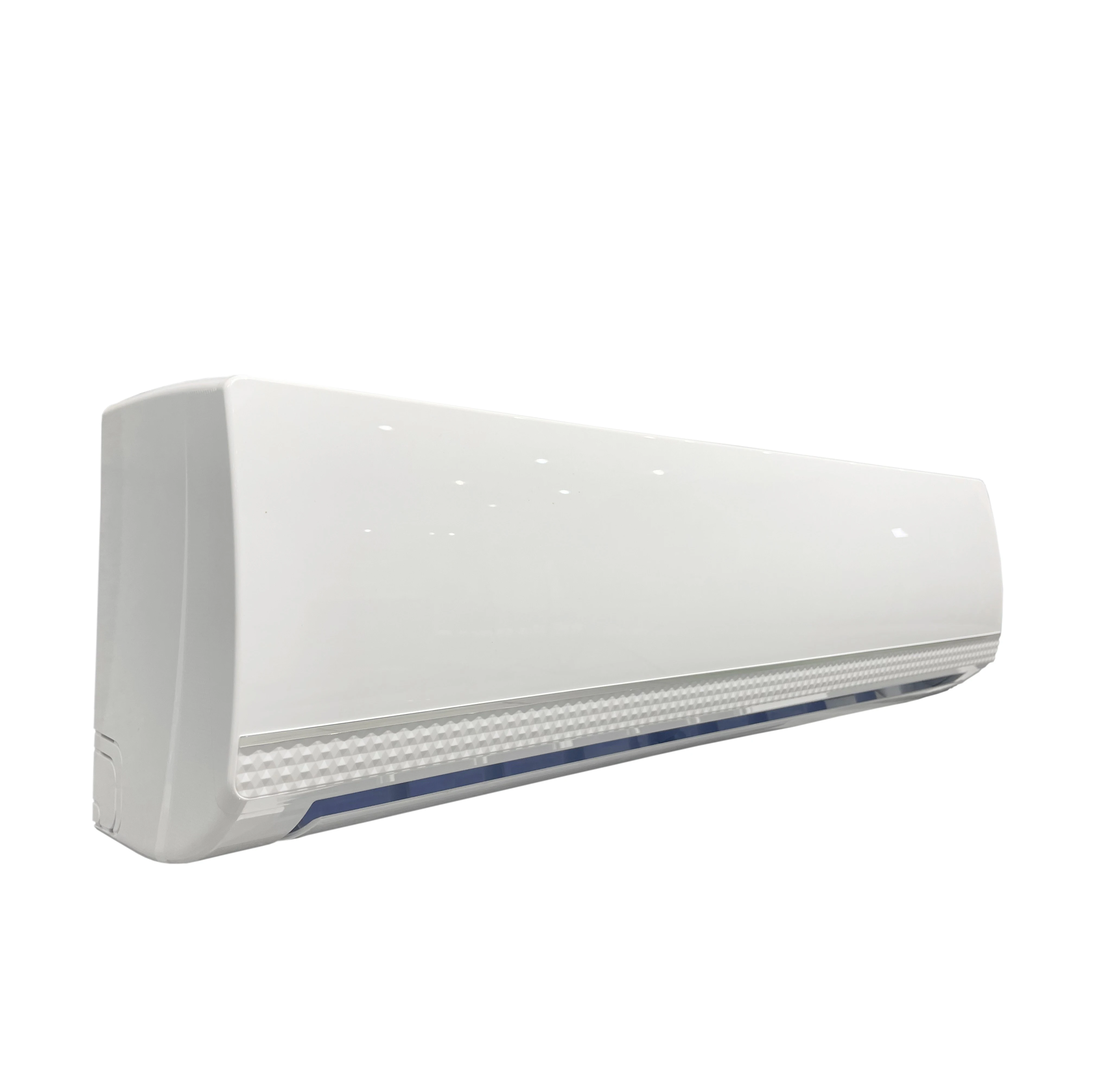

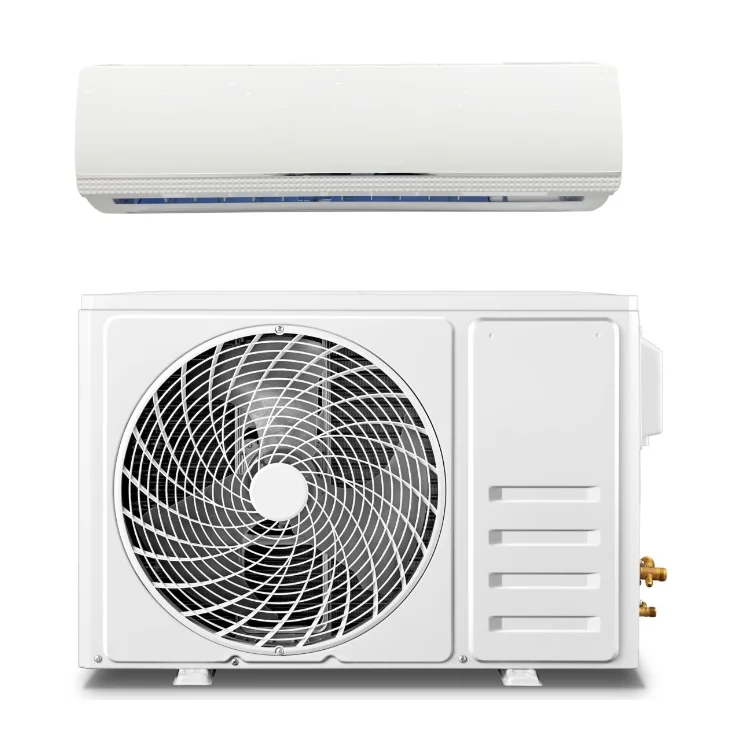

Africa Marketing Mini Wall Air Condition Split Type 2.5hp 24000 btu Inverter R410a Cooling Only Air Con Conditioner by TCL
- Category: >>>
- Supplier: Dongguan City Changping Saint J. Electrical Firm
Share on (1601041480132):
Product Overview
Description
Product Parameter
| 9000BTU | 10000BTU | 18000BTU | 24000BTU | |||
| Type | Cooling only | Cooling only | Cooling only | Cooling only | ||

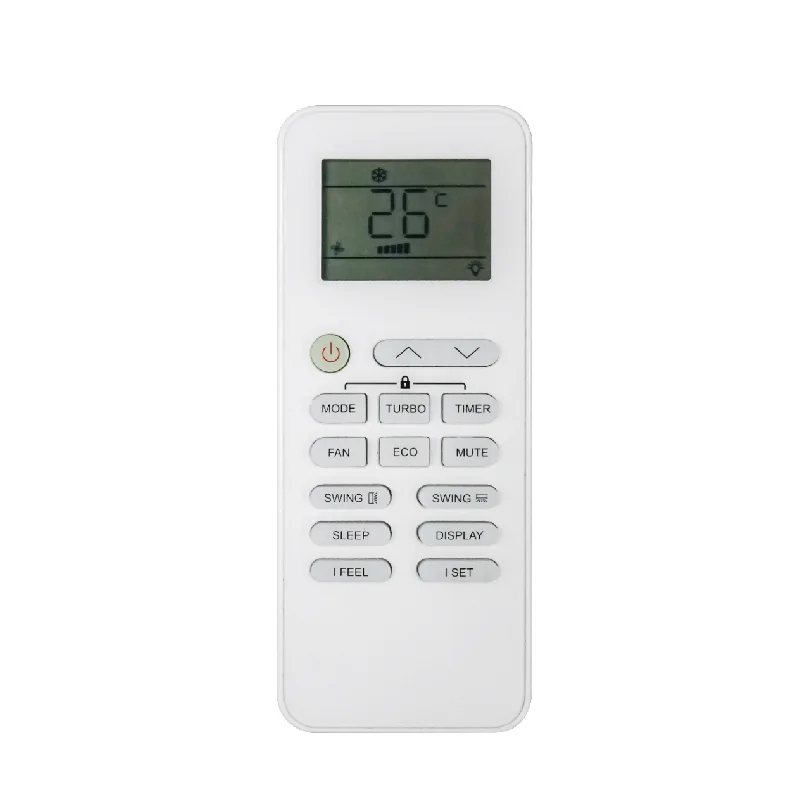

| Control type | remote controller | remote controller | remote controller | remote controller | ||
| Voltage Range | V | 165~264 | 165~264 | 165~264 | 165~264 | |
| Power supply | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | ||
| Capacity | Btu/h | 9000 | 12000 | 18000 | 24000 | |
| Declared cooling capacity | W | 2640(600~2900) | 3517(800~3900) | 5276(1000~5803) | 7035(1200~7300) | |
| Rated Power input | W | 750(220~1400) | 1004(220~1450) | 1516(300~2390) | 2033(300~2500) | |
| Rated current | A | 3.7(1.0~6.3) | 4.9(1.2~6.3) | 7.5(1.4~10) | 10.1(2.5~13.5) | |
| EER | W/W | 3.52 | 3.5 | 3.48 | 3.46 | |
| Max power input | W | 1400 | 1450 | 2390 | 2500 | |
| Max current | A | 6.3 | 6.3 | 10 | 13.5 | |
| Moisture removal | Liters/h | 1.0 | 1.2 | 1.6 | 2.6 | |
| Indoor sound power(S/H/M/L/Mute) | dB(A) | 34 | 37 | 42 | 45 | |
| Outdoor sound power | dB(A) | 46 | 51 | 51 | 52 | |
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| MFG | RECHI | RECHI | Hitachi | Sanyo | ||
| Indoor air circulation (Mi/Lo) | m3/h | 500 | 580 | 850 | 1050 | |
| Pressure | High(DP) | MPa | 4.5 | 4.5 | 4.5 | 4.5 |
| Low(SP) | MPa | 1.9 | 1.9 | 1.9 | 1.9 | |
| Refrigerant | R410A | R410A | R410A | R410A | ||
| Ambient temperature | ℃ | -7~43 | -7~43 | -7~43 | -7~43 | |
| Connecting Wiring | Core x Size | 3×1.5mm2x1500 | 4×1.0mm2 | 4×1.5mm2 | 3*1.5mm2x2000 | |
| Wiring | Power supply cord | 1.0mm2 H05VV-F | AWG16 | 1.5mm2H05VV-F | H07RN-F | |
| Expension device | Capillary | Capillary | Capillary | Capillary | ||
| Others | ||||||
| Application area | m² | 9~12 | 12~19 | 20~35 | 30~50 | |
| Refrigerant piping | Liquid side/Gas sid | mm(inch) | φ6(1/4")/φ9.52(3/8") | φ6(1/4")/φ9.52(3/8") | φ6(1/4")/φ12(1/2") | φ6(1/4")/φ12(1/2") |
| Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |
| Max. difference in level | m | 5 | 5 | 5 | 5 | |
Product Description
Related Products
ON-OFF R410a Cooling only for Africa Inverter air conditioner for non-Europe
ON-OFF R32 Cooling Only air conditioner ON-OFF R410a cooling and heating air conditioner
Company Information
Welcome to SaintJ, a leading provider of high-quality and cost-effective air conditioning solutions. With over a decade of experience in the industry, we pride ourselves on our commitment to excellence and customer satisfaction.
Our company was founded with a vision to become a global leader in the air conditioning industry. Our team of experienced professionals is dedicated to providing exceptional service to each and every one of our customers. Our range of air conditioning systems includes both traditional and energy-efficient models, designed to meet the needs of a wide range of applications.
SaintJ is a trusted name in the industry, renowned for our commitment to quality and customer satisfaction. We look forward to the opportunity of providing you with our exceptional products and services, and we are confident that you will be satisfied with the results. Contact us today to learn more about how we can help you achieve your needs.
