Factory price 9m rear flip dump truck trailer special transport truck made in China

item

value

Place of Origin

China

Shandong

Brand Name

SFILUN

Certificate

CCC

Size

9000*2550*3700mm

Weight

7.5Tons

Load Capacity

40 Tons

Tire

12R22.5*12

Material

T700

Axle load

13 Tons*3

Brake System

WABCO Dual Lines Air Brake

Oil cylinder

196

suspension system

mechanical suspension

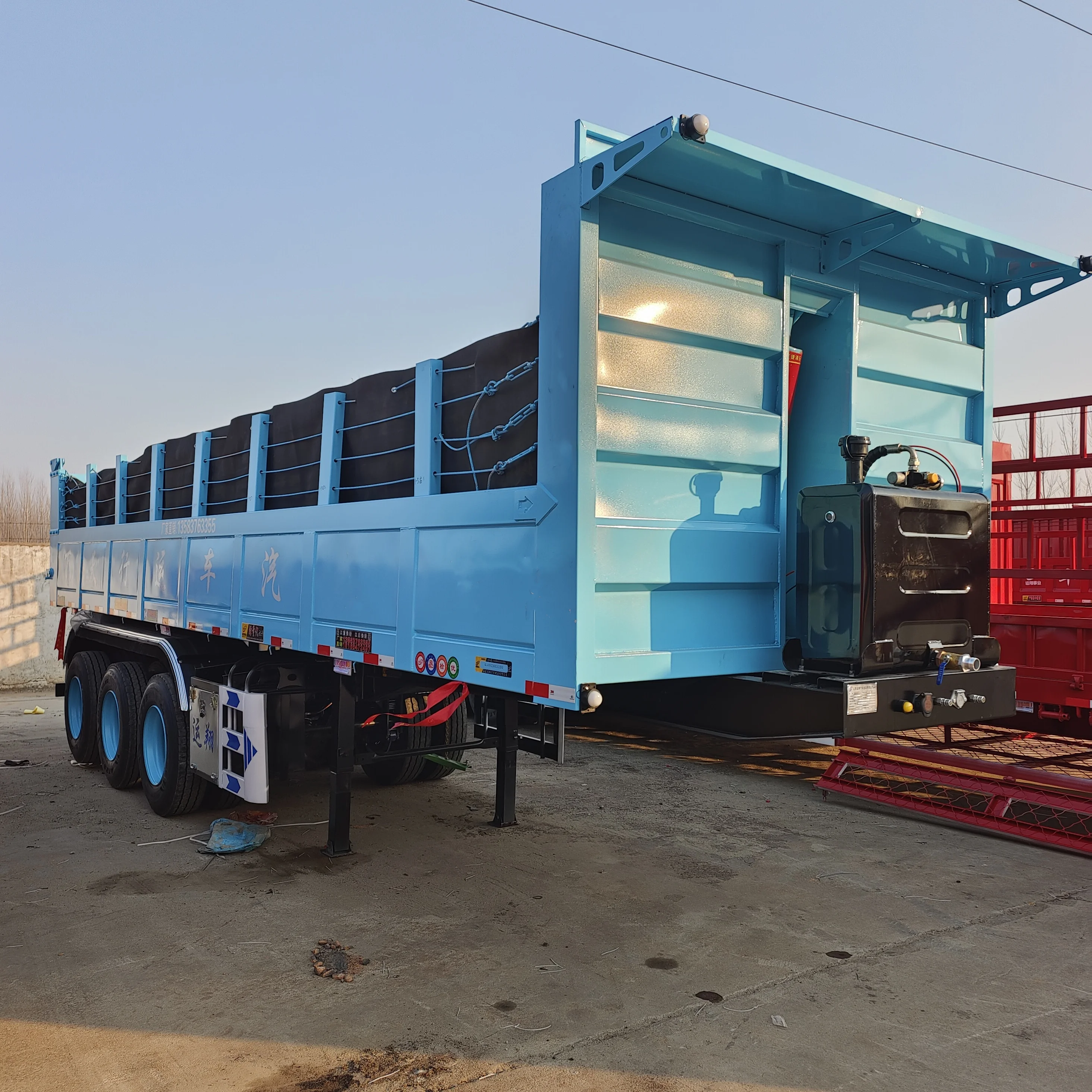

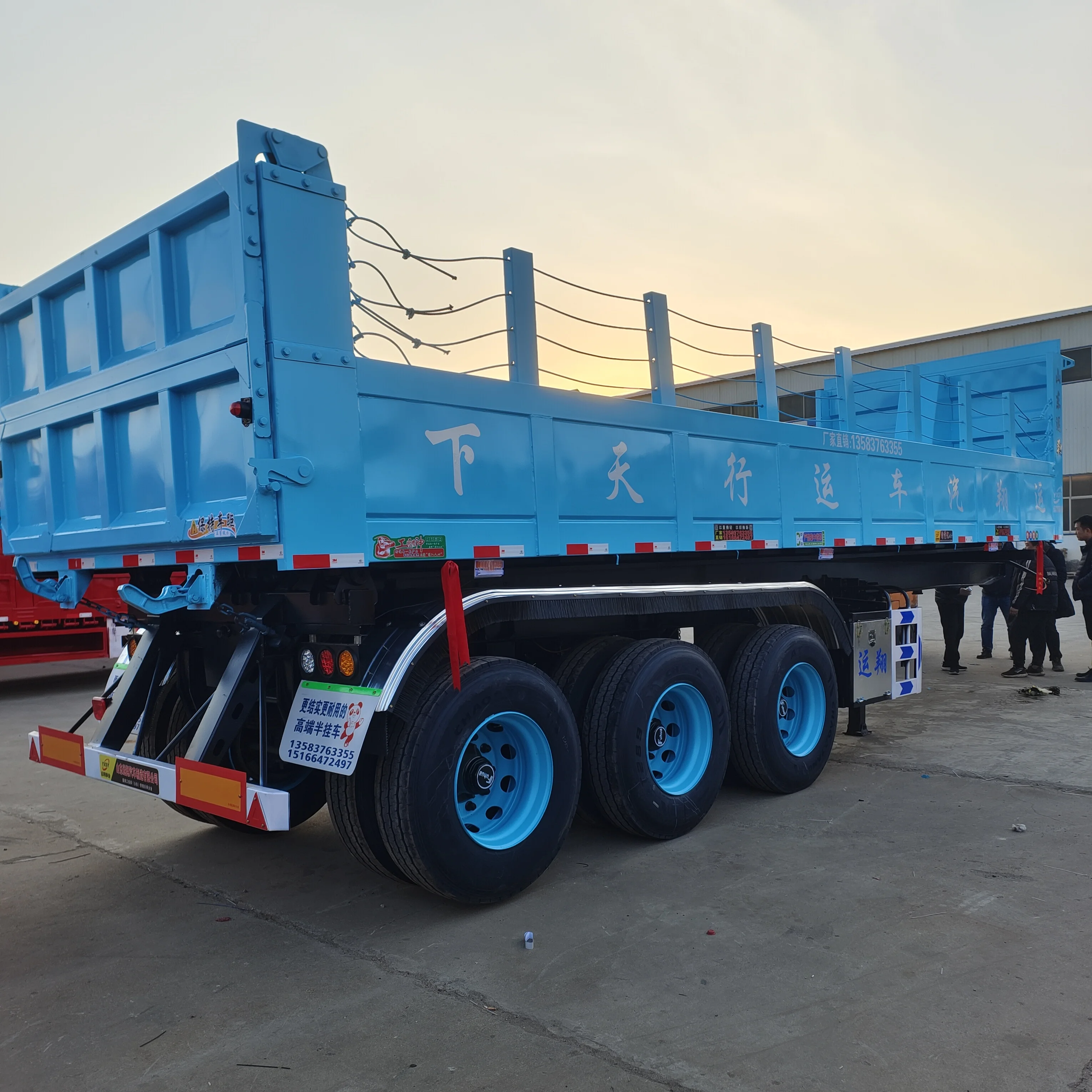

SFILUNRear Dump Tipper Semi Trailer

Application

Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading

Model

2 axles tipper trailer

3 axles tipper trailer

4 axles tipper trailer

5 - 6 axles tipper trailer

Bucket capacity

25 cubic meters

30/35/40 cubic meters

40 cubic meters

45 cubic meters

Dimension （mm）

8500*2500*3500

10000x2500x3800

10500*2500*3900

11500*2500*3950

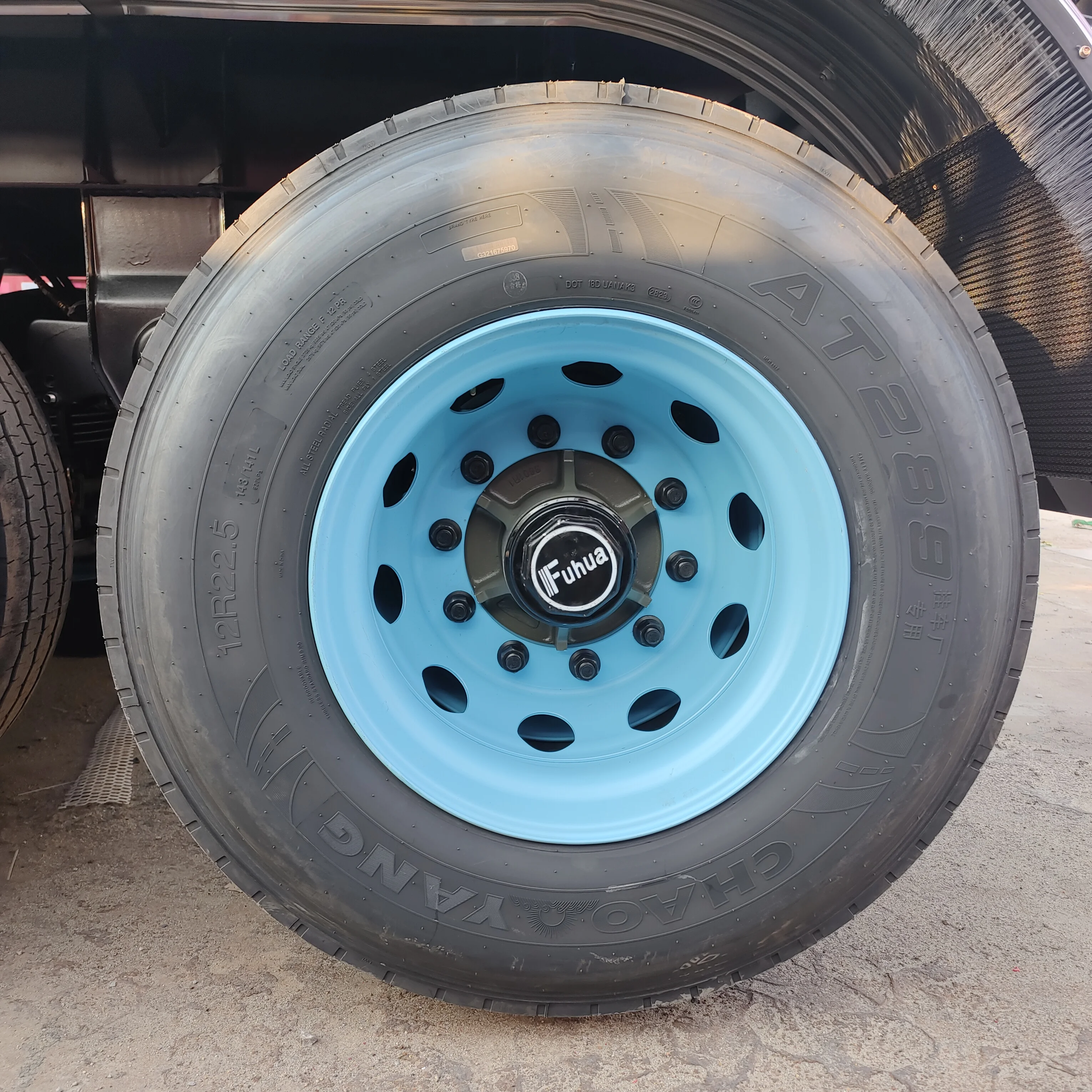

Rim and tires

12.00R22.5 tires
9.0-22.5 rims

12.00R22.5 tires
9.0-22.5 rims

315/80R22.5 tires
9.0-22.5 rims

12.00R20 tires
9.0-20

Lifting system

HYVA brand
FE/FC type cylinders
Diameter=191 mm

HYVA brand
FE/FC type cylinders
Diameter=191 mm

HYVA brand
FE/FC type cylinders
Diameter=202 mm

HYVA brand
FE/FC type cylinders
Diameter=214 mm

Tipping box

T700 / Hardox

Main Beams

T700 / Q345B double plate

Height:500mm

Upper Plate: 14mm

Middle Plate: 8mm

Lower Plate: 16mm

Axle

13T/16T FUWA / BPW / LEAO Own Brand

King Pin

JOST brand 2.0'' / 3.5'' bolt type king pin

Landing Gear

28T double speed JOST / TAIHUA brand

Suspension

Heavy duty mechanical suspension / Air bag / Bogies

Pneumatic Braking System

WABCO RE 6 relay valve
T30/30 air brake chamber

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market )

Light

LED light,24V,7ways(7 wire harness)

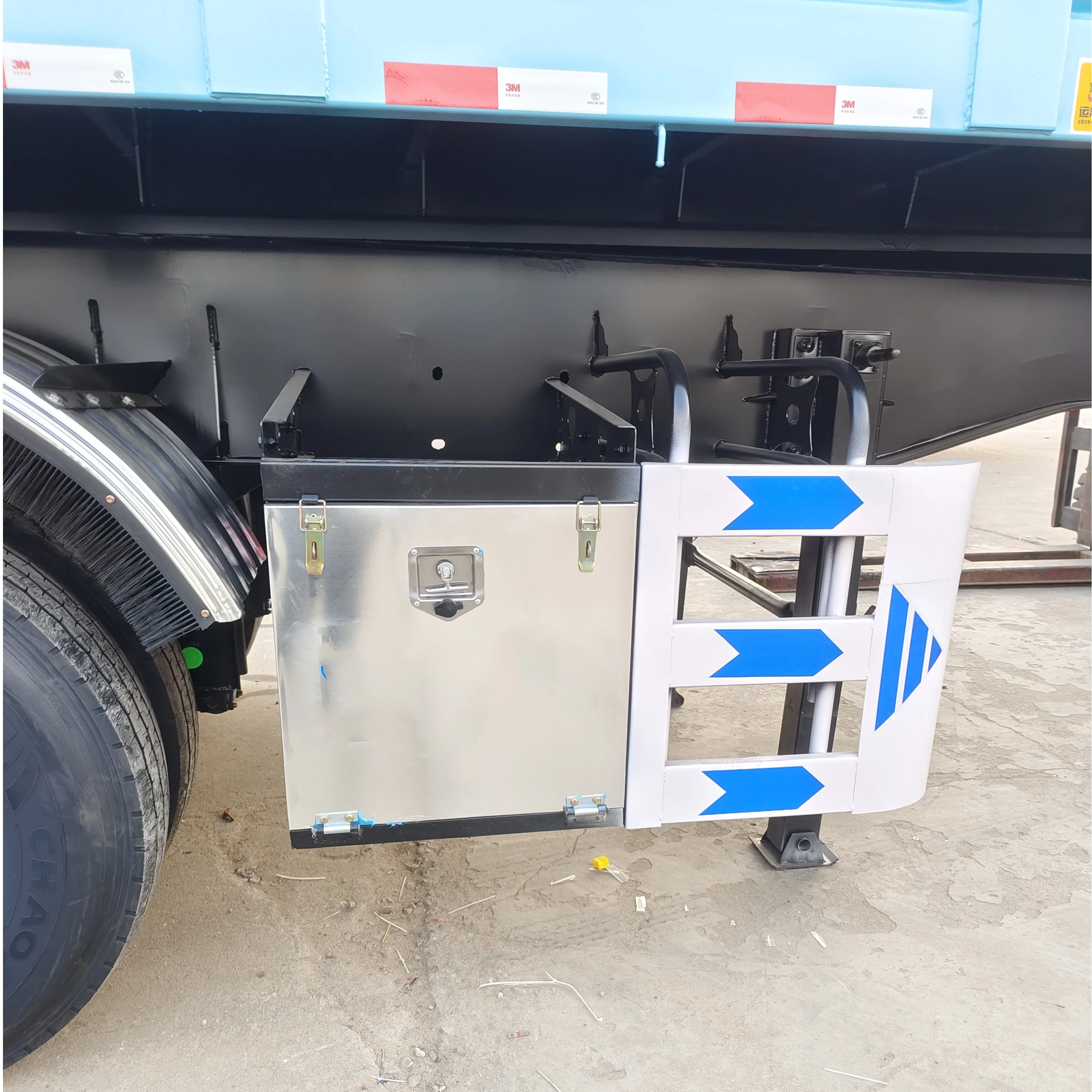

Tool Box

steel/aluminum

One piece,1m*0.5m*0.5m(Size can be choose freely)

Painting

1 coat of anticorrosive prime, 2coats of final paint

Any parts fitted could according to clients request, contact us to get more.
