Sanitation High Viscosity Liquid Solid liquid Separation Stainless Steel Quick Fit Angle Filter
- Category: >>>
- Supplier: Shanghai Lvda Filtration System Co. Ltd.
Share on (1601041591946):
Product Overview
Description
We are a real manufacturer. Next I will show you my product information, as well as my production workshop, laboratory, filtration effect, delivery packaging and other information. Please browse.I can provide you with customized products, welcome to consult.

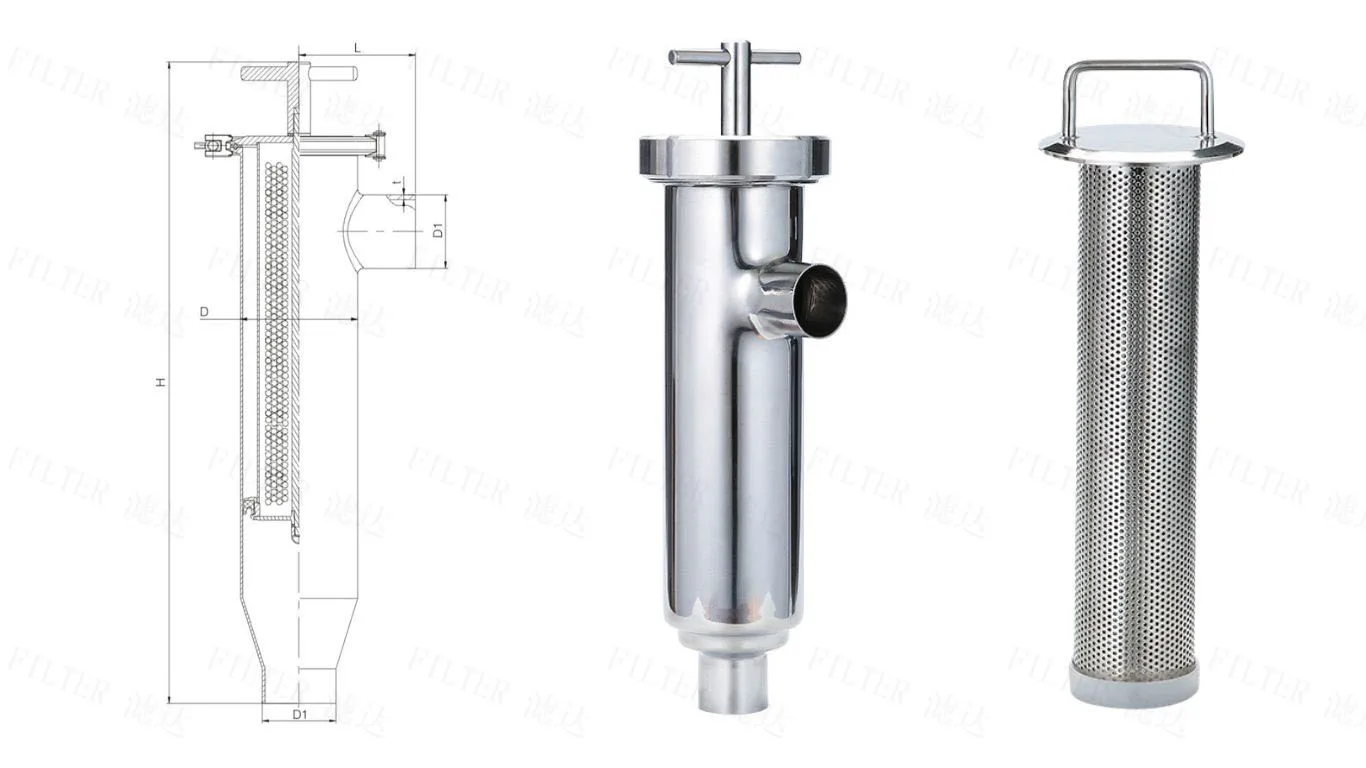

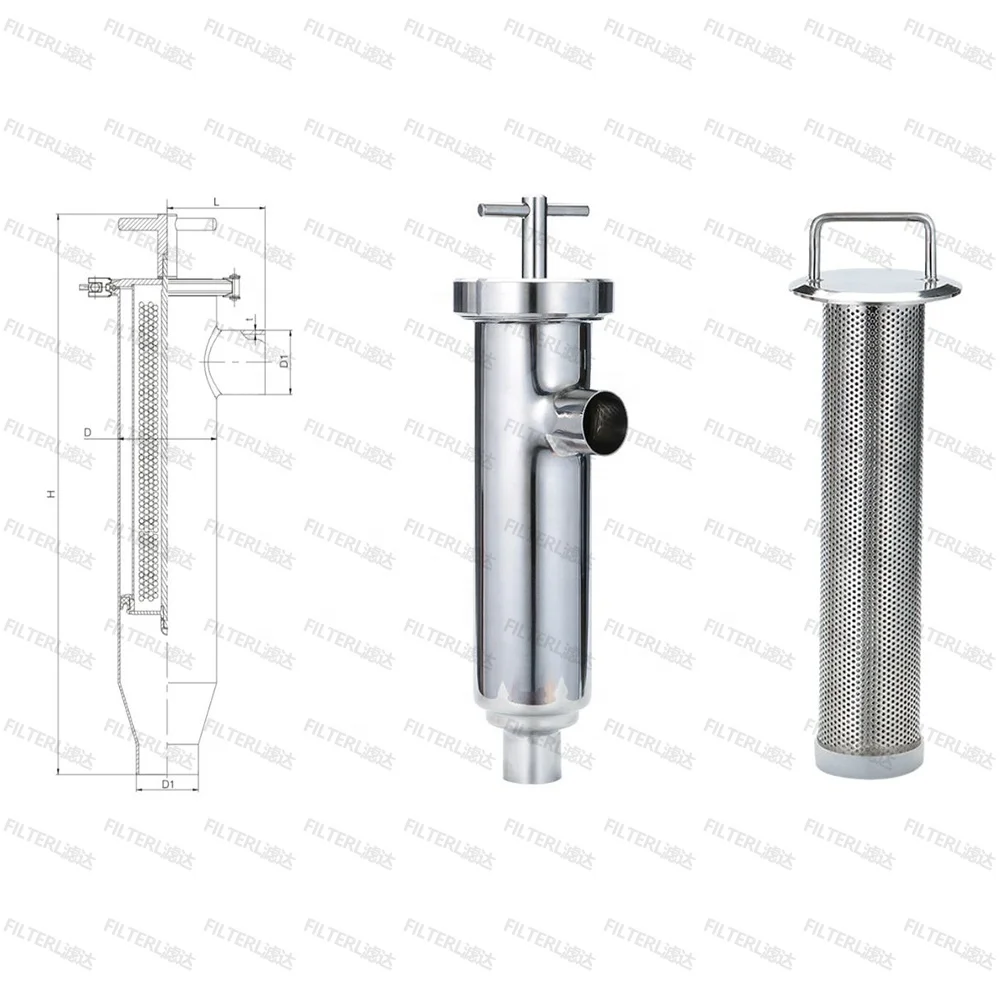

Schematic
Performance characteristics：
Angle filter is suitable for various water supply systems. It is a small device that can filter solid particles or impurities in the medium to ensure the safe and reliable operation of system equipment. It can use two filters in parallel and alternately. It can replace or clean the filter screen without affecting normal production and use. It is suitable for long-term continuous production.
Angle filter is suitable for various water supply systems. It is a small device that can filter solid particles or impurities in the medium to ensure the safe and reliable operation of system equipment. It can use two filters in parallel and alternately. It can replace or clean the filter screen without affecting normal production and use. It is suitable for long-term continuous production.

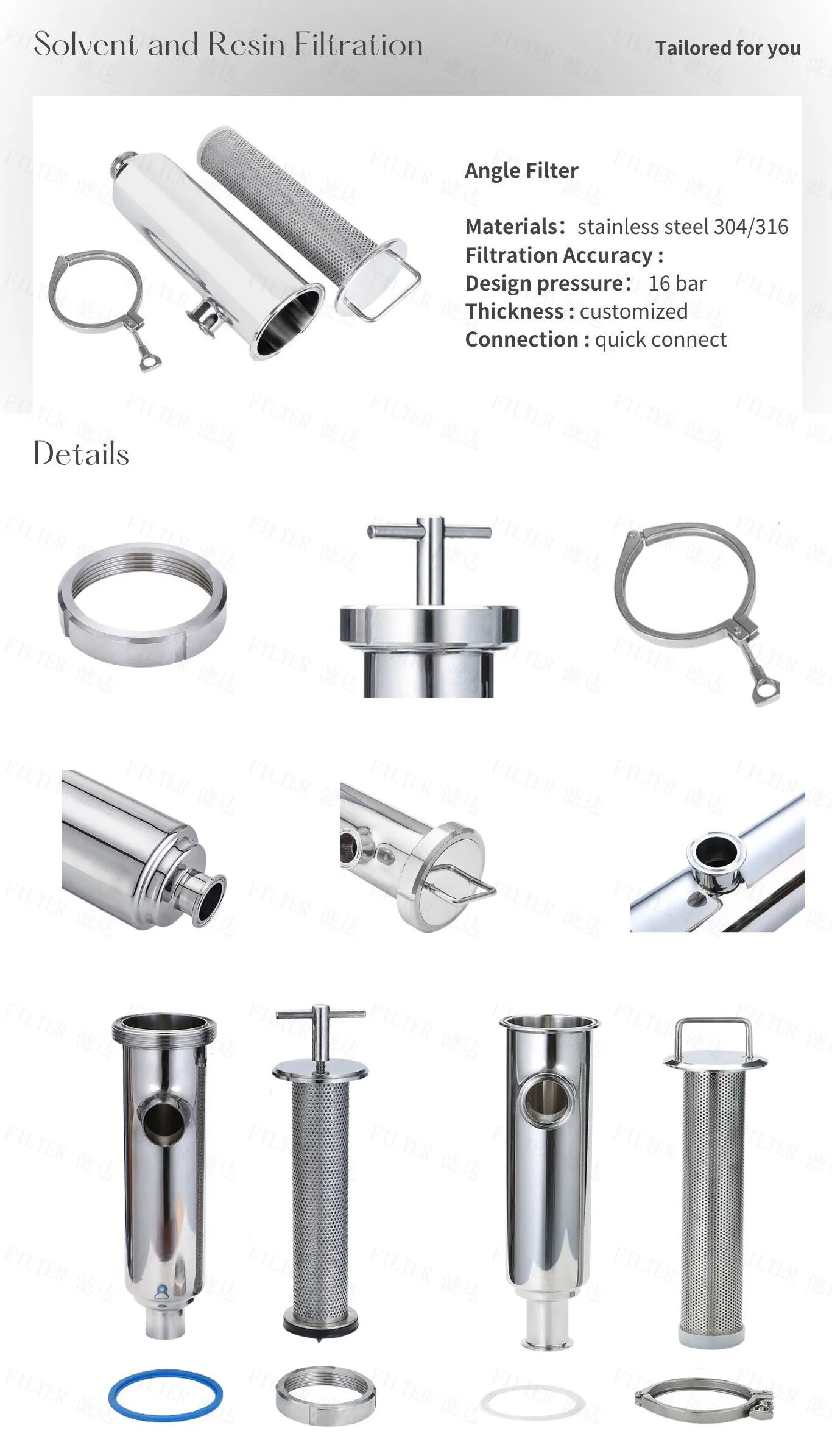

Products Description
Angular filter application scenarios:
Angle filters are widely used in chemical, food, pharmaceutical, coating, paint and other industries, especially where high viscosity and high solid content liquids need to be filtered and high-precision filtration is required.
For example, in the pharmaceutical industry, it can be used to produce API, intermediates, compound drugs, etc.; in the food industry, it can be used for the filtration of wine, beer, juice, syrup, etc.; in the coating industry, it can be used in coatings, roof waterproofing and other fields; in the paint industry, it can be used High temperature pigments, composite resins, etc.
For example, in the pharmaceutical industry, it can be used to produce API, intermediates, compound drugs, etc.; in the food industry, it can be used for the filtration of wine, beer, juice, syrup, etc.; in the coating industry, it can be used in coatings, roof waterproofing and other fields; in the paint industry, it can be used High temperature pigments, composite resins, etc.

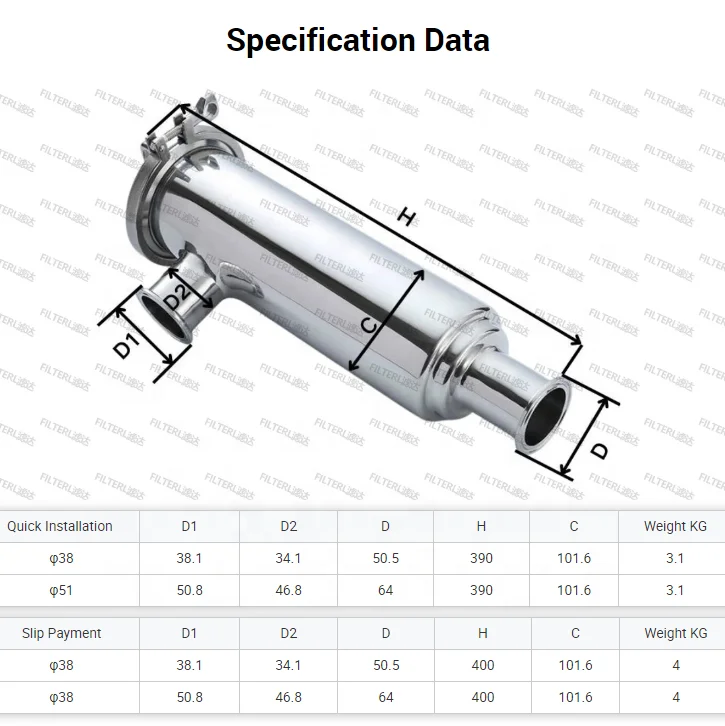

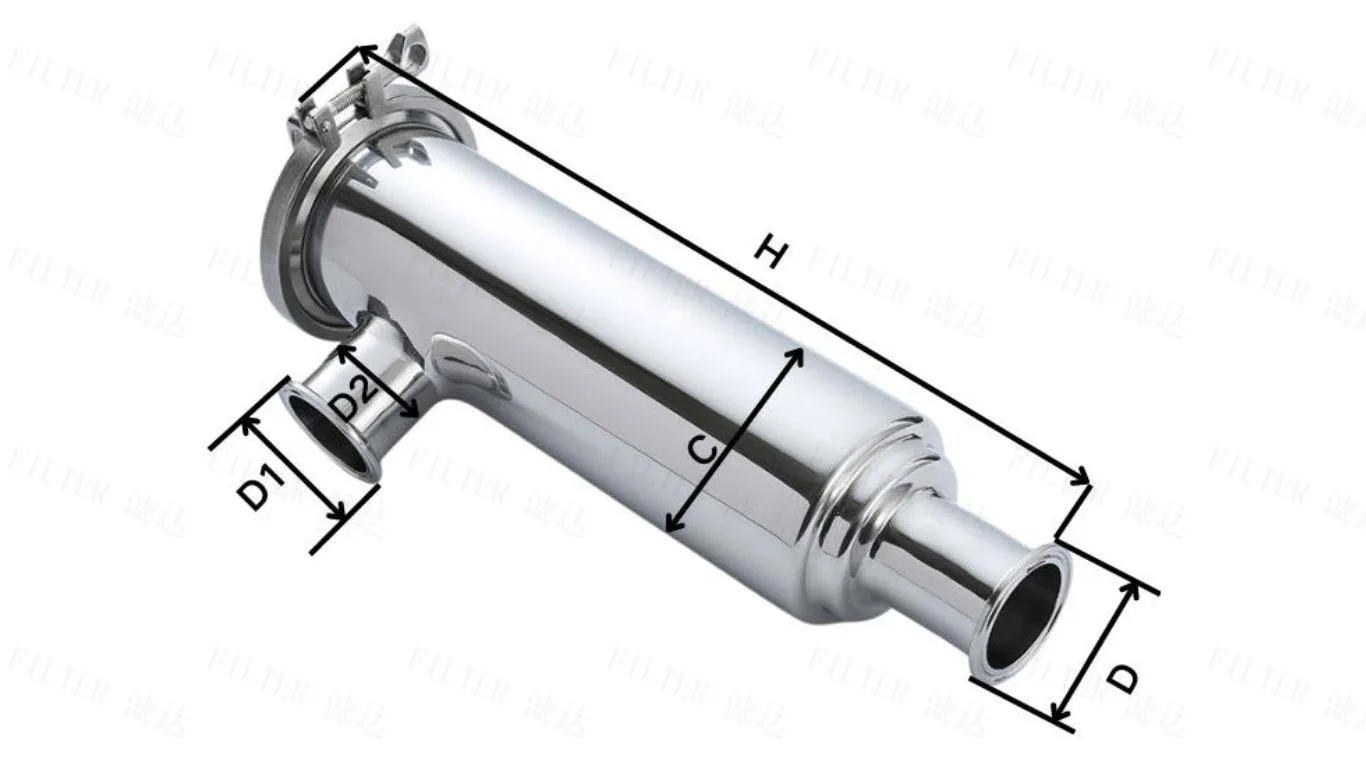

Specification Data
Quick Installation | D1 | D2 | D | H | C | Weight KG |
φ38 | 38.1 | 34.1 | 50.5 | 390 | 101.6 | 3.1 |
φ51 | 50.8 | 46.8 | 64 | 390 | 101.6 | 3.1 |
Slip Payment | D1 | D2 | D | H | C | Weight KG |
φ38 | 38.1 | 34.1 | 50.5 | 400 | 101.6 | 4 |
φ38 | 50.8 | 46.8 | 64 | 400 | 101.6 | 4 |
Filtration principle of angle filter
The filtration principle of the angle filter is to screen liquid and solid particles
through the space between the filter screen and the partition, thereby achieving solid-liquid separation. The horizontal direction
of gravity under this structure is at an oblique angle to the direction of liquid flow, causing the liquid to generate strong
shear force when passing through the filter, which can produce relatively low pressure loss when filter particles are deposited.
At the same time, the gap between the filter and the partition can also allow solid particles to be effectively separated.
through the space between the filter screen and the partition, thereby achieving solid-liquid separation. The horizontal direction
of gravity under this structure is at an oblique angle to the direction of liquid flow, causing the liquid to generate strong
shear force when passing through the filter, which can produce relatively low pressure loss when filter particles are deposited.
At the same time, the gap between the filter and the partition can also allow solid particles to be effectively separated.
Laboratory filtration effect

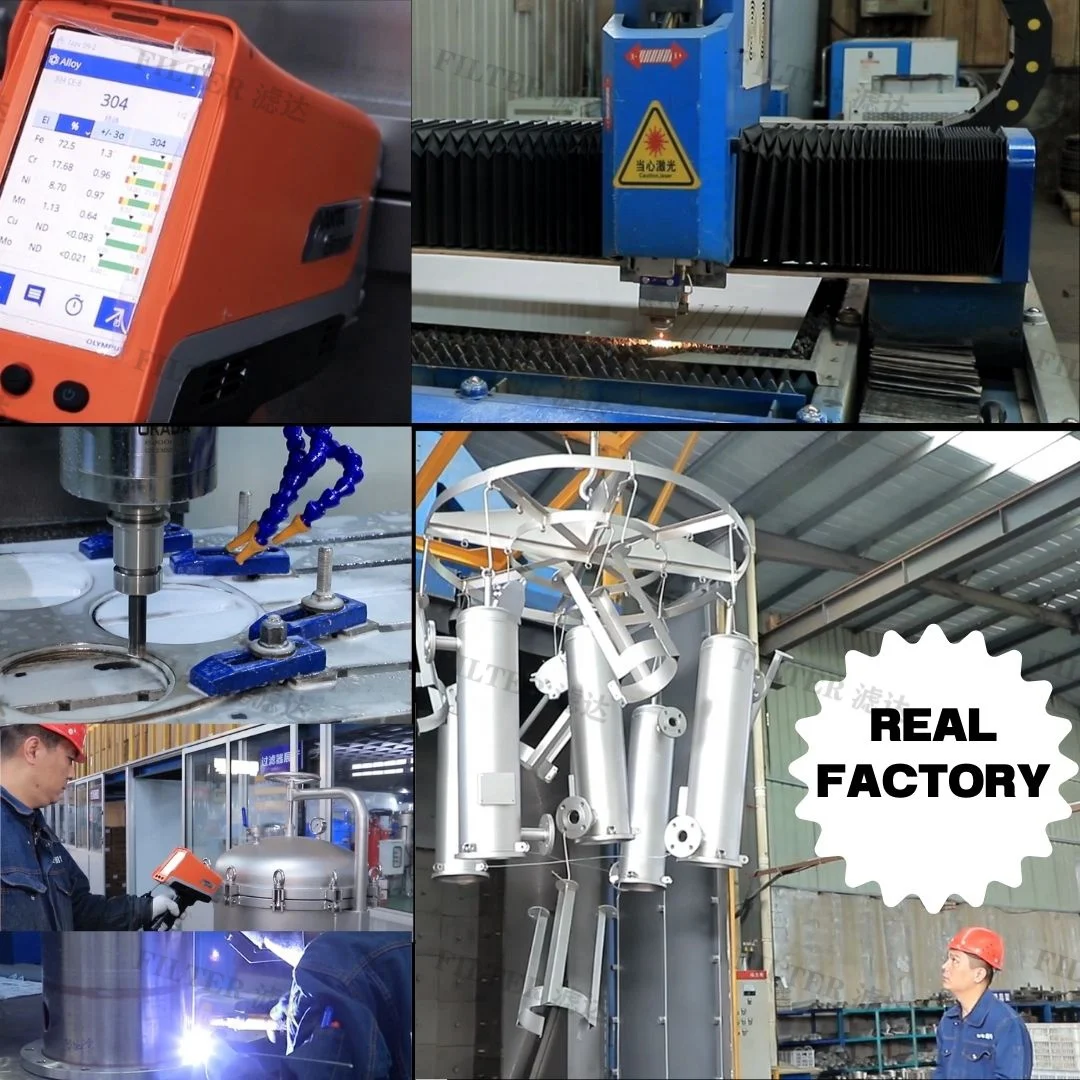

Company Profile
Shipping and Packing
FAQ
1. What is the minimum order quantity?
A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
