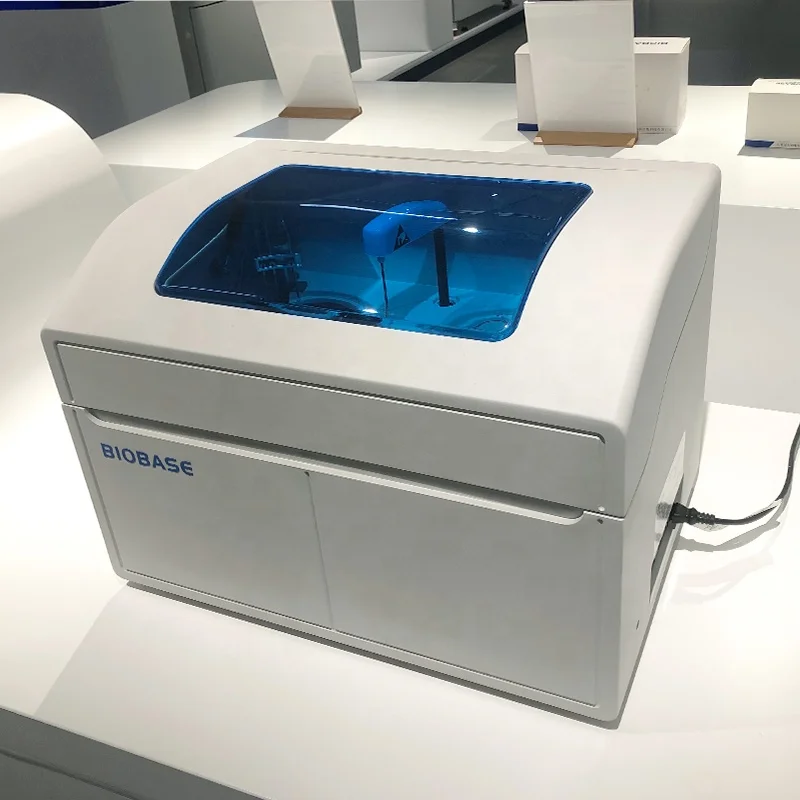

BIOBASE auto chemistry analyzer bk 200 fully automatic 200Test/Hour Biochemistry analyzer for clinic
- Category: >>>
- Supplier: Biobase Biotech (jinan) Co. Ltd.
Share on (1601041594891):
Product Overview
Description
Product Description

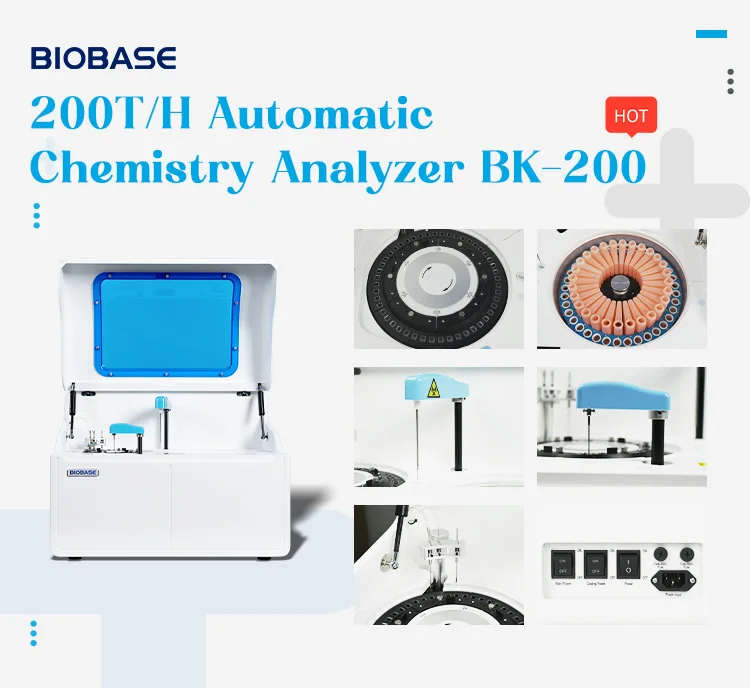

200 T/H Automatic Chemistry Analyzer BK-200
Key features:
1. 37 Sample positions.
2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.

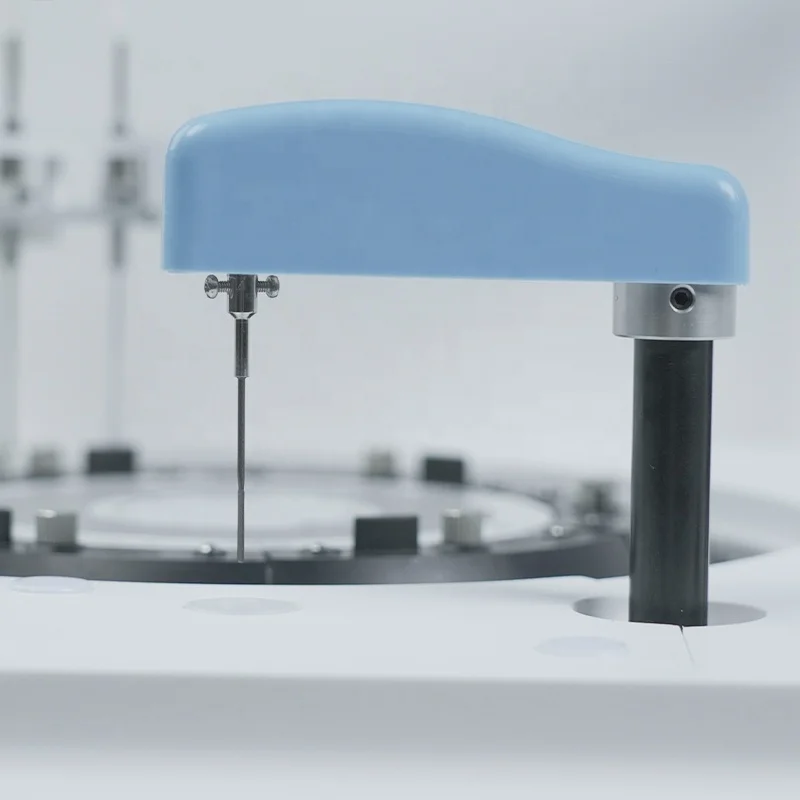

5. Probe anti-collision function,liquid level dectection function.
2. 28 Reagent positions.
3. 48 Reaction cuvettes.
4. 200 Tests per hour.
5. Probe anti-collision function,liquid level dectection function.
Application
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples.
Do not use for other purposes.
Technical Parameters
Model | BK-200 | ||
Overall Performance | Throughput | 200 Tests/hour | |
Analysis Method | End-point, Fixed-time, Rate(Kinetic) | ||

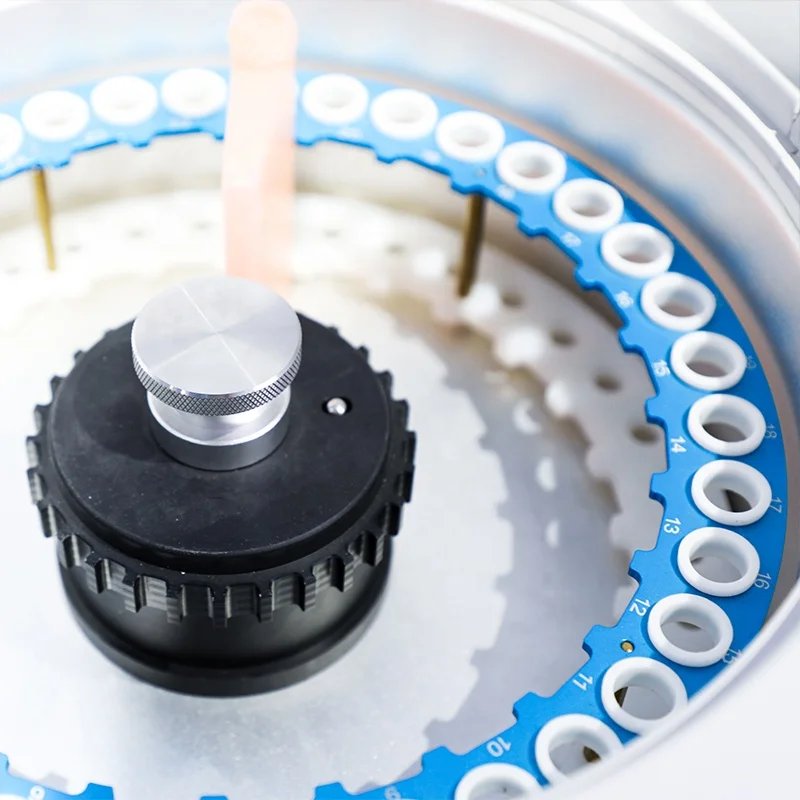

Sample & Reagent System | Sample Positions | 37 sample positions | |
Reagent Position | 28 reagent positions | ||
Sample Volume | 2-70µl | ||
Reagent Volume | 20-350µl | ||

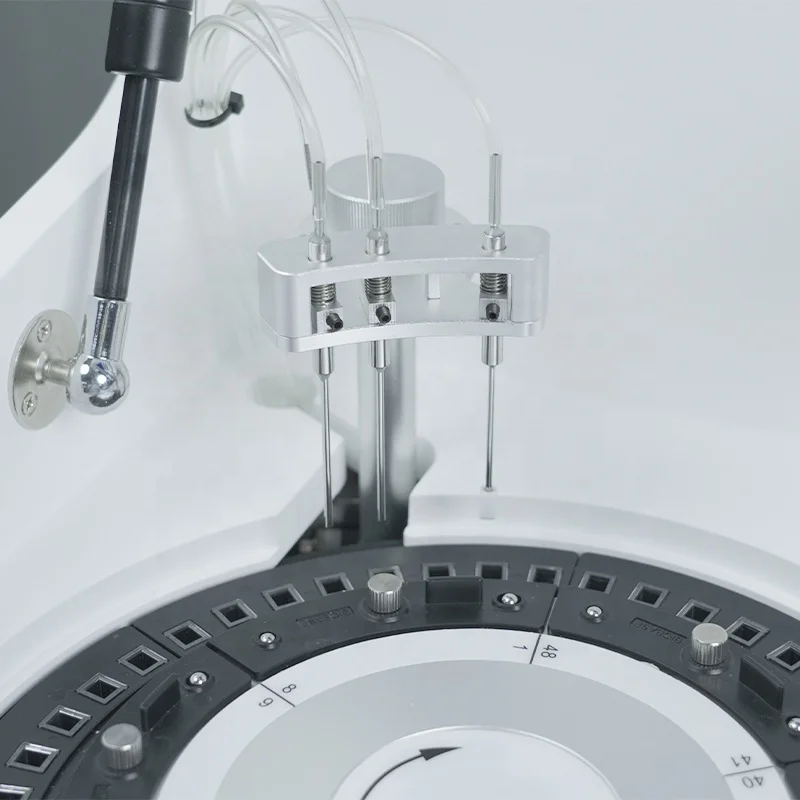

Probe | coating, with anti-collision function, liquid level detection function | ||
Probe Washing | Automatic washing interior and exterior | ||
Reagent Cooling | Refrigerated tray with independent switch | ||
Reaction System | Temperature Control | 37+0.2℃, real-time monitoring | |
Cuvettes | 48 reusable cuvettes,optical length 6mm | ||
Mixer Probe | Independent stirring | ||
Washing | Automatic cuvettes washing | ||
STAT function | YES | ||
Optical System | Light Source | 6V/10W halogen lamp | |
Spectrophotometry | Post-spectral spectrophotometry | ||
Wavelength | 340,405,450,480,505,546,570,600,,630,700,750,800nm | ||
Absorbance | 0-3.0Abs | ||
Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | ||
Data Management | Software | Windows 7/8/10 , 32or 64bit | |
LIS System | Bi-direction,support HL7 protocol | ||
Interface | LAN port access | ||
Printer | External,multiple reporting mode available | ||
Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W | |
Temperature | 15～30℃ | ||
Water Consumption | Deionized water:＜5L/H | ||
Humidity | 40-85% | ||
Size & Weight | External Size (W*D*H) | 625*425*460mm | |
Net Weight | 36kg | ||
Package Size (W*D*H) | 728*530*884mm | ||
Gross Weight | 55kg | ||
After Sale Service
Pre-sale service
Offer detailed specification Provide competitive prices
24 hours online
After-sale service
In time solve to customers problem
Update new products
Hot Sale Products

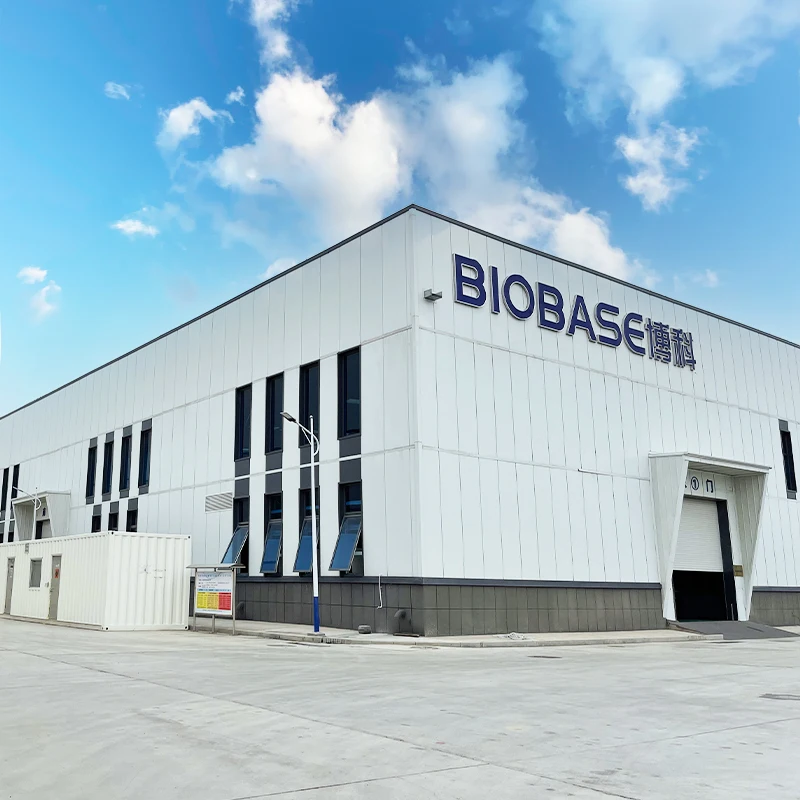

About BIOBASE

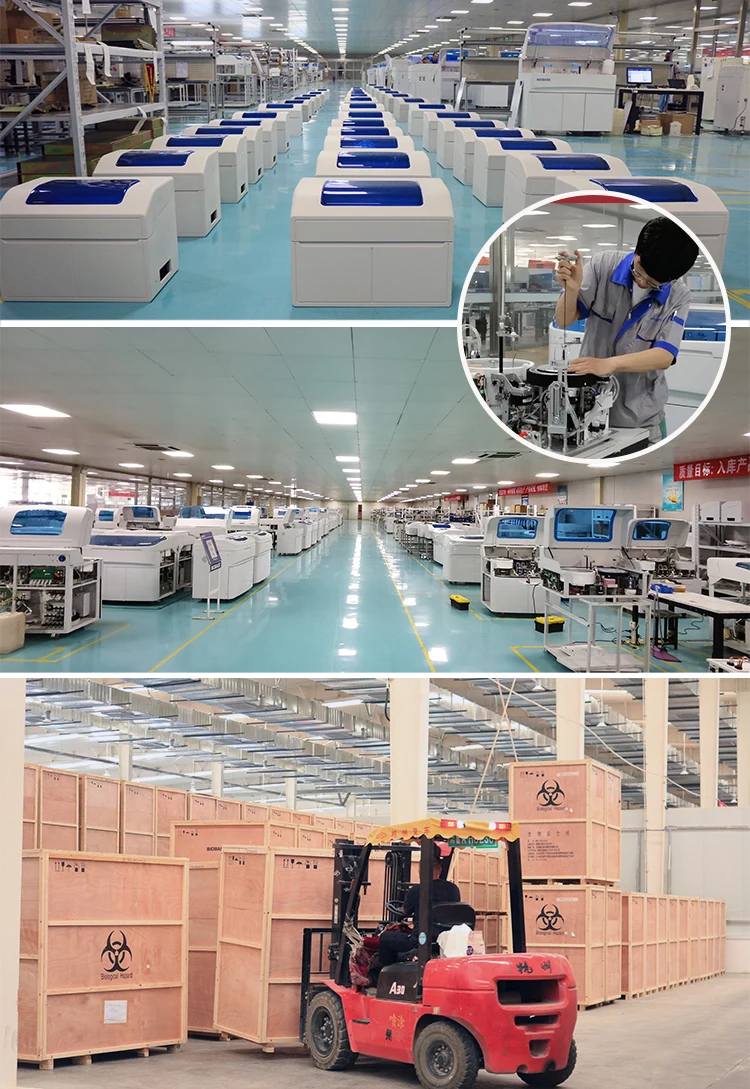

Founded in 1999, having over 3500 employees (till September, 2020), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIOBASE Group is specialized in products of 8 areas including biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.

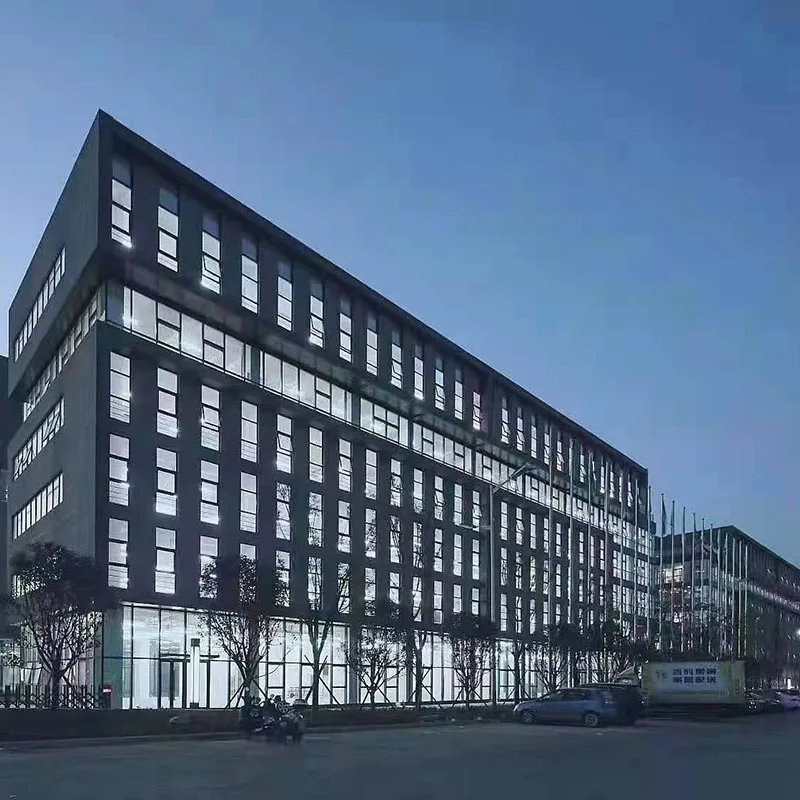

BIOBASE Group have completed the construction of BIOBASE first industrial park in Zhangqiu, covering an area of 80,000 squaremeters, second industrial park in Tangye new district, covering an area of 160,000 square meters, and USA incubator in Siliconvalley, covering an area of 2000 square meters.
