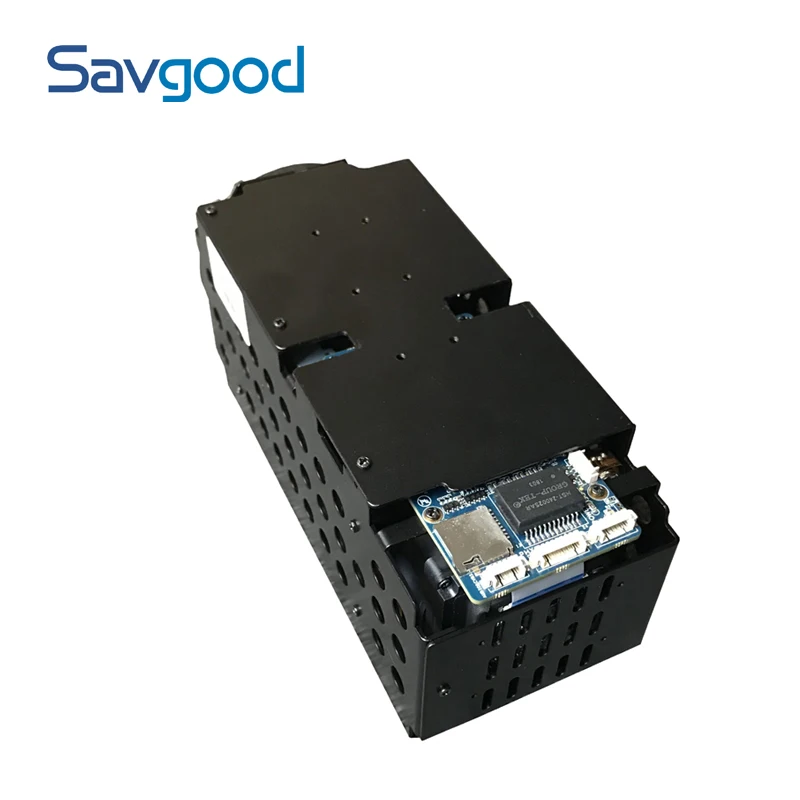

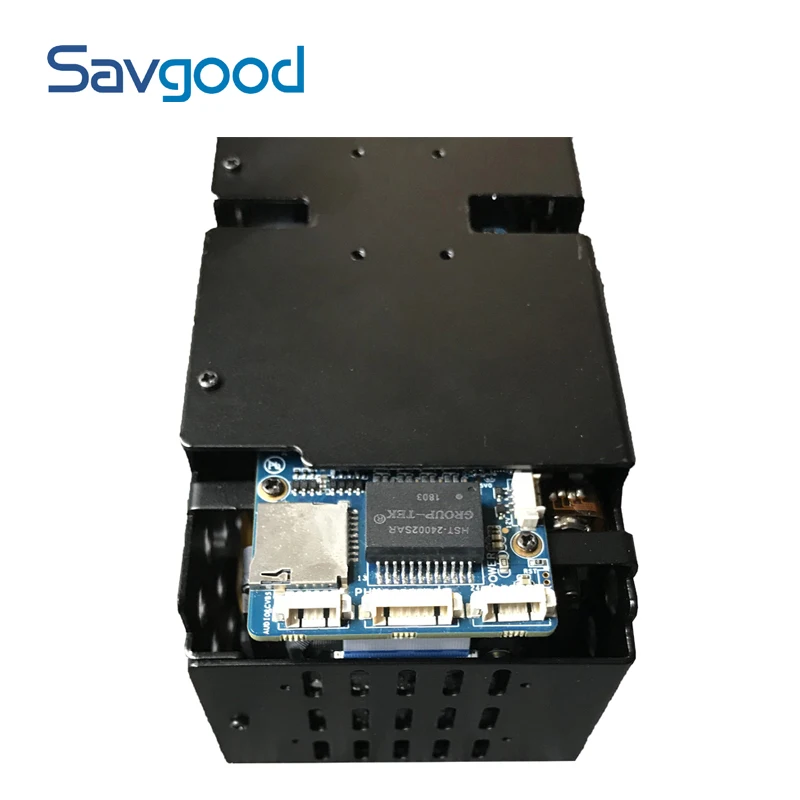

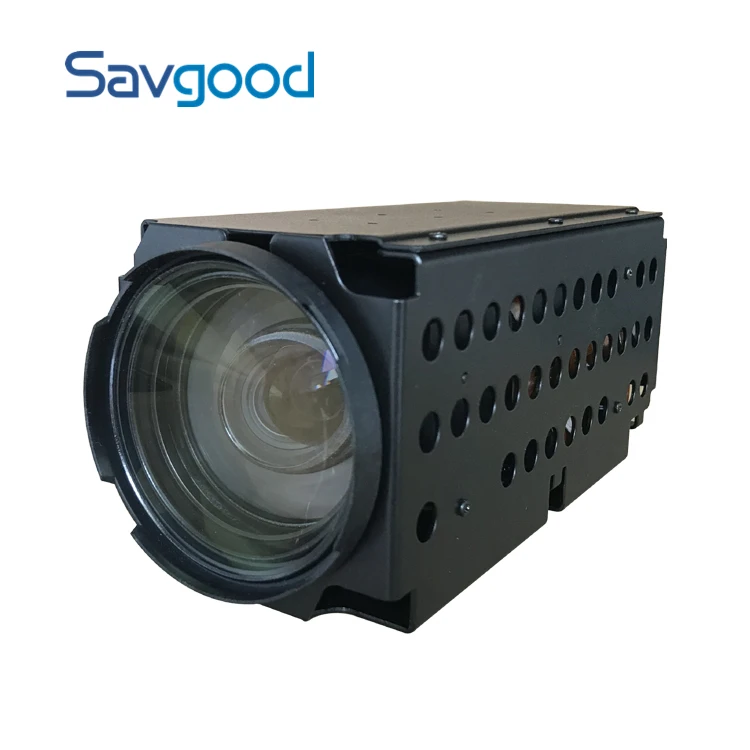

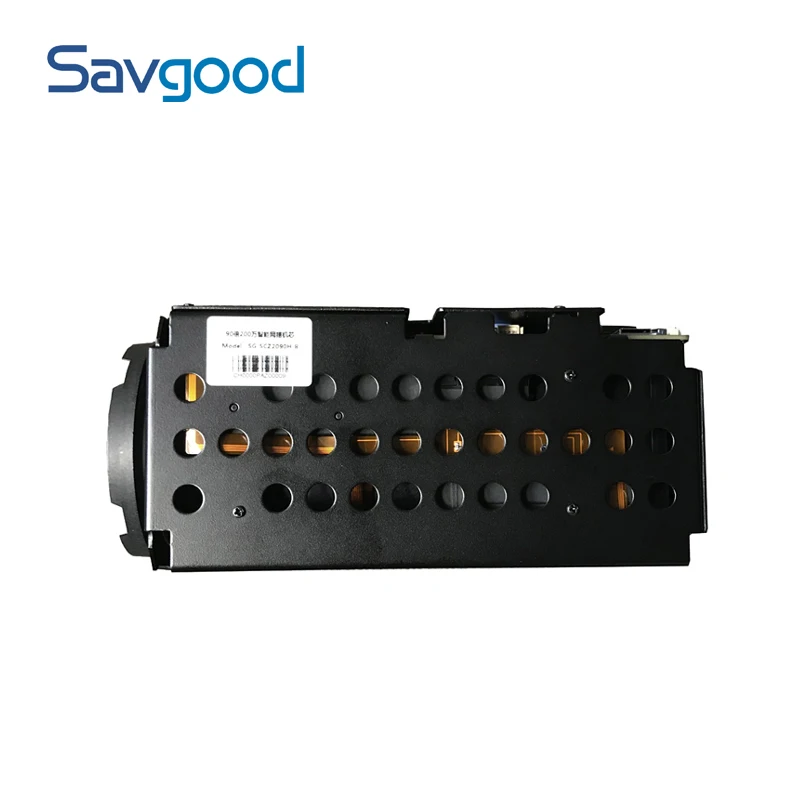

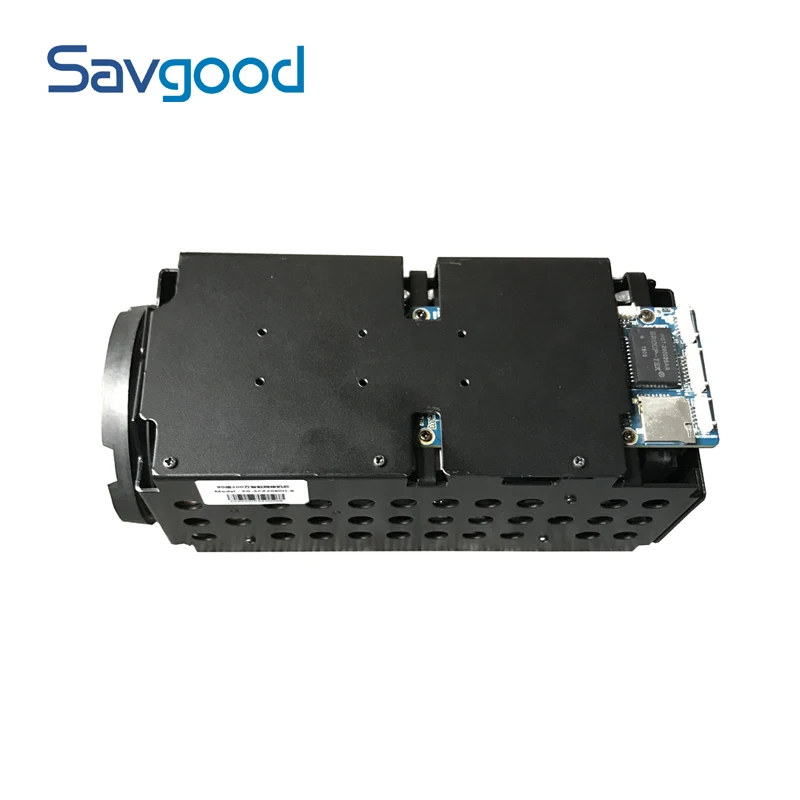

3 Megapixel 50x Long Range Zoom Starlight Global Shutter Network Camera Module

Model

SG-ZCM3050N-G

Sensor

Image Sensor

1/1.8" Sony Exmor Global Shutter CMOS

Effective Pixels

Approx. 3.19 Megapixel

Max. Resolution

2064x1544

Lens

Focal Length

6mm~300mm, 50x Optical Zoom

Aperture

F1.4~F4.5

Close Focus Distance

1m~5m (Wide~Tale)

Angle of View

60°~1.8°

Video Network

Compression

H.265/H.264/H.264H/MJPEG

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Resolution

50Hz: 25/50fps@3Mp(2048×1536), 25/50fps@2Mp(1920×1080)

60Hz: 30/55fps@3Mp(2048×1536), 30/60fps@2Mp(1920×1080)

IVS

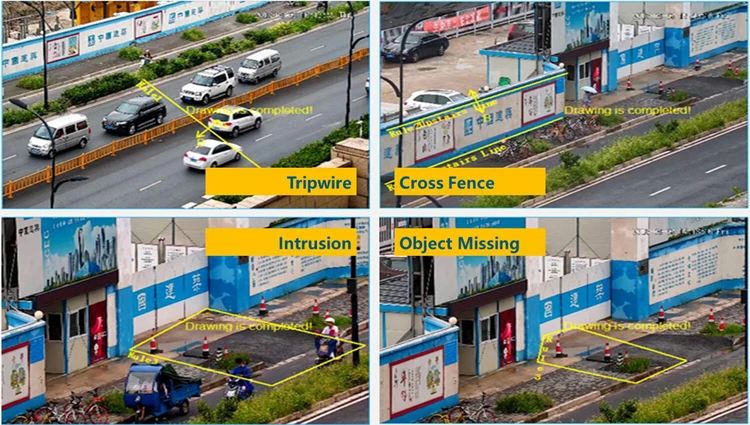

Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection.

S/N Ratio

≥55dB (AGC Off, Weight ON)

Minimum Illumination

Color: 0.002Lux/F1.4; B/W: 0.0001Lux/F1.4

EIS

Electronic Image Stabilization (ON/OFF)

Exposure Compensation

ON/OFF

Strong Light Suppression

ON/OFF

Day/Night

Auto/Manual

Zoom Speed

Approx 6.5s(Optical Wide-Tele)

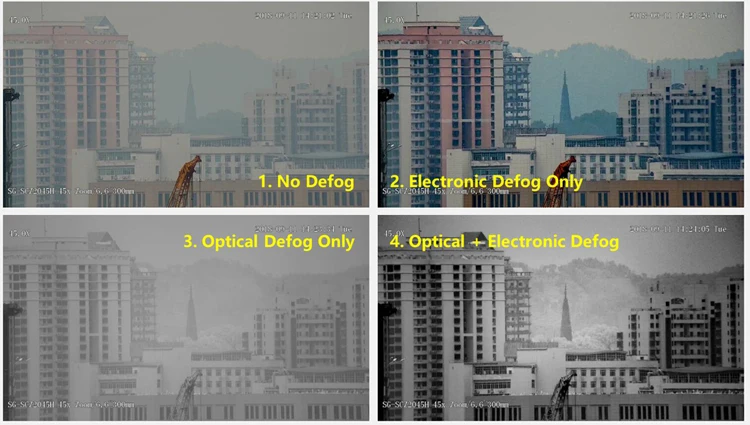

Electronic Defog

ON/OFF

White Balance

Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp

Electronic Shutter Speed

Auto Shutter (1/3s~1/30000s)

Manual Shutter (1/3s~1/30000s)

Exposure

Auto/Manual

2D Noise Reduction

Support

3D Noise Reduction

Support

Flip

Support

External Control

RS232

Communication Interface

Compatible with the SONY VISCA Protocol

Focus Mode

Auto/Manual/Semi-automatic

Digital Zoom

4x

Operating Conditions

(-30°C~+60°C/20% to 80%RH)

Storage Conditions

(-40°C~+70°C/20% to 95%RH)

Power Supply

DC 12V±15% (Recommend: 12V)

Power Consumption

Static power: 5W, Sports power: 6.5W

Dimensions(L*W*H)

Approx. 175mm*72mm*77mm

Weight

Approx. 900g
