Laboratory Hanging Trough Flotation Machine Supplier Laboratory Regulation XFG50 100 Small Flotation Machine
- Category: >>>
- Supplier: Jiangxi Victor International Mining Equipment Co. Ltd.
Share on (1601041693739):
Product Overview
Description
Product Overview
Laboratory Hanging Flotation Cell Machine
Employing frequency conversion technology, continuously viable of vane wheel, digital display and accurate adjustment, the hanging
flotation machine of XFG series is applicable to stirring, scrubbing, separation and selection of small amounts of sample ore in
labs of research institutes and mining bodies involving geology, metallurgy, building materials and chemical industry.
flotation machine of XFG series is applicable to stirring, scrubbing, separation and selection of small amounts of sample ore in
labs of research institutes and mining bodies involving geology, metallurgy, building materials and chemical industry.
There are 2 types of configuration available, one is the electronic speed control with digital display, the other is with the frequency conversion which is a little more expensive.
FEATURES AT A GLANCE
Working Principle
The floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.
PRODUCT SPECIFICATIONS
Items | Unit | Model | ||||
XFG5-35 | XFG50-100 | |||||
Cell capacity | g | 5, 15, 25, 35 | 50, 100 | |||
Cell volume | ml | 20, 60, 100, 140 | 200, 400 | |||
Impeller dia. | mm | φ20, φ26 φ26, φ30 | φ36, φ48 | |||
Impeller speed | rpm | 1000-1850 | ||||
Feeding size | mm | 0.05-0.2 | ||||
Motor model | ⁄ | YTC-180-4/125 | YTC-180-4/125 | |||
Motor power | W | 180 | 180 | |||
Dimension | mm | 450*300*700 | 450*300*700 | |||

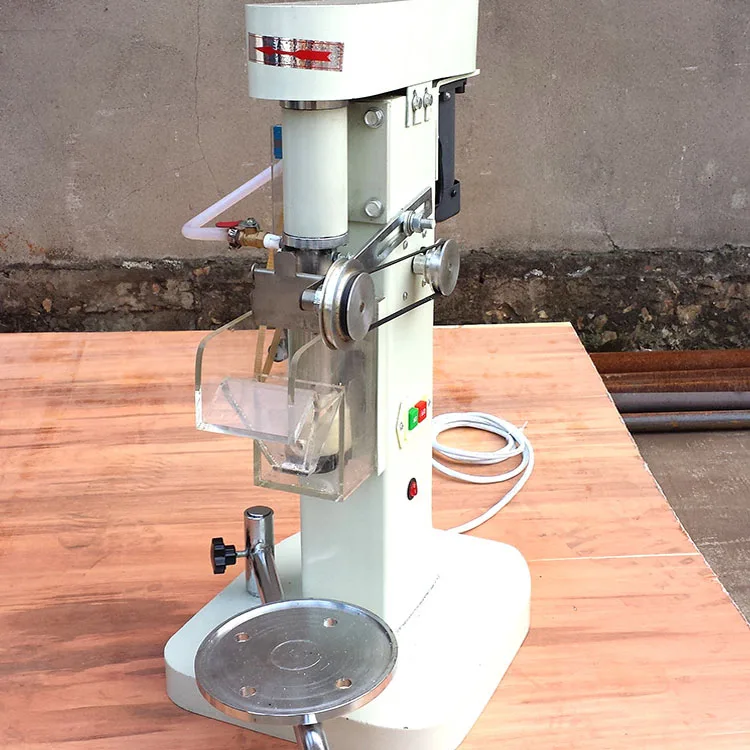

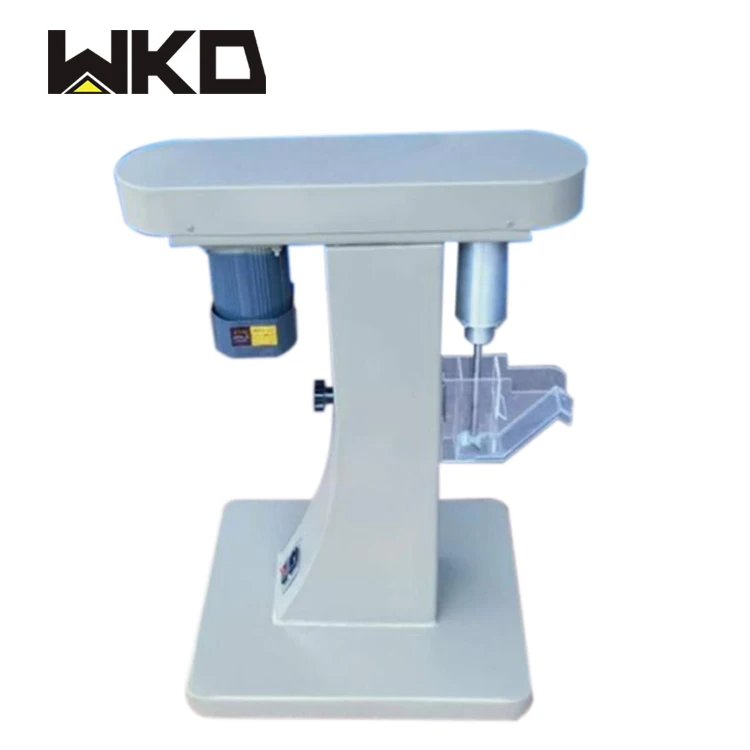

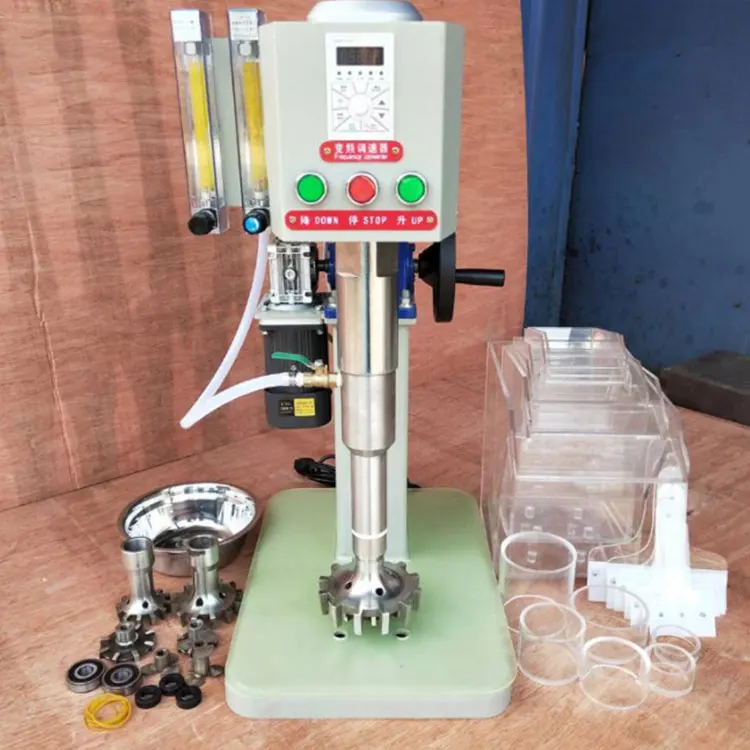

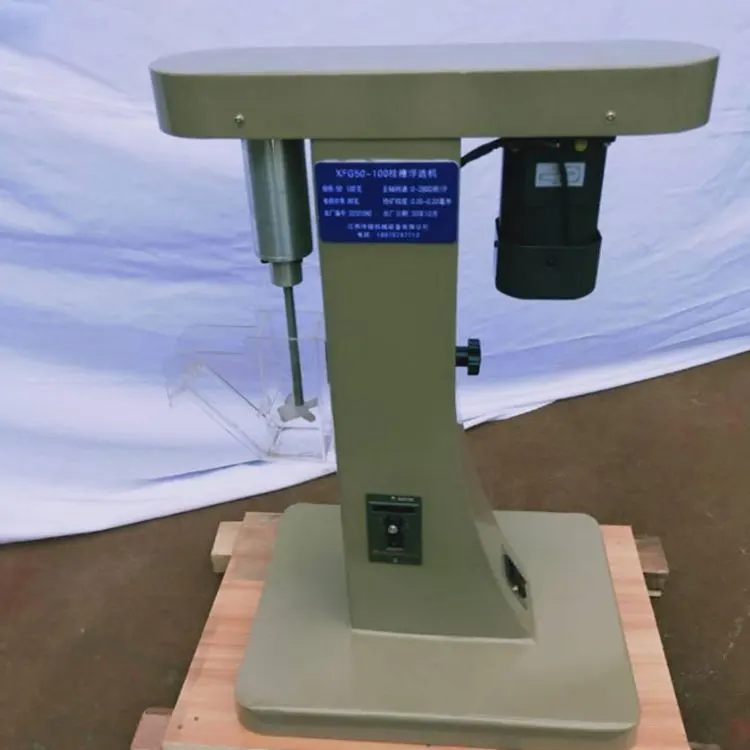

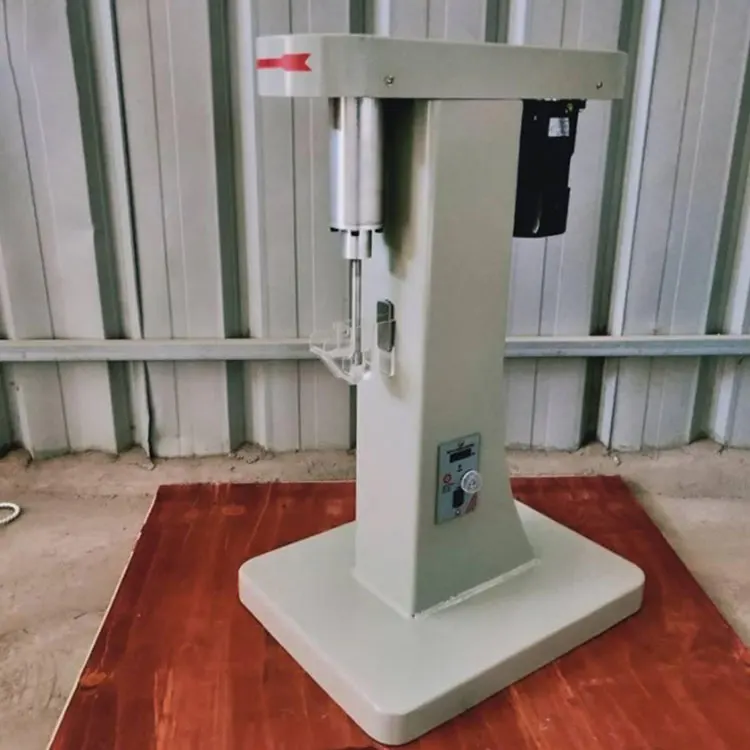

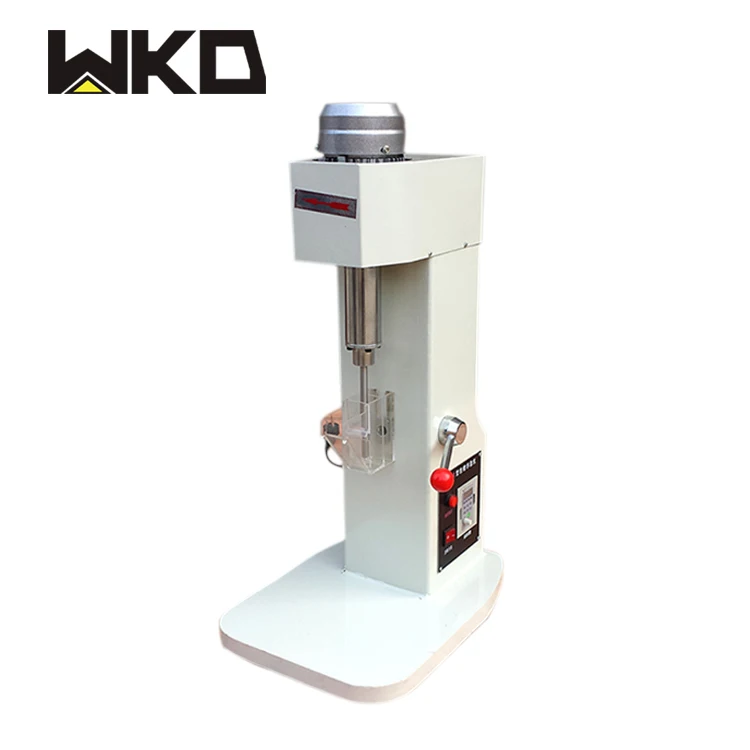

Details Images
SIMILAR PRODUCTS
Company Profile
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
We are expert especially at mining separating and lab mining plant, main products as below:
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every
grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished
product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available
at any time if you need.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every
grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished
product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available
at any time if you need.
