Automatic Adhesive Applicator machine for Paper Card and Corrugated Box Double Side Tape Pasting Easy Tear Tape Pasting
- Category: >>>
- Supplier: Wenzhou Rongda Packaging Equipment Co. Ltd.
Share on (1601041735504):
Product Overview
Description
Product Description
Automatic Adhesive Tape Applicator

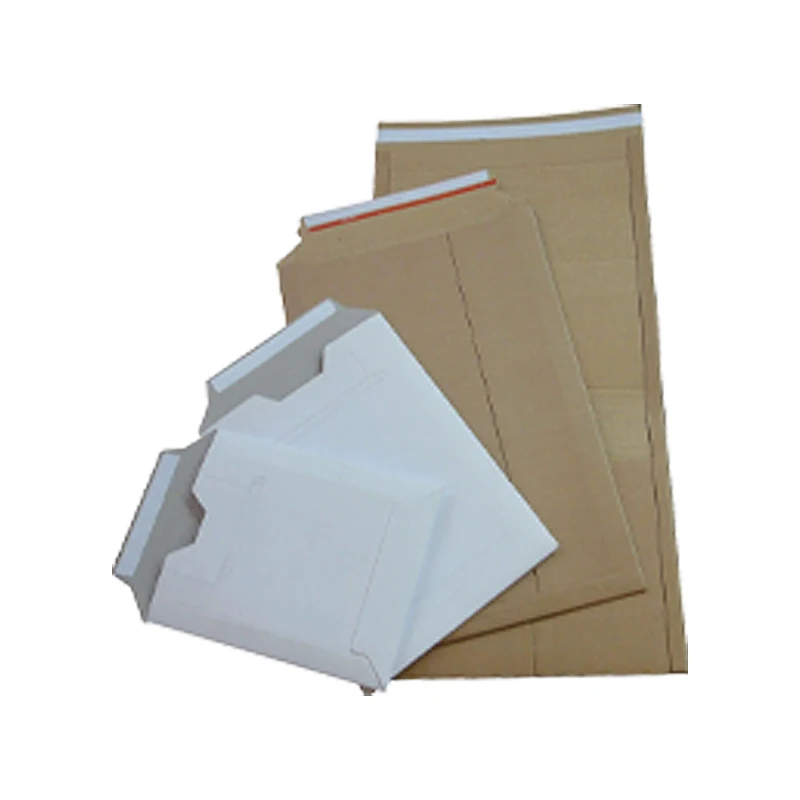

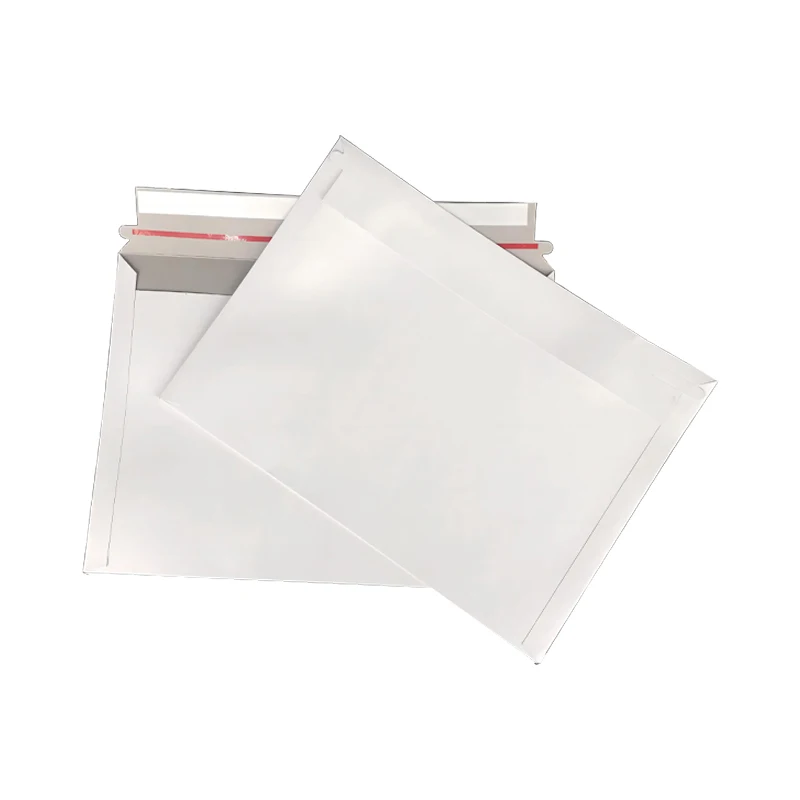

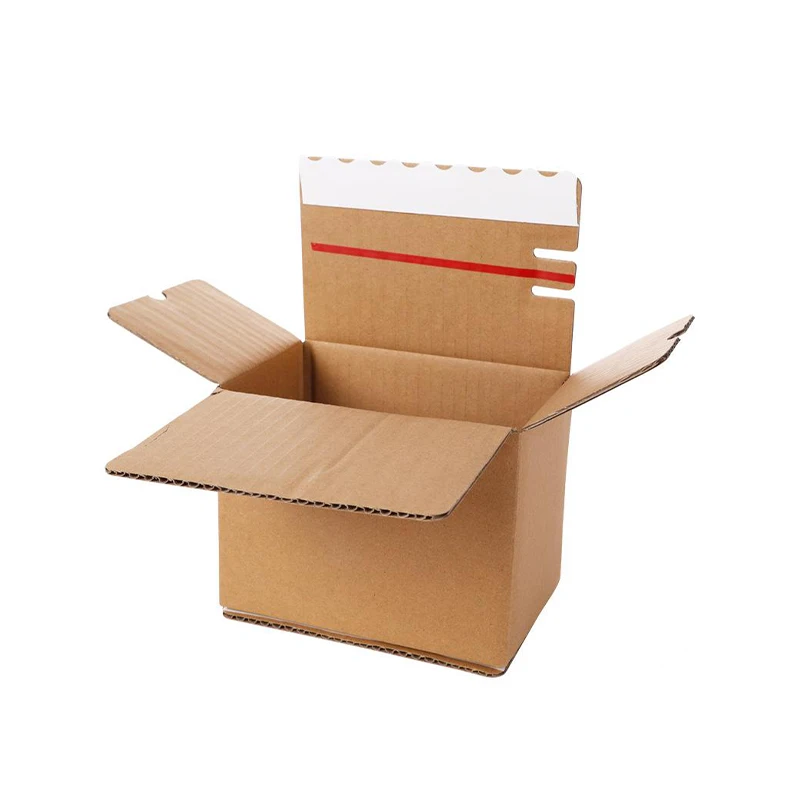

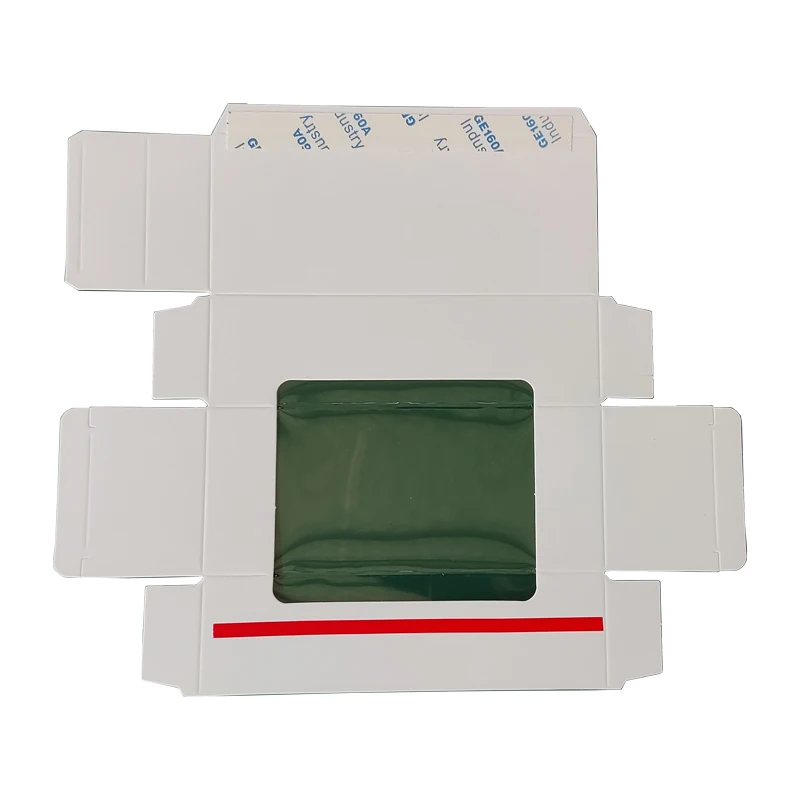

It is used to paste double-sided tape on cardboard, paper box, zipper box, girdle seal, envelope, file pocket, handbag and other surfaces. Applicable tapes: Double-sided tape, tear tape(red), foam tape, hot-melt glue tape etc.
Features:
1. Automatic feeding paper,bottom paper feeding system, high efficiency paper blade
2. Equipped with fiber sensor and servo control to achieve the accurate position.
3. A new adhesive structure is built at the adhesive joint, which can enhance the adhesive performance.
4. With the introduction of the HMI, touch screen and PLC, the total process of parameter settings is much easier. The length of joint can be set randomly through the HMI.
5. It applies continuous box-accumulating form.
1. Automatic feeding paper,bottom paper feeding system, high efficiency paper blade
2. Equipped with fiber sensor and servo control to achieve the accurate position.
3. A new adhesive structure is built at the adhesive joint, which can enhance the adhesive performance.
4. With the introduction of the HMI, touch screen and PLC, the total process of parameter settings is much easier. The length of joint can be set randomly through the HMI.
5. It applies continuous box-accumulating form.
Remark:
●The standard model is equipped with Two automatic feeders and two pasting heads; 1~4pcs pasting head can be optional.
●The standard model is equipped with Two automatic feeders and two pasting heads; 1~4pcs pasting head can be optional.
●The tear tape(Red) pasting head can be optional. Hot-glue spay system can be customized.
● If the paper thickness is < 157g, it depends on paper quality, size, and so on. Thinner paper may need manual assistance for feeding. If paste Cardboard/Corrugated board/E-B-C-wave, thickness is better over 200g/m².
●Technology configuration and data will vary with the improvement of products, the above technical parameter is only for reference.
Specification
Model | TA850 |
Max product size | 700*850mm |
Min product size | 100*100mm |
Product thickness | 157g-5mm |
Width of tape size | 5-35mm(10-60mm can be customized) |
Core diameter | 76mm |
Max tape roll diameter | 430mm(L500mm tape) |
Pasting head | 2pcs(1-4pcs optional) |
Speed | 50-90m/min |
Accuracy | ±1.5mm |
