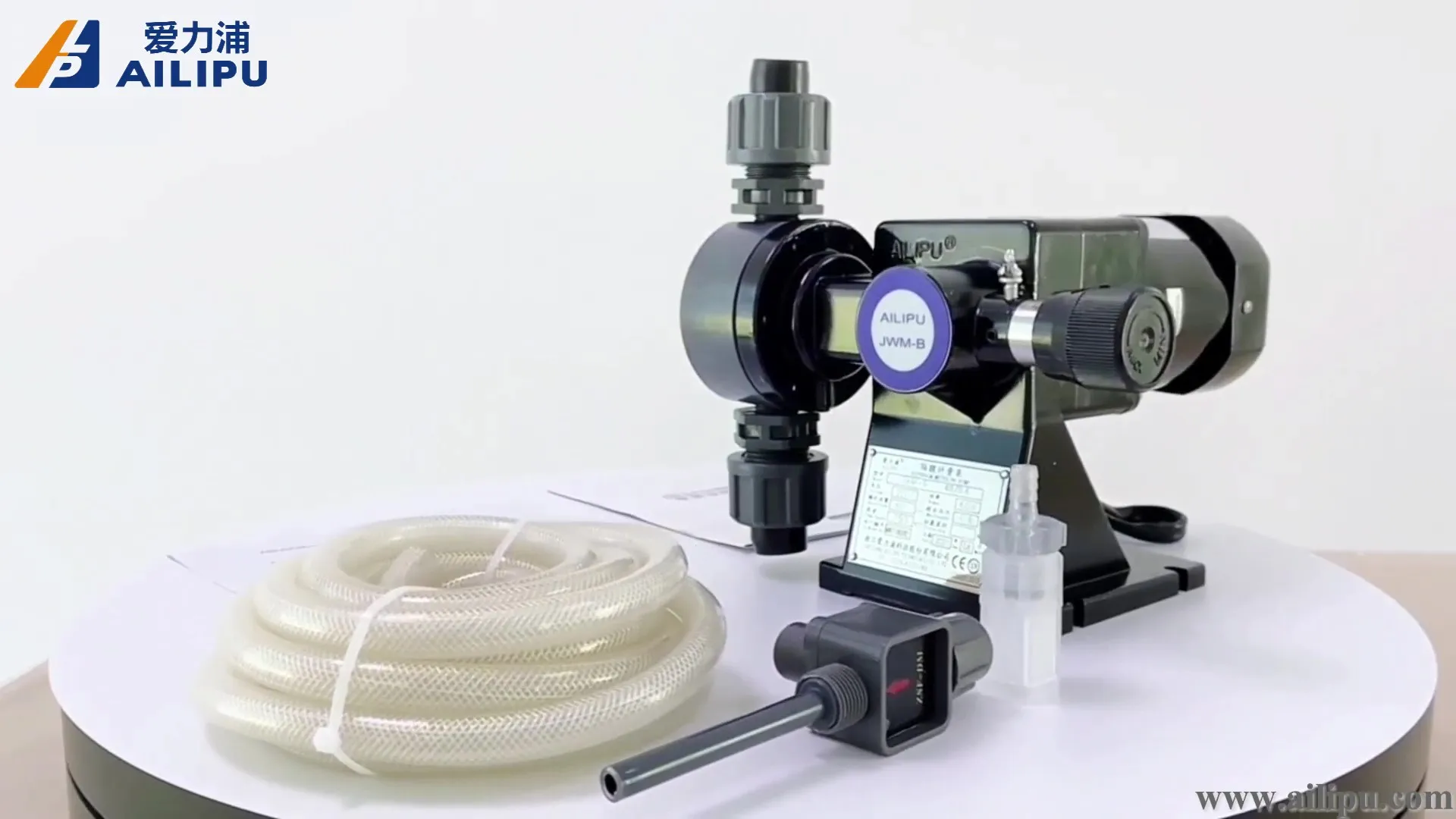

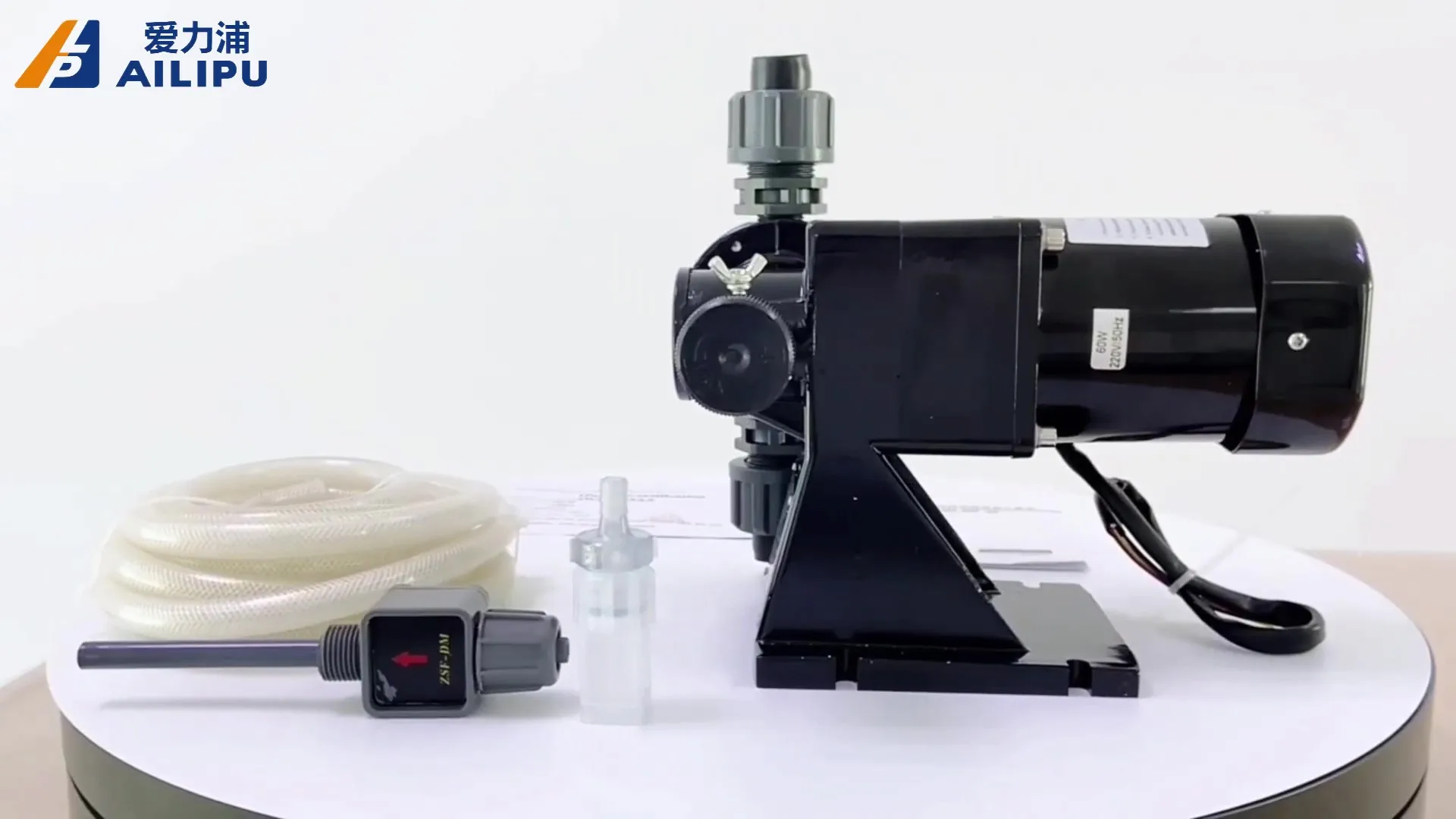

JWM B Series Simple Operation Mechanical Diaphragm Metering Pumps for Water Treatment
- Category: >>>
- Supplier: Zhejiang Ailipu Technology Co. Ltd.
Share on (1601042054292):
Product Overview
Description
Product Show
Products Description
•The main body of the pump, made of die-cast quality aluminum alloy, features light weight. The motor i s available in single-phase and three-phase so as to match the power supplies in different occasions.
•As for pump head, there are such materials as PVDF, RPP, PVC, SUS304 and SUS316 available, whic h widens the application scope.
•Easy installation, compact shape, and high operating safety
•As for pump head, there are such materials as PVDF, RPP, PVC, SUS304 and SUS316 available, whic h widens the application scope.
•Easy installation, compact shape, and high operating safety
•0-100% accurate flow regulation is made possible during operation or shutdown.
•The outlet pressure is usually below 1.0MPa.
lubrication. •A digital controller can be added to achieve remote control.
Technical Date
Model | Rated Flow rate (L/H) | Rated Pressure (Mpa) | Stroke (mm) | Speed (spm) | Diaphragm (mm) | Motor (KW) | Weight (Kg) |
JWM-B 6.5/1.0 | 6.5 | 1.0 | 2 | 75 | Φ65 | Induction Motor 220V, 40W, three-phase 380V, 50HZ,40W | 7.3 |
JWM-B 12/1.0 | 12 | 135 | |||||
JWM-B 24/1.0 | 24 | 4 | 90 | ||||
JWM-B 32/1.0 | 32 | 108 | Induction Motor 220V, 60W, three- phase 380V, 50HZ, 60W | 7.5 | |||
JWM-B 42/1.0 | 42 | 150 | |||||
JWM-B 60/1.0 | 60 | 150 | |||||
JWM-B 60/0.6 | 60 | 0.6 | 5 | 108 | Φ84 | Induction Motor 220V, 90W, three-phase 380V, 50HZ, 90W | 8.5 |
JWM-B 80/0.5 | 80 | 0.5 | 4 | 135 | |||
JWM-B 100/0.5 | 100 | 150 | |||||
JWM-B 120/0.5 | 120 | 5 | 150 | ||||
JWM-B 150/0.5 | 150 | 150 | Φ94 |
Pump Head / Check Valve Body | Diaphragm | Valve Seat | Valve Ball | O-ring |
RPP | PTFE+Rubber | RPP | Ceramics/Glass | FKM/PTFE |
PVC | PTFE+Rubber | PVC | Ceramics/Glass | FKM/PTFE |
PVDF | PTFE+Rubber | PVDF | Ceramics/Glass | FKM/PTFE |
304 | PTFE+Rubber | SS316L | SS316L | FKM/PTFE |
316L | PTFE+Rubber | SS316L | SS316L | FKM/PTFE |
