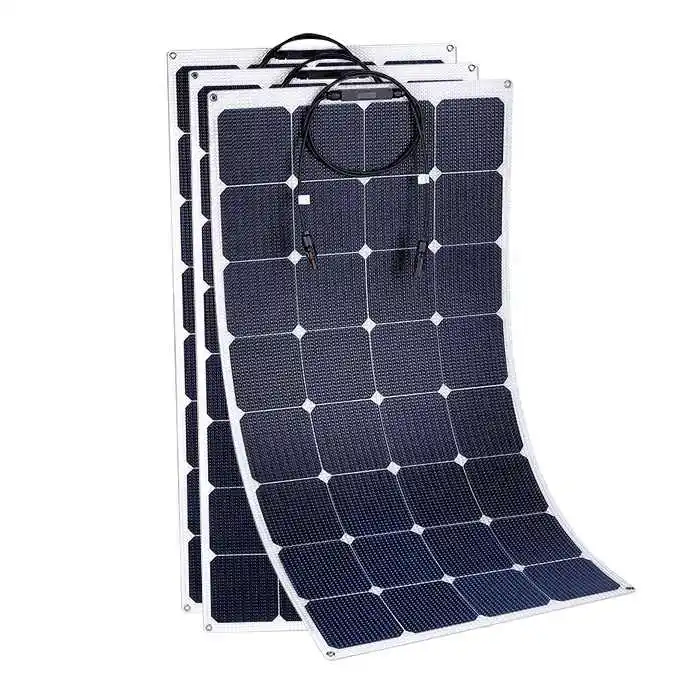

High Efficiency Custom 100W Outdoor Thin Film Lightweight ETFE 18V Shingled Flexible Solar Panel
- Category: >>>
- Supplier: Qinghai Highhope Supply Chain Co. Ltd.
Share on (1601042274875):
Product Overview
Description
Product Description
Ultra lightweight and thin design make it perfect to mount on RV, boat, roof and uneven surface, with built-in chip to protect devices from over-charging or backflow. It can charge a wide variety of electronics such as mobile phones, drones, digital cameras, laptops, etc. It also serves as an extended power source to our protable solar power station that gives you greater flexibility for ourdoor activities without worrying about running out of power.
Connector.
*Safe MC4 connector with a
pair of 35 inches cables
pair of 35 inches cables
*Aesthetic and lightweight
Waterproof.

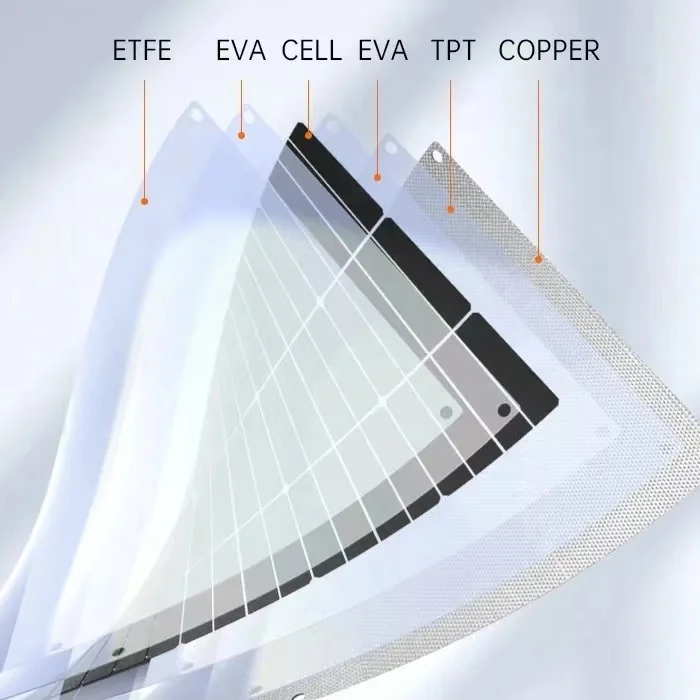

*PET/ETFE package, easy to clean and self-clean.
*IP68 Waterproof，Anti-corrosion and durable, self-cleaning
Unique Junction Box.
*Robust,durable & Weather-proof
*Micro size with Standard connectors.
*Waterproof Junction Box with Diode Protection.
*Waterproof Junction Box with Diode Protection.
Specification
TECHNICAL PARAMETERS (STC*)
Standard Test Conditions: | (Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc) | |
Maximum Power Pmax | 100W | |
Voltage at Maximum Power Point (Vmpp) | 17.6V | |
Current at Maximum Power Point (Impp) | 5.68A | |
Open Circuit Voltage (Voc) | 20V | |
Short Circuit Current (Isc) | 6A | |
Operating Temperature | -20℃ ~ +65℃ | |
Max System Voltage (IEC/UL) | 1000V DC | |
Temperature Coefficient of Isc | (+0.06% /ºC) | |
Temperature Coefficient of Voc | (-0.33% /ºC) | |
Temperature Coefficient of Pmax | (-0.41% /ºC) | |
MECHANICAL DATA

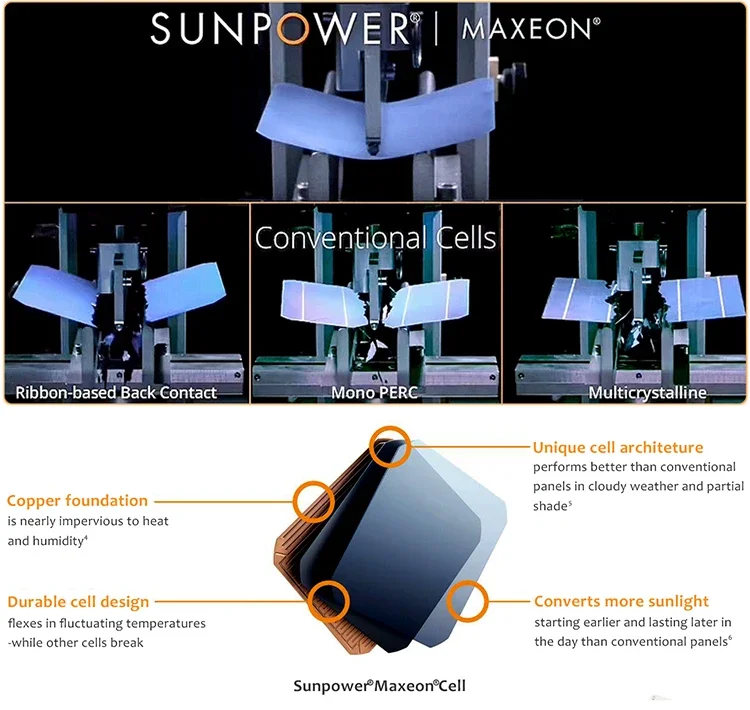

Cell Type | SunPower solar cell | ||
Cell Size | 125 x 125mm | ||

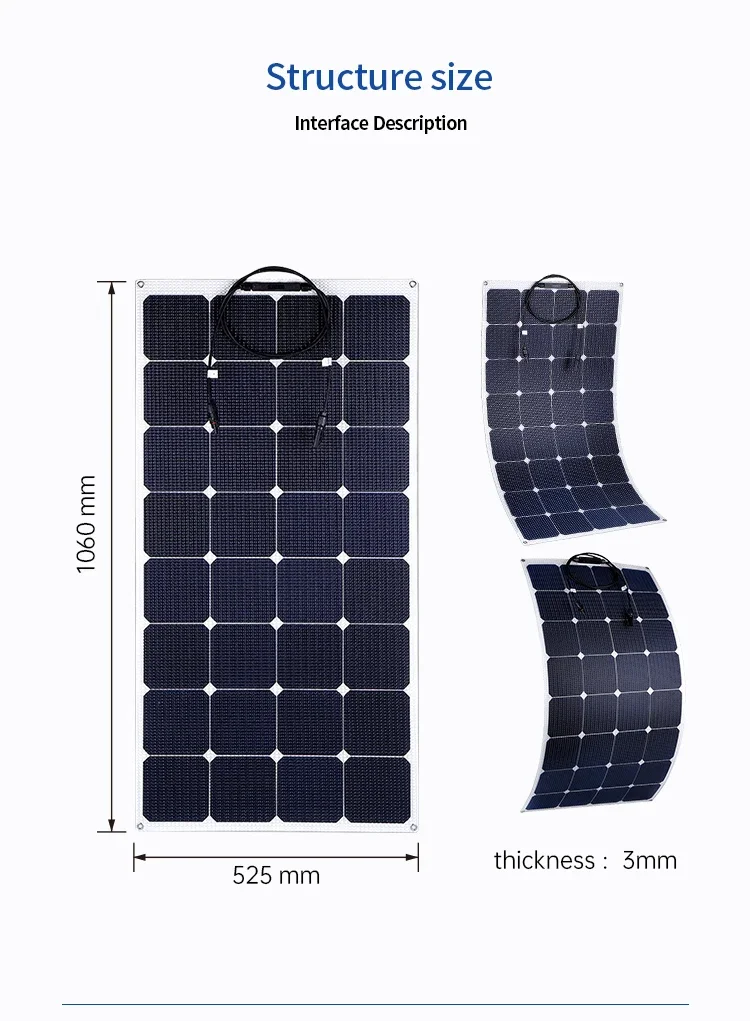

Size | 1060 x 520 x 3mm | ||
Surface Material | High performance corrosion resistant ETFE | ||
No. of Folding | 32 = 4 x 8 | ||
Weight | 1.9 KG | ||
Junction Box | IP67 Rated | ||
Type of Connector | MC4 | ||
Certifications | CE, FCC, ROHS, REACH | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Jiangsu Huihong International Group, a foreign trade group in Jiangsu Province. The company used to be one of the earliest professional foreign trade companies established with the establishment of Jiangsu port. Now it has developed into a large state-owned enterprise focusing on import and export trade and committed to diversified development and comprehensive construction. It has more than ten wholly-owned or holding subsidiaries covering trade, real estate, industry and other industrial fields
FAQ
1. who are we?
We are based in Qinghai, China, start from 2020,sell to North America(50.00%),Western Europe(30.00%),Mid East(20.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PV module & Energy Storage System
We are based in Qinghai, China, start from 2020,sell to North America(50.00%),Western Europe(30.00%),Mid East(20.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PV module & Energy Storage System
