Product Overview
Description
Product Description
High vacuum fume purifier adopts the international leading polyester micro-filtration technology, the filtration efficiency of welding, cutting and grinding fume (0.1um) can reach 99.9, and at the same time, it can guarantee the high air flow. The purifier has many advantages such as low noise, stable performance, easy to operate and use.
High negative pressure welding fume purifier is widely used in various welding, polishing, cutting, grinding and other processes to produce fume and ash purification and the recovery of rare metals, precious materials, etc. Applicable to ash removal is more dispersed fume volume is also larger workstation.
High negative pressure welding fume purifier does not need to pull the use of up to 20 、meters' of suction hose, can be sucked from the source to remove fumes, greatly improving the collection rate of fumes and ash. The clean air is evenly guided and dispersed from the direction of the grille-like exhaust port, and special sound insulation cotton is built into the housing to minimize noise.
This product is designed as a manual ash cleaning system, and the filter cartridge is taken out regularly for back-blowing cleaning, so that the filter cartridge can achieve better filtration effect and extend the use life. This purifier is the first choice of smoke and ash purification equipment for inashrial processing, welding smoke removal, cutting ash removal and grinding
ash removal.

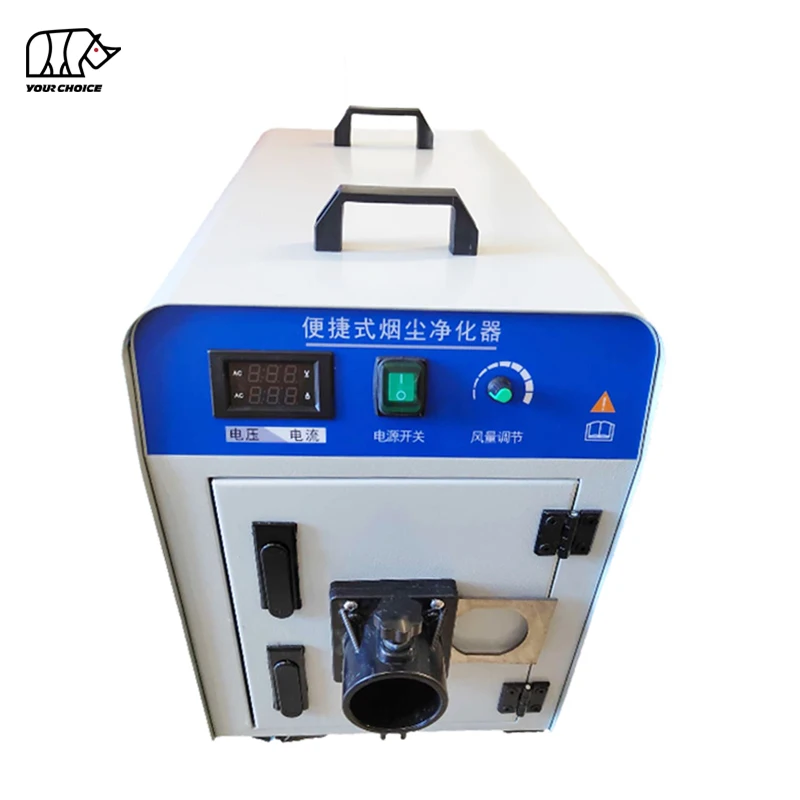

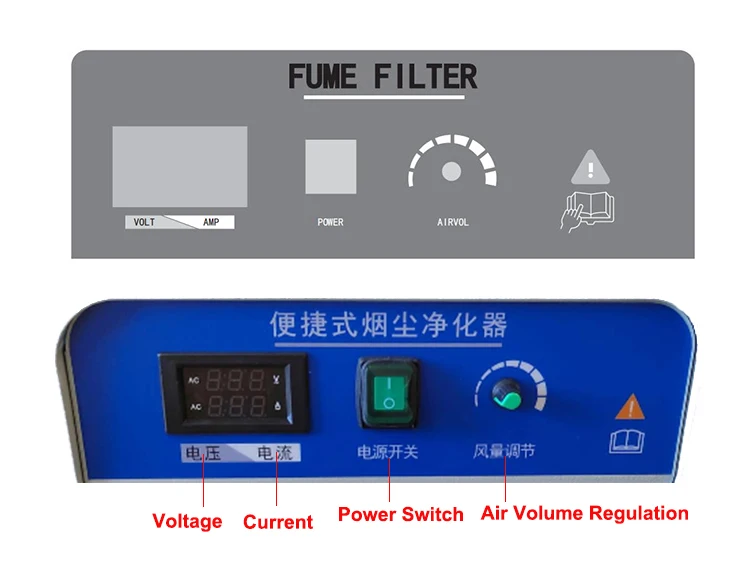

The control box panel contains:
ash removal.
The control box panel contains:
- Power switch (device on/off button)
- Digital display (current and voltage display while the device is in use)
- Air volume adjustment

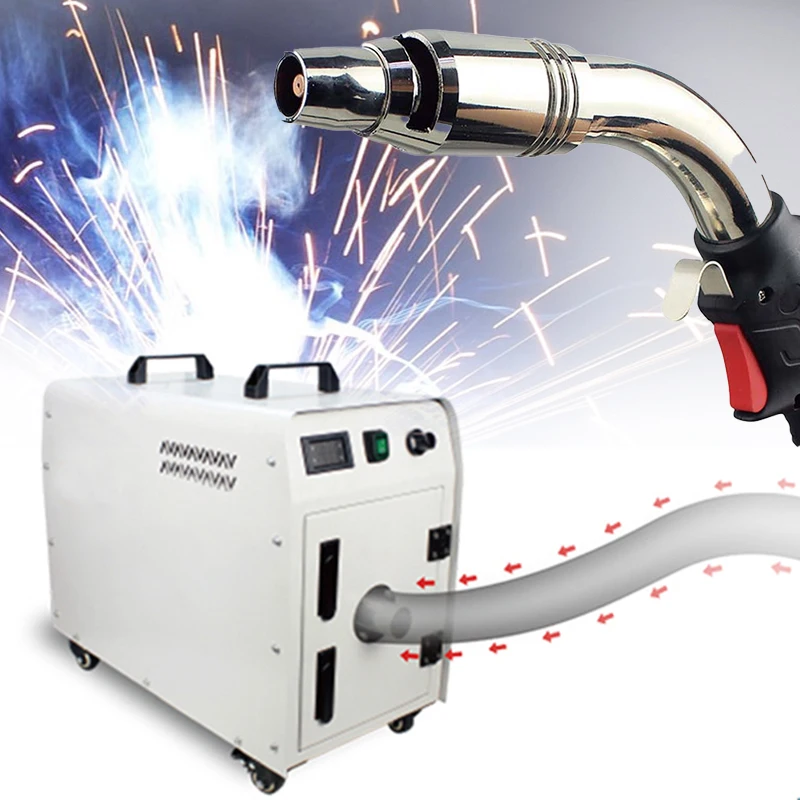

High negative pressure welding fume purifier can be used with cutting machines, welding torches, automatic sandblasting heads, welding machines and other binding packages to remove ash at the source and improve the efficiency of welding fume ash removal.

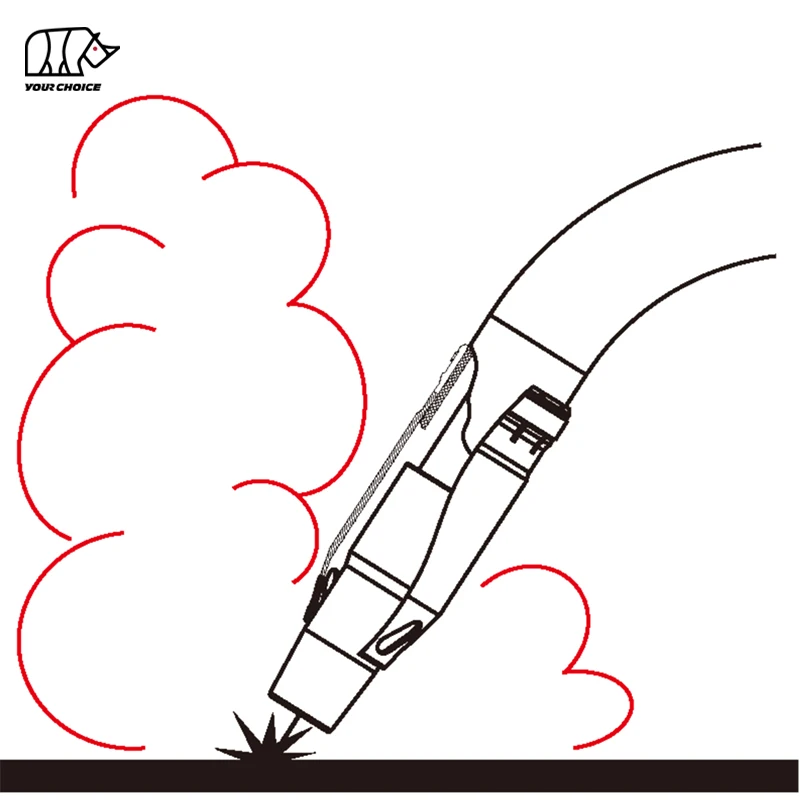

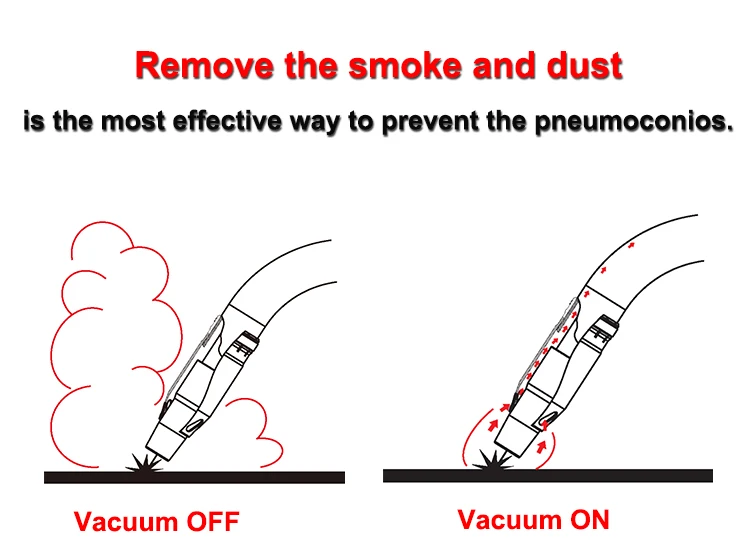

Use it with our fume extraction torch, protect welder's respiratory system and avoid environment pollution, it's a more healthy and more environment-friendly option!
Use it with our fume extraction torch, protect welder's respiratory system and avoid environment pollution, it's a more healthy and more environment-friendly option!
Specification
Performance Parameter | MNFC-20A | ||
Air Absorb Volume m³/h | 200±10 | Fan and ash collector integrated | |
Motor Power | 1.2Kw | ||
Negative-pressure of Wind Blower | 26000Pa | High voltage fan | |
Filter Material | PET | Imported filter material | |
Filter Cyliner | 1 | φ200*170mm | |
Total Filter Area | 6㎡ | ||
Voltage | 220V/50Hz | ||
Controller | Stepless speed control | ||
Air Compression | 0.5-0.6Mpa | Oil-less and waterless | |
Ash Bucket Volume | 5L | ||
Noise | ≤70±5 dB(A) | ||
Ash Cleaning Method | Manual | ||
Dimension (L*W*H) | 57*29*50cm | ||
Equipment Weight | 25±5kg | ||

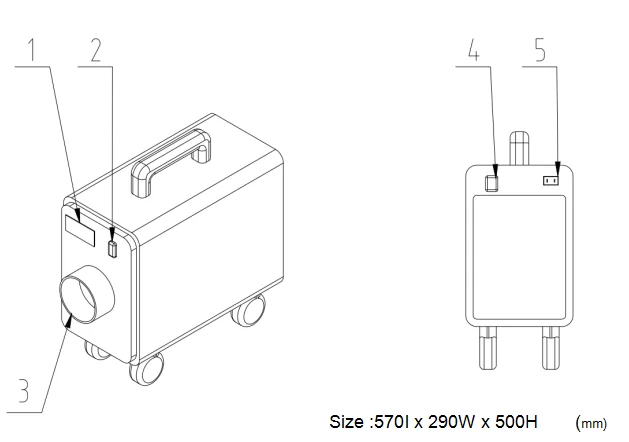

Structure Chart and List:
Number | Part Name |
1 | Display panel |
2 | Switch button |
3 | Air duct interface |
4 | Switch |
5 | Power input interface |
