Lingba Vendor 1kg 5 in 1 Welding Machines MIG MAG MMA TIG 120A 110/220V Welder

Product Overview

Description

MIG/MAG/MMA/TIG-160C 5 in 1 Mig Welding Machines



Gas + Gasless + Mix gas + MMA + Lift tig



Update Feature

1.The most advanced multifunctional welder and is easy and convenient to usd - just chose the welding mode .

2.Can weld  - This welder can weld iron, carbon steel, stainless steel, etc. MIG synergistic setting & MIG manual setting, Gasless Flux wire MIG Welds, stick welds, and Lift TIG welds.

3.MIG Multi-Process Welder-

MIG GAS(CO2)+0.8mm SOLID WIRE

MIG GASLESS+0.8/1.0mm FLUX WIRE
MAG (Mix gas)+0.8mm SOLID WIRE
Lift-tig(Argon)+Tungsten needle
MMA 1.6-3.2mm electrode stopless work





4.Advanced IGBT inverter technology- Maximize durability to overloads, improve work efficiency, longer service time and improve stability.
Adopt copper amorphous transformer - High frequency transformer with strong conductivity can save energy, resist to high temperature, provide long working hours and lower loss.





Specification



Model	MIG/MAG/MMA/TIG-160C
Type:	1kg IGBT Gasless+Flux wire, Gas+Solid wire
AC Input Voltage(V)	Single phase: 220V, Single phase:110V, Single phase:110V/220V
Rated Input Power Capacity(KVA)	5
Input Frequency(Hz)	50/60
Non-load Voltage(V)	68
Output current range(A)	50-160
Rated Duty Cycle(%)	0.6
Efficiency(%)	0.85
Class of Insulation	F
Protection class of case	IP21
MIG Flux Wire diameter(mm)	0.8~1.0
MIG Solid wire diameter(mm)	0.8
MMA Electrode	1.6~3.2
Wire weight per Roll(kg)	1kg or less 1kg
Quick joint Size(mm)	10-25
Input power cable(m)	1.5
N.W./G.W.(kg)	6.1kg~7.5kg

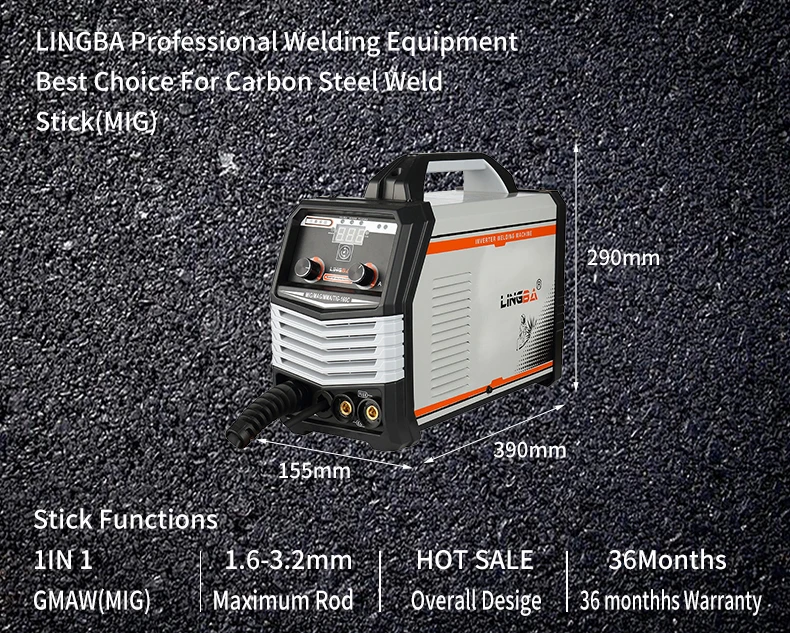

Machine Size(LxWxH mm)	390*155*290mm

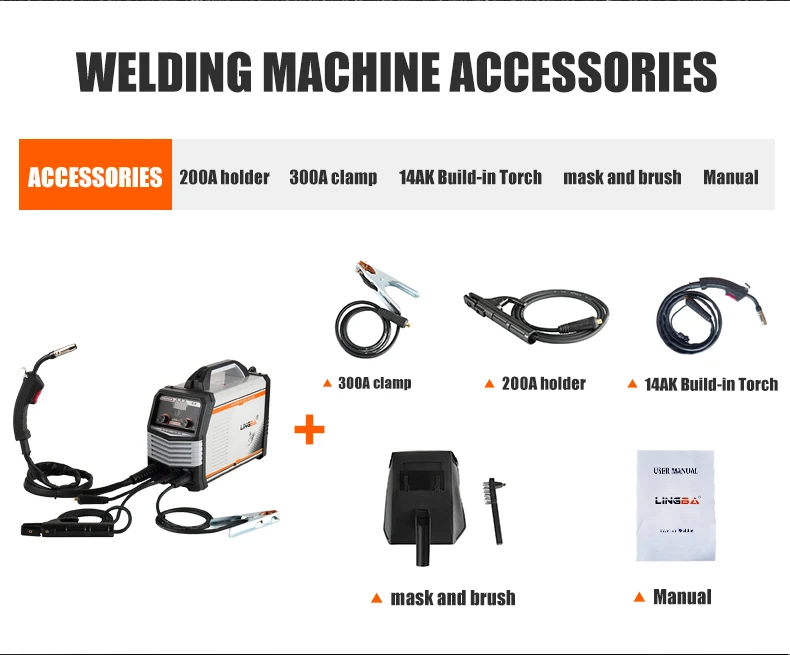

Accessories	1.8M 16mm2 200A holder
	1.2M  16mm2  300A clamp
	2m 14AK Build-in Torch
	Brush, Mask, Manual
	GAS/GASLESS/MMA/MAG/LIFT-TIG
Features	Gasless+Flux Wire
	Gas+Solid Wire

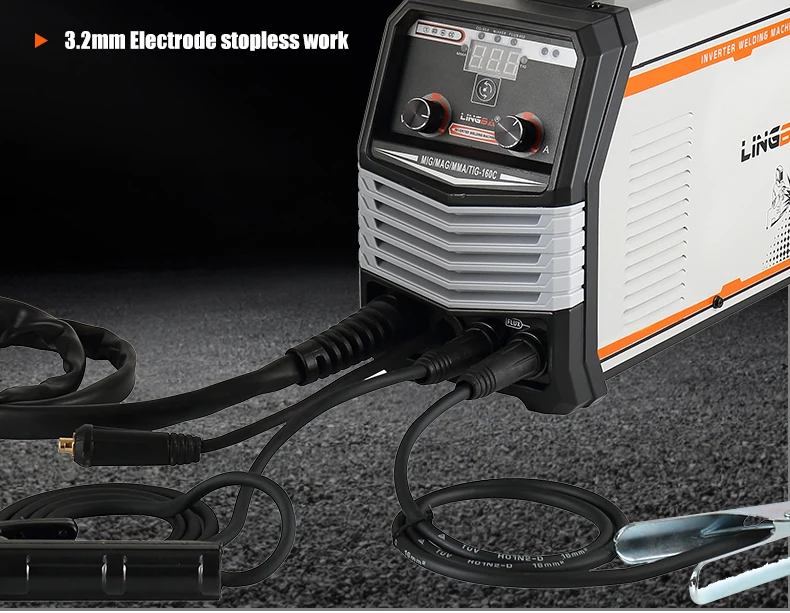

	3.2mm Electrode stopless work
