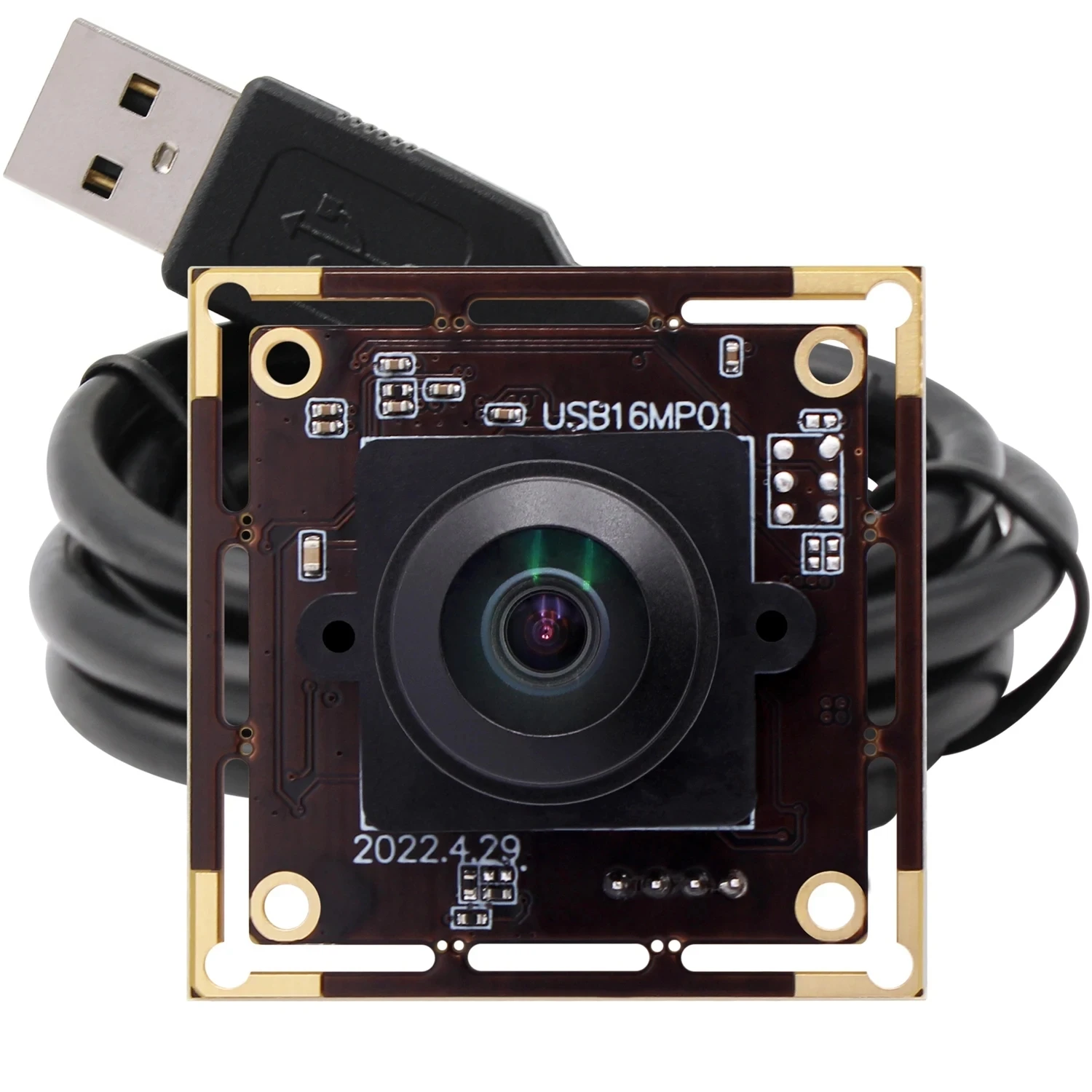

ELP 16MP 180 Degree Fisheye Lens Wide Angle IMX298 Security Industrial USB Camera Module Webcam For Robot ATM Kiosk Machines
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601042429162):
Product Overview
Description
ELP 16MP Wide Angle Fisheye Lens 180 Degree USB Camera 1/2.8" IMX298 Sensor Mini Webcam USB Camera Module for Windows, Linux, Mac
Product Description
♦Key Features
♦Key Features
16MP USB Camera is a new number of ELP camera, with 4656(H) *3496(V) High Resolution Mini USB Camera UVC Web Camera for Android Linux Windows Video Conference Camera
Details for 16 Megapixel USB Cameras:
-16MP USB camera with fisheye lens, HFOV 180 Degree
-Max Resolution: 4656x 3496
-Sensor: IMX298
-Compression Format: MJPEG/YUY2 optional
-Default 1 meter USB cable
-Support USB2.0 OTG, which can connect to mobile phone, tablet etc.

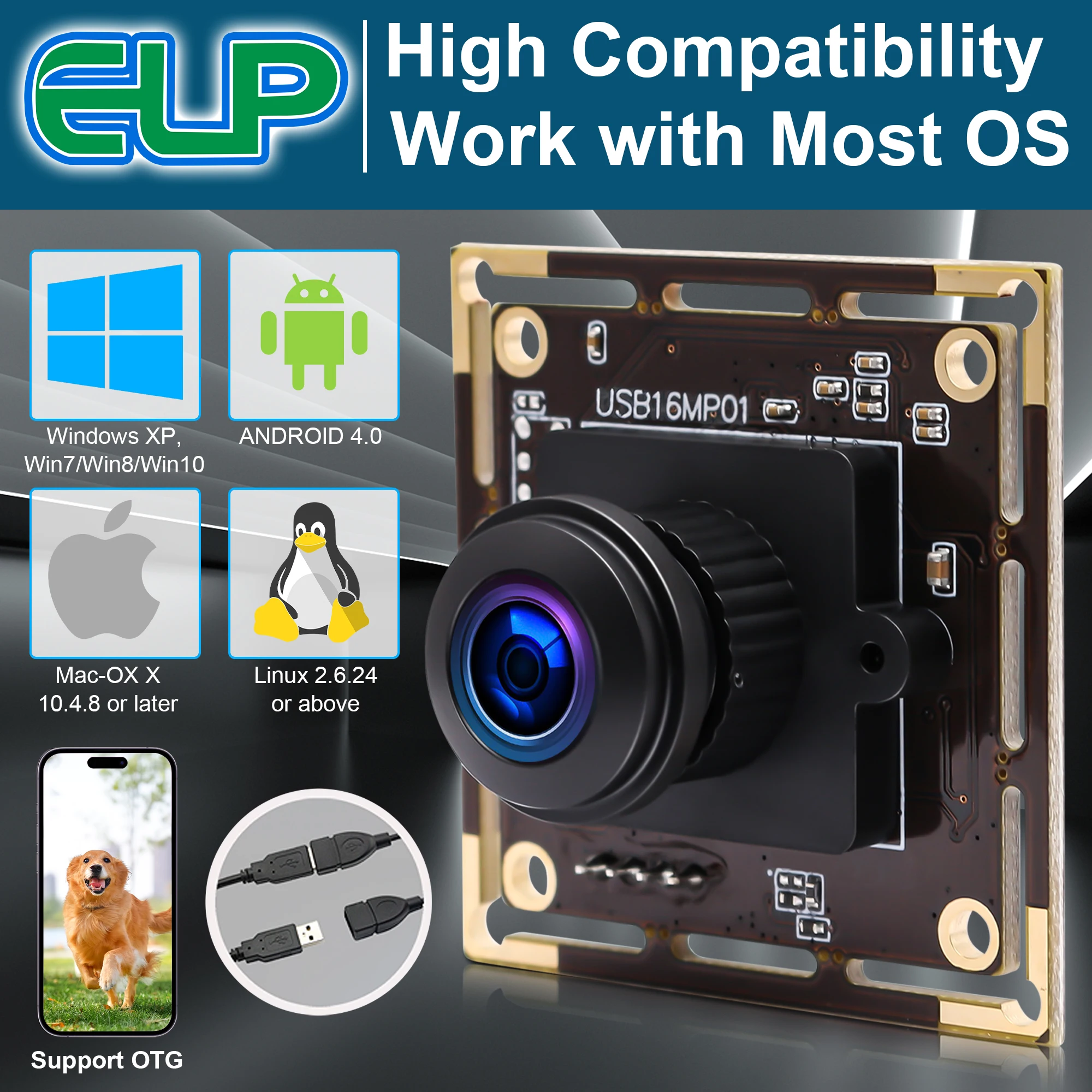

Support all kinds of Android,Linux Windows,Mac OS system,can also work with smart phone by OTG cable.
Details for 16 Megapixel USB Cameras:
-16MP USB camera with fisheye lens, HFOV 180 Degree
-Max Resolution: 4656x 3496
-Sensor: IMX298
-Compression Format: MJPEG/YUY2 optional
-Default 1 meter USB cable
-Support USB2.0 OTG, which can connect to mobile phone, tablet etc.
Support all kinds of Android,Linux Windows,Mac OS system,can also work with smart phone by OTG cable.
♦Specifications
Model | ELP-USB16MP01-L180 |
Sensor | SONY IMX298 |
Sensor Size | 1/2.8inch |
Pixel Size | 1.12um |
Image Area | 6.4mm x 5.3mm |
Max. Resolution | 4656(H) X 3496(V) 16 Megapixel |
Compression Format | MJPEG / YUY2 (YUYV) |
Resolution & Frame Rate | 4656 x 3496 MJPEG 10fps/ YUY2 1fps 4208 x 3120 MJPEG 10fps/ YUY2 1fps 4160 x 3120 MJPEG@10fps YUY2@1fps 4000 x 3000MJPEG@10fps YUY2@1fps 3840 x 2160 MJPEG@10fps YUY2@1fps 3264 x 2448MJPEG@10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps 2320 x 1744MJPEG@30fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps 1920 x 1080MJPEG@30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps 1280 x 960MJPEG@30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps 1024 x 768MJPEG@30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps 640 x 480MJPEG@30fps YUY2@30fps |
Min Illumination | 0.5 Lux |
Shutter Type | Electronic Rolling Shutter / Frame Exposure |
Connecting Port Type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class (UVC) |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure |
Lens Parameter | HD L180 Lens, FOV about 180 degree. Optional 2.8/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc. |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 150mA~240mA |
Working Temperature | -10~70℃ |
Storage Temperature | -20~85℃ |
Board Size /Weight | 38X38mm (Compatible 32X32mm) / about 100g |
Cable | Standard 1m / Optional 2m,3m,5m |
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Optional Models | With no distortion lens: ELP-USB16MP01-LC1100 (FOV 63 degree) ELP-USB16MP01-L75 (FOV 76 degree) ELP-USB16MP01-V100 (FOV 80 degree) ELP-USB16MP01-H100 (FOV 95 degree) ELP-USB16MP01-H110 (FOV 107 degree) ELP-USB16MP01-H120 (FOV 118 degree) With normal lens: ELP-USB16MP01-F28 (FOV 90 degree) ELP-USB16MP01-F36 (FOV 76 degree) With fisheye lens: ELP-USB16MP01-L170 (FOV 139 degree) ELP-USB16MP01-L180 (FOV >180 degree) |
♦Working Modes
Plug&Play: no driver required. The USB camera board is equipped with a 4pin to USB connector on the back for direct PC connection, compatible with the various platforms such as Linux, Windows, Andriod, and Mac OS; it also supports the use of Zoom/Skype/Facetime
and other video streaming APP.
and other video streaming APP.
16MP resolution, support 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, 30fps@2048X1536/1600X1200/1280X720 and YUV video
streaming. Mini USB camera can view 8CM-100M long distance.
streaming. Mini USB camera can view 8CM-100M long distance.

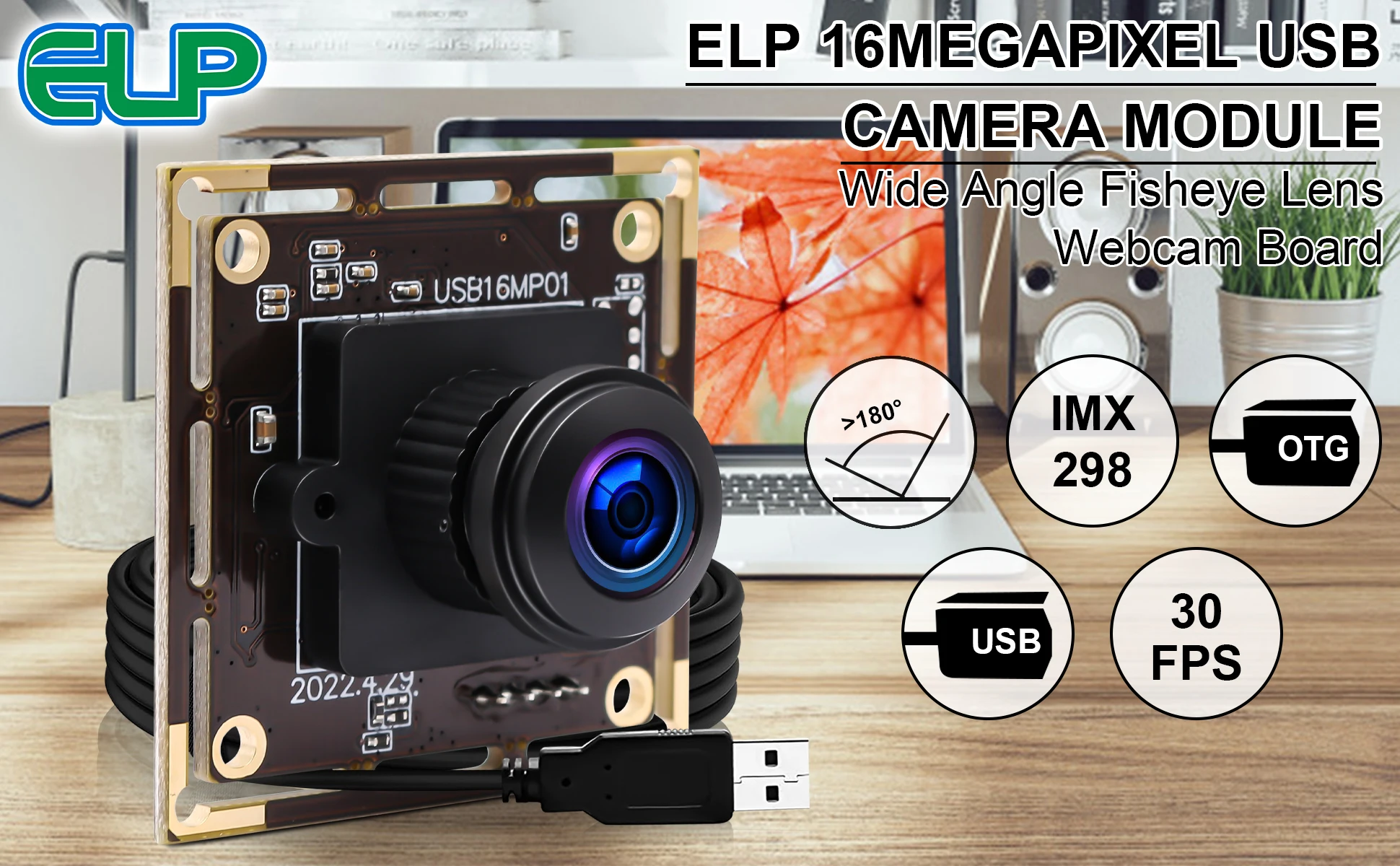

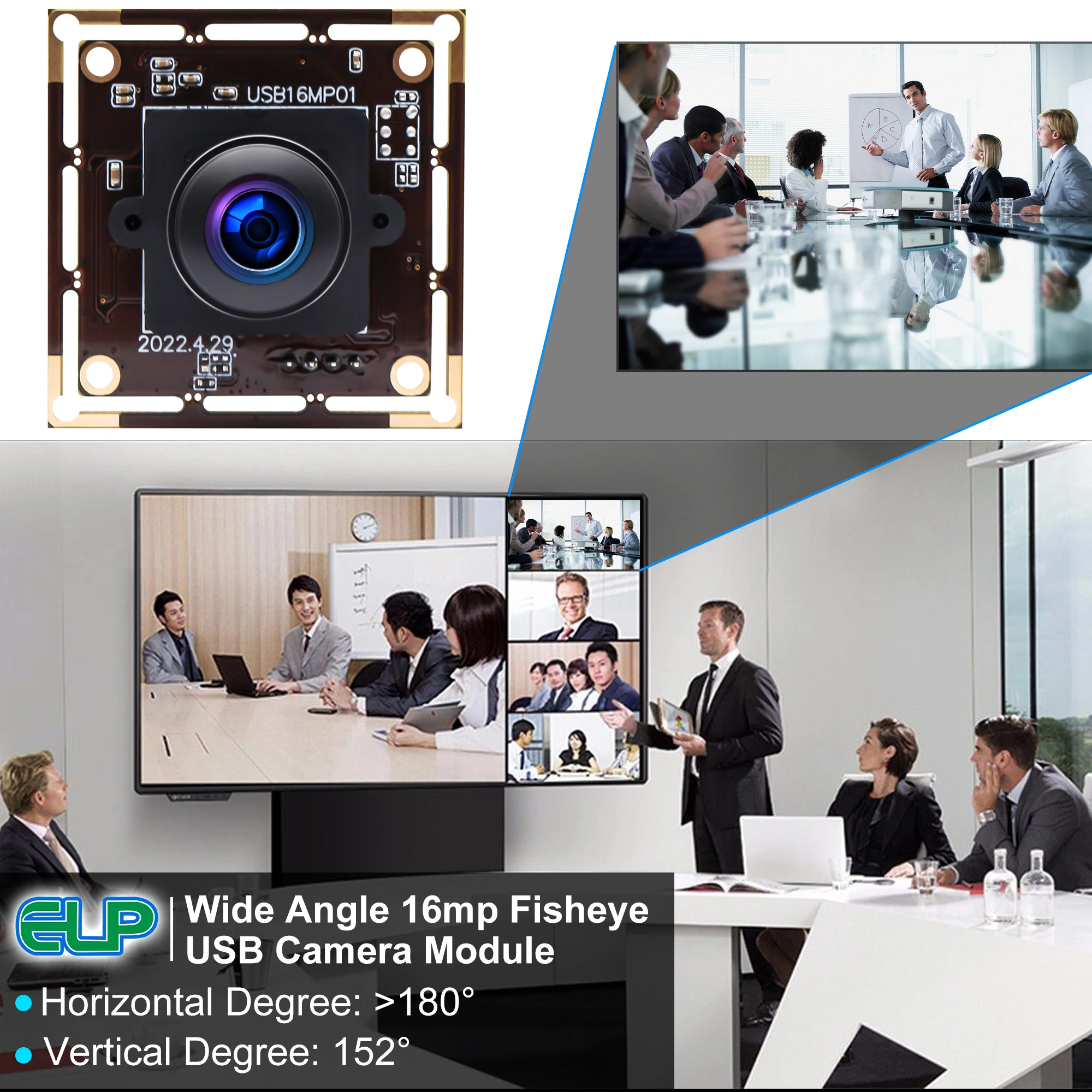

Fisheye Lens: 180 degree. The biggest role of the fisheye lens is the wide viewing angle range, which creates conditions for shooting large-scale scenes at close range.
16MP webcam with advanced IMX298 sensor is the high standard in terms of image quality and sensitivity performance.
♦Production Size

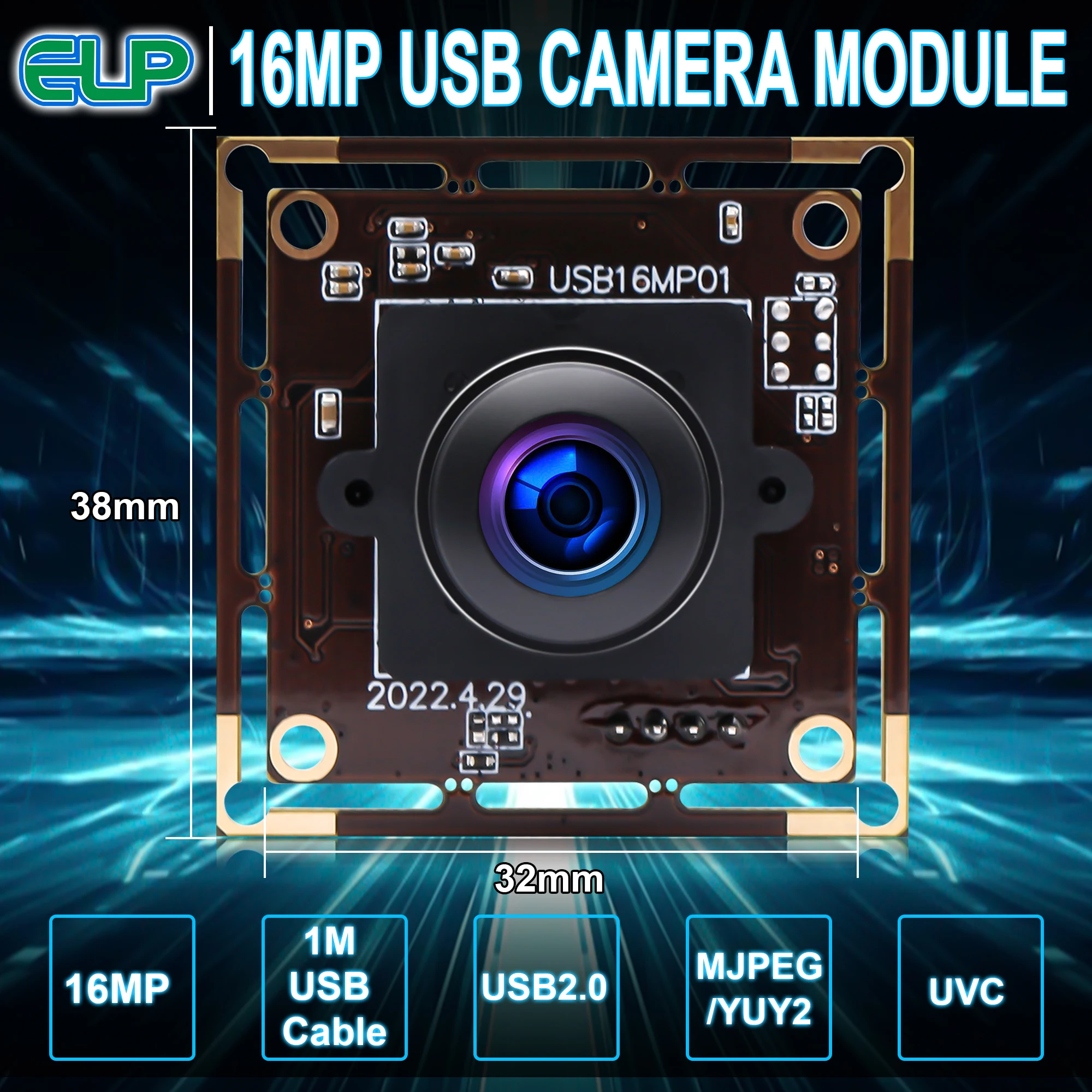

Mini size 38x38mm or 32x32mm for wide application, package includes 1pcs 16MP USB camera and 1pcs 1m USB cable
♦Broad Application
Wide Application: Video Conferencing, Live Streaming, Security, Medical device, Industrial Inspection, Research and Development, Education and Trainin, High Resolution document Scan
Company Profile
Shenzhen Ailipu Technology Co.,Ltd established in 2005, is a 19 years professional USB Cameras manufacturer in China. Our own brand ELP is well known in cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS.
With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into aprofessional USB Camerascompany, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3 megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras,
Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into aprofessional USB Camerascompany, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3 megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras,
Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
FQA
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
