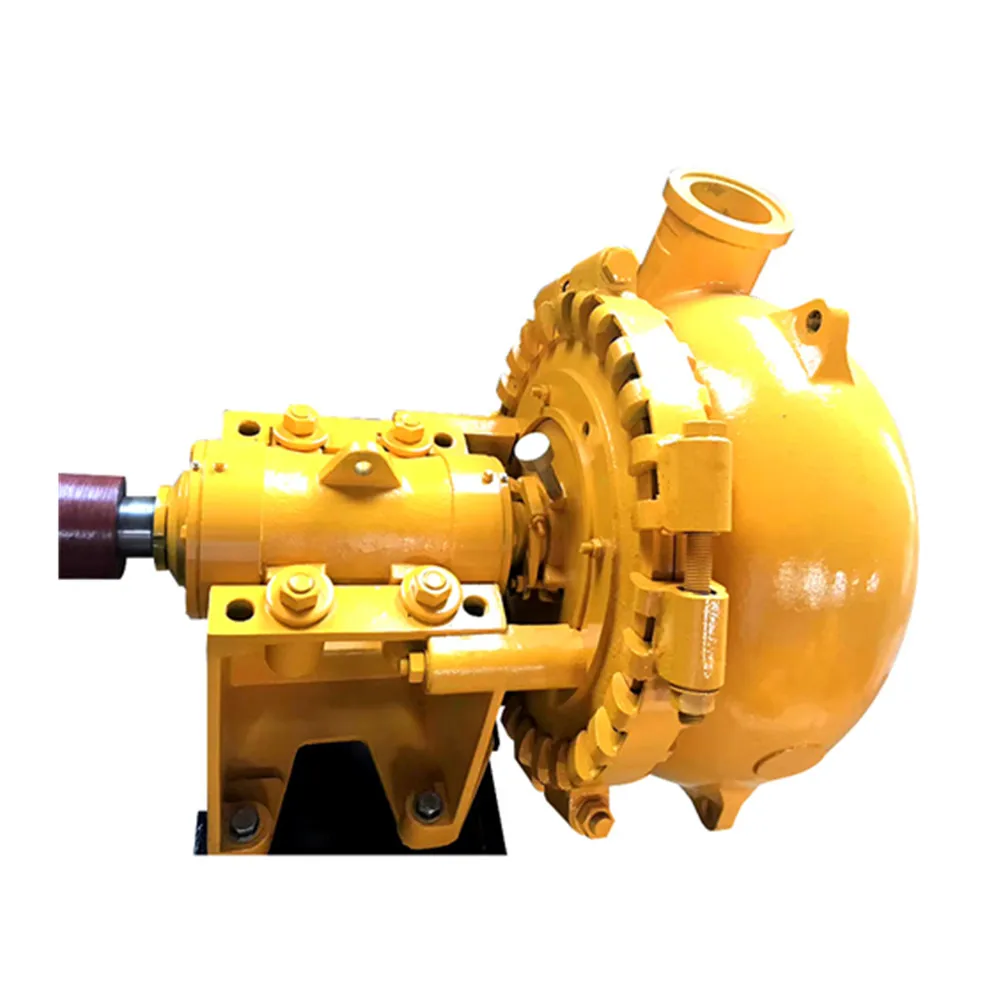

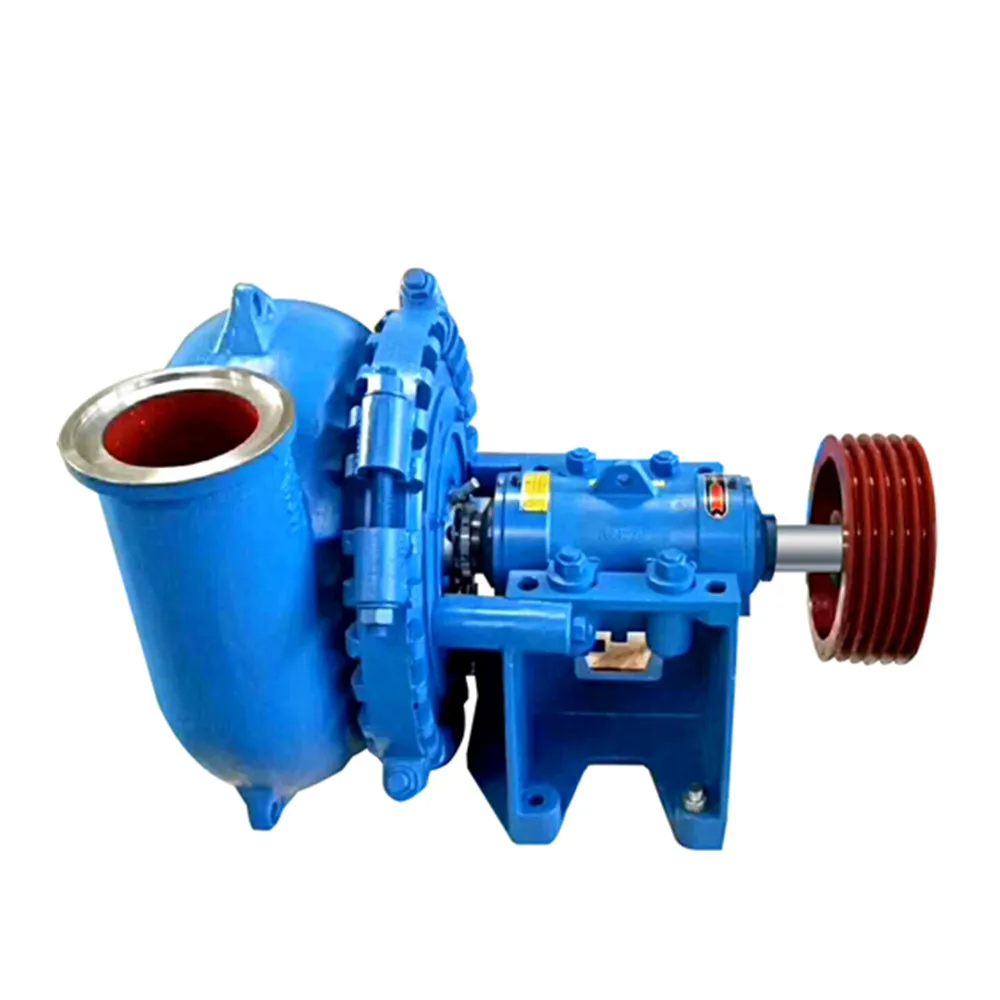

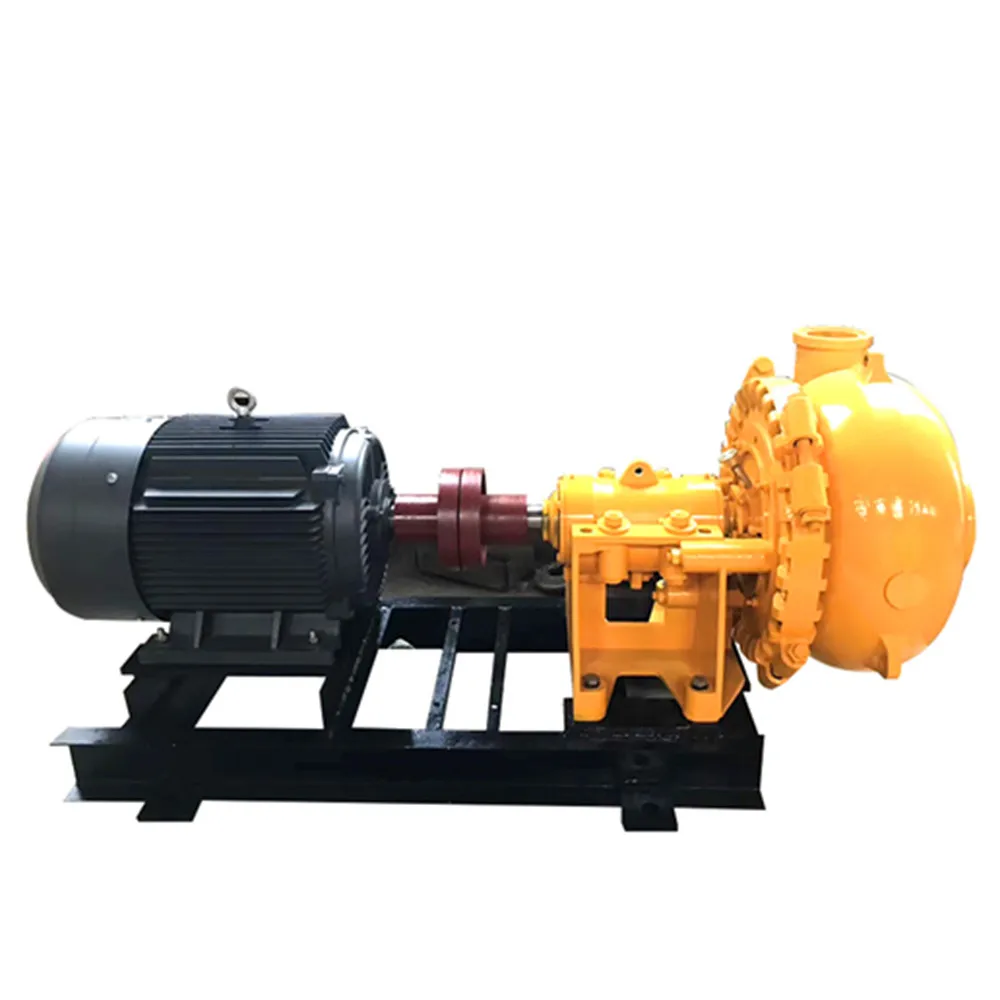

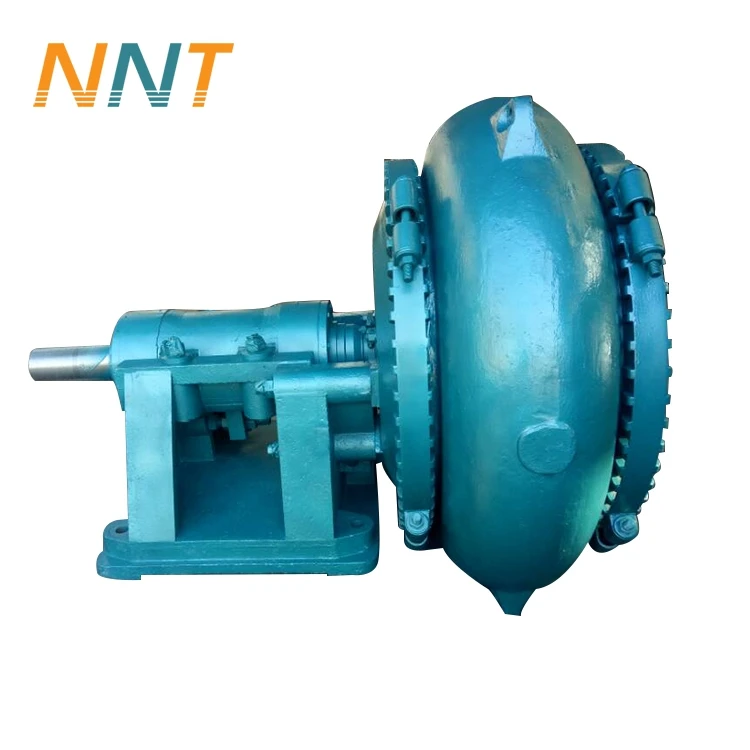

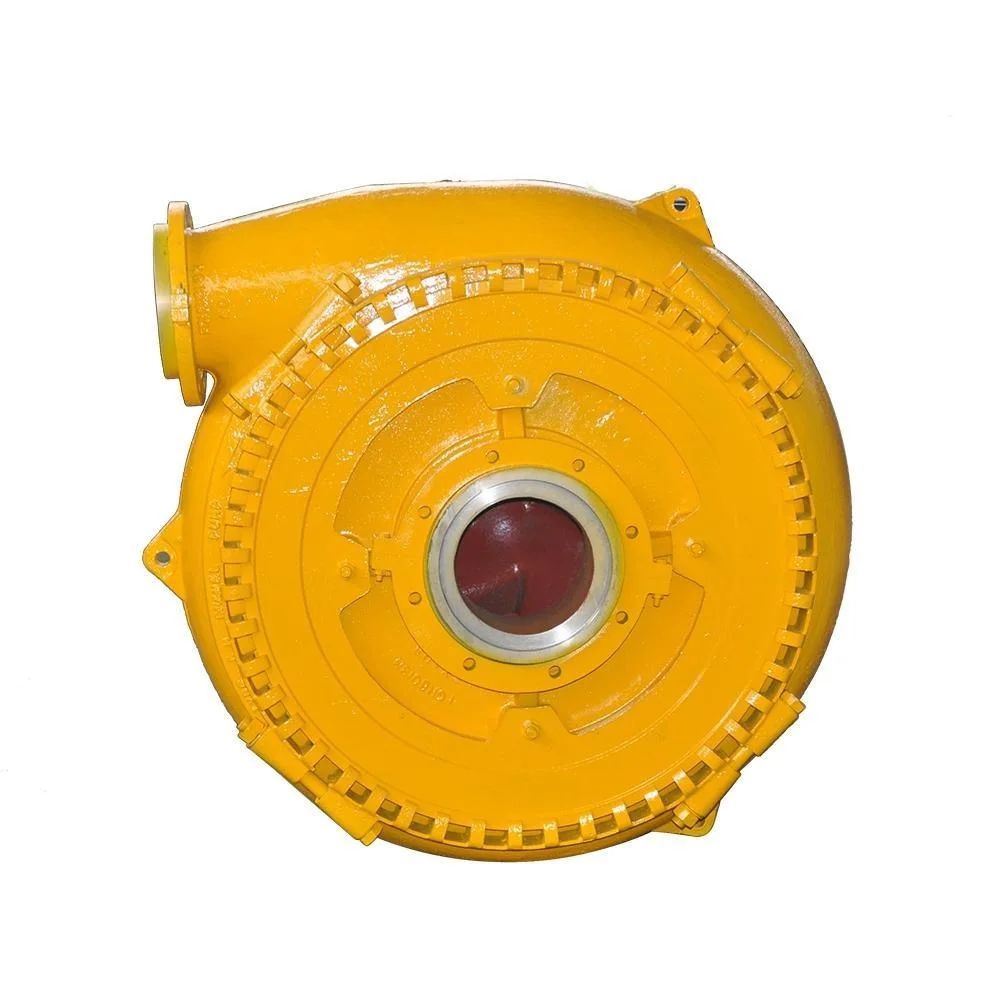

Diesel Engine Sand Sludge Suction Dredge Pump

The series of product has the following main technical characteristics:
1. It uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate;
2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;

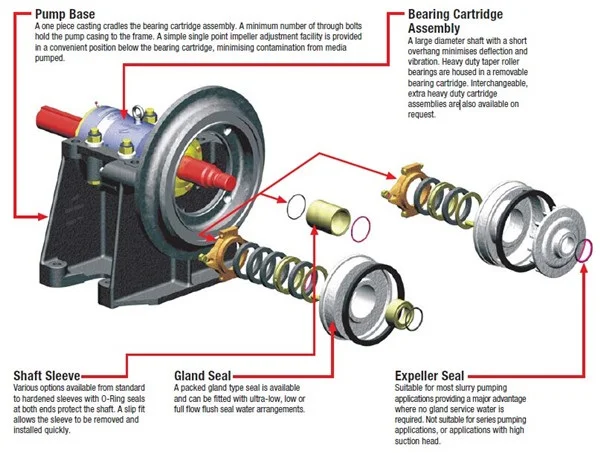

3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;
4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;
5. It uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature;
6. Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions;
7. In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

2. Model Introduction:

For example:10/8F-G

10:Suction diameter(inch)

8:Discharge diameter(inch)

F:Base type

G:Gravel pump

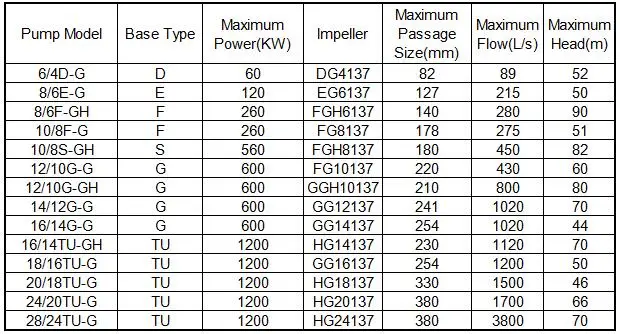

 Performance Parameters of G(GH) Slurry Pump
