Canadian TOPHiKu6 144cells N type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC
Canadian TOPHiKu6 144cells N-type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC

Canadian TOPHiKu6 144cells N type TOPCon Technology Solar Panels 560W 565W 570W 575W 580W PV Panels with CE/TUV/IEC

Share on (1601042519139):


Price:$50.00 - $66.00

Quantity:


Product Overview

Description



Products Description






Canadian N-Type TOPCon

High Efficiency to 22.5%

560W-580W





Key Features

1.  Module power up to 580 W
Module efficiency up to 22.5 %

2. Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield

3. Lower temperature coefficient (Pmax): -0.29%/°C, increases energy yield in hot climate

4. Lower LCOE & system cost





Product Paramenters


ELECTRICAL DATA | STC*
CS6W
560T
565T
570T
575T
580T
Nominal Max. Power (Pmax)
560 W
565 W
570 W
575 W
580 W
Opt. Operating Voltage (Vmp)
42.3 V
42.5 V
42.7 V
42.9 V
43.1 V
Opt. Operating Current (Imp)
13.24 A
13.30 A
13.35 A
13.41 A
13.46 A
Open Circuit Voltage (Voc)
51.4 V
51.6 V

51.8 V
52.0 V
52.2 V
Short Circuit Current (Isc)
13.69 A
13.75 A
13.81 A
13.88 A
13.93 A
Module Efficiency
21.7%
21.9%
22.1%
22.3%
22.5%
Operating Temperature
-40°C ~ +85°C




Max. System Voltage
1500V (IEC/UL) or 1000V (IEC/UL)




Module Fire Performance
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730
1000V) or CLASS C (IEC 61730)




Max. Series Fuse Rating
25 A




Application Classification
Class A




Power Tolerance
0 ~ + 10 W




* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe
rature of 25°C.





ELECTRICAL DATA | NMOT*





Nominal Max. Power (Pmax)
424 W
427 W
431 W
435 W
439 W
Opt. Operating Voltage (Vmp)
40.0 V
40.2 V
40.4 V
40.6 V
40.7 V
Opt. Operating Current (Imp)
10.59 A
10.64 A
10.68 A
10.72 A
10.77 A
Open Circuit Voltage (Voc)
48.7 V
48.9 V
49.0 V
49.2 V
49.4 V
Short Circuit Current (Isc)
11.04 A
11.09 A
11.14 A
11.19 A
11.23 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5,
ambient temperature 20°C, wind speed 1 m/s.

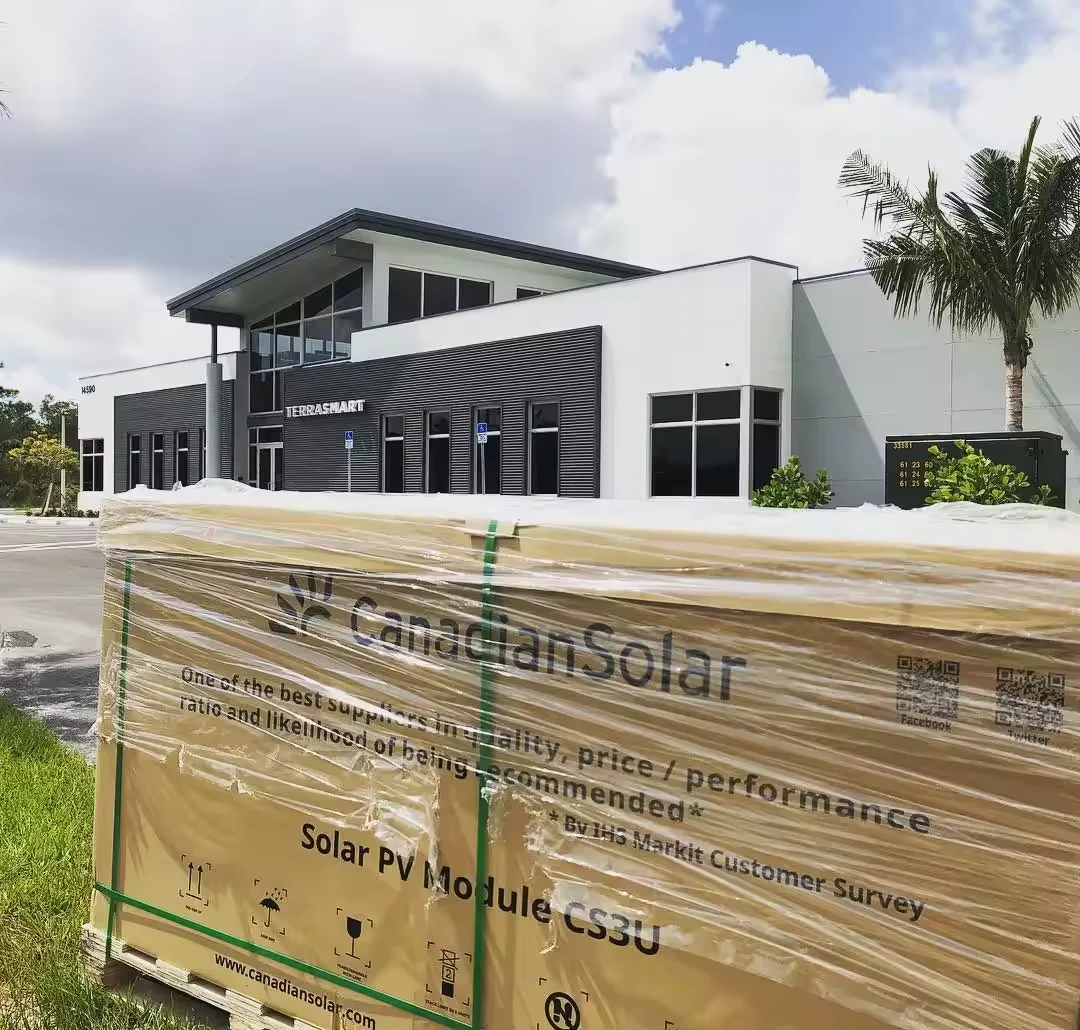

Project Case

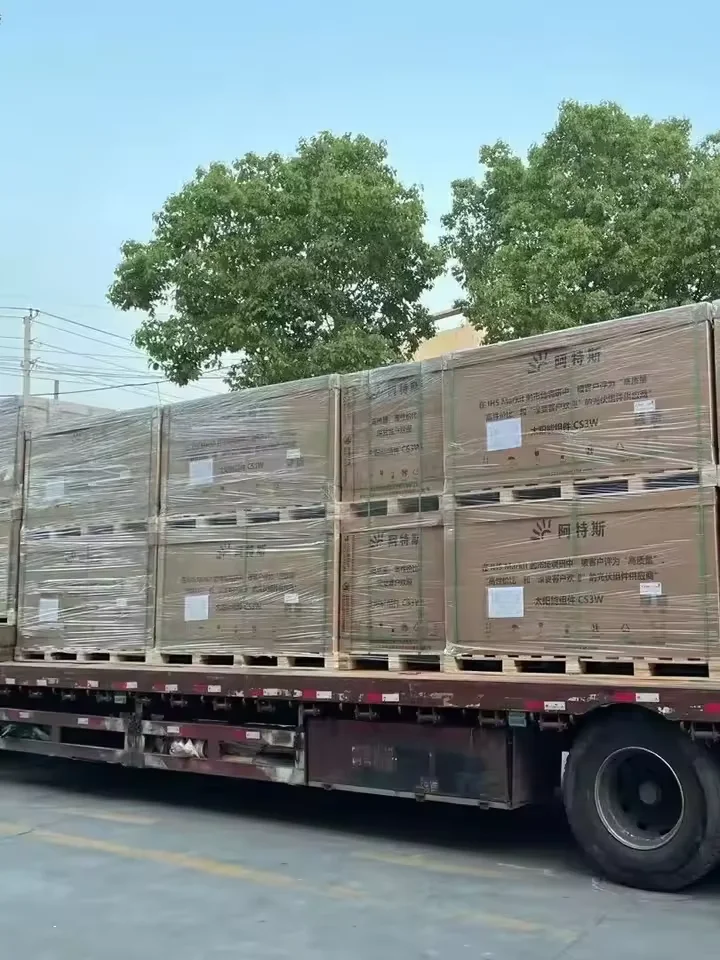

Product packaging






Exhibition




Certificate






Recommend Products




FAQ


1. Who are we?
We are based in Hefei, Anhui, China, established in 2018. We are professional Solar system and Products provider. For the past
years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products and
we have our own factory so we can provide OEM service for customer.


2. How can we guarantee quality?
We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,
we can have a sample order first.


3. What you can get from us?
Solar panels including the top brands and our own brand. Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.
Solar energy storage system including the batteries, the BMS platform and the integrated system.


4. Why choose us?
We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018.A
professional team makes us having lots of successful projects during the past several years.

Professional technical team can maintain our service on technical support and after-sale service.
Whole supply chain can maintain the requirements from customers.


5. Some features
Deliver Terms: EXW, FOB, CIF and etc. Payment Terms: T/T, L/C, MoneyGram, Paypal, Western Union and Cash.
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
