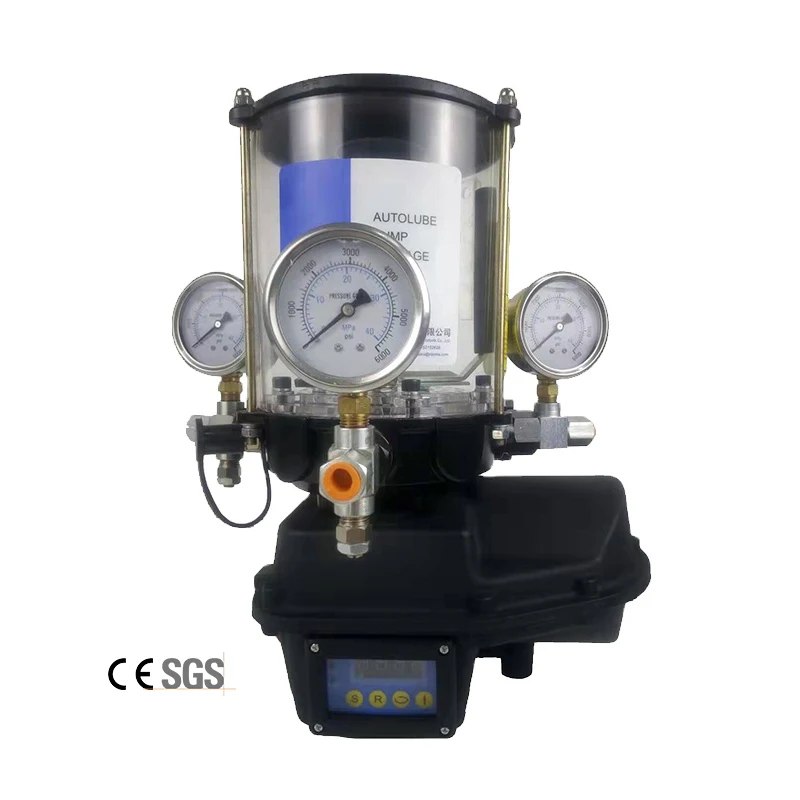

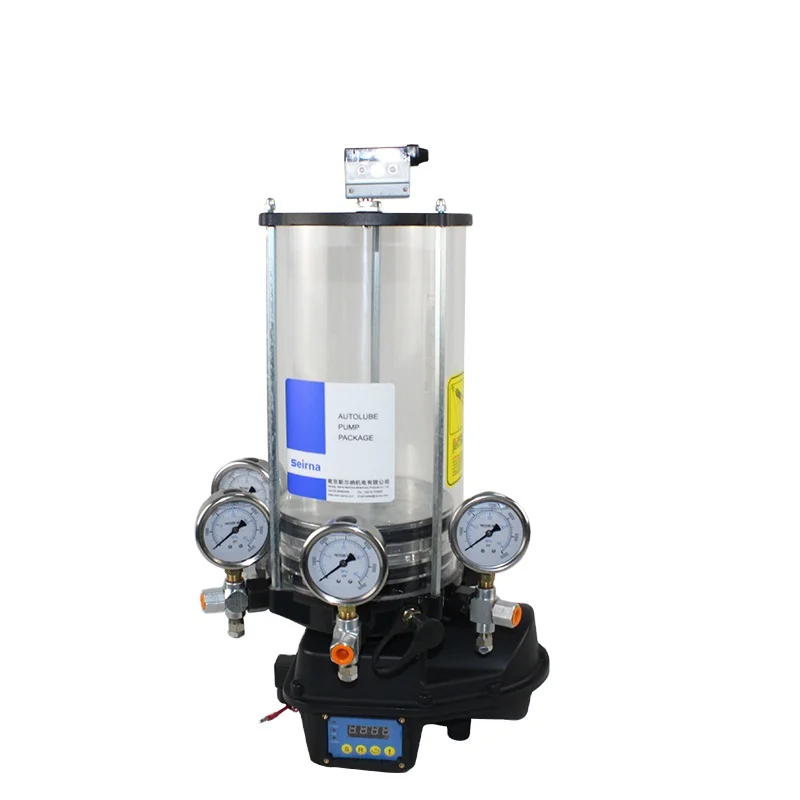

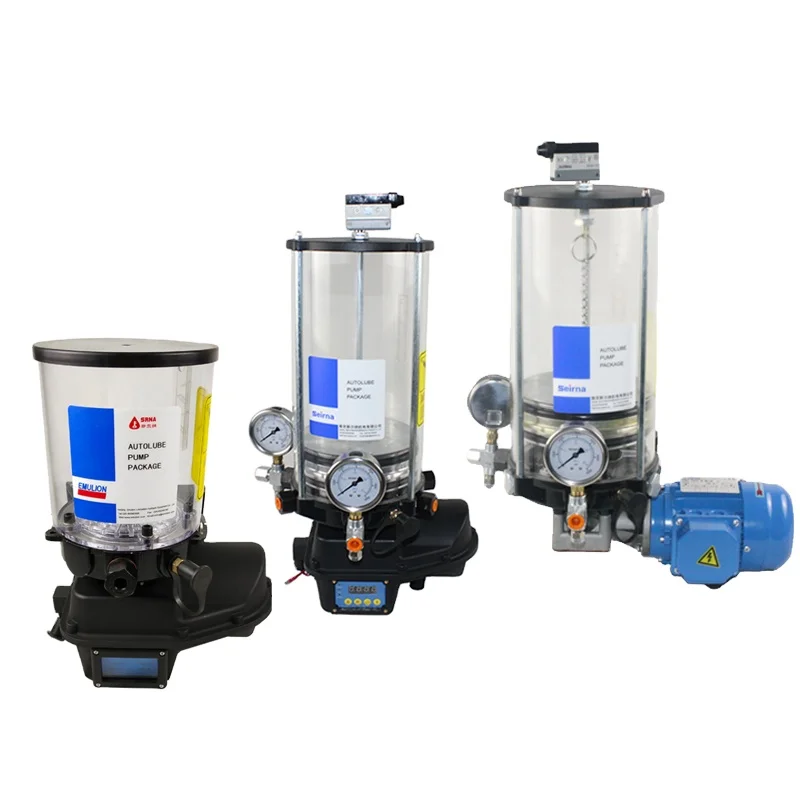

Automatic grease central lubrication system Progressive lubrication pump grease auto electric grease pump For Excavator Loader
- Category: >>>
- Supplier: Nanjing Seirna Machinery Electronic Co. Ltd.
Share on (1601042705241):
Product Overview
Description
Product Overview

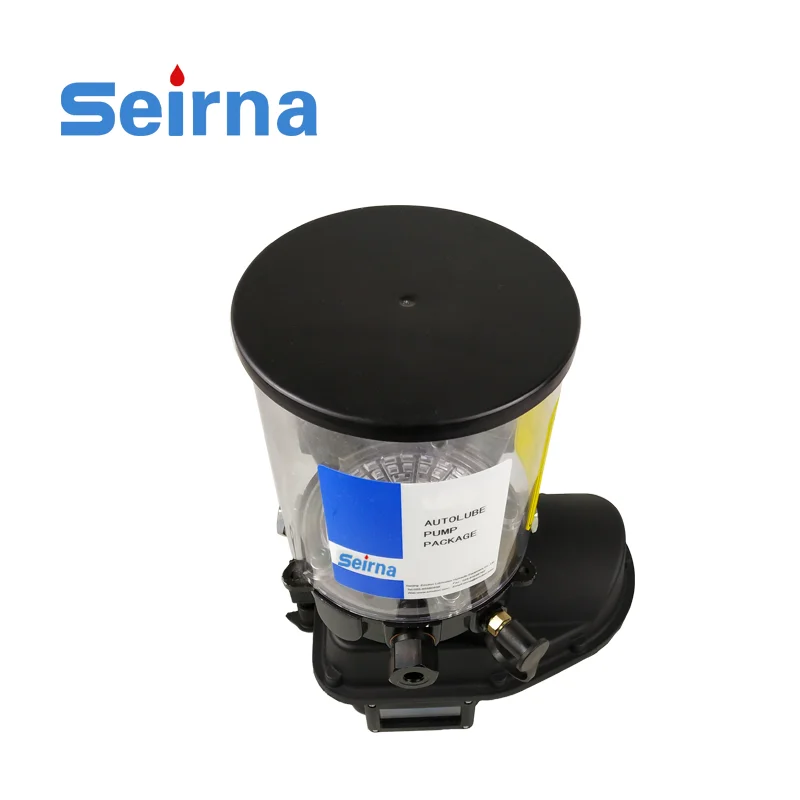

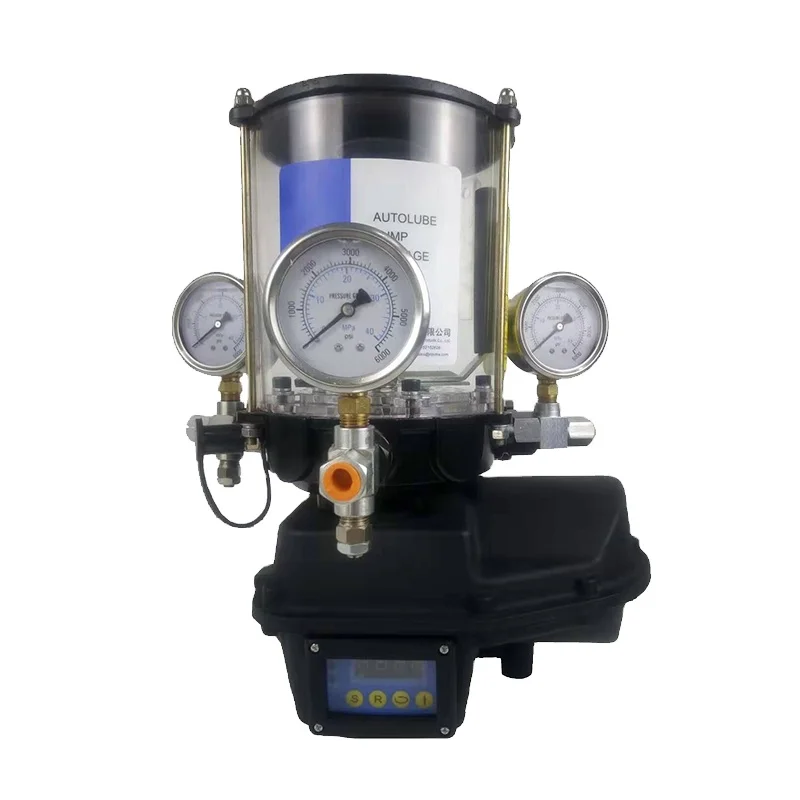

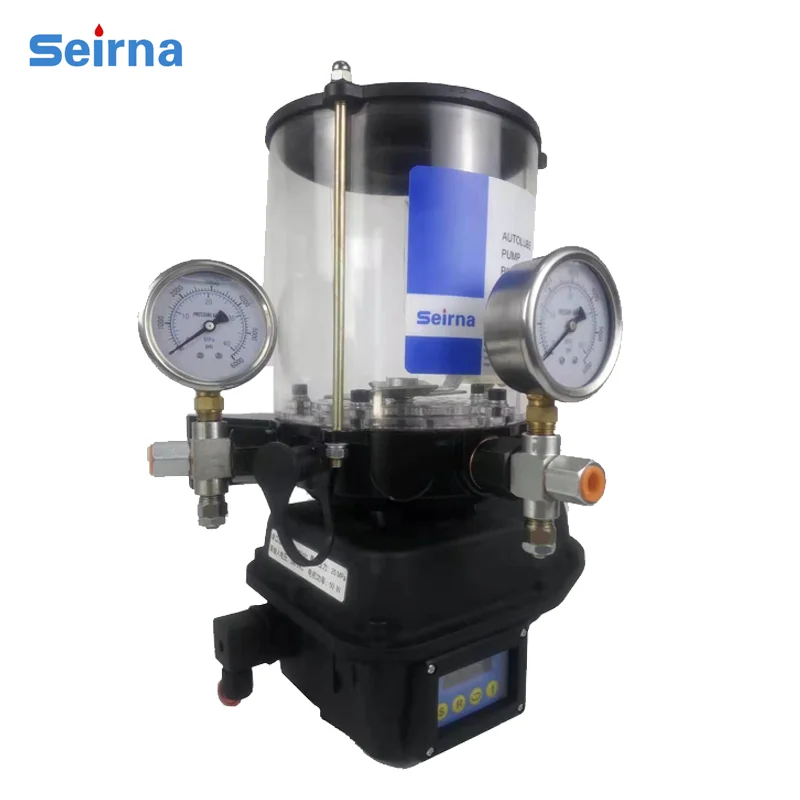

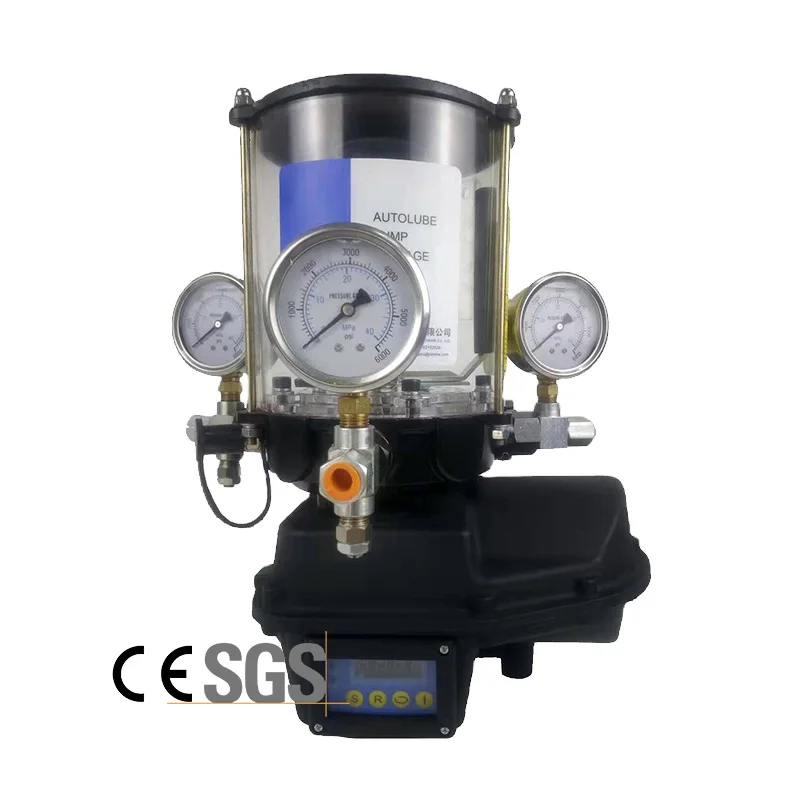

EMCA electric grease lubrication pump for centralized lubrication system
EMCA electric grease lubrication pump for centralized lubrication system
Model EMCA lubrication pump is Widely used in engineering, automobile, mining, cement, transportation, machine tools, textile,light industry, forging and other machinery.The grease supply time and intermittent time of the electric grease pump are set by touching the button, and are automatically stored. The kinetic energy displays the remaining time of the current action, with high time precision and good intuitiveness. The grease pump motor has no contact thyristor drive, which can ensure the long life operation of the system. It is equipped with manual grease supply, grease shortage alarm, overload stop alarm, automatic overflow and automatic stop protection functions.
FEATURES AT A GLANCE
Performance characteristics
1.Compact volume, beautiful appearance, small installation space.
2.Two installation forms, convenient according to the location of the equipment to use.
3.It Can be combined with measuring parts, can meet up to 80 points of lubrication.
4.The oil outlet is equipped with a check valve to effectively prevent countercurrent in the system.

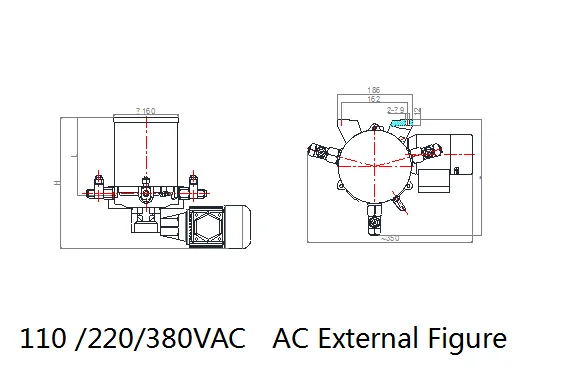

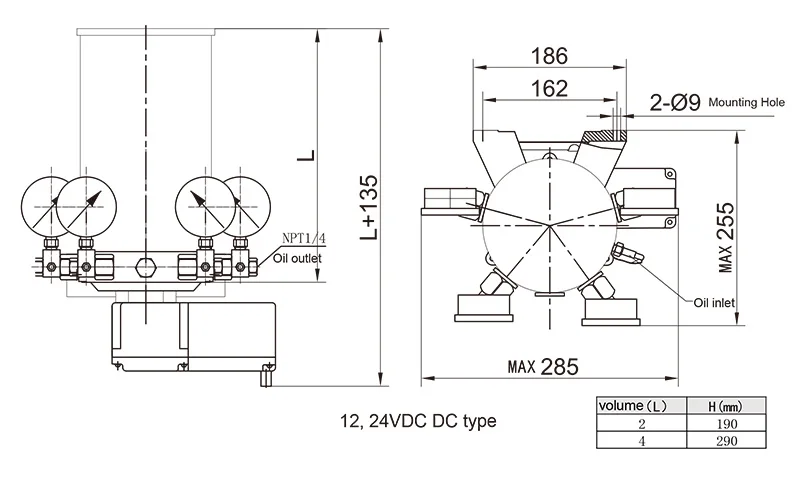

Right elevation
Top elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power supply Voltage | 12/24VDC 110/220/380VAC |
2 | Motor Power(W) | 50 |
3 | Outlet Thread | NPT1/4 |
4 | Number of Outlets | 1~4 |
5 | Single outlet Discharge amount (ml/min) | 3~5.5 |
6 | Max working pressure (MPa) | 25 |
7 | Using Grease (NLGI) | 000#-2# |
8 | Capacity | 2L/4L |
