SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain
SPR vertical type sump slurry pump with open impeller for pond drain

SPR vertical type sump slurry pump with open impeller for pond drain

Share on (1601042795486):


Price:$2,140.00 - $2,256.00

Quantity:


Product Overview

Description


SPR vertical type sump slurry pump with open impeller for pond drain



Product Description


Vertical slurry pump specifications








Pump size: 40-300mm


Capacity: 17-1267m3/h
Head: 4-40m
Materials: Cr27, Cr28, rubber liner

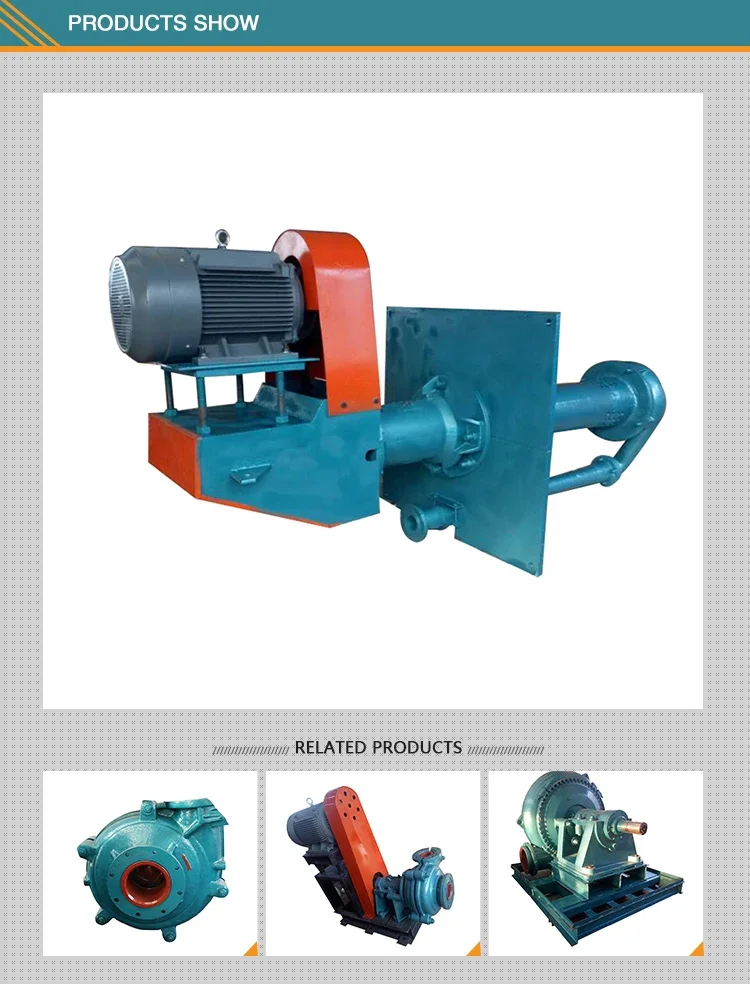

VERTICAL slurry pump show.png





Brief introduction of Vertical slurry pump





The SP(R) series Vertical slurry pump are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurries. These sump pump have no need of any shaft seal and sealing water. The pump casing of type SP pumps are made of wear-resistant metal. The wear parts are made of high chromium for the SP series and are rubber lined for the SPR series.
























































































ModelOutlet diameter
mm		Speed
r/min		Clear water performancePower
Kw		Impeller diameter
(m)
Capacity
(m 3 /h)		Head
m		Eff
%
40PV-SP(R)401000-220017-43.24-28.54015188
65QV-SP(R)65700-150017-1145-31.56030280
100RV-SP(R)100500-120054-2895-366275370
150SV-SP150500-1000108-4798.5-4052110450
200SV-SP200400-850189-8916.5-3764110520
250SV-SP250400-750261-10897-33.560200575
300TV-SP300350-700288-12676-3350200610

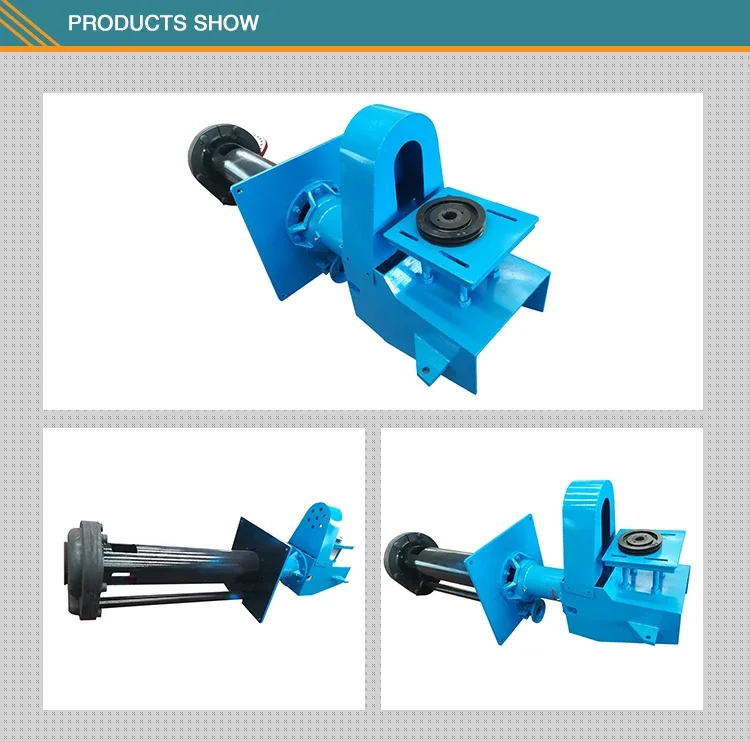

VERTICAL slurry pump show1.png

Features of Vertical slurry pump



1. It is vertical shaft pump.

2. Works well in water without shaft seal or seal water.






3. All the flow passage components are made of anti-abrasion metal.


4. Suitable for working in deep water/liquid conditions with rubber liner.


5. Designed base on standard type, equipped with guide bearing, it can work stable and smoothly.


6. The guide bearing needs to be attached with flushing device.As this careful design, this centrifugal vertical


slurry pump can be used to convey corrosive slurry and work well even as the suction volume is not enough.



















Applications of Vertical slurry pump





* Transport thick liquid, heavy oil, oil residue, dreggy liquid, slurry mortar, quicksand and other corrosive


liquid or fluid with mud or sand.


* Mainly used in mining , metallurgical, chemical, coal coking, waste treatment, paper and pulp making,


cement manufacturing, food processing and building material industries and so on.


 vertical pump application.png











Factory introduction


Reformed from Shijiazhuang Baifo Foundry Factory, which was a national collective enterprise, Shijiazhuang Kunzhen Wear Resistant Slurry Pump Co., Ltd. is a modern pump industry enterprise engaged in professional manufacture, scientific research, development, sales and service. We are specialized in manufacturing: slurry pump and slurry pump parts, dredging pump and dredging pump parts, desulfurization pump and desulfurization pump parts, clean water pump and sewage pumps which are widely used in mine, metallurgy, coal, electric power, dredge and other sectors of the national economy.


slurry pump production.png testing.jpg
