Pressure Limiting Valve
$3.82-4.82
Hikins 3G 6 8L Plastic PP RO Drinking Bucket Barrel Pressure Tank
- Category: >>>
- Supplier: Hikins (Jiangsu) Envirotech Co. Ltd.
Share on (1601042907682):
Product Overview
Description
Specification
Model | 3G | ||||||
Water Storage Capacity(L) | 6~8 | ||||||
Preset Air Pressure(PSI) | 6~8 | ||||||
Max Pressure(PSI) | 100 | ||||||
Product Size(mm) | 330(H)*250(D) | ||||||
Hikins 3G 6-8L Plastic PP RO Drinking Bucket Barrel Pressure Tank
Products Description
Product Features
Water pressure tank is mainly used in closed water purifier circulation system, which plays the role of balancing the water volume and pressure, avoiding frequent opening of the safety valve and frequent replenishment of the automatic water replenishment valve.
1. The shell is molded from food-grade polypropylene. New plastic raw materials, no recycling, no secondary pollution.
2. The thickened nozzle design avoids the traditional risk of nozzle cracking and slipping.
3. Using aerospace grade pressure resistant materials and equipped with imported spool, strengthen airbag sealing, reduce the risk of air leakage.
4. Anti slip bottom design, groove can play a fixed role, anti slip and anti fall.
2. The thickened nozzle design avoids the traditional risk of nozzle cracking and slipping.
3. Using aerospace grade pressure resistant materials and equipped with imported spool, strengthen airbag sealing, reduce the risk of air leakage.
4. Anti slip bottom design, groove can play a fixed role, anti slip and anti fall.

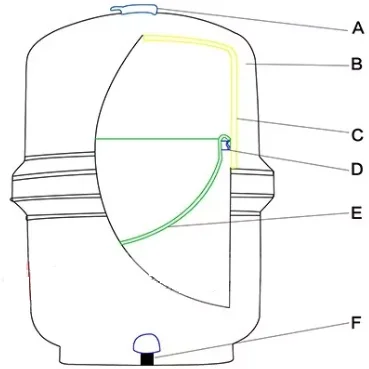

Product Structure Schematic
A: Water Inlet of Tank
B: Barrel Body
C: The inner wall of Barrel Body
D: The Core Circle
E: Rubber Airbag Liner
F: Pressure Relief Valve
About daily maintenance
Check all pipe are connected well (pipe should insert about 1.5cm into fitting/connector). And then add the blue clip to fix.
Open tap water inlet valve, and open water inlet tee valve, let the water go through the system. And then connect power adapter.
Then water purifier will work automatically.
For newly installed water purifier, we should close tank valve, and open faucet(Wash system).
After 10 minutes to 15 minutes, close faucet, and open tank valve.
About 15 minutes, tank will be full and water purifier should stop production water auto.
Then open Faucet. Till water in tank empty, we close faucet(wash tank). Then testing is finished.
Open tap water inlet valve, and open water inlet tee valve, let the water go through the system. And then connect power adapter.
Then water purifier will work automatically.
For newly installed water purifier, we should close tank valve, and open faucet(Wash system).
After 10 minutes to 15 minutes, close faucet, and open tank valve.
About 15 minutes, tank will be full and water purifier should stop production water auto.
Then open Faucet. Till water in tank empty, we close faucet(wash tank). Then testing is finished.
Company Profile
ABOUT US
Hikins (Jiangsu) Envirotech Co.,Ltd is the industry leader of the drinking water industry as an OEM and ODM manufacturer for RO water purifiers,RO Membranes, RO Pump as well as Robot Vacuum Cleaner, we have comprehensive manufacturing facilities and equipment to provide parts and accessories manufacturing, and we have multiple assembly line to fulfill the heavy load of production, moreover,we are experienced exporter in OEM manufacturing, and we have good supply-chain management for product quality control and for delivery.
We are looking for Agent and distributors for RO membrane, please contact us today to become our potential partner in the global business development together.
Certifications
Exhibition
FAQ
FAQs on RO water storage tank OEM manufacturing
Q1: What is the purpose of water storage tank?
A1:The water storage tank is with a vacuum diaphragm structure to storage pure water and to deliver pure water under certain pressure difference, the default pressure injected to the water tank is 5psi, which will ensure the water being properly delivered to water tap once the water tap is turned on.
The water tank is used for the RO system to be with the following benefit:
1) To speed up the pure water delivery speed while the filtration speed is not sufficient
2) To reduce the working frequency of the RO system, to make the RO system more stable in the long run
3) To ensure constant water supply in a short time while the electrical power is off
Due to the vacuum environment, the water storage tank can depress the bacteria from growing under the condition that the water tank is in good quality.

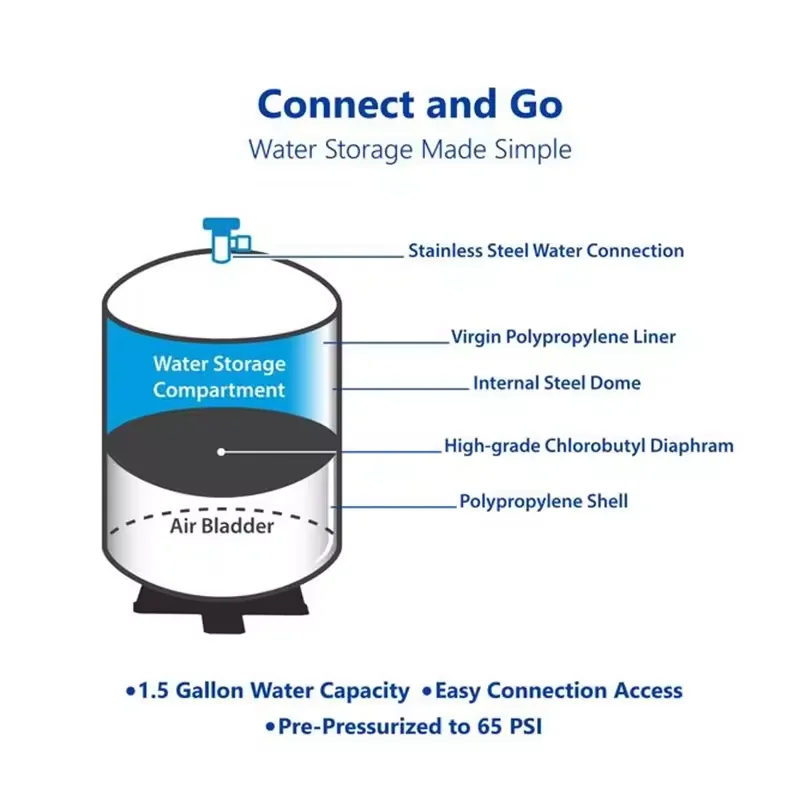

Q2:What is the structure of the water storage tank?
A2:The water tank is separated by the upper layer and bottom layer by the EDPM diaphragm rubber within the tank, the upper side is controlled with one single feed water nozzle and with the same nozzle to deliver water, water being injected to the water tank thus is storage in a vacuum condition. The lower layer is injected with air pressure by the air nozzle at the bottom of the tank,and to give pressure balance between the tank and to the water faucet, once the faucet is turned on, the water will be delivered by the air pressure difference.
Q3: How does the water storage tank work?
A3: When the upper layer of the water is being injected to the water tank, the water pressure will be increased and will be equal to the injected air pressure; when the water is delivered and the water pressure decreased, the RO system will start the water filtration again until the water pressure and air pressure being balanced.
Q4: Will the water tank grow bacteria and the water gets polluted?
A4: Due to the vacuum condition of the water storage tank, in case the RO membrane is with good quality, the water inside the water tank is not easily to get polluted; but if the water quality is bad, or the water filters are not changing properly, the
water inside the tank does become possible of getting polluted.
Q5: How often shall the water tank be replaced?
A5: If the water inside the tank is not used for a while, it is suggested the water to be drained out completely before drinking the water from the RO system, if the water tank is being used above two years, it is suggested that the tank being replaced as the EDPM diaphragm material might become oxidized.
Q6: Is the water storage tank possibly being explode?
A6: For plastic water storage tank, under the condition of HP switch not proper working, the RO system will continue to send water to the water tank, while the water pressure increased to a pressure above 35psi, the plastic water storage tank is possible to explode (It is mainly depending on the plastic material and structure of the water tank, if the plastic tank is assembled with pressure release valve, the tank is not possible to explode), there is less chance that the metallic tank is to explode.
Q7: Water is the most common problem of the water storage tank?
A7: The most common problem of the water storage tank is the feed water nozzle water leakage, causing the water going into the lower layer of the tank, causing the pressure balance being damaged. The second problem is that the diaphragm material being broken (this situation is not often as the tank is properly tested before it is sending out of the factory).
Q8: How can we identify water storage tank problem?
A8:If the water tank is full of water, and the water does not come out, it is either because of water leakage or the air pressure drop.
Q1: What is the purpose of water storage tank?
A1:The water storage tank is with a vacuum diaphragm structure to storage pure water and to deliver pure water under certain pressure difference, the default pressure injected to the water tank is 5psi, which will ensure the water being properly delivered to water tap once the water tap is turned on.
The water tank is used for the RO system to be with the following benefit:
1) To speed up the pure water delivery speed while the filtration speed is not sufficient
2) To reduce the working frequency of the RO system, to make the RO system more stable in the long run
3) To ensure constant water supply in a short time while the electrical power is off
Due to the vacuum environment, the water storage tank can depress the bacteria from growing under the condition that the water tank is in good quality.
Q2:What is the structure of the water storage tank?
A2:The water tank is separated by the upper layer and bottom layer by the EDPM diaphragm rubber within the tank, the upper side is controlled with one single feed water nozzle and with the same nozzle to deliver water, water being injected to the water tank thus is storage in a vacuum condition. The lower layer is injected with air pressure by the air nozzle at the bottom of the tank,and to give pressure balance between the tank and to the water faucet, once the faucet is turned on, the water will be delivered by the air pressure difference.
Q3: How does the water storage tank work?
A3: When the upper layer of the water is being injected to the water tank, the water pressure will be increased and will be equal to the injected air pressure; when the water is delivered and the water pressure decreased, the RO system will start the water filtration again until the water pressure and air pressure being balanced.
Q4: Will the water tank grow bacteria and the water gets polluted?
A4: Due to the vacuum condition of the water storage tank, in case the RO membrane is with good quality, the water inside the water tank is not easily to get polluted; but if the water quality is bad, or the water filters are not changing properly, the
water inside the tank does become possible of getting polluted.
Q5: How often shall the water tank be replaced?
A5: If the water inside the tank is not used for a while, it is suggested the water to be drained out completely before drinking the water from the RO system, if the water tank is being used above two years, it is suggested that the tank being replaced as the EDPM diaphragm material might become oxidized.
Q6: Is the water storage tank possibly being explode?
A6: For plastic water storage tank, under the condition of HP switch not proper working, the RO system will continue to send water to the water tank, while the water pressure increased to a pressure above 35psi, the plastic water storage tank is possible to explode (It is mainly depending on the plastic material and structure of the water tank, if the plastic tank is assembled with pressure release valve, the tank is not possible to explode), there is less chance that the metallic tank is to explode.
Q7: Water is the most common problem of the water storage tank?
A7: The most common problem of the water storage tank is the feed water nozzle water leakage, causing the water going into the lower layer of the tank, causing the pressure balance being damaged. The second problem is that the diaphragm material being broken (this situation is not often as the tank is properly tested before it is sending out of the factory).
Q8: How can we identify water storage tank problem?
A8:If the water tank is full of water, and the water does not come out, it is either because of water leakage or the air pressure drop.
