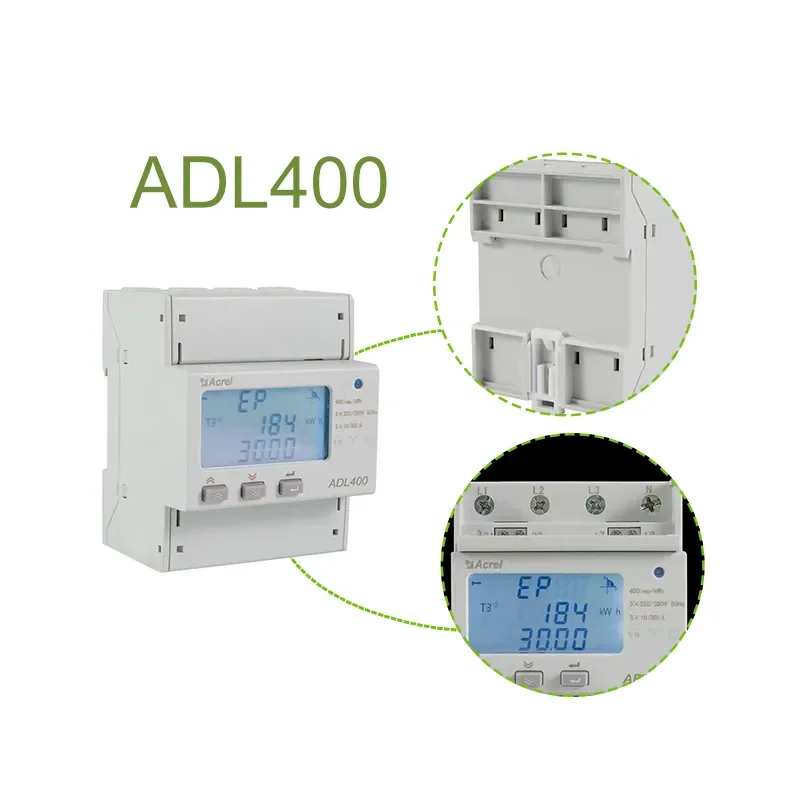

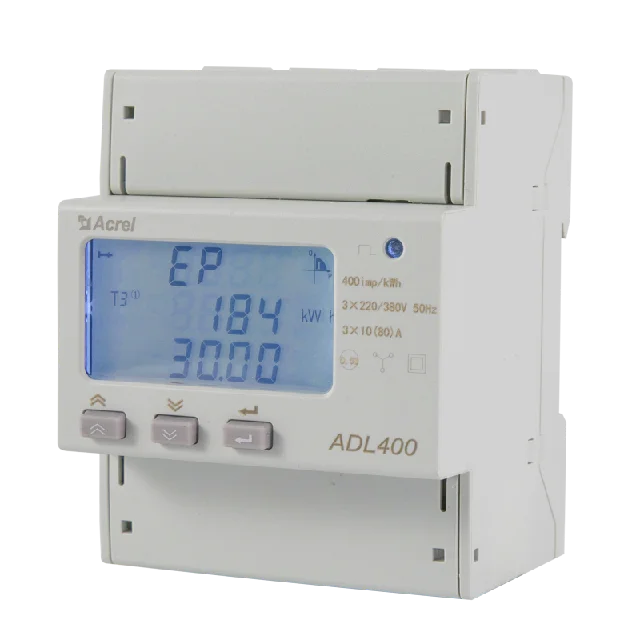

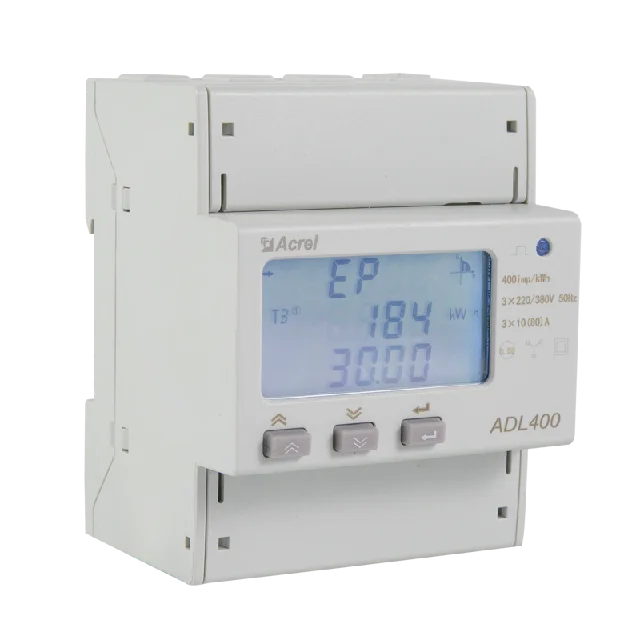

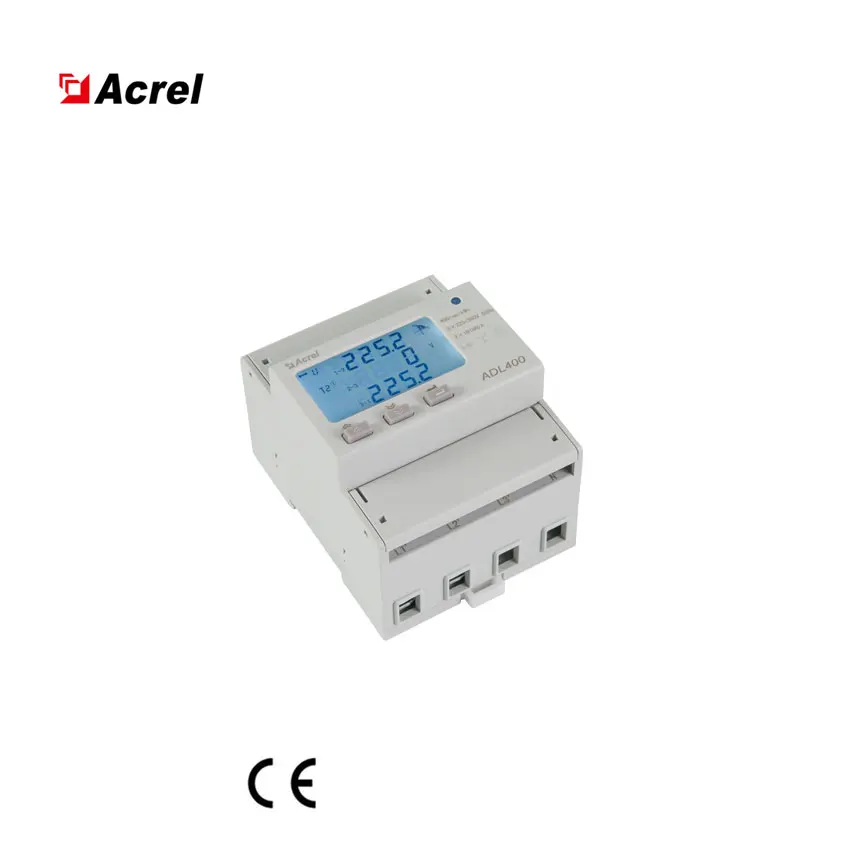

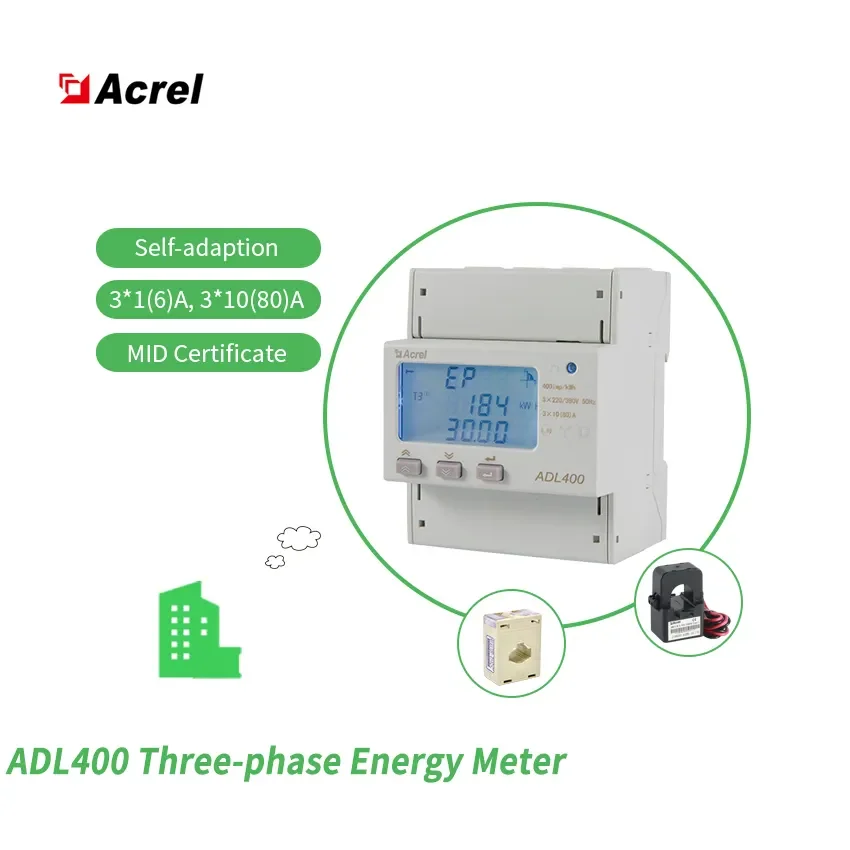

Acrel ADL400 C digital energy meter three phase with RS485 MID Certificate din rail kwh consumption meter
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601042912176):
Product Overview
Description
Product Description
Main Functions
Panel Overview
Main Parameters
Technical Parameters
Project | Performance parameter | ||||
Specification | 3 phase 3 wires, 3 phase 4 wires | ||||
Measurement | Voltage | Reference voltage | 3×100V\\3×380Vac、3×57.7/100Vac、 3×220/380Vac (Can normally work under 1.2 times of rated voltage) | ||
Consumption | <10VA(Single phase) | ||||
Impedance | >2MΩ | ||||
Accuracy class | Error±0.2% | ||||
Currnt | Input current | 3×1(6)A， 3×10(80)A | |||
Consumption | <1VA Single phase rated current | ||||
Accuracy class | Error±0.2% | ||||
Power | Active, reactive, apparent power, error±0.5℅ | ||||
Frequency | 45～65Hz，Error±0.2% | ||||
Metering | Energy | Active energy(Accuracy class: 0.5) reactive energy(Accuracy class 2) | |||
Clock | ≤0.5s/d | ||||
Digit signal | Energy pulse output | 1 active photocoupler output | |||
Pulse | Width of pulse | 80±20ms | |||
Pulse constant | 400imp/kWh,10000imp/kWh(Correspond with the basic current) | ||||
Communication | Interface and communication protocol | RS485：Modbus RTU | |||
Range of Communication address | Modbus RTU:1~ 247； | ||||
Baud rate | 1200bps~19200bps | ||||
Environment | Working temperature | -25℃~+55℃ | |||
Relative humidity | ≤95℅(No condensation) | ||||
Main Features
Diverse Electric Parameters Measurement
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● Harmonic (2~31st voltage¤t)---Standard
● U (3-phase Voltage)
● I (3-phase Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● S (Apparent power)
● PF (Power factor)
● kVarh (Kilovar-hours)
● Harmonic (2~31st voltage¤t)---Standard
● U (3-phase Voltage)
● I (3-phase Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● S (Apparent power)
● PF (Power factor)
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time
HMI for Common Configuration
● PT or CT ratio
● Wiring methods (3P4W or 3P3W)
● Back linght time
● RS485 (MODBUS-RTU) communication setting
● Wiring methods (3P4W or 3P3W)
● Back linght time
● RS485 (MODBUS-RTU) communication setting
Customized service
If you have any special requirements, for example modbus address ，rated current and other specifications ,please feel free to Contact Us.
Wiring and Details
Dimension of ADL400 (Current Input via Direct Connect)
Dimension of ADL400 (Current Input via CTs)
Direct Connect Type
Typical Connection
Certifications
Packing & Delivery
Company Profile
Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
