Lithium Battery Electrode Material Dry Electrode Film For Supercapacitor
- Category: >>>
- Supplier: Xiamen Tob New Energy Technology Co. Ltd.
Share on (1601042967009):
Product Overview
Description
Products Description

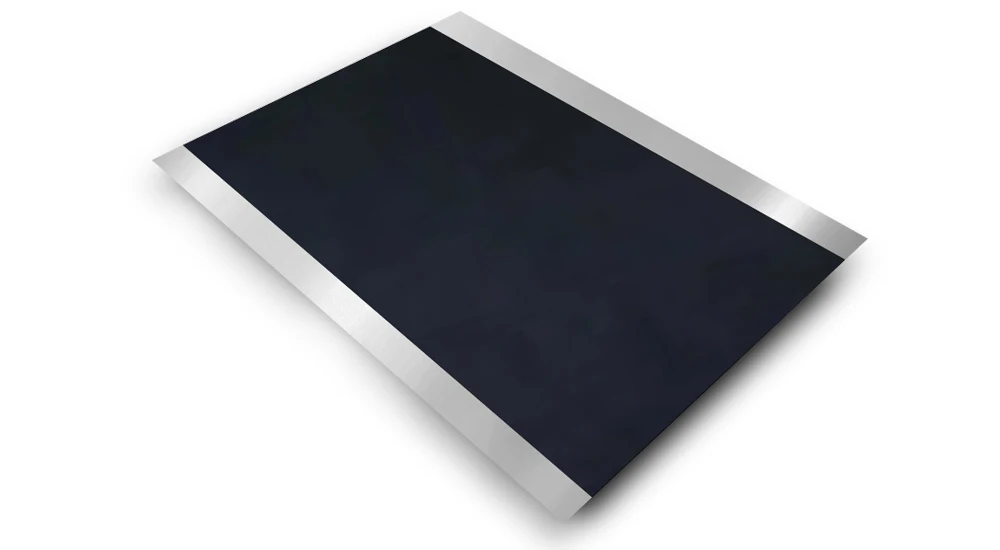

Lithium Battery Electrode Material Dry Electrode Film For Supercapacitor
TOB New Energy provides the dry electrode film for supercapacitors manufacturing and research.
Model: TOB-E250D-250
MOQ: 400m/roll, 100m2/roll
Main raw materials: activated carbon，aluminum foil (20C054)
Model: TOB-E250D-250
MOQ: 400m/roll, 100m2/roll
Main raw materials: activated carbon，aluminum foil (20C054)
Main parameter | ||
Item | Parameter | |
Appearance | Appearance without abnormal incisions, scars, protrusions, and neat winding | |
Thickness | 250±10 μm | |
Compacted density | ≥0.66g/cm3 | |
Moisture content | ≤3% | |
Total width | 250±1mm | |
Coated width | 220±2.0mm | |
Foil thickness | 20±2um | |
Outer diameter of electrode coil | ≤400mm | |
Inner diameter of winding shaft | 75.5±1mm | |
End face flatness | ±1mm | |
Length of joint adhesive tape | ≤60mm | |
Meet environmental requirements such as ROHS | ||
Packaging and transportation
Packaging material: cardboard box.
Packaging method: Vacuum sealed packaging.
Pay attention to moisture-proof, waterproof, and light proof storage.
Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.
Storage environment(electrode packaging in sealed state)
Temperature: -40 ℃~60 ℃
Relative humidity: 75% RH Max
The shelf life: 12 months.
Packaging material: cardboard box.
Packaging method: Vacuum sealed packaging.
Pay attention to moisture-proof, waterproof, and light proof storage.
Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.
Storage environment(electrode packaging in sealed state)
Temperature: -40 ℃~60 ℃
Relative humidity: 75% RH Max
The shelf life: 12 months.
