BIOBASE China Portable Na K Cl Electrolyte Analyzer Medical Ise Electrolyte Analyzer Machine For Laboratory
- Category: >>>
- Supplier: Biobase Biodo Co. Ltd.
Share on (1601042982913):
Product Overview
Description
Product Description

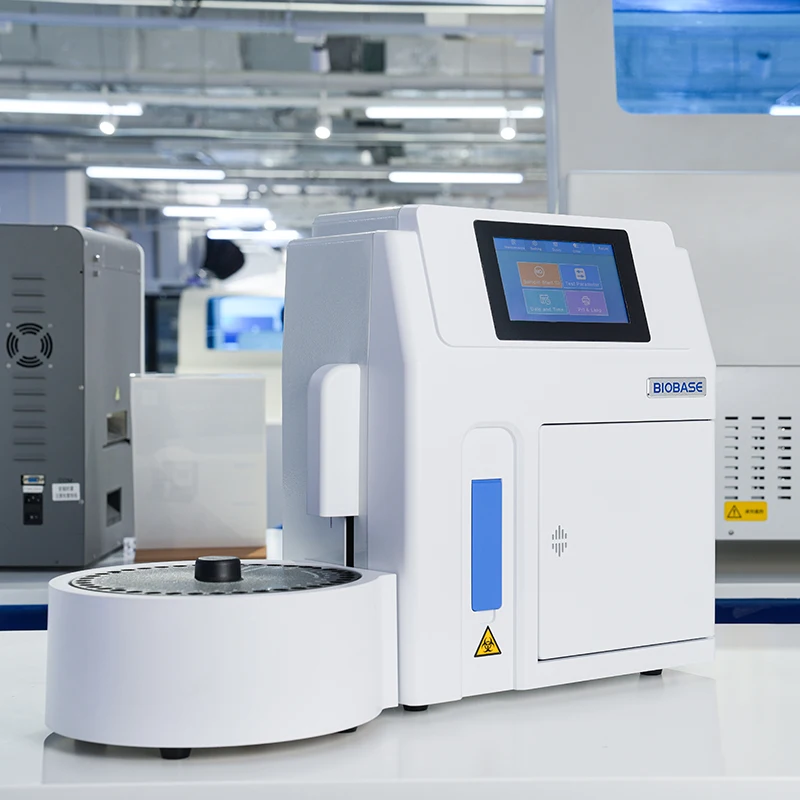

Electrolyte Analyzer
BKE-D
Introduction:
BKE series electrolyte analyzer adopts advanced ion selective electrode measurement technology, which can directly measure the concentration of K+, Na+, Cl-, Ca2+ and pH in serum, plasma, whole blood, cerebrospinal fluid and diluted urine. It is a fast, accurate, convenient and practical clinical testing instrument.
Features:
●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy

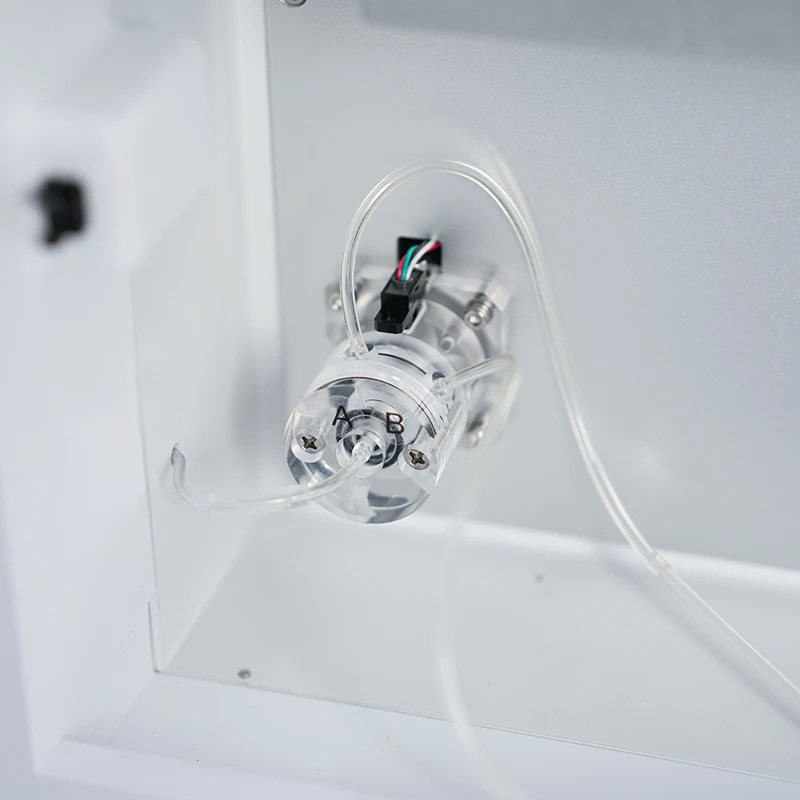

●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables

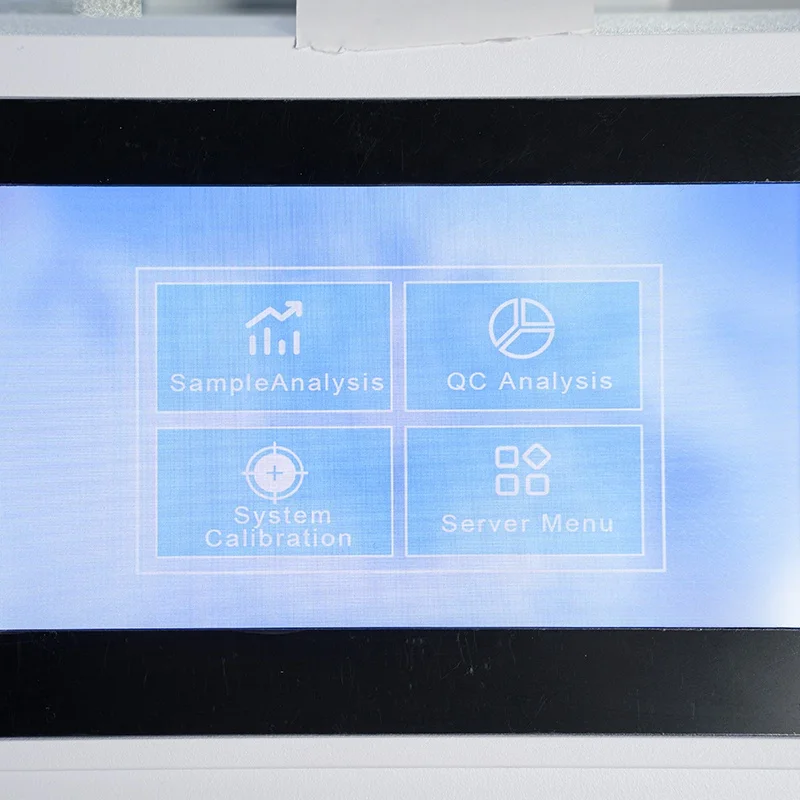

●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
Technical Parameter
Model | BKE Series |
Sample | Serum, plasma, whole blood, cerebrospinal fluid and dilute urine |
Measuring Speed | ≤25s |
Analysis Method | Ion selective electrode (ISE) |
Sample Volume | 60~150μl |

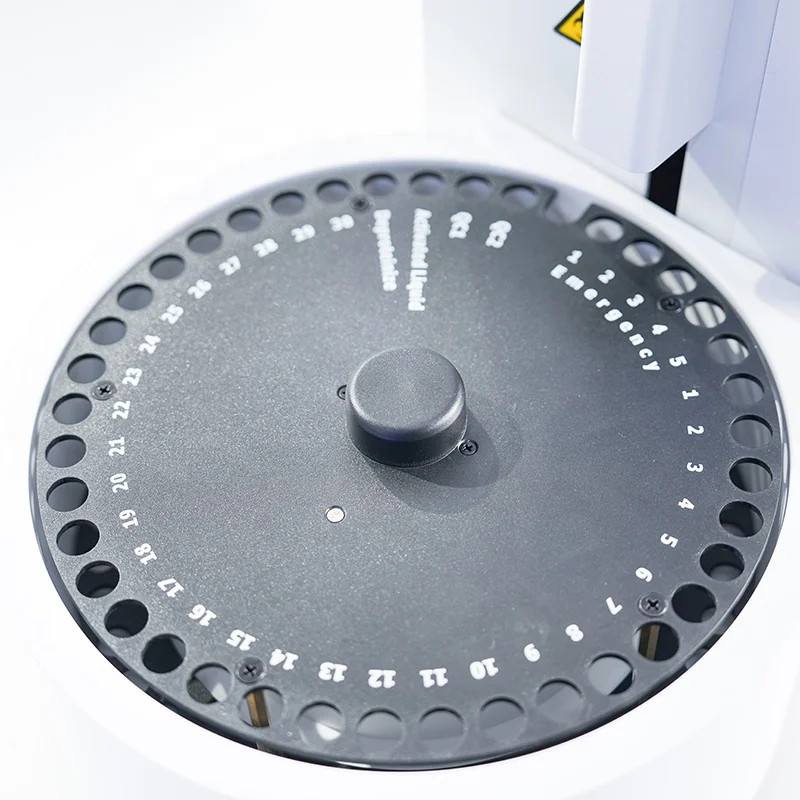

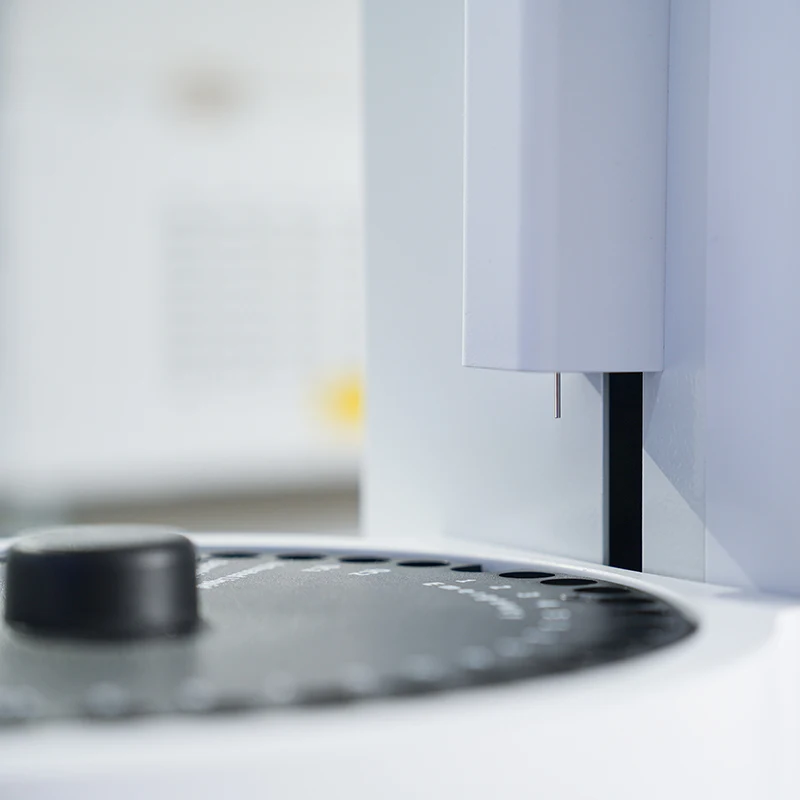

Sample Position | 30 sample positions, 5 emergency positions, 2 QC positions |
Injection mode | Manual or automatic injection can be selected |
Storage | Up to 50,000 test results |

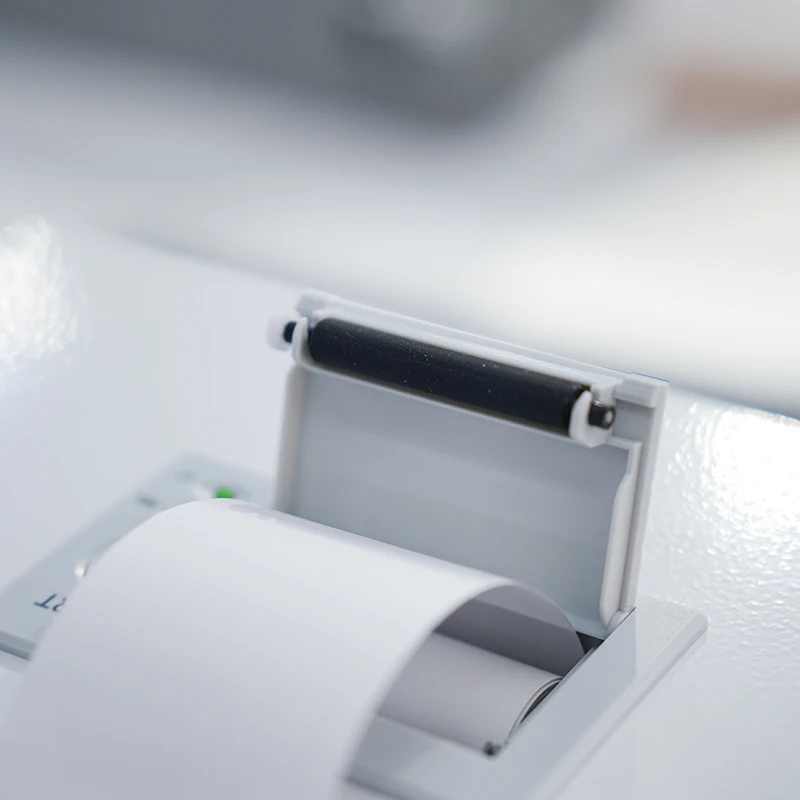

Printer | Build-in thermal printer |
Interface | RS232 port for LIS |

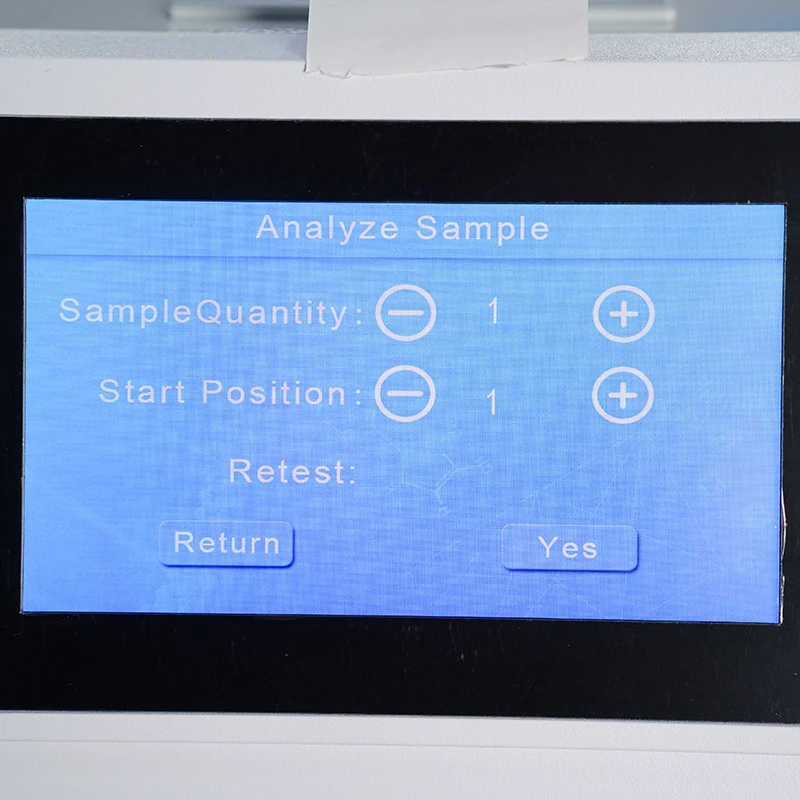

Display | 7-inch high-definition touch screen |
Language | Chinese and English, other languages can be customized |
Calibration | Automatic and Manual calibration |
Other Function | Sample volume detection |
Power Supply | AC110~240V,50/60Hz, 100W |
Temperature | 10~30℃ |
Relative Humidity | ≤ 80 % |
Atmospheric Pressure | 86~106 kPa |
Model | BKE-A | BKE-B | BKE-C | BKE-D |
Test Items | K+, Na+, Cl- | K+, Na+, Cl- | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH |
Sample Tray | No | Yes | No | Yes |
External Size(W*D*H) | 390*200*434mm | 660*276*434mm | 390*200*434mm | 660*276*434mm |
Net Weight | 8.2kg | 11.9kg | 8.2kg | 11.9kg |
Package Size (W*D*H) | Instrument:390*500*530 mm | Instrument:390*500*720 mm | Instrument:390*500*530 mm | Instrument:390*500*720 mm |
Reagent:215*160*130mm | Reagent:215*160*130mm | Reagent:215*160*130mm | Reagent:215*160*130mm | |
Gross Weight | Instrument:13kg | Instrument:17.5kg | Instrument:13kg | Instrument:17.5kg |
Reagent:1.8kg | Reagent:1.8kg | Reagent:1.8kg | Reagent:1.8kg |
Items | Measuring Range | Resolution |
K+ | 0.5-20.0mmol/L | 0.01 mmol/L |
Na+ | 15-200mmol/L | 0.1 mmol/L |
Cl- | 15-200mmol/L | 0.1 mmol/L |
Ca2+ | 0.1-6.0mmol/L | 0.01 mmol/L |
pH | 4-9pH | 0.01 pH |
