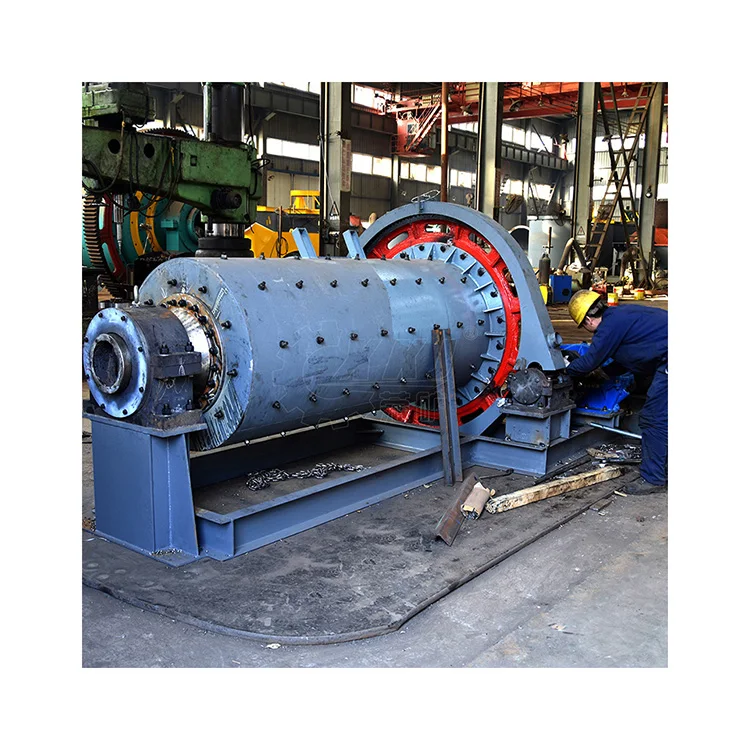

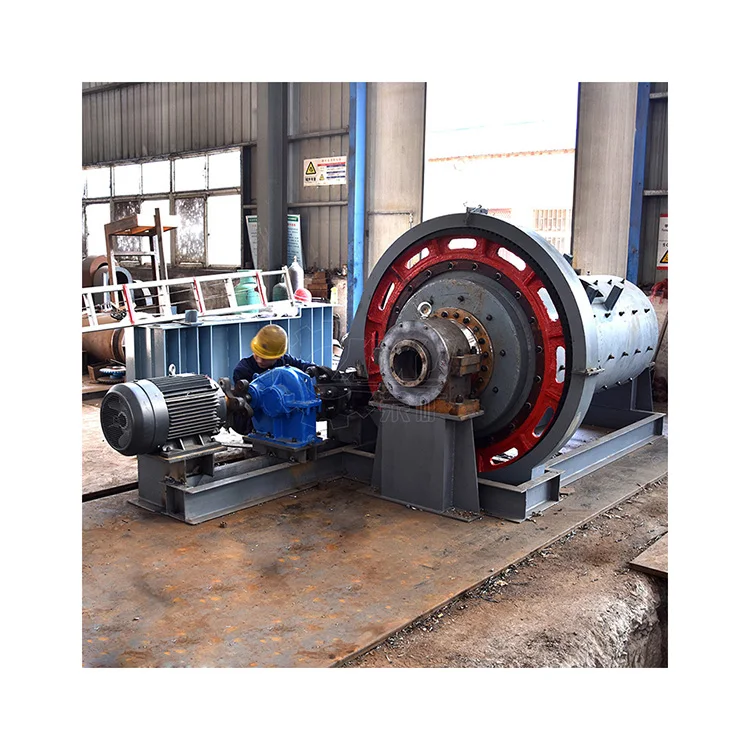

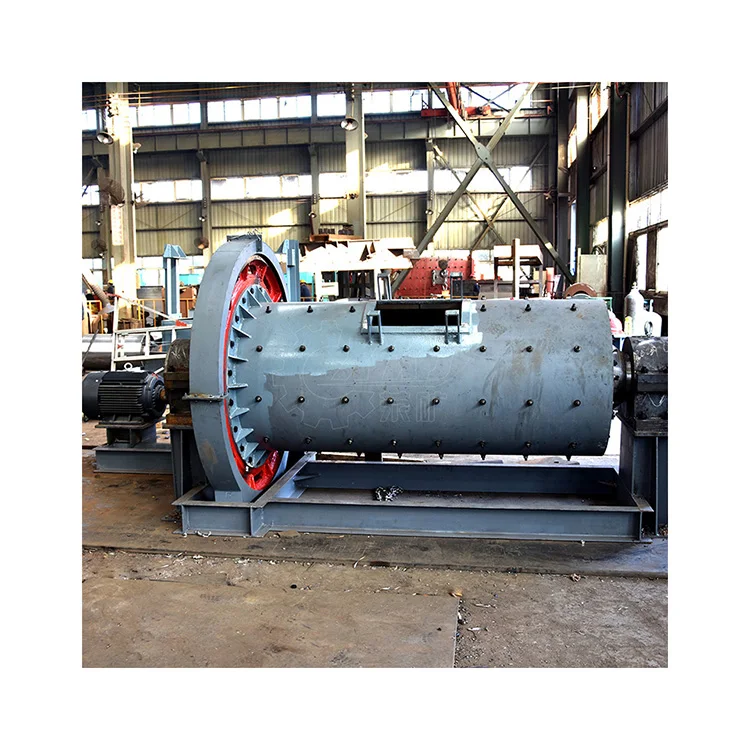

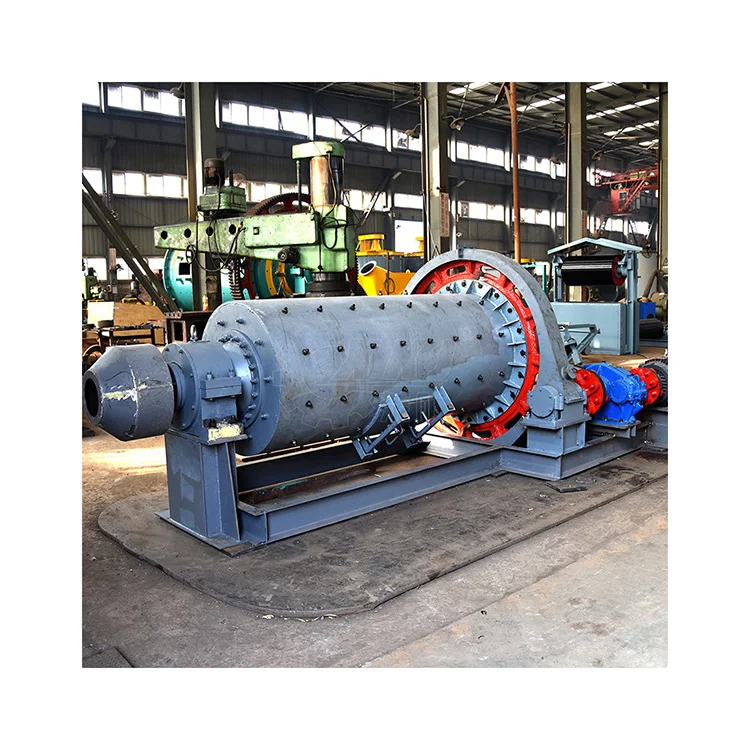

Mining Equipment Ball Mill Grinding Machine For Gold Ore Rock Copper Cement Grinding Price For Sale
- Category: >>>
- Supplier: Henan Xingyang Mining Machinery Manufactory
Share on (1601043019538):
Product Overview
Description
Product Description
The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building
material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.Our ball mill can grind
ore or other materials, such as copper, gold, zinc, iron, chrome etc various mines which can be grind either by wet process or by dry process,ball mill machine make a circular process with spiral classifier in ore grinding processing.Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.
material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.Our ball mill can grind
ore or other materials, such as copper, gold, zinc, iron, chrome etc various mines which can be grind either by wet process or by dry process,ball mill machine make a circular process with spiral classifier in ore grinding processing.Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.
Advantage
1. It has strong adaptability to the fluctuation of material physical properties (such as particle size, moisture, hardness, etc.) and has a large production capacity.
2. The pulverization ratio is large (generally 300 or more, and it can reach 1000 or more when performing ultrafine grinding), the fineness of the product is fine, and the particle gradation is easy to adjust.
3. It can adapt to different situations: dry work, wet work, dry work and grinding can be combined at the same time; open road grinding, closed circuit grinding.
4. The sealing is good, it can be operated under negative pressure, and the working place is free from dust and flying.
5. It is biased towards large-scale, which can meet the needs of large-scale production of modern enterprises.
2. The pulverization ratio is large (generally 300 or more, and it can reach 1000 or more when performing ultrafine grinding), the fineness of the product is fine, and the particle gradation is easy to adjust.
3. It can adapt to different situations: dry work, wet work, dry work and grinding can be combined at the same time; open road grinding, closed circuit grinding.
4. The sealing is good, it can be operated under negative pressure, and the working place is free from dust and flying.
5. It is biased towards large-scale, which can meet the needs of large-scale production of modern enterprises.

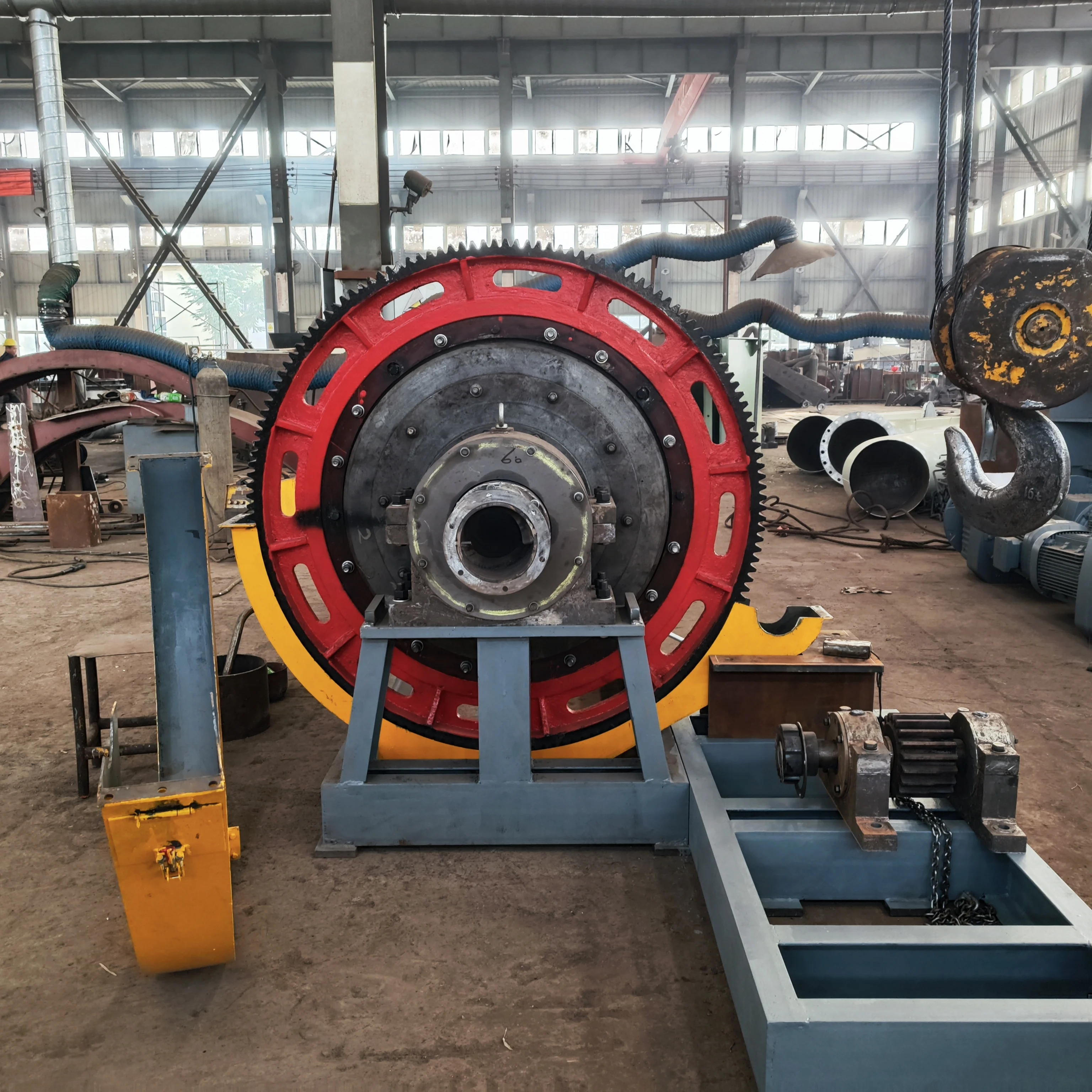

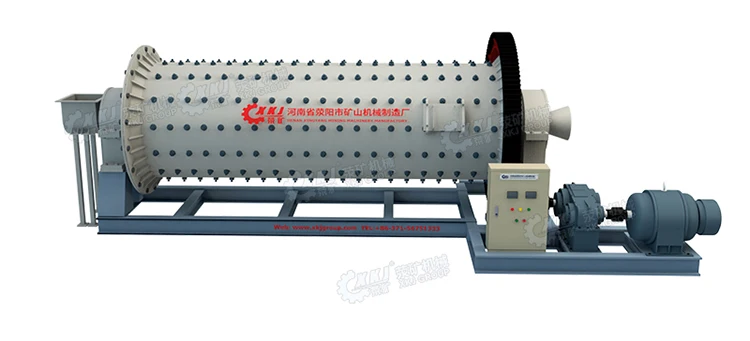

Product Details
Products Specifications
Model | Ball load (t) | Feeding size (mm) | size of outputting feed (mm) | Capacity (t/h) | Motor Power (kw) | Weight (T) |
900×1800 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
900×3000 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
1200×2400 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
1200×3000 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
1200×4500 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
1500×4500 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
1500×5700 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
1830×3000 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
1830×6400 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
2200×5500 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
2200×6500 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
2200×7500 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |

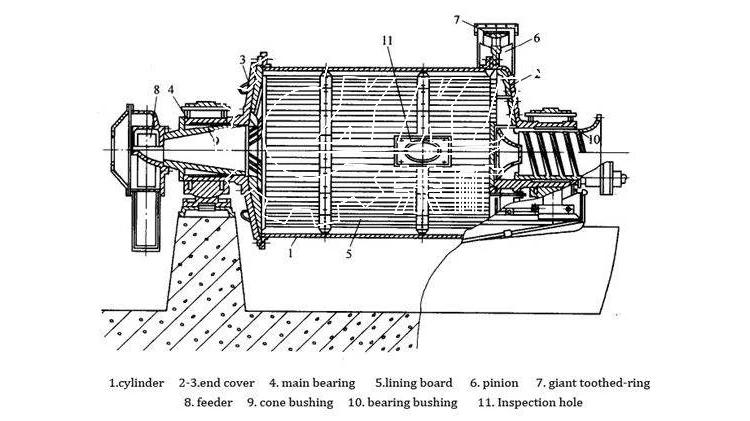

Working Principle

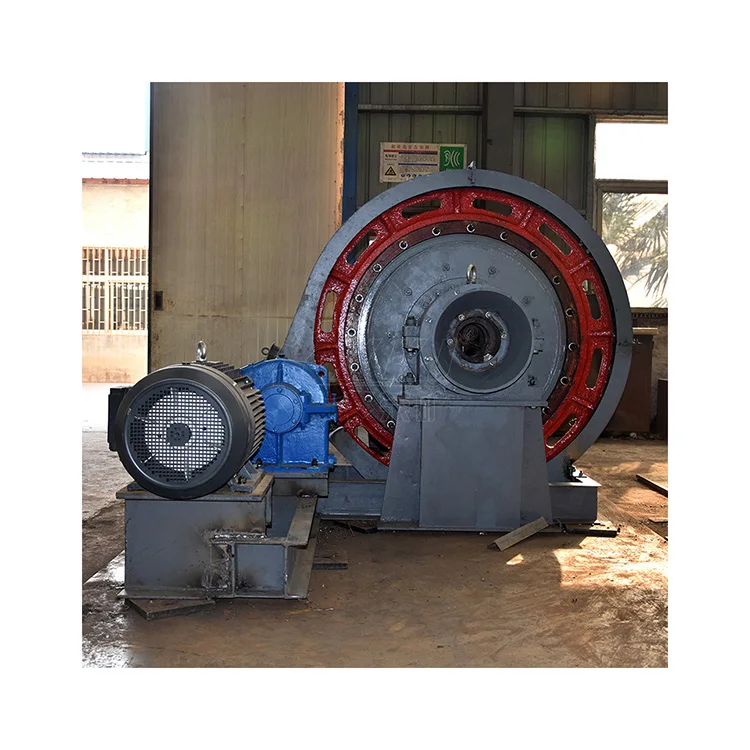

The main component of wet overflow ball mill is a cylinder with bigger diameter and smaller length which is revolved by
transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grind. The falling course of iron balls and ores can produce huge falling impact and grinding. The continuous feeding of ores can create
considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Hollow shaft with the anti-spiral blade returns the steel ball and the coarse ore block.Wet type overflow ball mill works for fine fineness grinding.
transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grind. The falling course of iron balls and ores can produce huge falling impact and grinding. The continuous feeding of ores can create
considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Hollow shaft with the anti-spiral blade returns the steel ball and the coarse ore block.Wet type overflow ball mill works for fine fineness grinding.

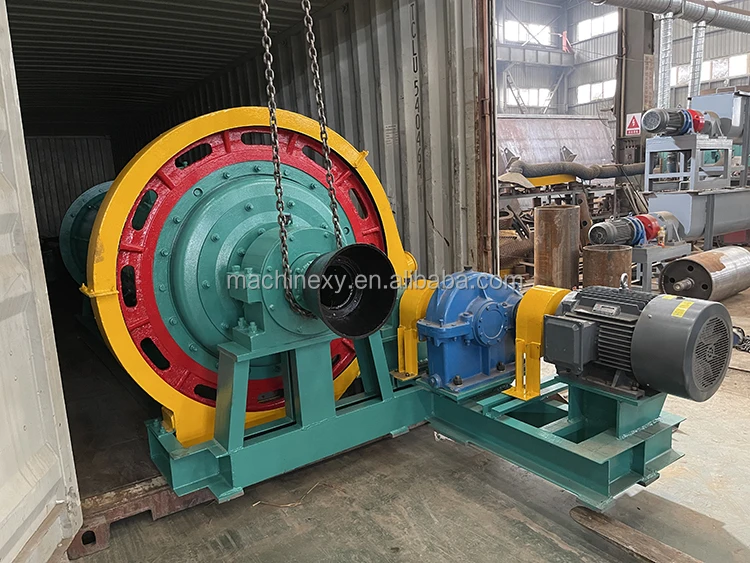

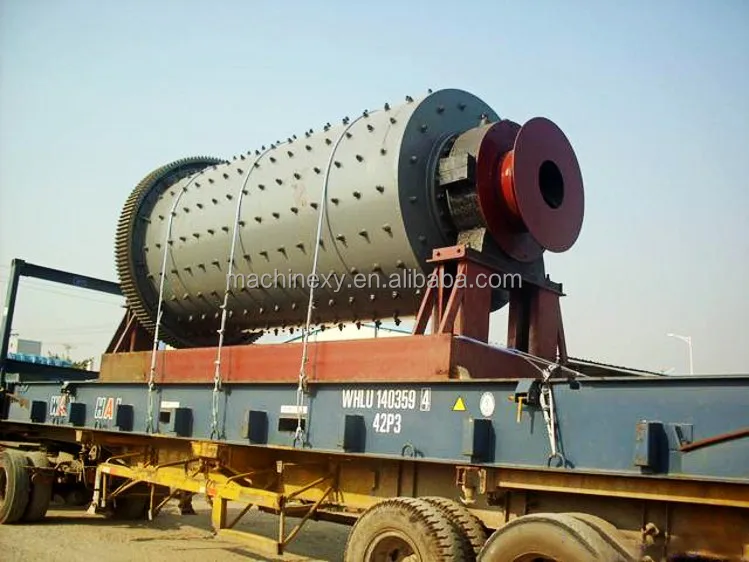

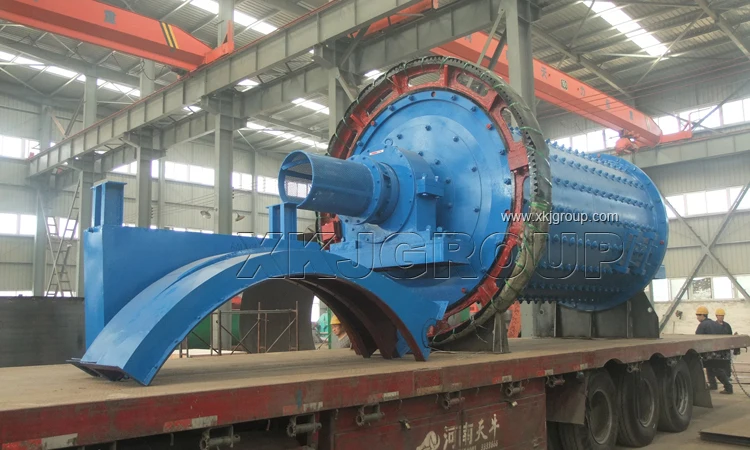

Packing & Shipping

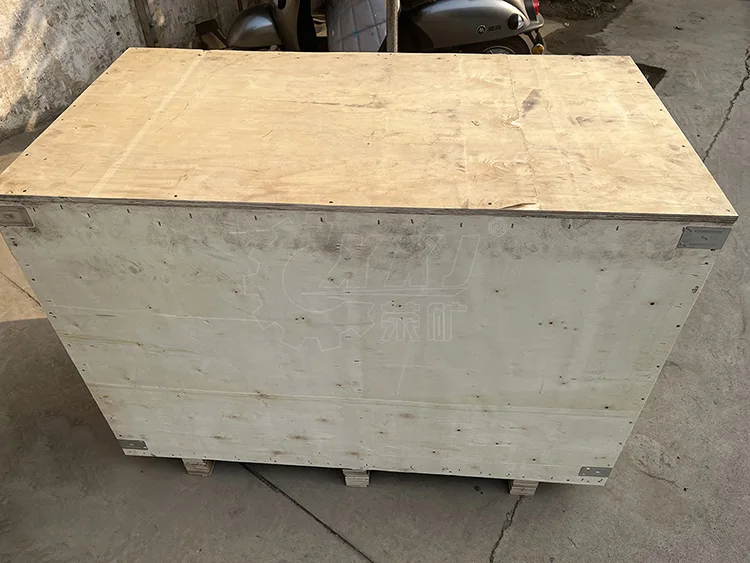

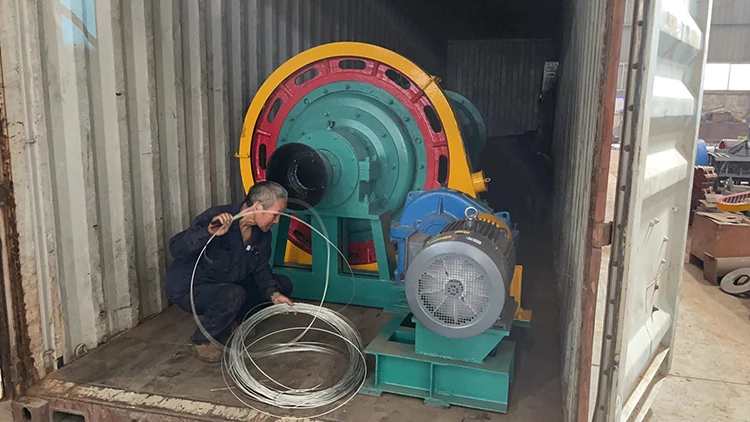

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Company Information
XKJ Machinery has won many honors through outstanding products and advanced technology and we always see product quality as life and customers as God. Customers mean everything and we will always carry out the quality principle of being responsible for every procedure, every product and every customer and serve every customer with heart and soul. Everything we do, we do it for your benefit and we deeply believe that our sincerity will be finally paid back.
Why choose us ？
1.We are real manufacture factory ( not dealer)
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
Services
Our Services：
Before-sale services:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.
FAQ:
Q How about the quality of your products?
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q How about the price?
A As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
Q Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.
Q Can we visit your factory?
A Yes. You can visit our factory anytime you want.
A As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
Q Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q Do you provide equipment operation training?
A Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q Can you test our samples?
A Yes. You can send your samples to us for test and analysis.
Q Can we visit your factory?
A Yes. You can visit our factory anytime you want.
