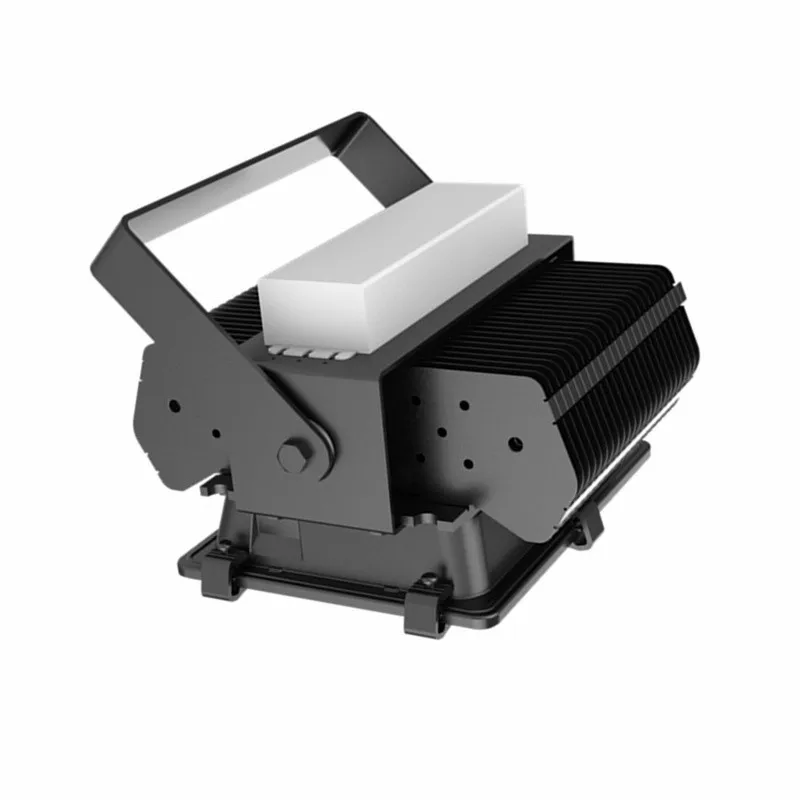

All IP67 Outdoor Light Lamps Reflector 15 degree 30 degree 60 degree LED Reflector COB flood light 100W 200W 300W
- Category: >>>
- Supplier: Shenzhen Siosun Technology Ltd
Share on (1601043023631):
Product Overview
Description
Products Description
LG-TS Pro+ Series
LG-TS Pro+Series is an upgraded product launched by the company in 2024. The same product size has increased the heat dissipation area of the fins and improved the overall lighting efficiency. Improved optical design to enhance glare and uniformity performance. The maximum light efficiency can reach 130Lm/W (third-party data)

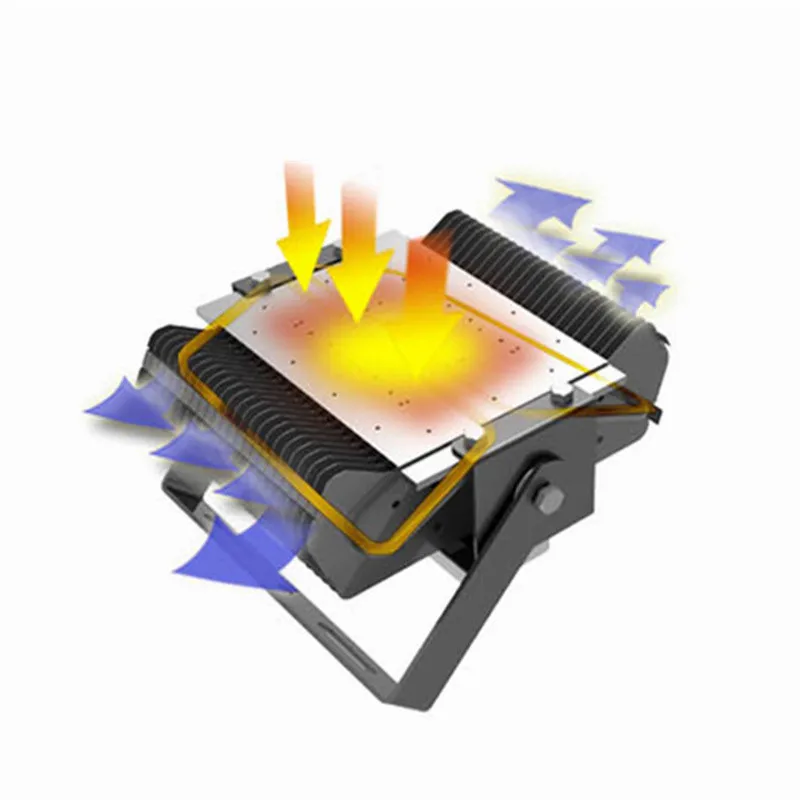

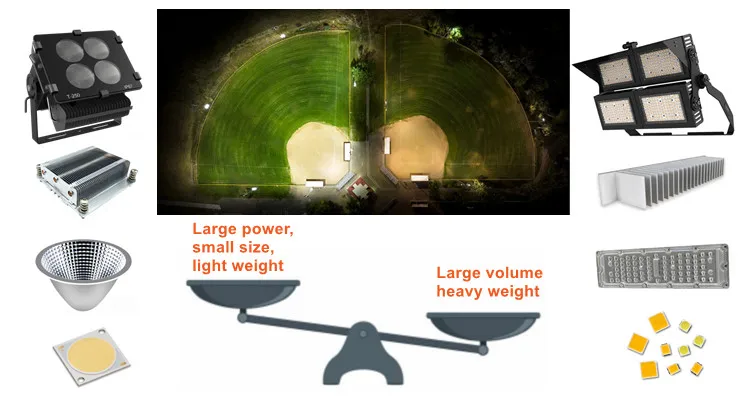

Heat dissipation optimization
The LG-TS Pro+Series has upgraded the thermal conductivity of the entire lamp. The original 300W full power was 55 ℃, but after the upgrade, the maximum temperature of the 300W full power was 47 ℃, which effectively converts heat into light efficiency and ensures better product quality. The service life has been increased from the original 5 years to an 8-year
American regulatory standards

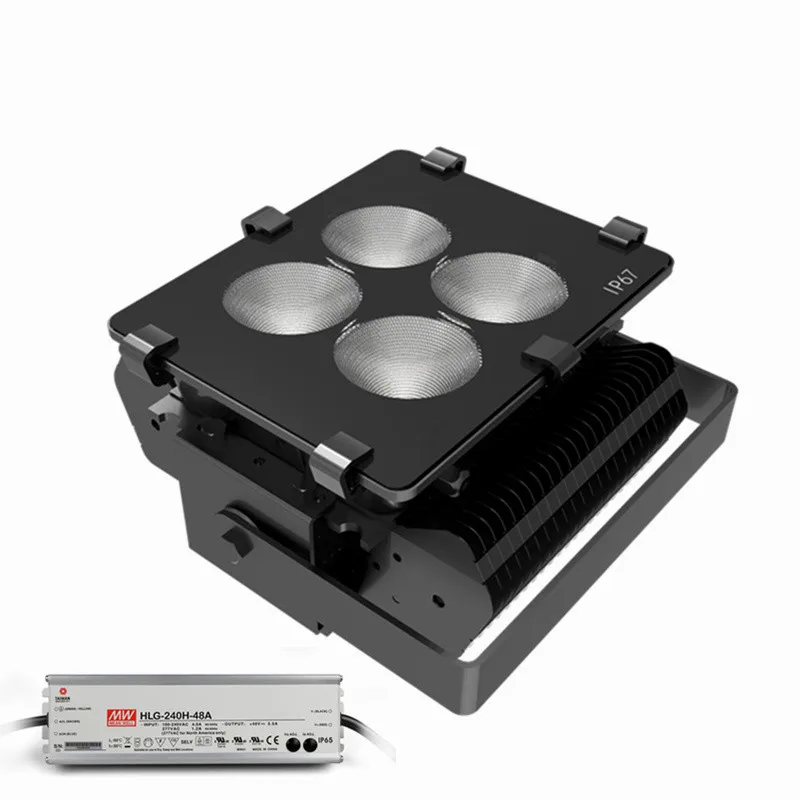

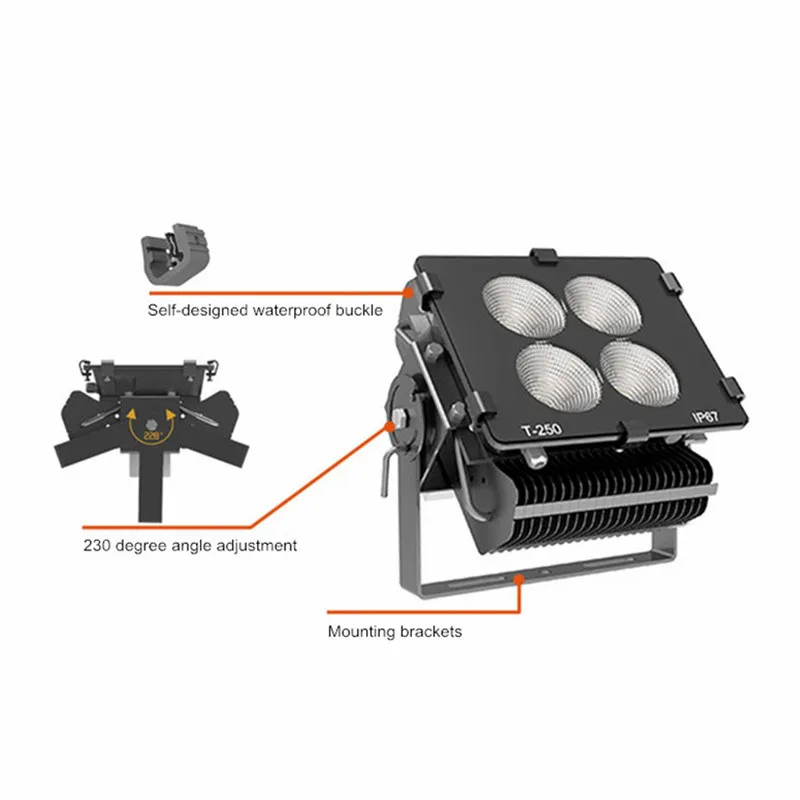

The LG-TS Pro+Series has upgraded its LED driver to American standards, effectively ensuring the heat dissipation and safety of the power supply. The entire lamp structure has been upgraded with three appearance patents and one practical model. The overall appearance and structural design of the lamp are more perfect. The maximum single lamp body can produce 350W, and more lamp bodies can be freely combined to achieve a maximum power of 1400W.

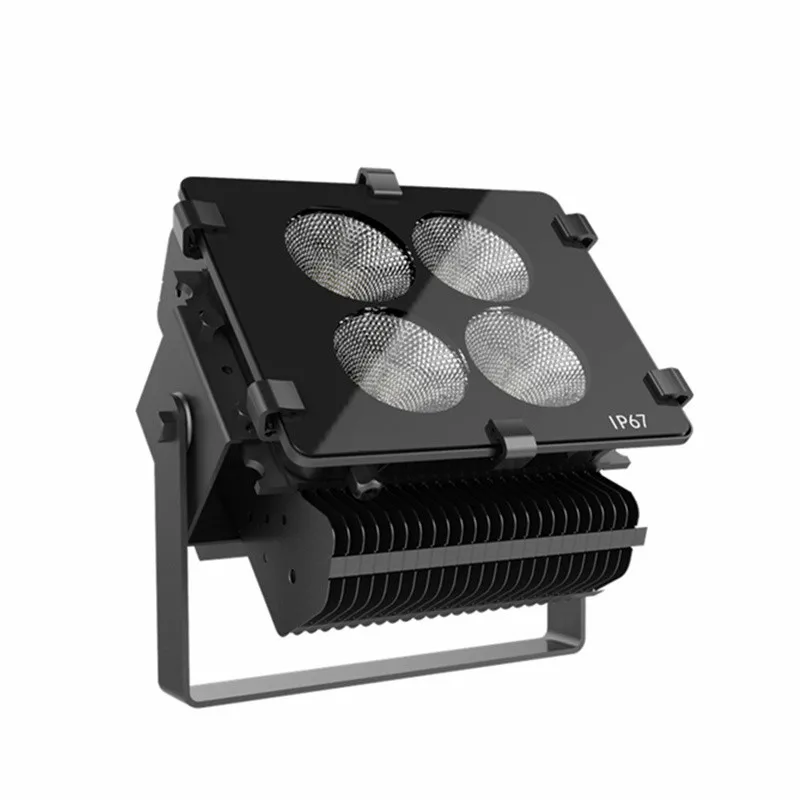

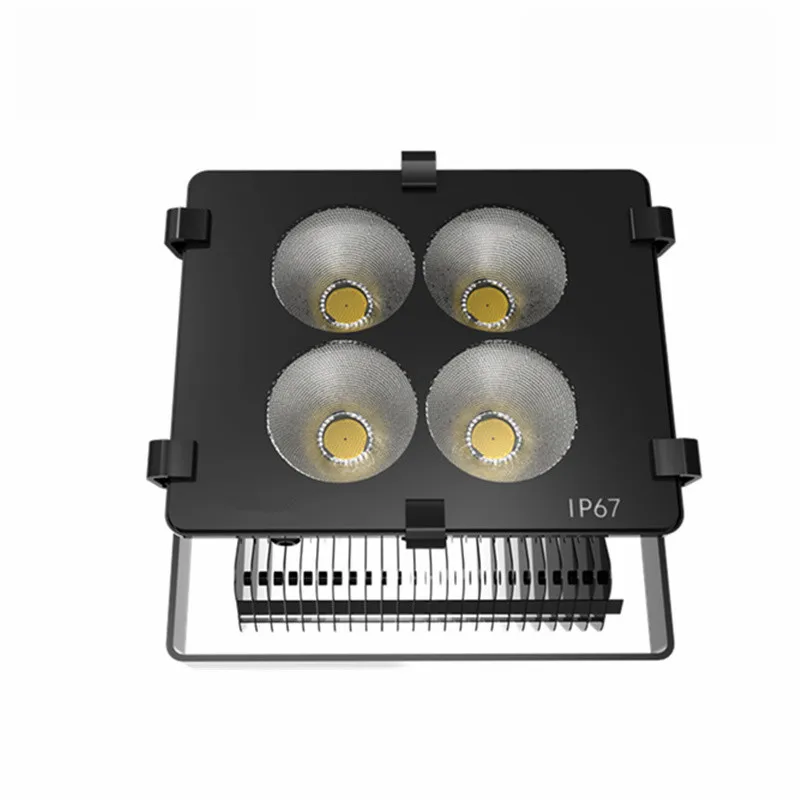

Real Product Showing
Product Paramenters
Model Parameter | T200S12C0B | T250S12C0B | T300S12C0B | T350S12C0B | T400S12C0B | ||||
Power | 200W | 250W | 300W | 350W | 400W | ||||
Input Voltage | 100 ~ 305VAC 142 ~ 431VAC 50-60 Hz | ||||||||
High voltage Surges | 2KVAC | 5KVAC | 5KVAC | 5KVAC | 5KVAC | ||||
Power Factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ||||
Efficiency | 95%+ | 95%+ | 95%+ | 95%+ | 95%+ | ||||
Luminous Flux(5000K/80) | 26000LM | 32000LM | 45000LM | 48000LM | 56000LM | ||||
Optical Angle/optics | 15℃ 30℃ 60℃ | ||||||||
IK / IP Code | IK08/IP67 | ||||||||
Working Temp | ﹣40 ~ +45° | ﹣40 ~ +45° | ﹣40 ~ +45° | ﹣40 ~ +47° | ﹣40 ~ +50° | ||||
Packaging Size （L*W*H/mm） | 400*400*285 | 400*400*285 | 400*400*285 | 400*400*285 | 400*400*285 | ||||
Gross weight(Kg) | 7.8 | 9.3 | 9.6 | 12.2 | 13.8 | ||||
Warranty | 8 Years | 8 Years | 8 Years | 8 Years | 8 Years | ||||
Points for Attention

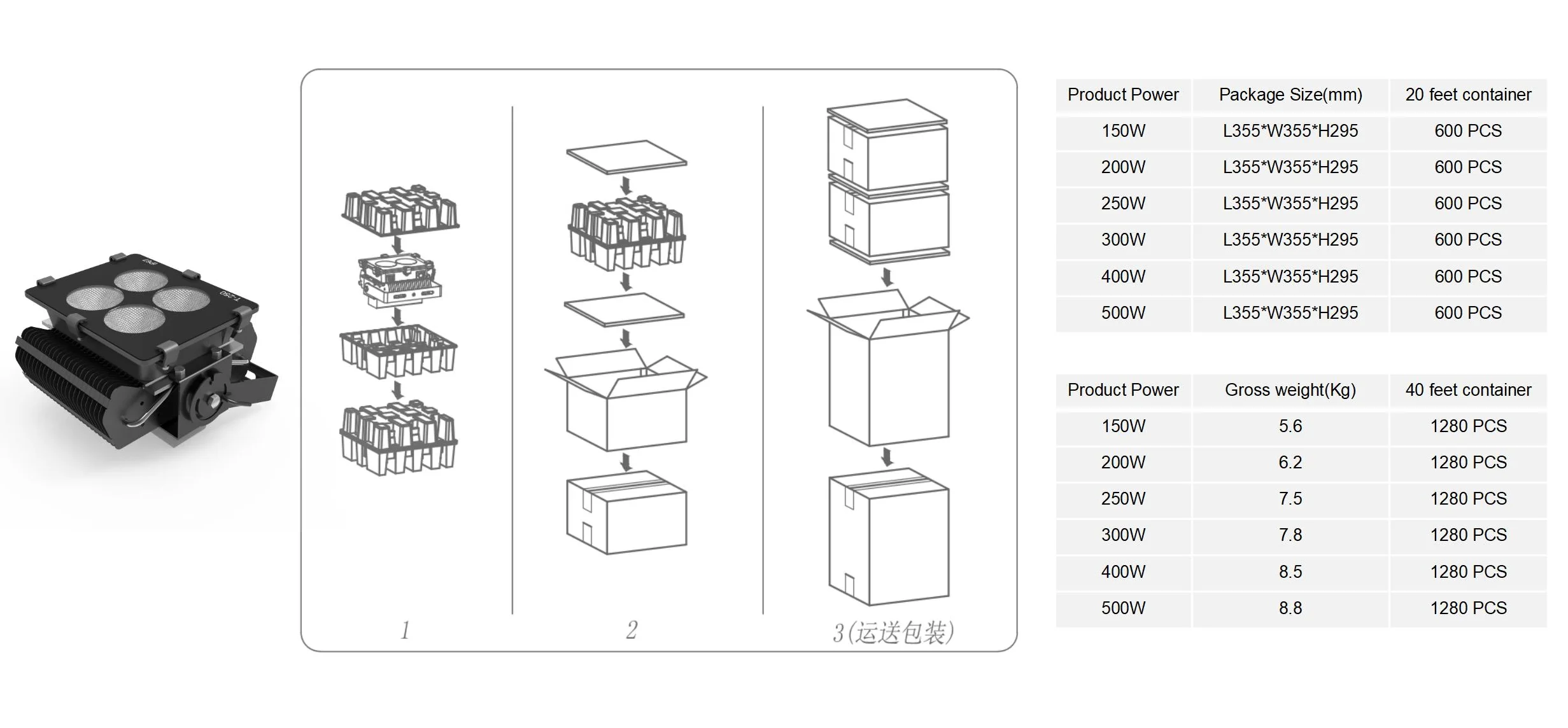

packaging & Shipping
