FCY 20300 Hydraulic cylinder double acting long stroke hydraulic jack lift
- Category: >>>
- Supplier: Yuhuan Hengguang Hydraulic Tools Co. Ltd.
Share on (1601043050419):
Product Overview
Description
Details

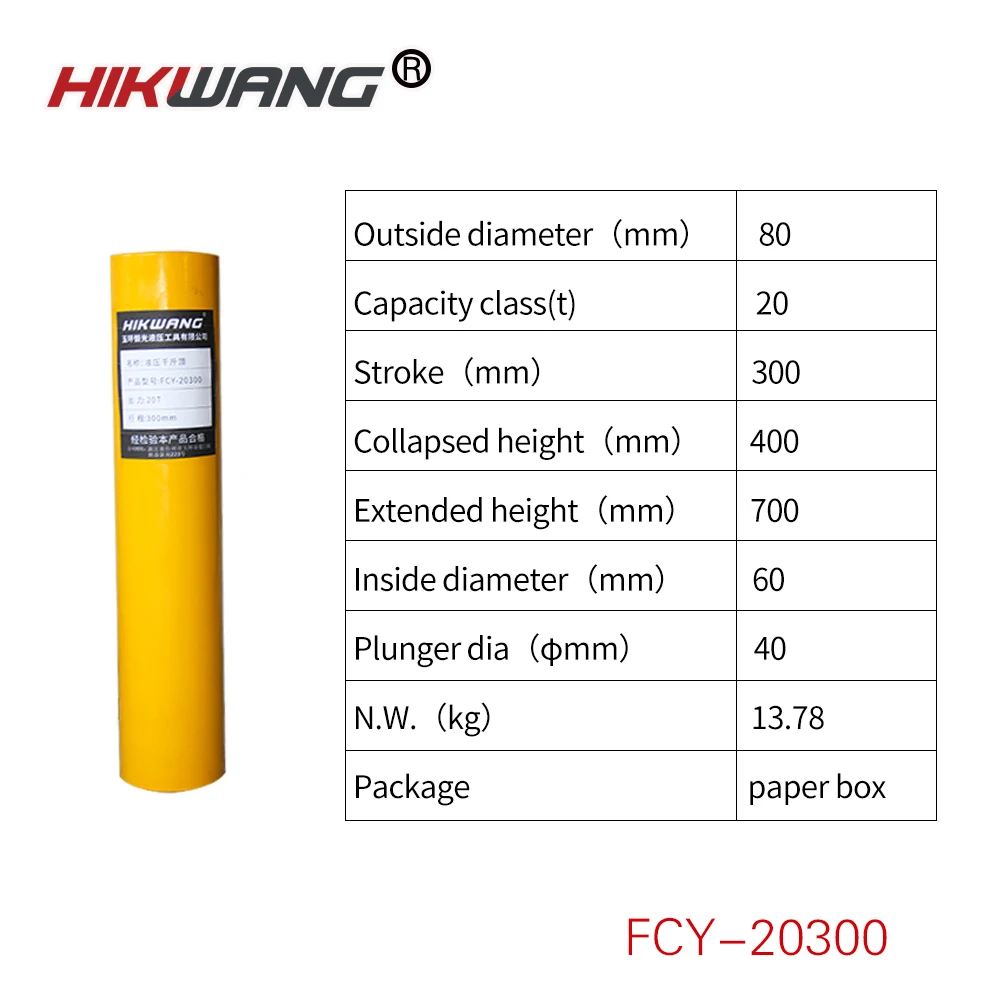

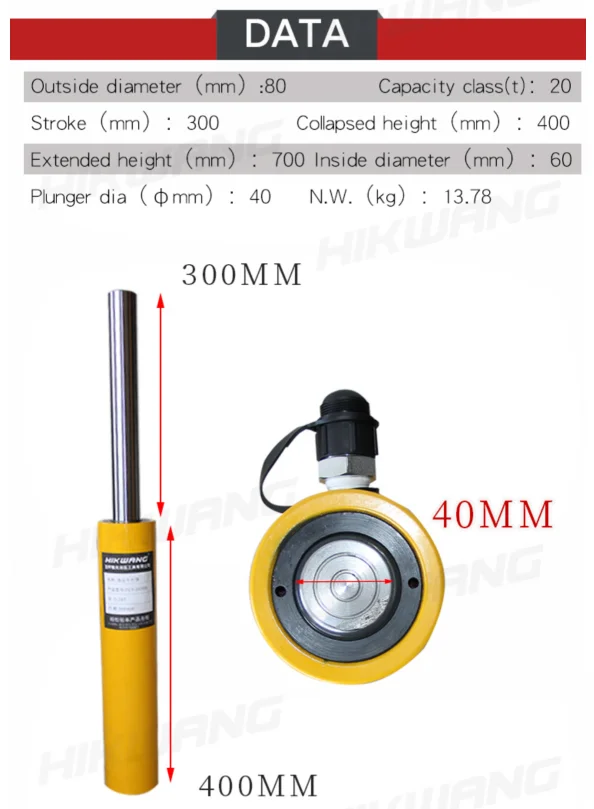

Model | FCY-20300 |
outside diameter（mm） | 80 |
Capacity class(t) | 20 |

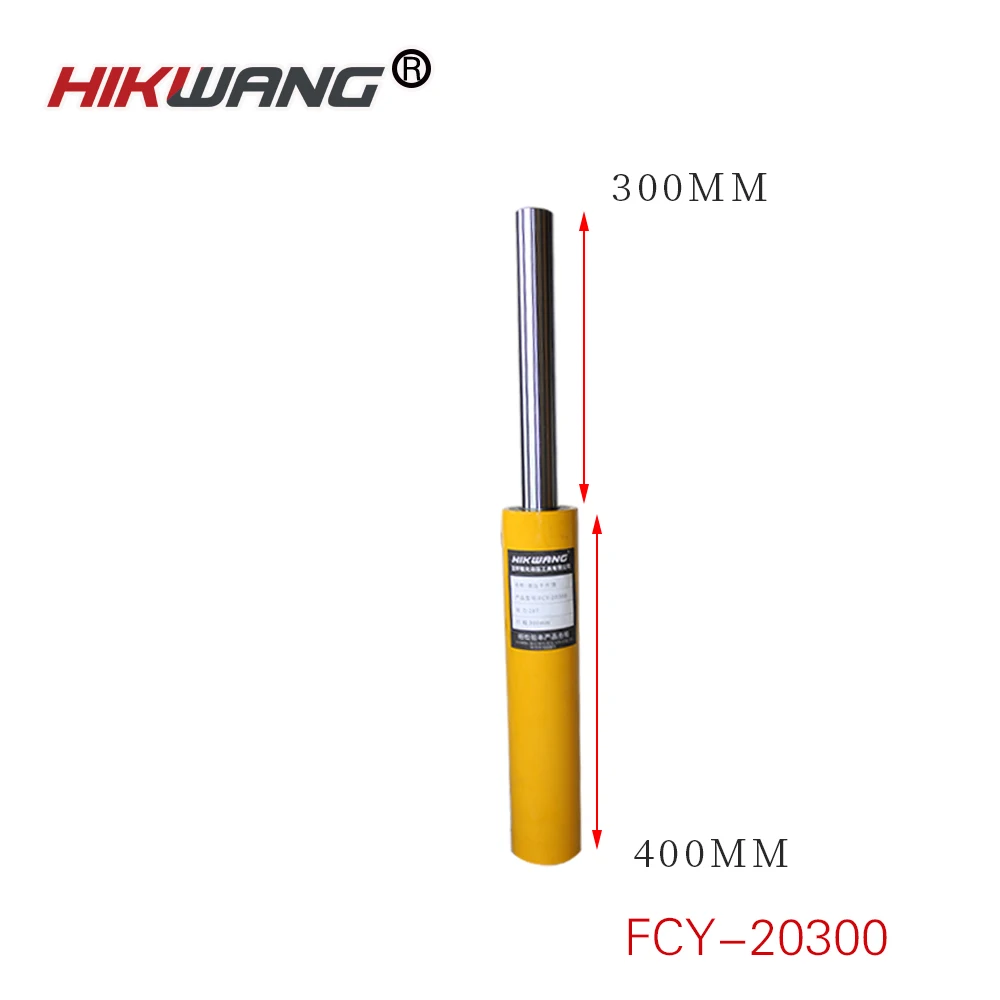

Stroke（mm） | 300 |
Inside dia（mm） | 60 |
plunger dia(mm) | 50 |
Collapsed height(mm) | 400 |
Extended height(mm) | 700 |
return type | hydraulic return, double acting |
plunger type | solid |
N.W.(kg) | 13.78 |

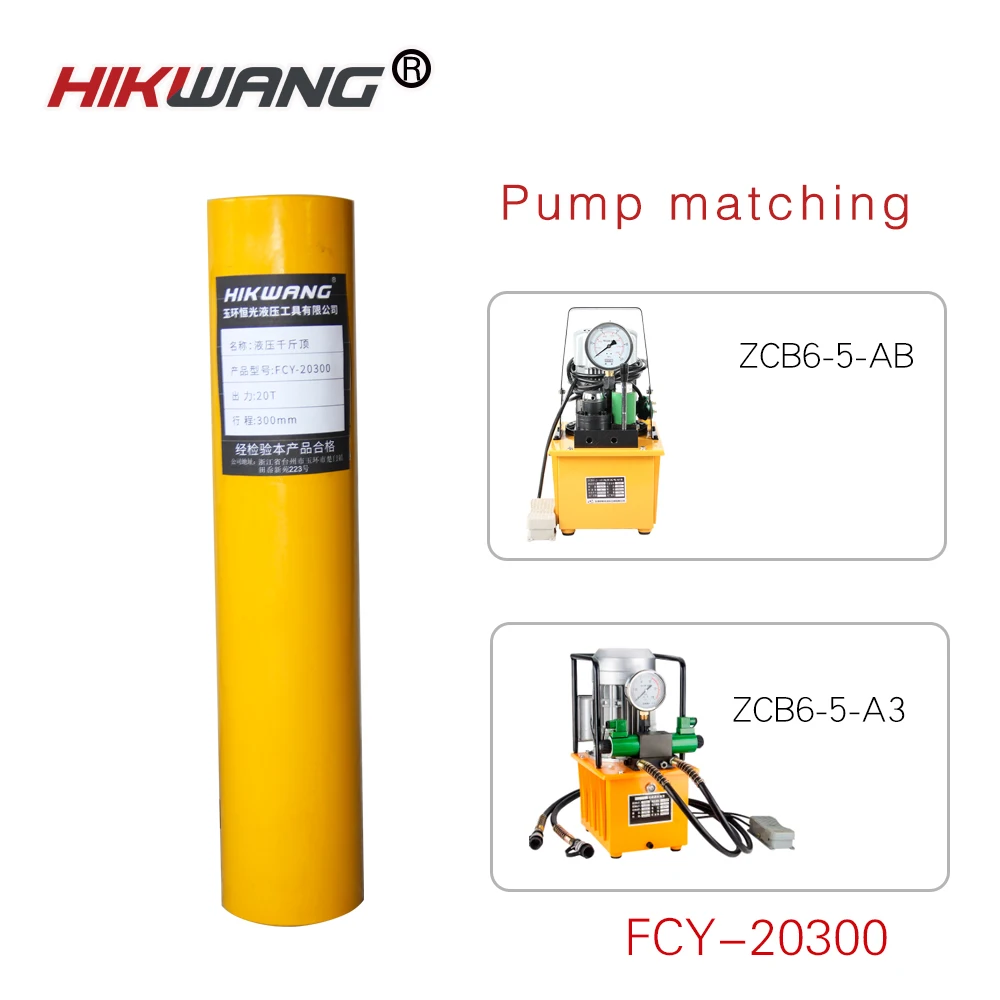

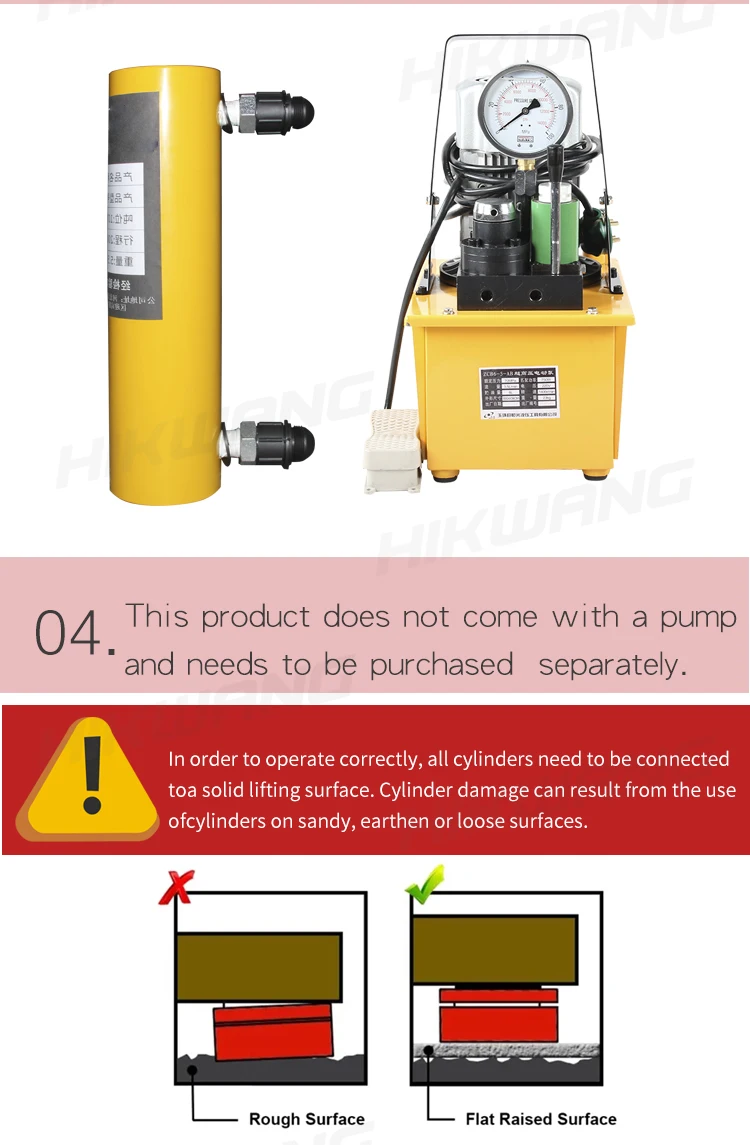

NOTE: This product does not come with a pump and needs to be purchased separately.
Product Overview

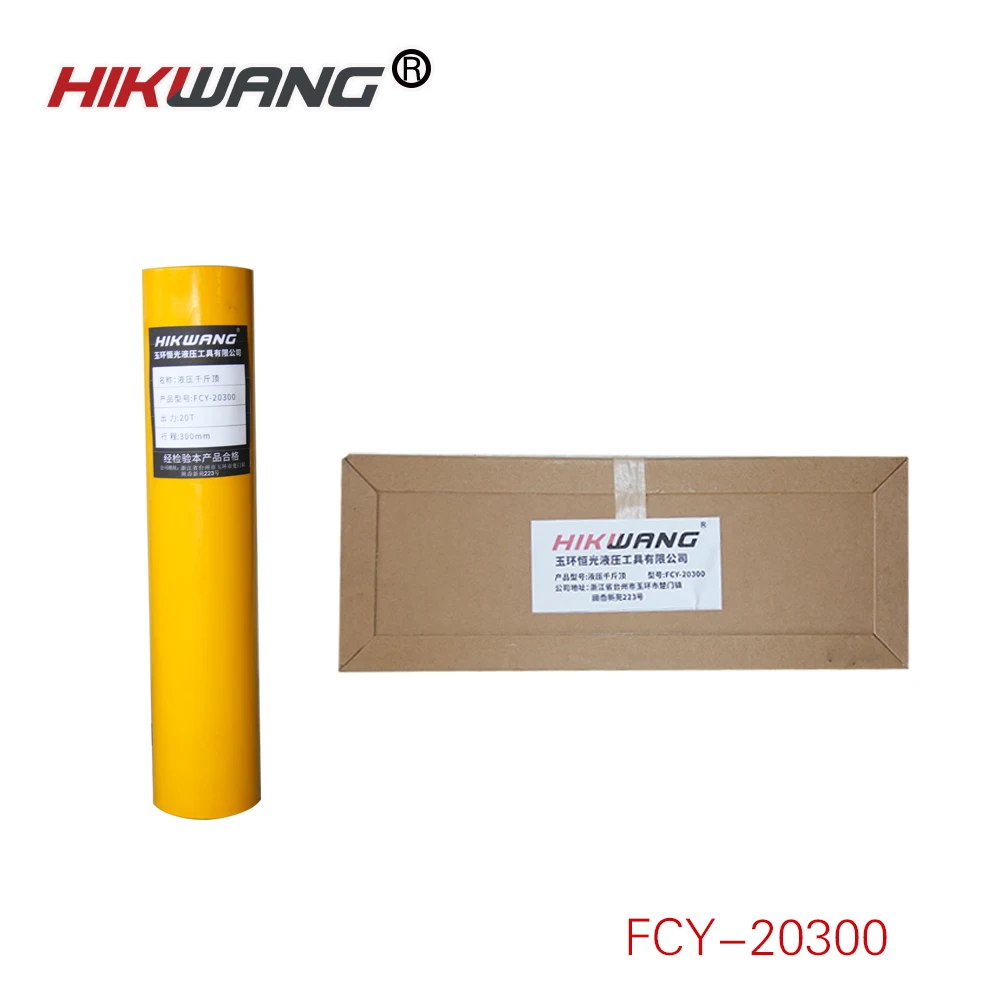

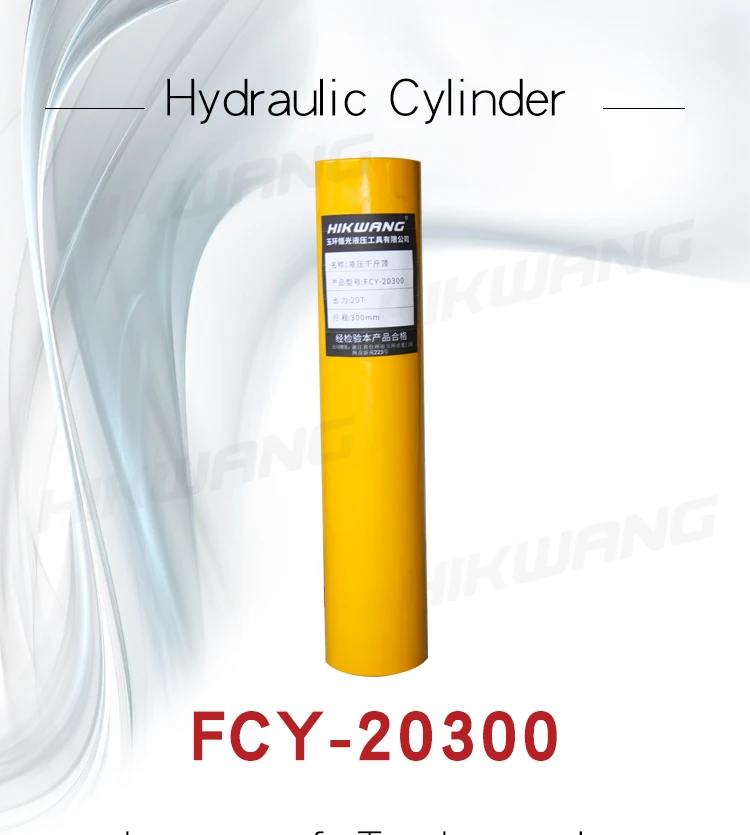

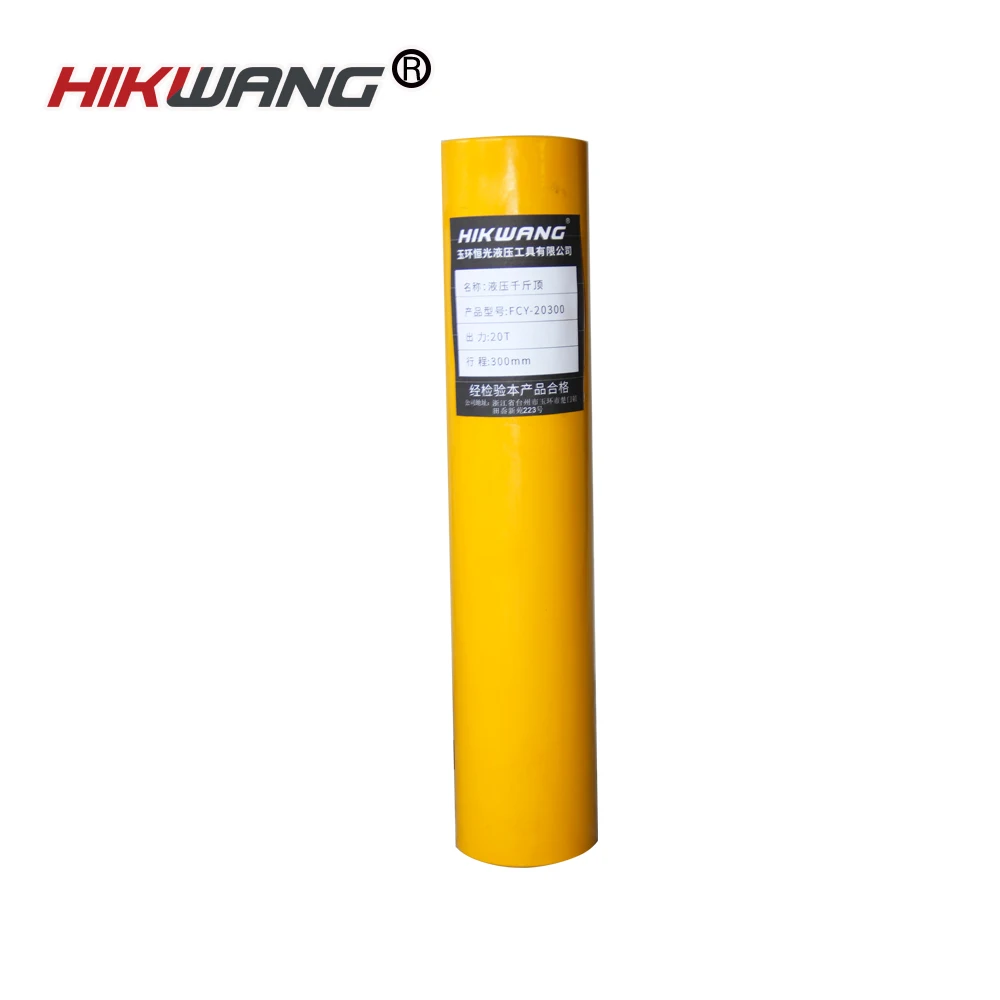

FCY-20300 Double-acting long stroke hydraulic cylinder
FCY-Series cylinders are double-acting, which means heavy loads can be lifted and lowered with precise control. A double-acting cylinder outputs force creating a higher control level for the retraction that is more reliable, faster and easier to control than a spring return system.
FCY cylinders are available in a stroke length from 200mm to 500mm, and in capacity from 10tons to 300tons, enable you to lift or push a load a greater distance which will save you time and minimize or eliminate the need for temporary cribbing.
Model | Capacity class(t) | Collapsed height（mm） | Stroke（mm） | Extended height(mm) | Inside dia(mm) | Plunger dia(mm) | Outside dia(mm) |
FCY-20200 | 20 | 300 | 200 | 500 | 60 | 50 | 80 |
FCY-20300 | 20 | 400 | 300 | 700 | 60 | 50 | 80 |
FCY-20400 | 20 | 500 | 400 | 900 | 60 | 50 | 80 |
FCY-20500 | 20 | 600 | 500 | 1100 | 60 | 50 | 80 |
