Automatic C Stud Steel Stud and Track Roll Forming Machine U Channel Making Machine
- Category: >>>
- Supplier: Foshan Liding Technology Co. Ltd.
Share on (1601043068949):
Product Overview
Description
Products Description

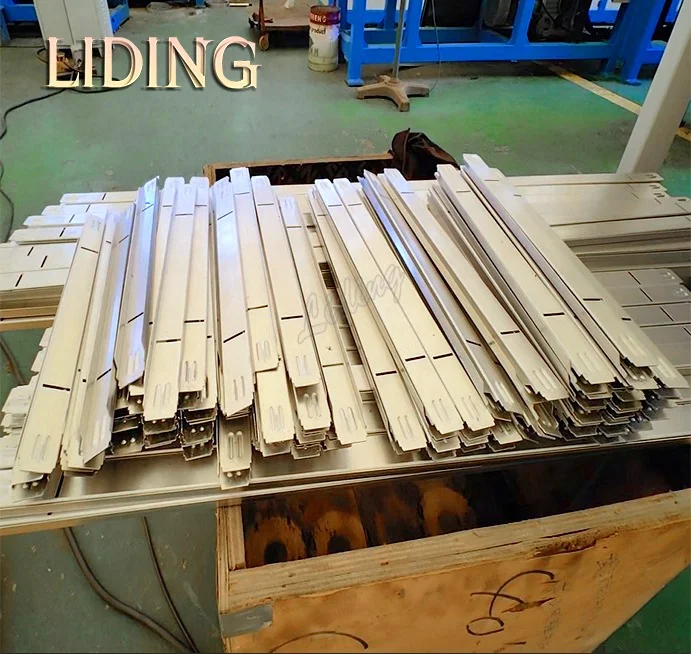

Aluminumc u profile section channel roll forming machine
Customers can choose the appropriate equipment according to their own and market demand.
Product Specifications
Aluminumc u profile section channel roll forming machine details:
Feeding material: Aluminum coil
Thickness of the plate:1.0mm
Diameter of the axle:Φ48mm
Thickness of the plate:1.0mm
Diameter of the axle:Φ48mm
Bearing Material：6208
Rolling stages:14 stages
Rolling stages:14 stages
Rolling Material : Cr12MoV
Productivity: 12m/min
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Productivity: 12m/min
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Transmission: gearbox steering transmission

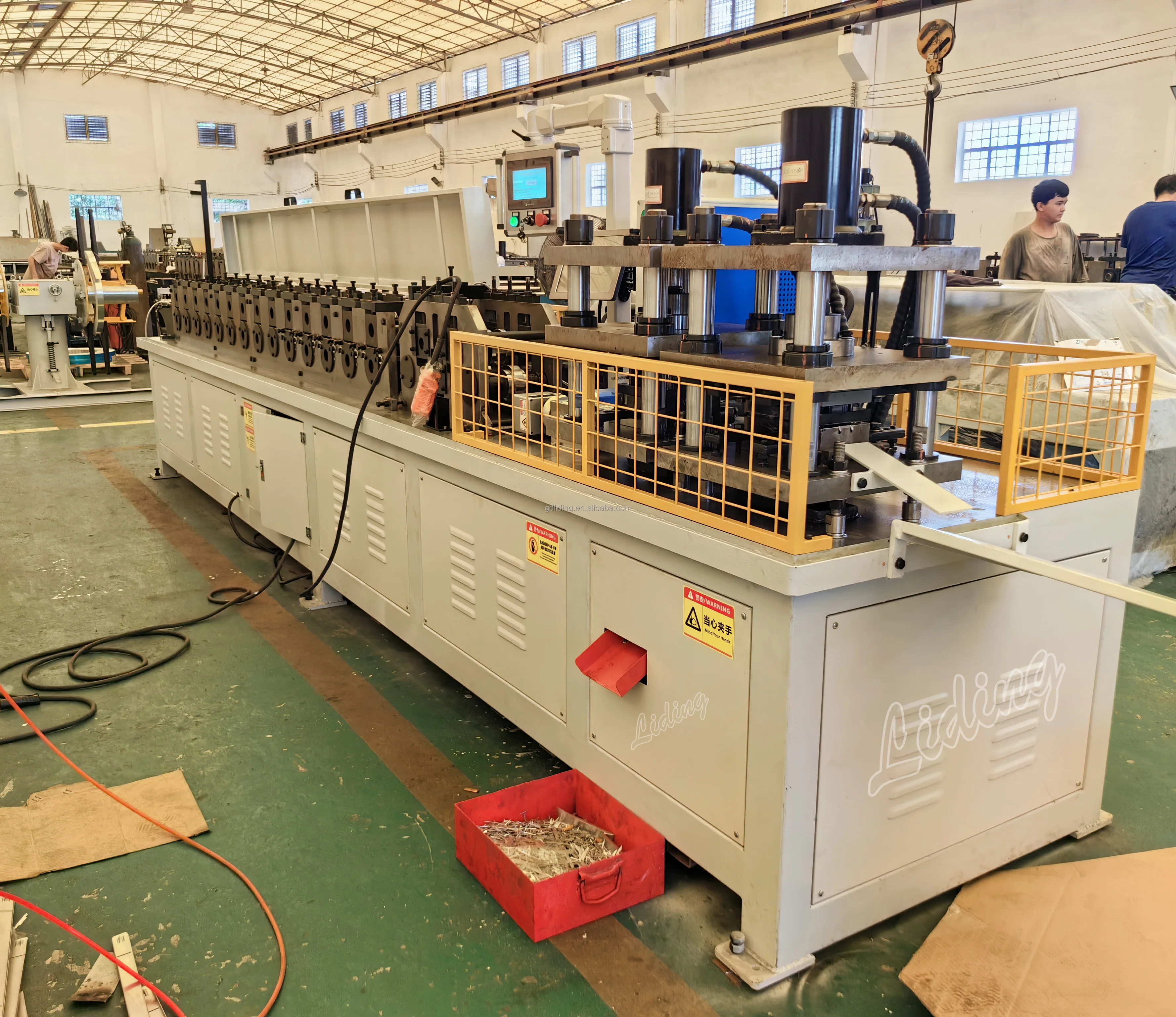

Producing process
Decoiling & Leveling → Roll forming&Straightening →Laser Marking →Crimping→punching&Cutting→Run-out table
No | Item | Data |
1 | Double-headed Decoiler MT-200 | 1 Ton |
2 | Roll Forming Machine | 14 stages+5 groups straightening |
3 | Crimping mold | 1 set |
4 | Hydraulic cutting and punching modular | Beijing Huade Brand |
5 | Run Out Table | 1 m |
6 | PLC controling | Panasonic Japan |
7 | 30W Laser Marking Machine | 1 set |
Details Images
30 years of production experience to provide customers with solutions
Aluminumc u profile section channel roll forming machine
Non-powered double-headed decoiler MS-200
1) Applicable material roll width: 30-150mm
1) Applicable material roll width: 30-150mm
2)Thickness of applicable material roll: 0.3mm-1.0mm
3)Roll material load capacity: 500KG (single side)
4)Inner diameter of roll material: φ470mm-φ530mm
5)Coil outer diameter: φ1500mm
3)Roll material load capacity: 500KG (single side)
4)Inner diameter of roll material: φ470mm-φ530mm
5)Coil outer diameter: φ1500mm

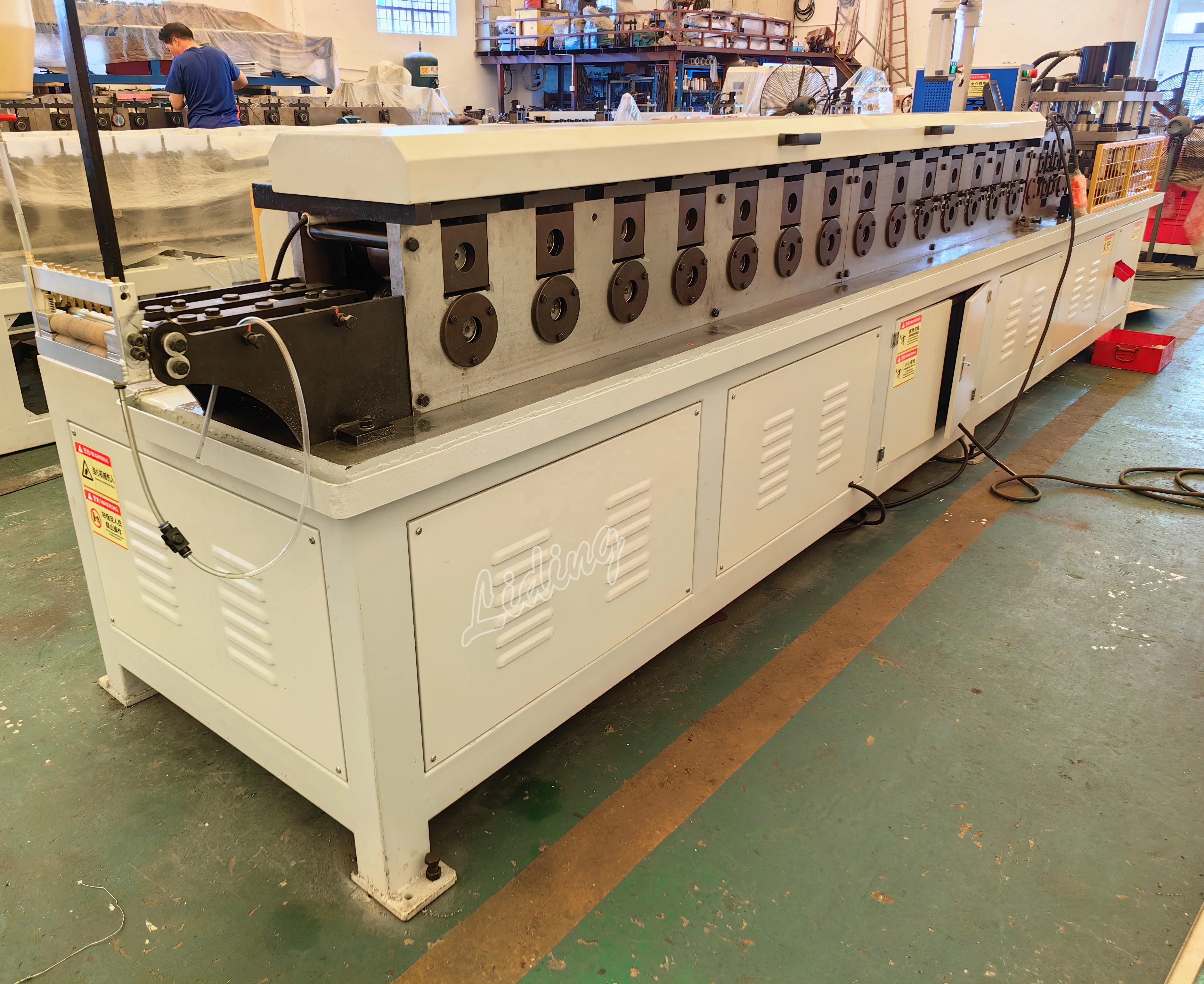

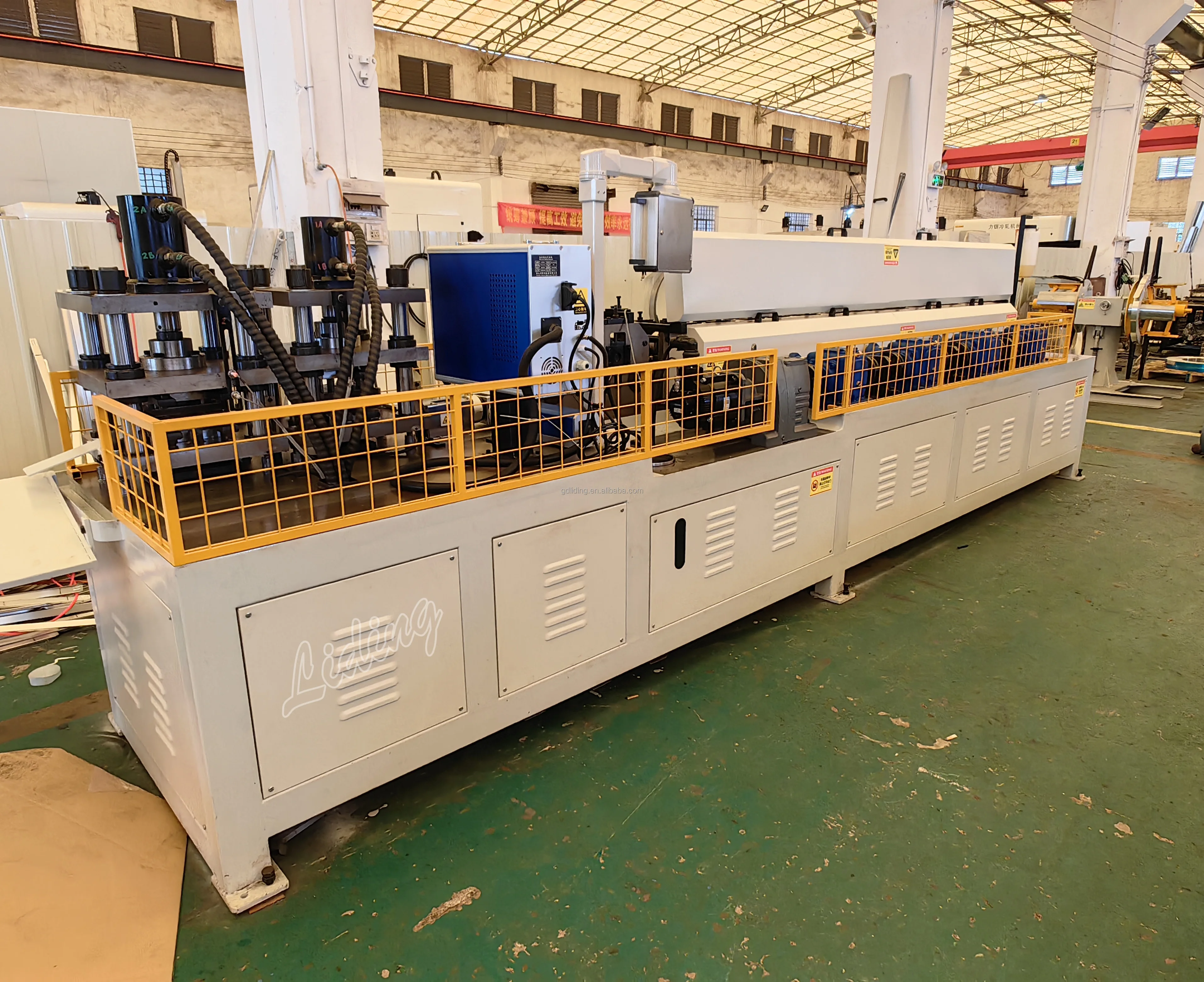

Roll forming part
Mold shaft diameter：φ48mm
Shaft end bearing：6208
roll forming groups：14 groups
straightening groups：5 groups
Thickness of side plate：30mm
Feeding speed：1～12m/min Speed servo adjustment. (The overall production speed changes with the length of the product)
Shaft end bearing：6208
roll forming groups：14 groups
straightening groups：5 groups
Thickness of side plate：30mm
Feeding speed：1～12m/min Speed servo adjustment. (The overall production speed changes with the length of the product)

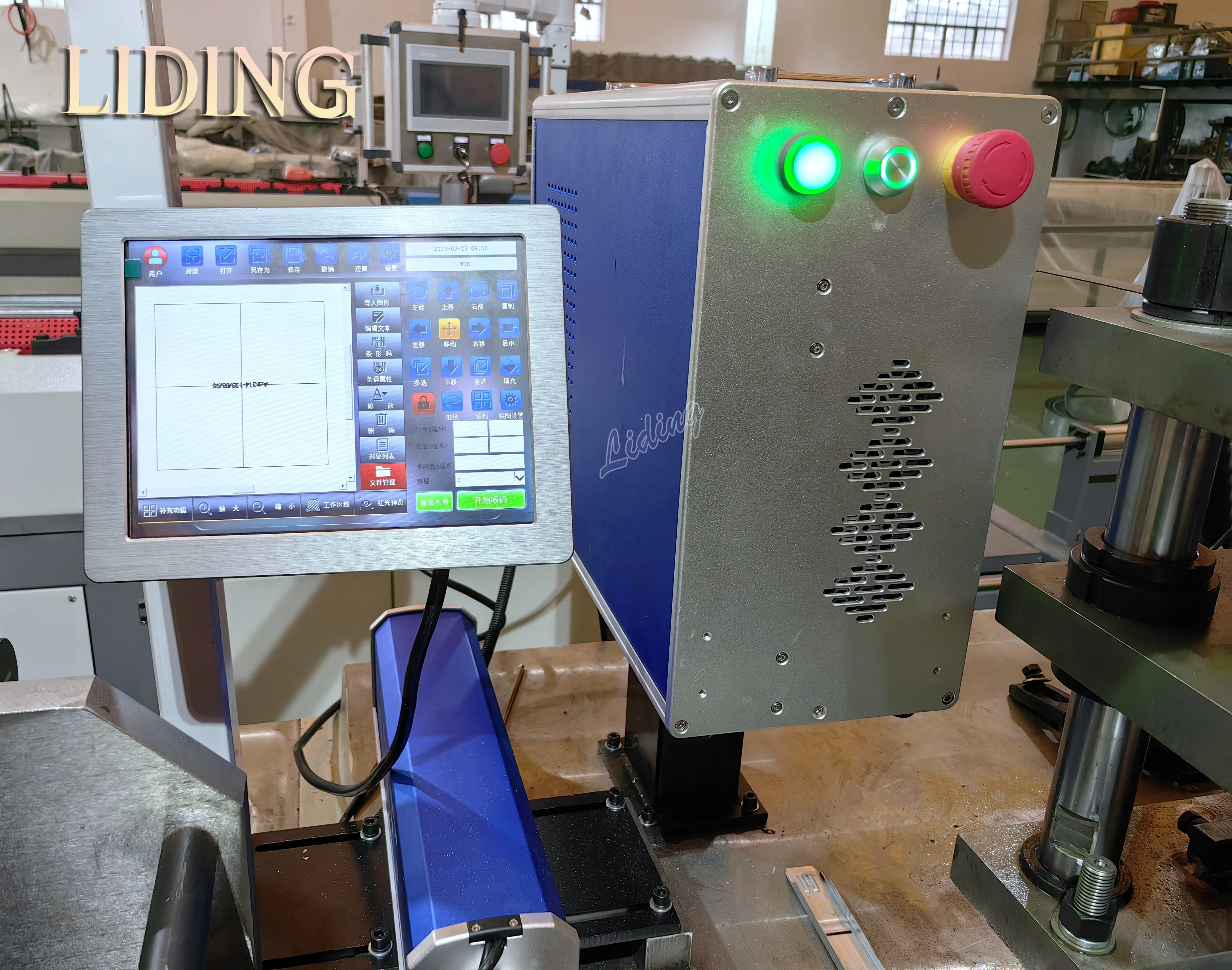

30W Laser Marking Machine
Electrical control system
1)Adopt the programmable controller produced by Panasonic Electric of Japan.
1)Adopt the programmable controller produced by Panasonic Electric of Japan.
The drive device adopts frequency converter to regulate the speed.

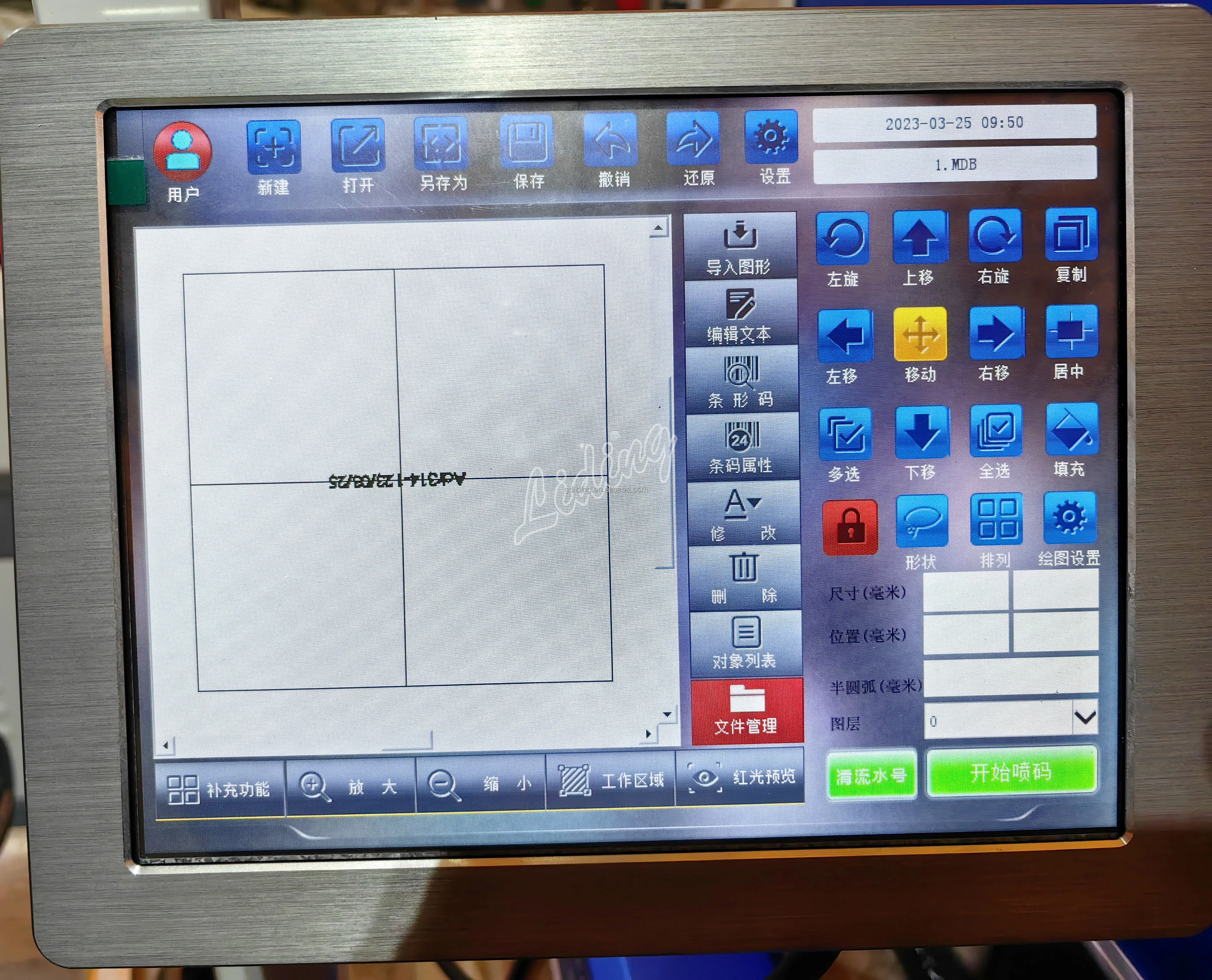

The human-machine interface is Velon, high-resolution touch screen, and can be equipped with multiple product production specifications according to request.
2)Electrical design conforms to national safety standards, with such as: emergency stop device, leakage overload protection,
interlocking safety devices, etc.
2)Electrical design conforms to national safety standards, with such as: emergency stop device, leakage overload protection,
interlocking safety devices, etc.

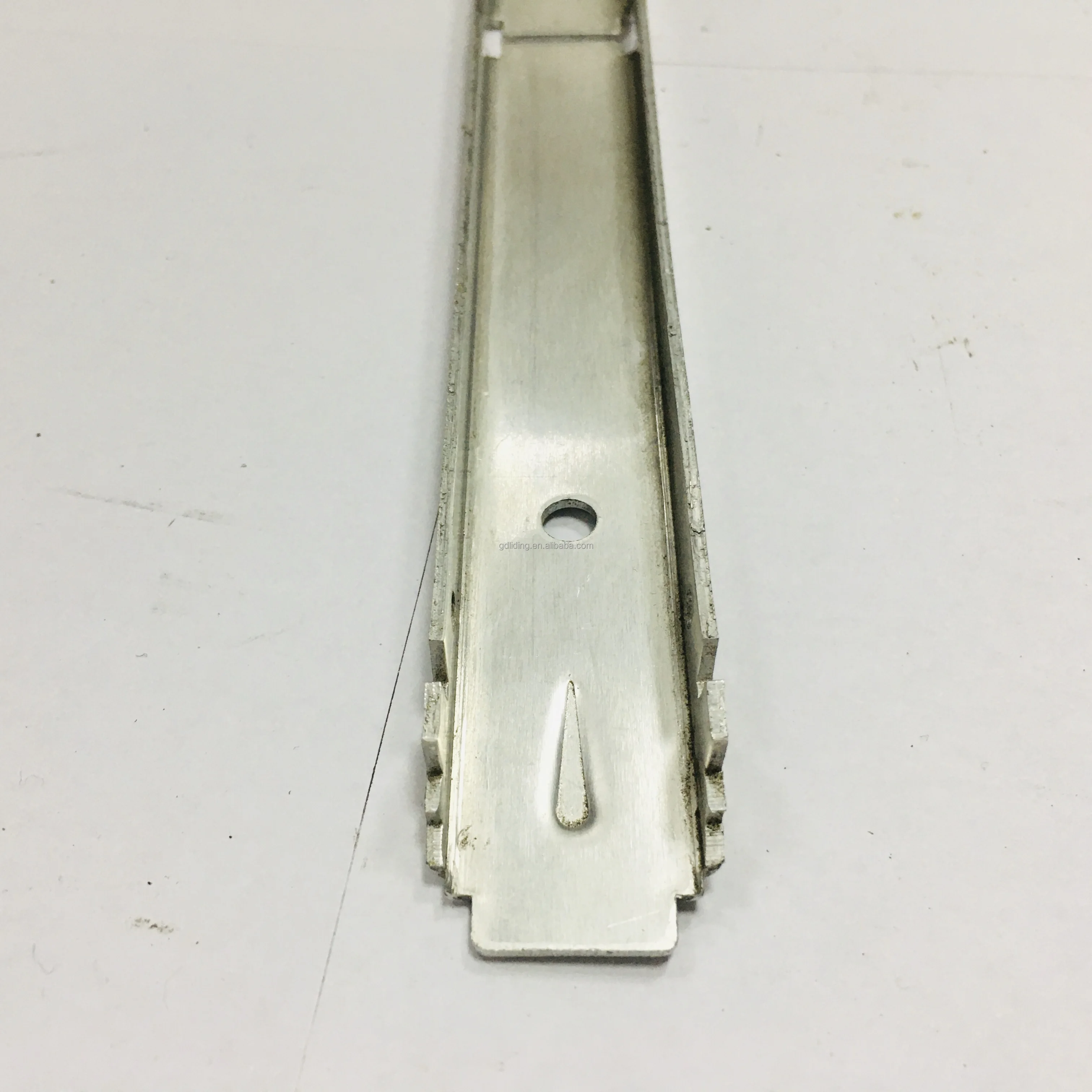

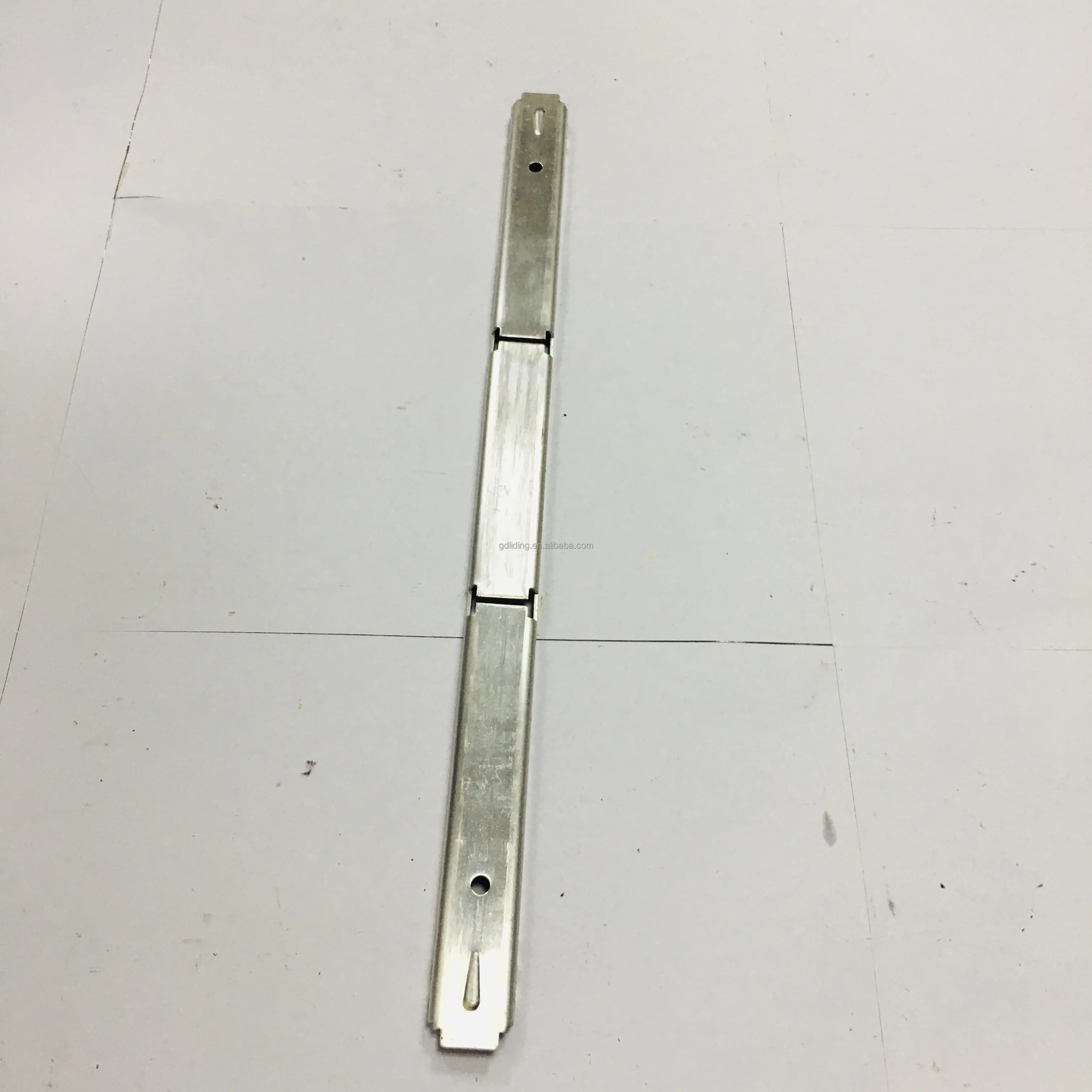

Crimping bar mold: for stretching bar and 3x24 bar hole.
Hydraulic cutting section:
1)The components adopt Beijing Huade products and ensure the accuracy and timeliness of action execution.
2)Punching off the mold material is excellent, long service life, easy to replace.
3)The cross section of the product after punching is smooth and flat.
Hydraulic cutting section:
1)The components adopt Beijing Huade products and ensure the accuracy and timeliness of action execution.
2)Punching off the mold material is excellent, long service life, easy to replace.
3)The cross section of the product after punching is smooth and flat.

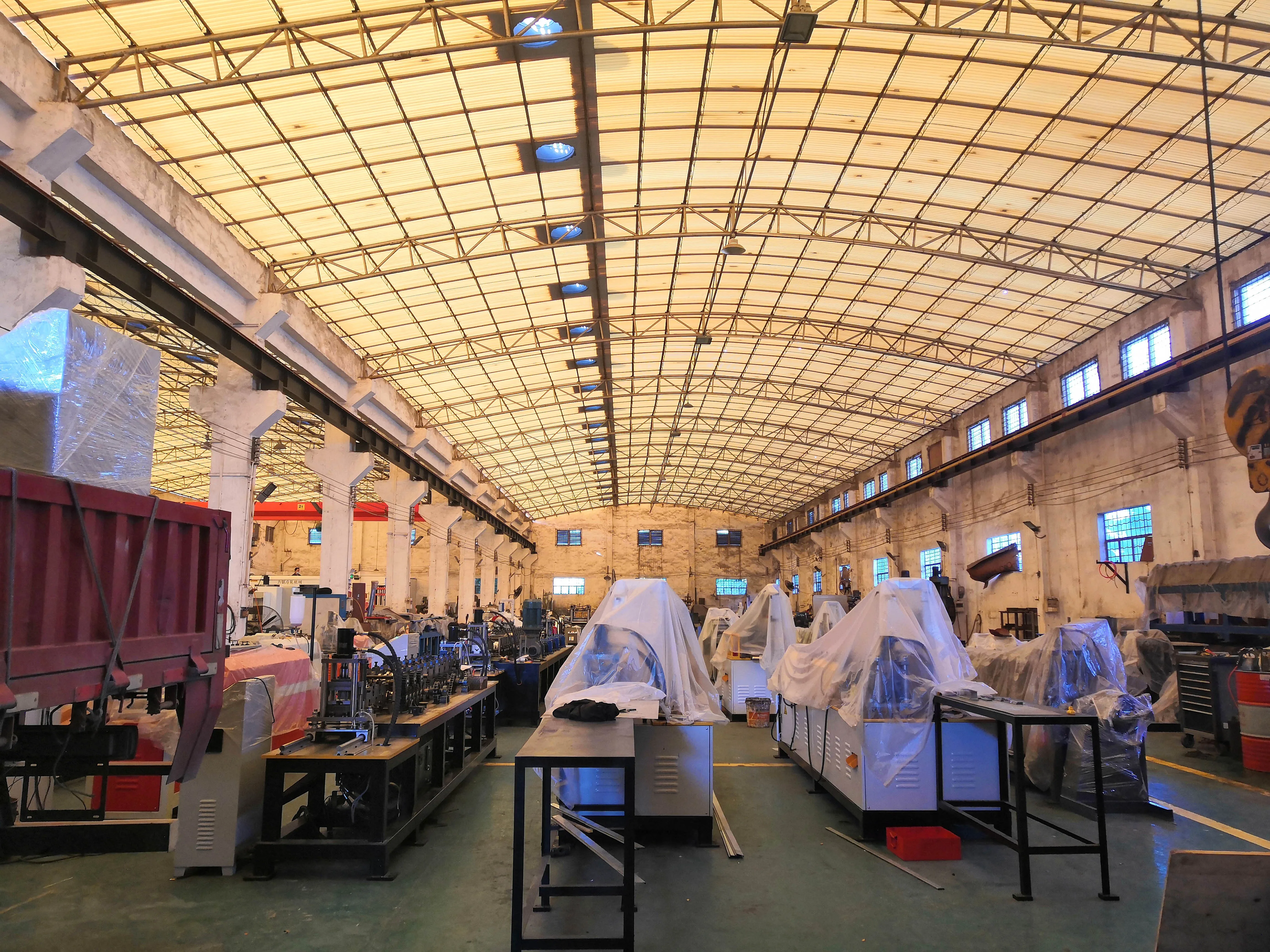

Company Profile
Foshan Liding Machinery Technology Co., Ltd.
is established in 2014 and integrates scientific research, production and operation as one, specializing in the design and manufacture of cold-forming equipment automatic production lines, such as plug-in TDC flange machine, elliptical pipe machine,spiral duct machine, a variety of shaped cold-forming machinery, etc.The company provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. All of us in the company work for customers to create stable and efficient cold-forming equipment with a rigorous attitude according to the customer's special requirements to design a variety of shapes of cold-forming profiles.

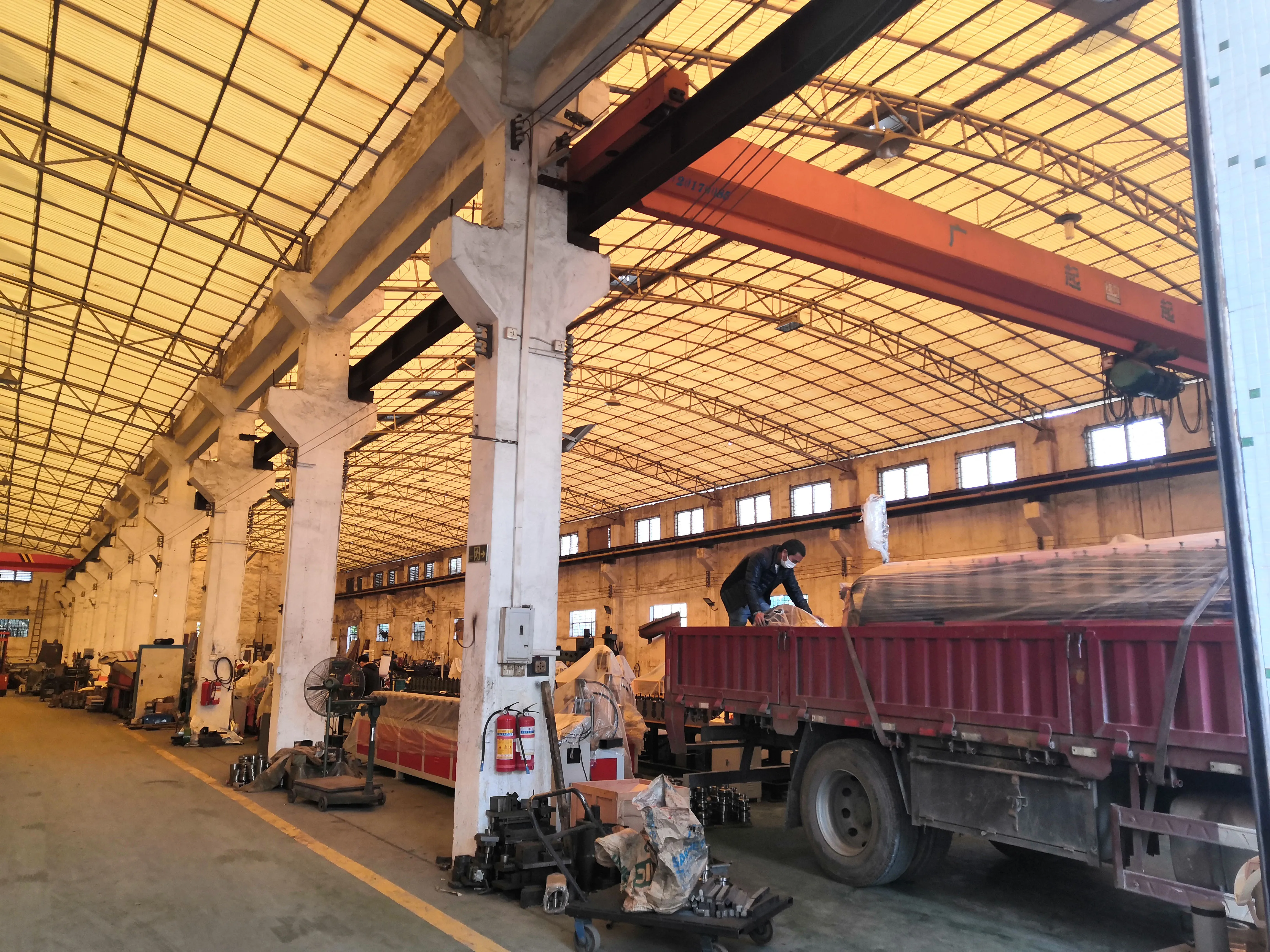

CUSTOMER VISIT
Operation-speed regulation-maintenance-type change. overseas trainer service package teachingspackage meeting 100% Welcome new and old customers to visit the factory and learn more
Certifications
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q7. Can you provide some spare parts?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q4. What's your payment terms ?
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.
Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q6. What is the after- sale service?
A6: 1. The warranty is 12 months after the client receives the machine.
2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free.
3. We offer technical support for the entire life of our machines.
4. We can send our technicians to install and train the workers in the clients' factories with extra cost.
5.After the quality guarantee period, only charge the production cost of the spare parts.
A6: 1. The warranty is 12 months after the client receives the machine.
2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free.
3. We offer technical support for the entire life of our machines.
4. We can send our technicians to install and train the workers in the clients' factories with extra cost.
5.After the quality guarantee period, only charge the production cost of the spare parts.
Q7. Can you provide some spare parts?
A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
