1200W vertical Home Use Wind Turbine Efficient Wind Generators for Residential Use
- Category: >>>
- Supplier: Jiangsu DHC Environmental Si-Tech Co. Ltd.
Share on (1601043083766):
Product Overview
Description
Product Description
1KW 1200W Vertical Wind Generator Wind Turbine
The H type vertical wind turbine adopts the horizontal plane rotation and the design of the blades using the principle of aircraft wings, which reduces the noise to a level that cannot be measured in the natural environment.
Due to eolic generator's different design structure and operating principle, vertical wind turbine has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.
Due to eolic generator's different design structure and operating principle, vertical wind turbine has a smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time.
Technical Parameter
Model | H530- 400 | H530- 500 | H530- 600 | H530- 800 | H530- 1000 | H530- 1500 | H530- 2000 | H530- 3000 | |||||||
Rated Power | 400w | 500w | 600w | 800w | 1kw | 1.5kw | 2kw | 3kw | |||||||
Rated Voltage | 12/24/48V | 24/48/96V | 48/96/120/220/380V | ||||||||||||
Start the Wind Speed | 2.5m/s | ||||||||||||||
Rated Wind Speed | 11m/s | ||||||||||||||
Safe Wind Speed | ≤50m/s | ||||||||||||||
Blade Diameter | 0.95m | 0.95m | 1.16m | 1.16m | 1.35m | 1.67m | 2.1m | 2.63m | |||||||
Blade Height | 1.3m | 1.4m | 1.6m | 1.8m | 2m | 2.2m | 3.2m | 4.2m | |||||||
Blade Number | 5 pcs high-speed blades+Assist the wind wheel | ||||||||||||||
Blade Material | Aluminum Alloy | ||||||||||||||
Fuselage Material | Aluminum Alloy | ||||||||||||||
Magnetic Steel Material | NdFeB | ||||||||||||||
Generator Type | Three-phase AC external rotor generator | ||||||||||||||
Control Mode | Electromagnetic Brakes | ||||||||||||||
Wind Direction Adjustment | 360° automatic windward wind | ||||||||||||||
Service life | ≥ 20 years | ||||||||||||||
Degree of protection | IP54 | ||||||||||||||
Packing size(cm) | 100*34*38+ 130*25*30 | 100*34*38+ 140*25*30 | 150*50*60+ 165*30*30 | 150*50*60+ 185*30*30 | 160*50*60+ 205*31*31 | 160*70*81+ 225*32*32 | |||||||||
1KW 1200W Vertical Wind Generator Wind Turbine
The H type eolic generator adopts vertical blades, and the main stress points are concentrated on the hub, so the problems of blade falling off, breaking and blade flying out have been better solved. The principle of horizontal rotation and vertical flat blades makes it less affected by wind pressure and can resist super typhoons of 45 meters per second.
The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic brakes. In areas without typhoons and super gusts, only manual brakes need to be set.

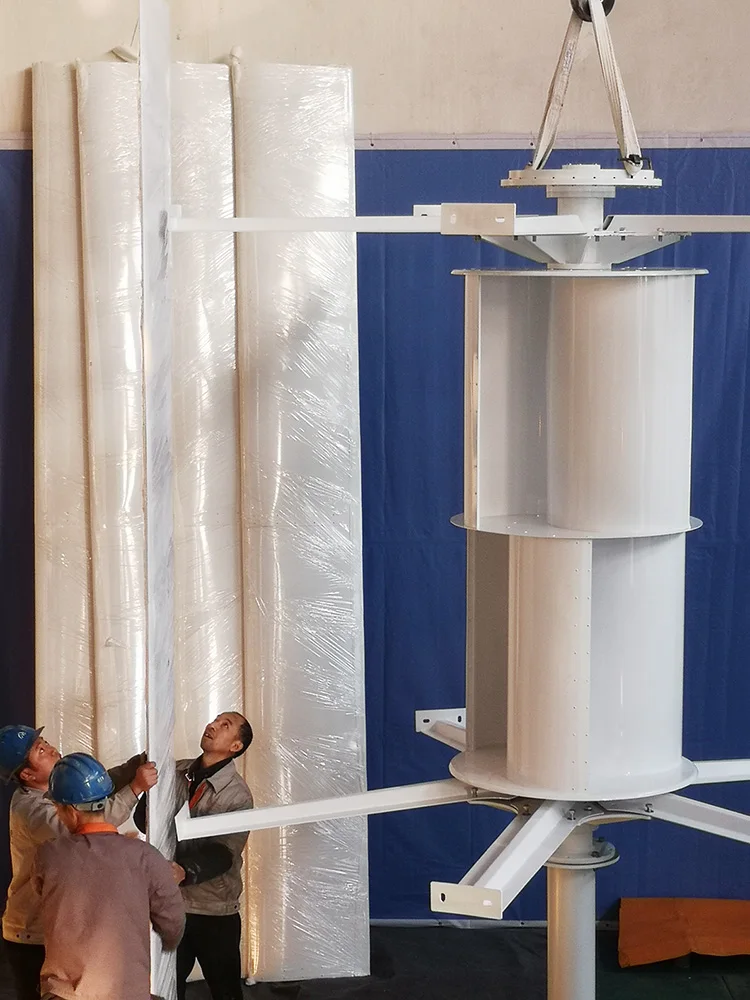

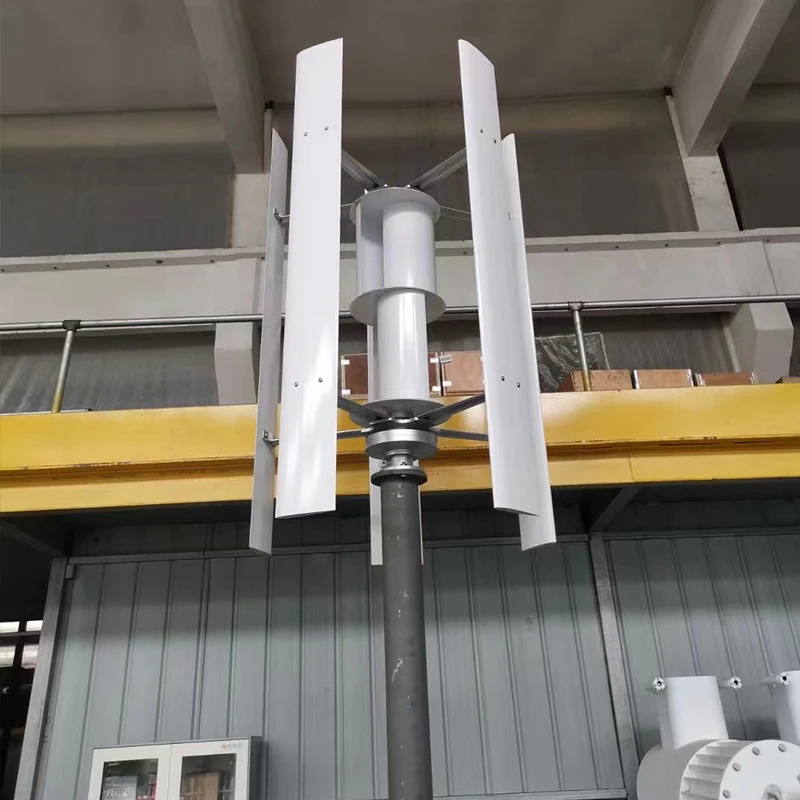

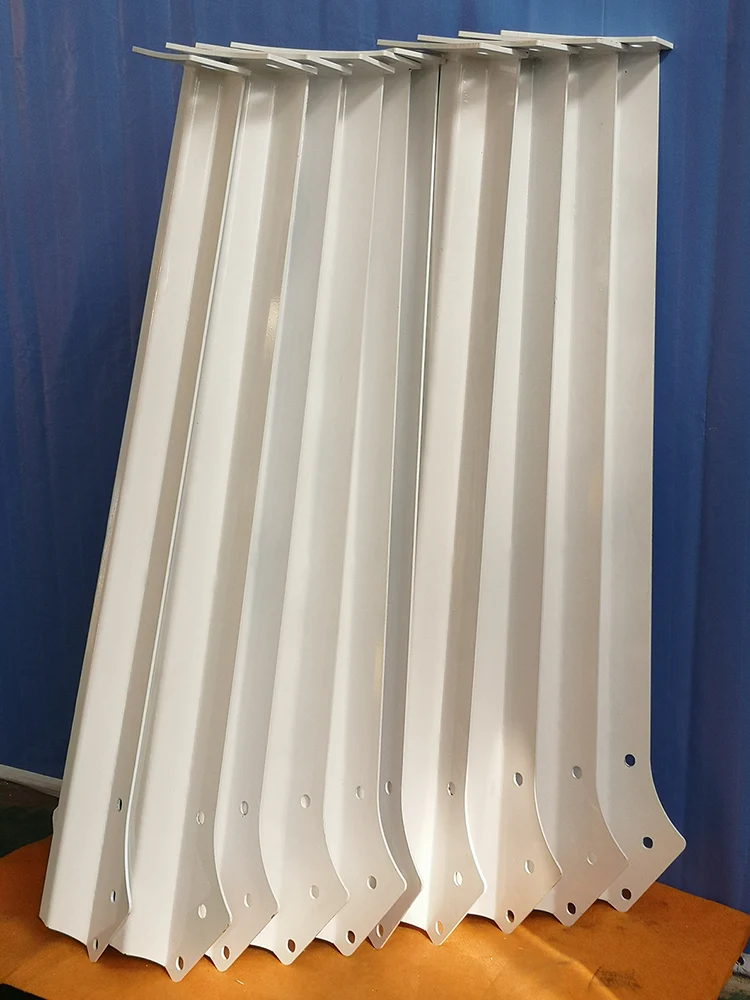

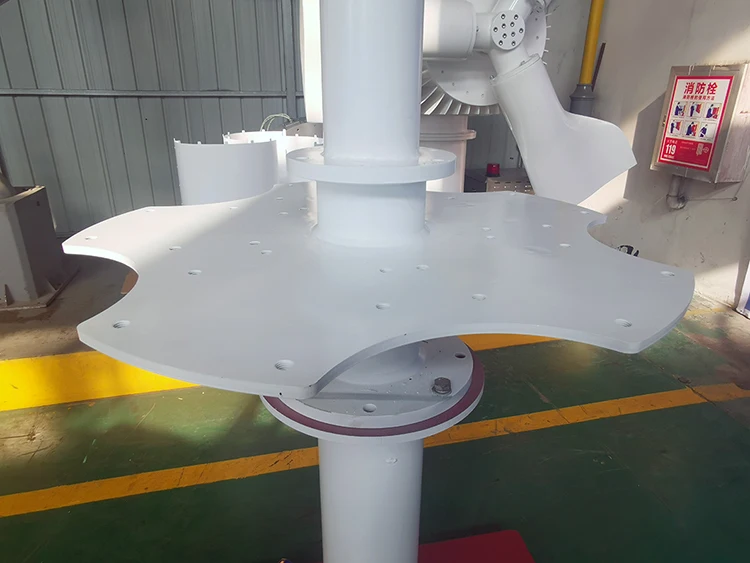

Details Images

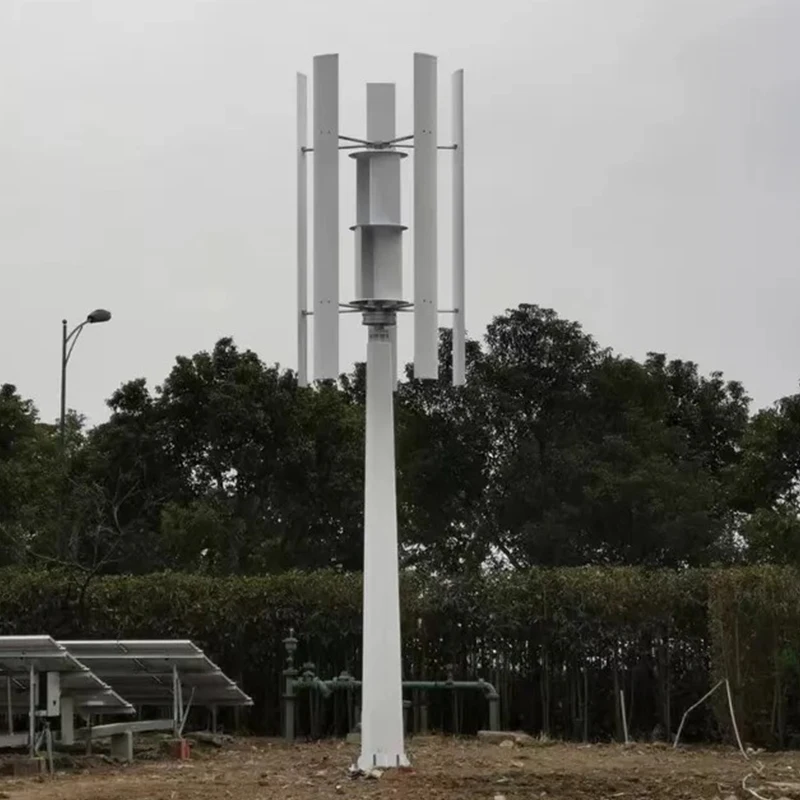

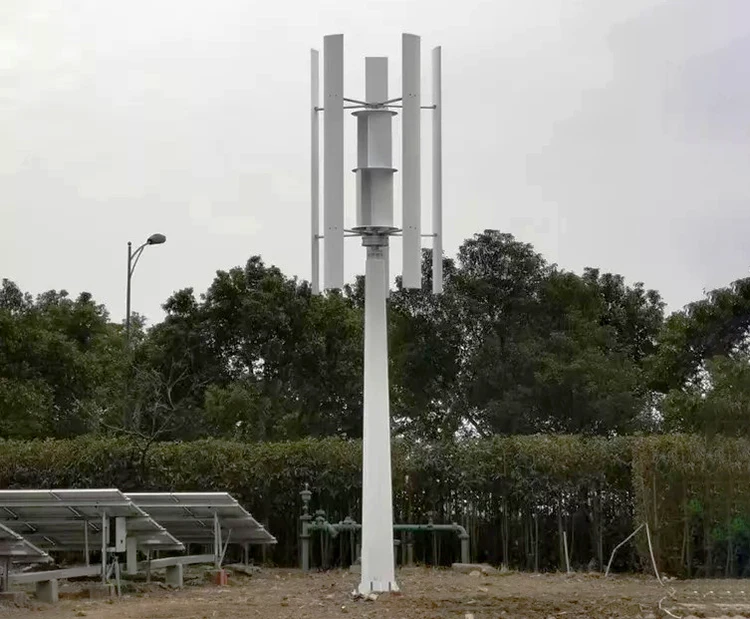

1KW 1200W Vertical Wind Generator Wind Turbine
The start-up wind speed of H-type wind turbine generator is lower than that of other types of wind turbines, and the increase in power generation is relatively gentle. Therefore, within the wind speed range of 5-8 meters, its power generation is 10%-30% higher than other types of wind turbines.
The H-type wind turbine generator adopts a special control principle, which expands its suitable operating wind speed range to 2.5-25m/s. While maximizing the use of wind resources, a greater total power generation is obtained, which improves the economy of the use of wind power equipment.

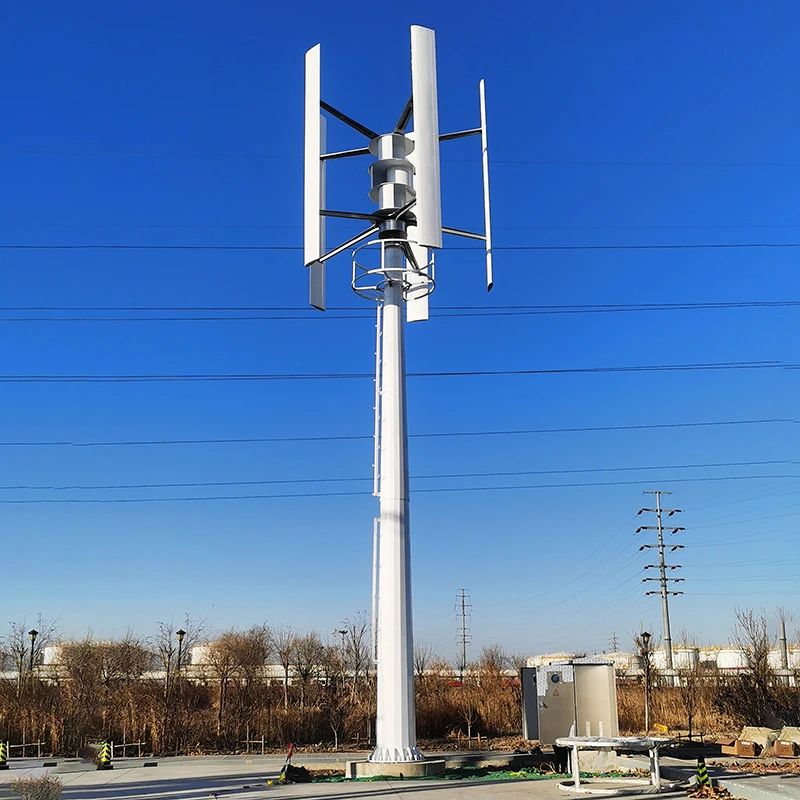

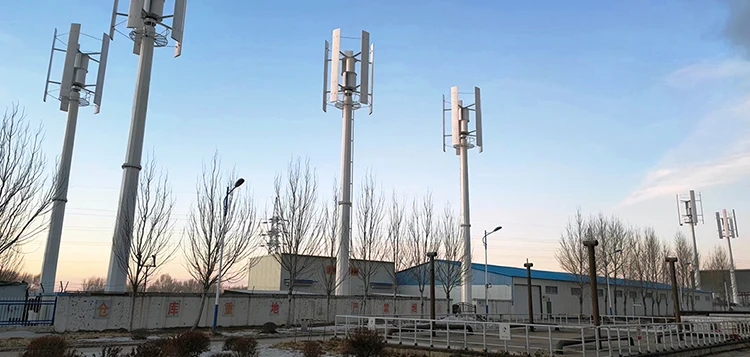

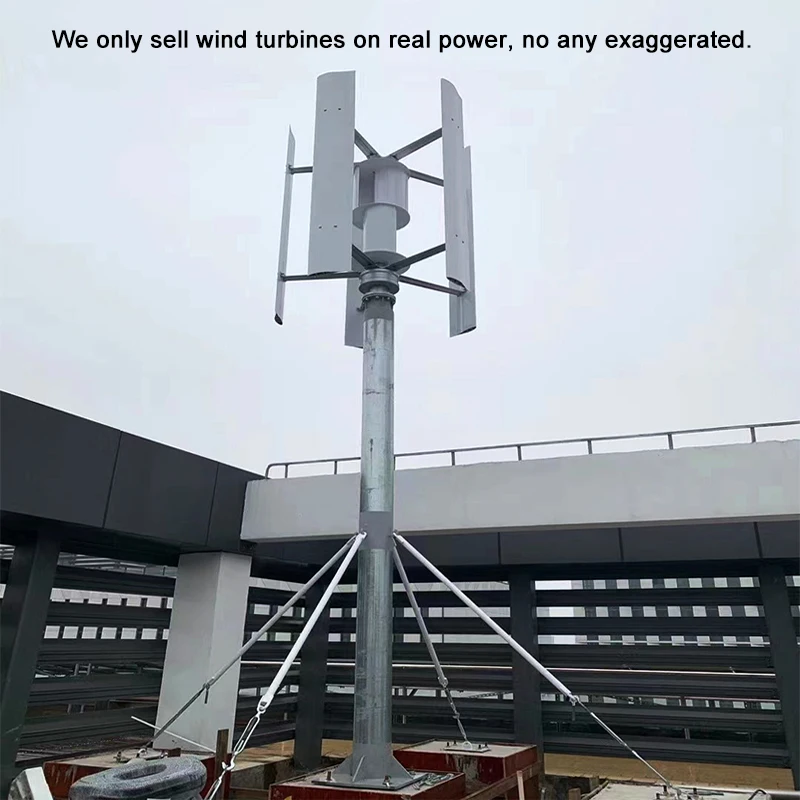

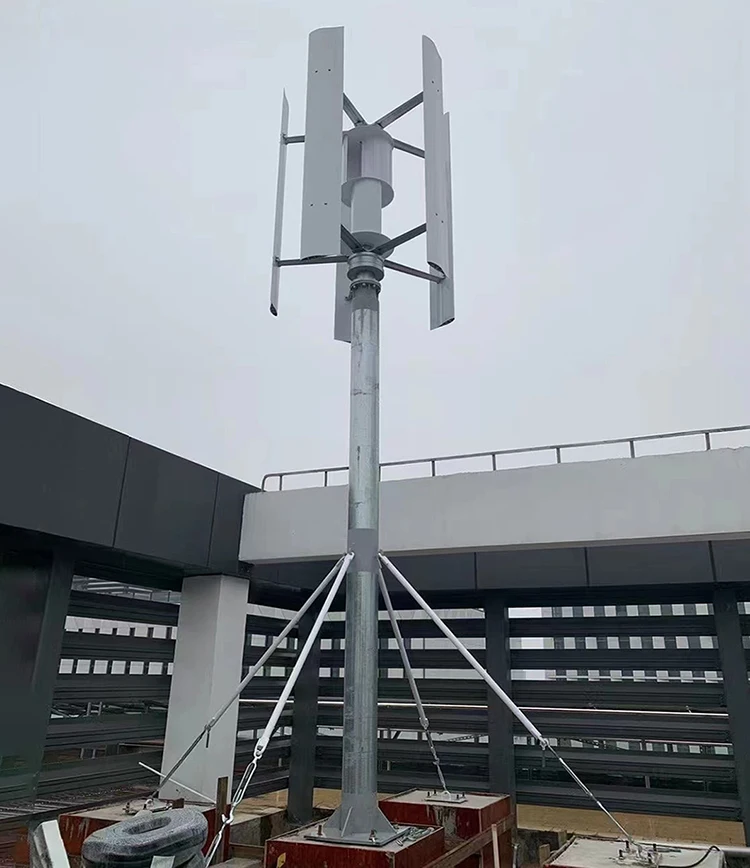

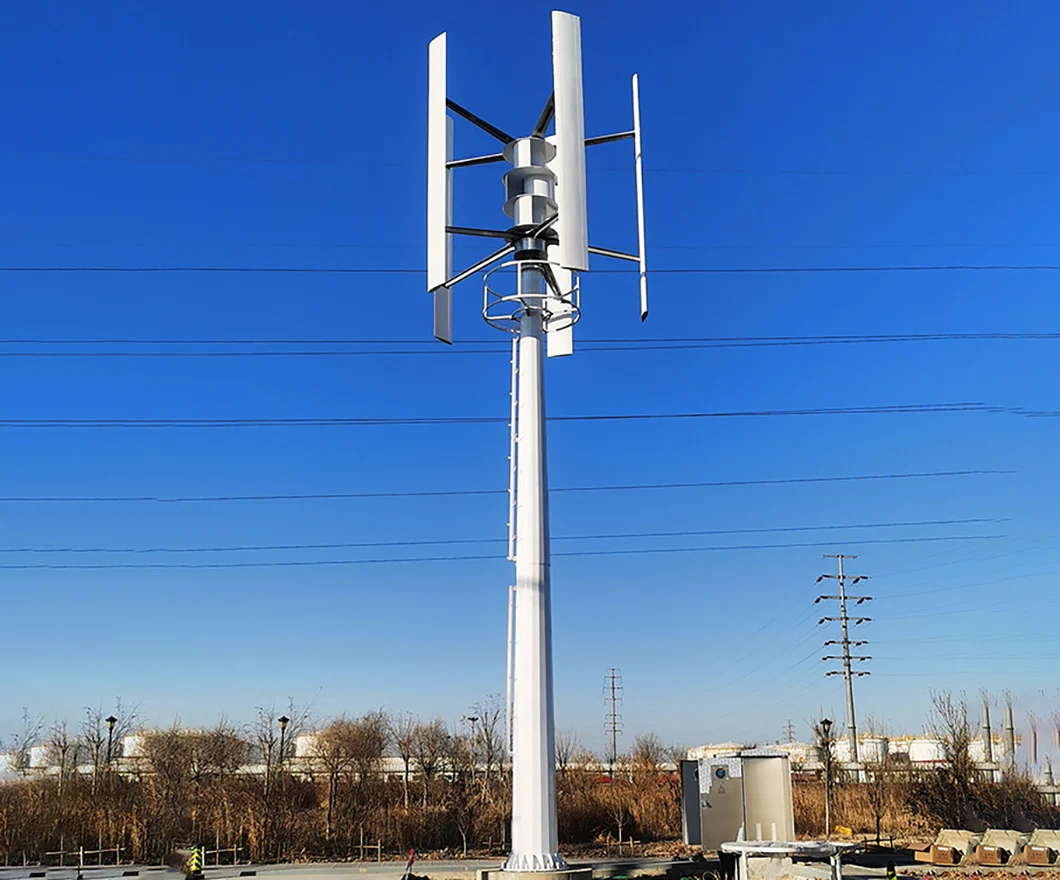

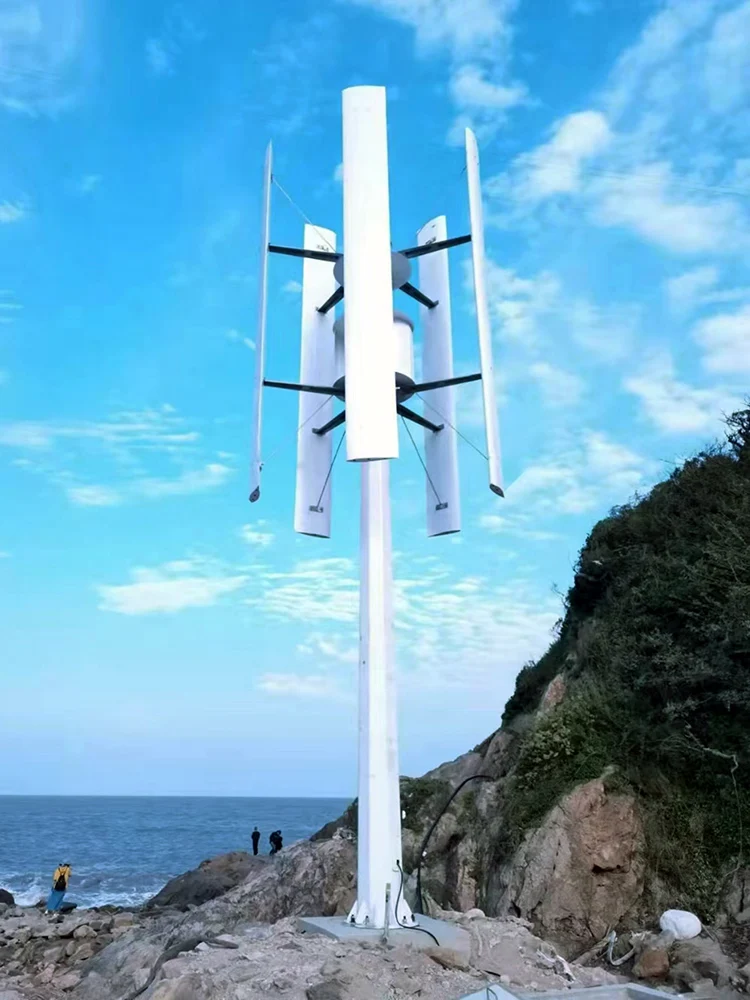

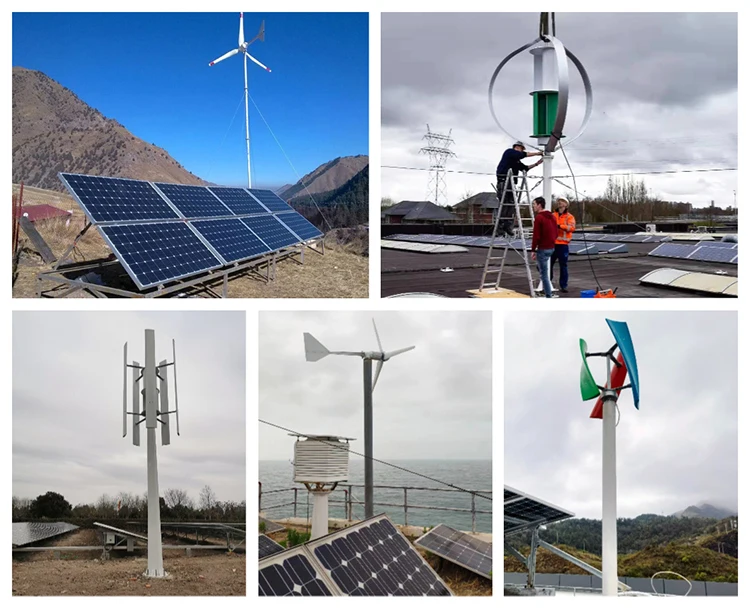

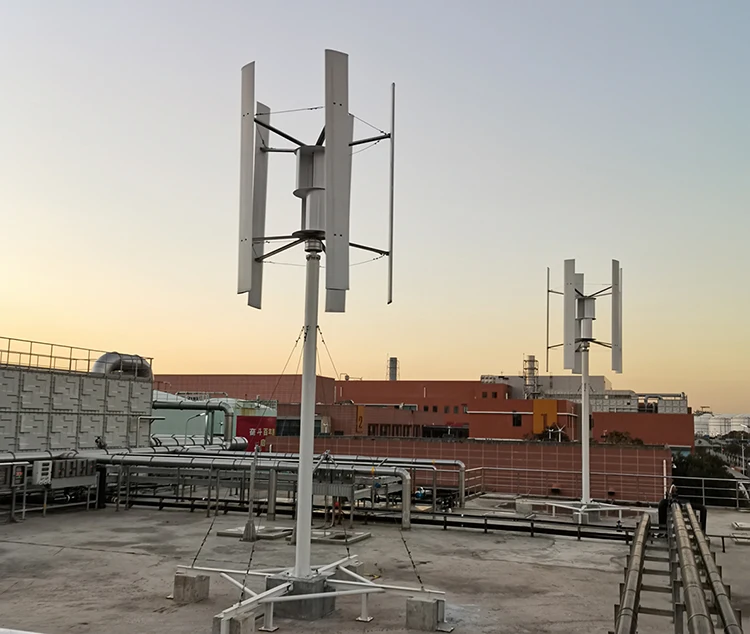

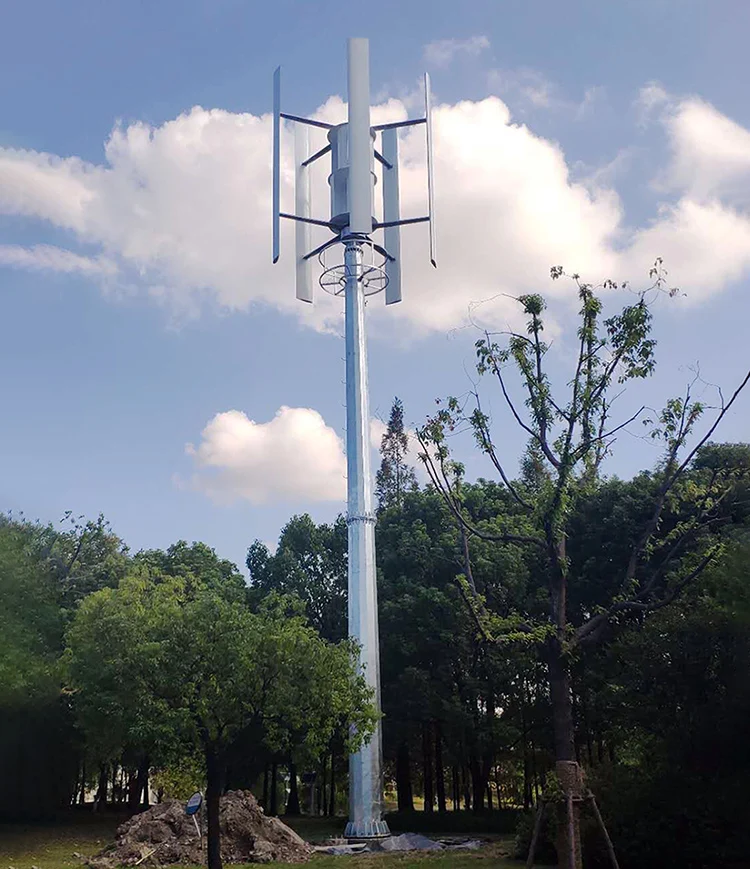

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc.
Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Recommend Products

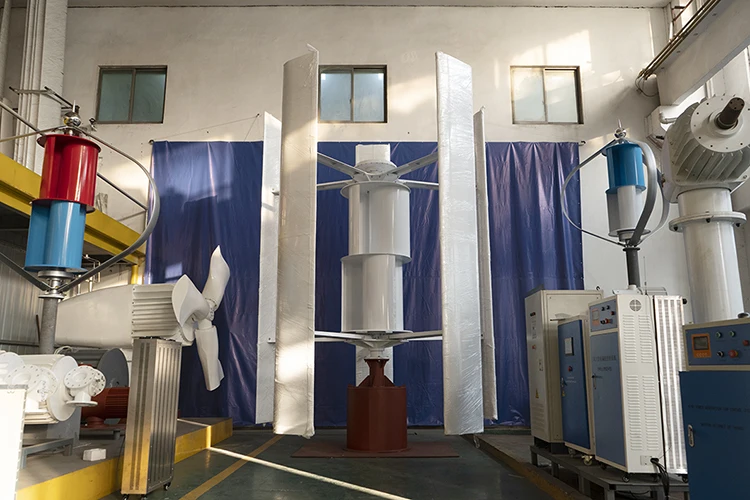

All types of our wind generator
We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
Company Profile
Jiangsu DHC environmental SI-Tech Co.,Ltd,
Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province.
We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!

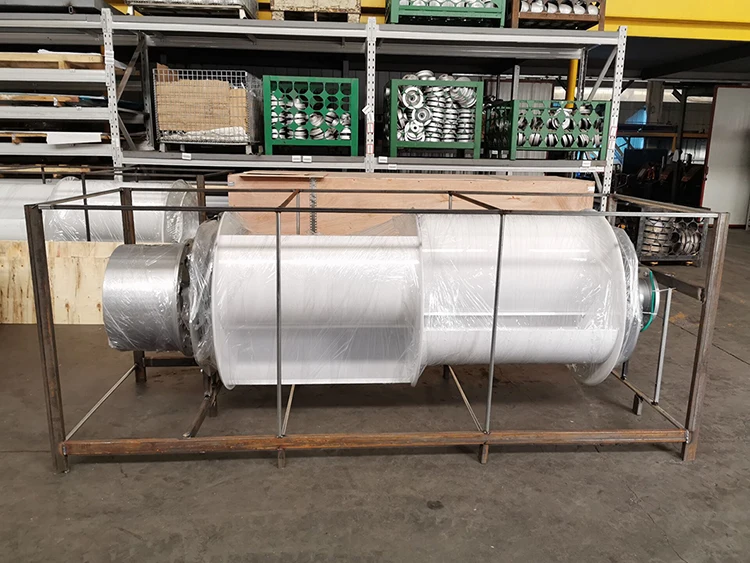

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
