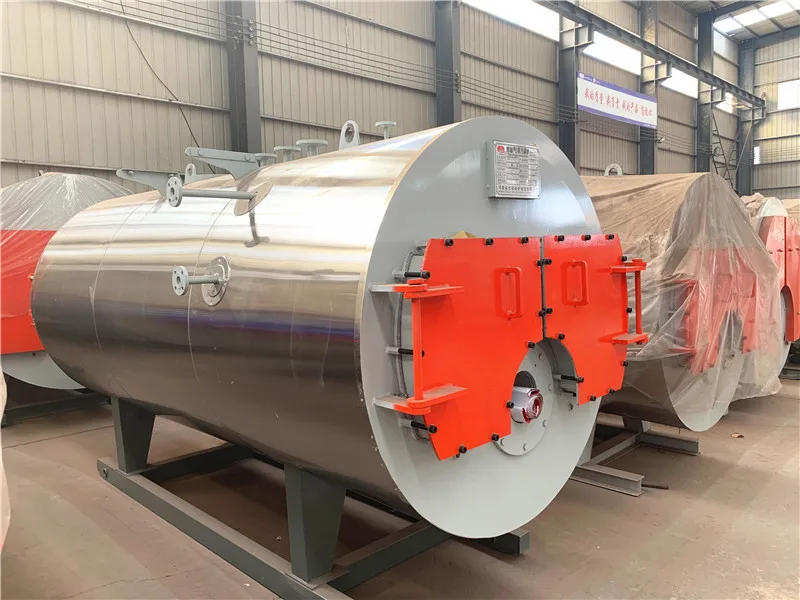

100BHP or 1700 kg/h of Steam Boiler combi boiler With Cheap Price
- Category: >>>
- Supplier: Henan Taiguo Boiler Products Co. Ltd.
Share on (1601043104255):
Product Overview
Description
Technical Paramet
Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Thermal Efficiency (%) | Exhaust gas temperature(ºC) | Maximum transport weight of boiler（t） | Maximum transport size of boiler（ mm） | Fuel Consumption | |||||||||
Light oil (Kg/h) | Natural gas (Nm³/h) | ||||||||||||||||
WNS1 | 1 | 0.7/ 1.0/ 1.25 | 170/ 184/ 194 | >98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 | ||||||||
WNS1.5 | 1.5 | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 | ||||||||||
WNS2 | 2 | 1.0/ 1.25/ 1.6 | 184/ 194/204 | >98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 | ||||||||
WNS3 | 3 | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 | ||||||||||
WNS4 | 4 | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 | ||||||||||
WNS5 | 5 | >98 | ≤60 | 14.2 | 5200×2300×2700 | 312.5 | 357 | ||||||||||
WNS6 | 6 | >98 | ≤60 | 17.5 | 5660×2400×2800 | 375 | 428.4 | ||||||||||
WNS8 | 8 | 1.25/ 1.6/2.5 | 194/204/225 | >98 | ≤60 | 21.3 | 5900×2500×3000 | 500 | 571.2 | ||||||||
WNS10 | 10 | >98 | ≤60 | 22 | 6600×2700×3200 | 625 | 714 | ||||||||||
WNS12 | 12 | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 | ||||||||||
WNS15 | 15 | >98 | ≤60 | 35.5 | 7500×3400×3600 | 937.5 | 1071 | ||||||||||
WNS20 | 20 | >98 | ≤60 | 45 | 7800×3700×4200 | 1250 | 1428 | ||||||||||
Note: 1、Fuel type：Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 、Parameter is for reference only, we can design the boilers based on customers’ needs. | |||||||||||||||||
Product Advantages
1. Energy saving and high efficiency, saving operating costs.
The combustion chamber adopts an adyanced large-diameter corrugated furnace to make the combustion more sufficient; the smoke pipe adopts a threaded structure, which strengthens the heat transfer effect; the new aluminum silicate is used for heat preservation, and the heat preservation effect is good.
2.Safety
The boiler adopts multiple safety protection functions such as pressure
controller, pressure transmitter, water level alarm, safety valve and
explosion-proof door.
controller, pressure transmitter, water level alarm, safety valve and
explosion-proof door.
3. Long service life, simple and convenient later operation and
maintenance.
maintenance.
The built-in smoke transfer chamber adopts a full wet back structure, which
reduces the temperature of the rear tube sheet and prevents cracking; the use of new refractory materials has a long service life; the double-opening smoke box door design is convenient for maintenance.
reduces the temperature of the rear tube sheet and prevents cracking; the use of new refractory materials has a long service life; the double-opening smoke box door design is convenient for maintenance.
Applications:
textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood processing, clothing, laundry, etc.
Henan Taiguo Boiler Product Co., Ltd., With more than 50 years of manufacturing experience, is a professional manufacturer,engaged in the research, development, production, sales and service of steam boiler, hot water boiler, hot oil boiler, and hot air boiler. Product production adopts technologies such as cutting, rolling plates, drilling, and cylindrical welding. We obtained ISO9 0 0 1, ISO 1 4 0 0 0 1, C E, SGS, EAC certification. Our boilers are sold to 108 countries around the world, and I sincerely hope to cooperate with you!
Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2：Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
1.Electric control cabinet adopts PLC touch screen, display in English.
2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.
3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Dear friend,you can contact us through my contact information or send us inquiry directly. Click "Send Inquiry" or "Chat Now"!
