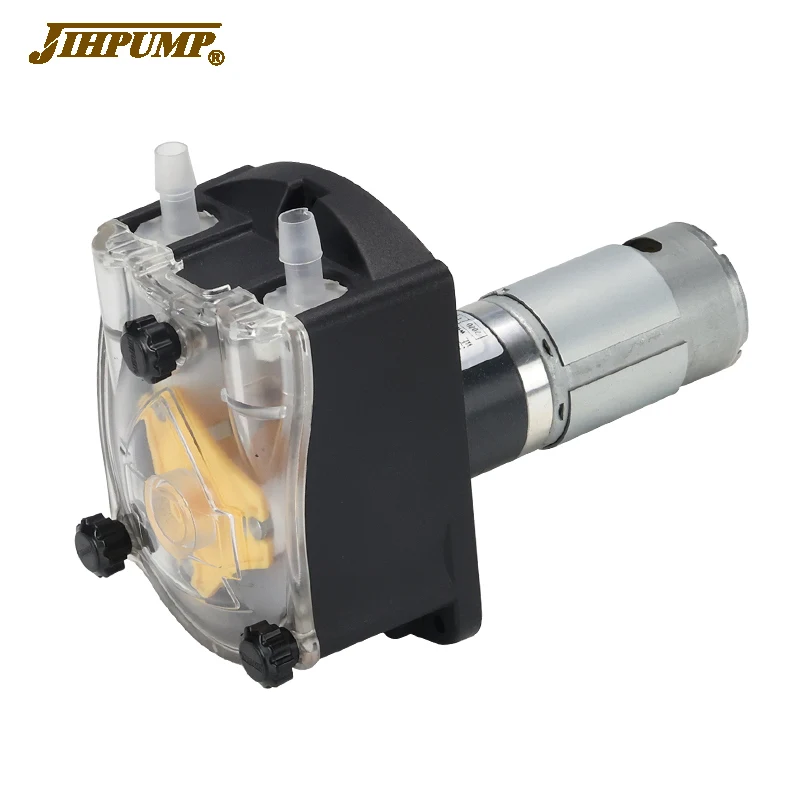

JIHPUMP 24V Peristaltic Pump 3L with 9.7mm Food Grade Tubing for Sause Liquid Syrup, Ketchup
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (1601043104608):
Product Overview
Description
Hot Sale Products
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.China leading manufacturer of peristaltic pumps.
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 18+ years experience.
4.More than 10,000 cooperative customers.
JIHPUMP 24V Peristaltic Pump 3L with 9.7mm Food Grade Tubing for Sause Liquid Syrup, Ketchup
Product Discription

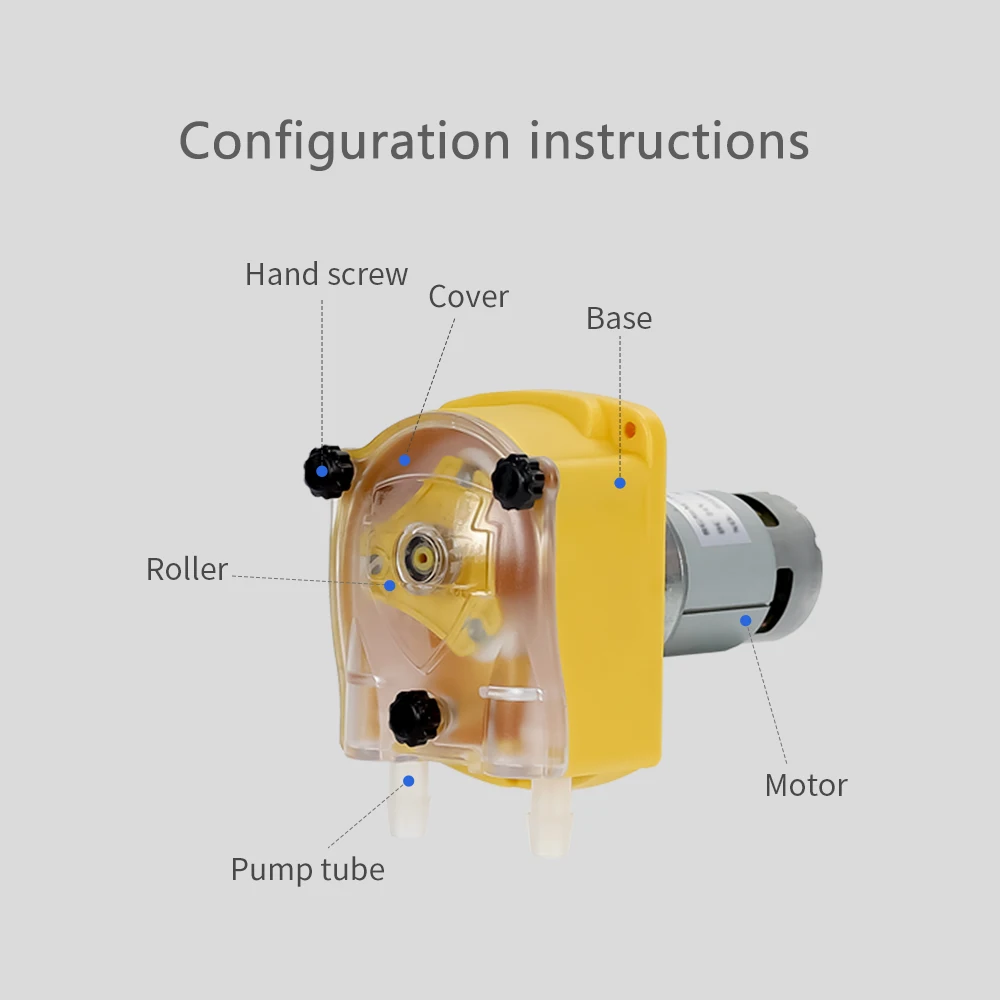

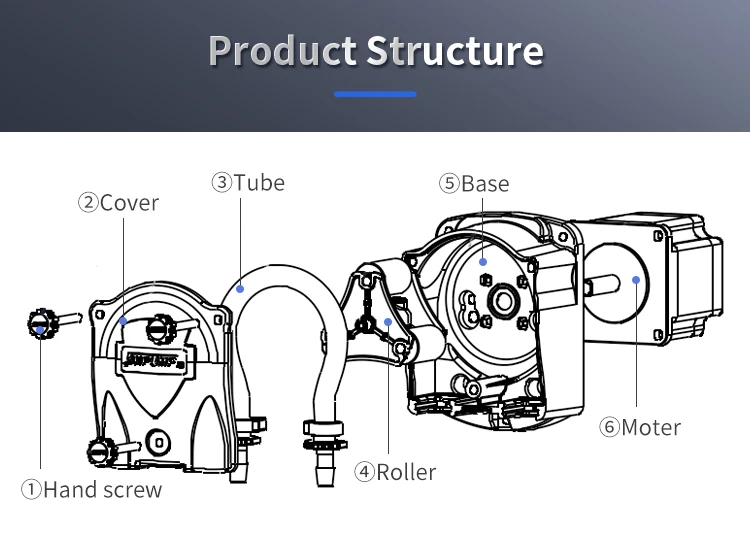

2.Cover : Translucent pump cover for visual management. 3.Tube: Two sizes of hose are available. 4.Roller: Precision lathe processing of imported wear-resistant bars. 5.Base: Imported materials with high performance and high reliability. 6.Motor: DC motor/DC planetary motor/Stepper motor. The 683K peristaltic pumps other main features: Viscous liquid transportation,High pressure and strong suction,Thickened pump tube design,Tool-free tube replacement. | ||||||||
Product Name | Quick mounted panel peristaltic pump | ||||
Product Model | 683K/ZL | 683K/ZLX | 683K/BT | ||
Motor Type | DC Geared Motor | DC Planetary Motor | Stepper Motor | ||
Voltage and Current | DC 12V,6A/24V,3A | DC 12V,4A/24V,2A | DC 24V,4A | ||
Power | silicon tube: ≤24WOther hoses: ≤48W | silicon tube: ≤24W Other hoses: ≤36W | ≤48W | ||
Motor Life | 800~1500 hours | 1000~2000 hours | 5000~20000 hours | ||
Weight | 715g | 595g | 1210g | ||
Work Environment | Temperature: 0~60℃ Humidity:＜85%RH | ||||
Outlet Pressure | ≤0.17MPa | ||||
Noise | ≤64dB | ≤64dB | ≤60dB | ||
Main Material | Pump Cover:Polycarbonate, Roller:POM, Base:Polyamide | ||||

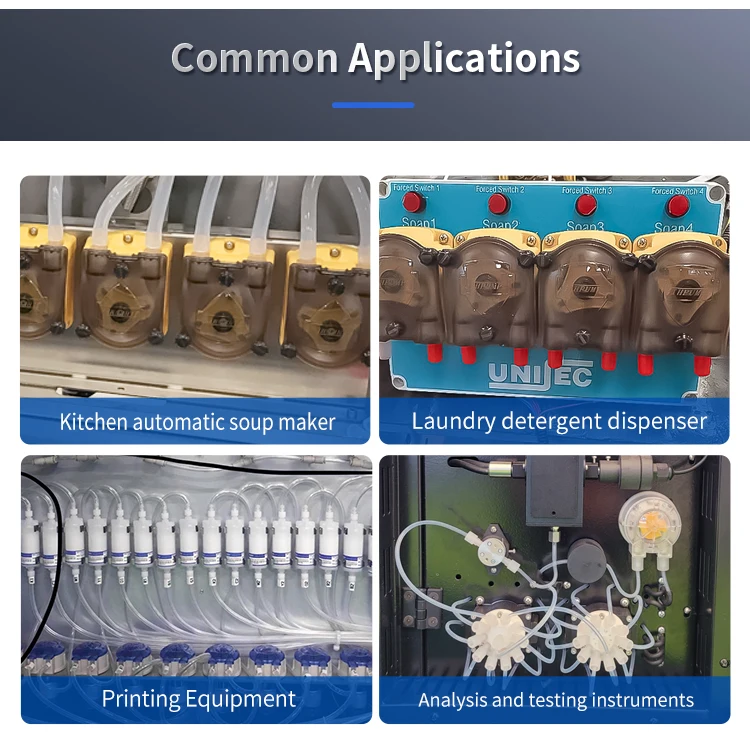

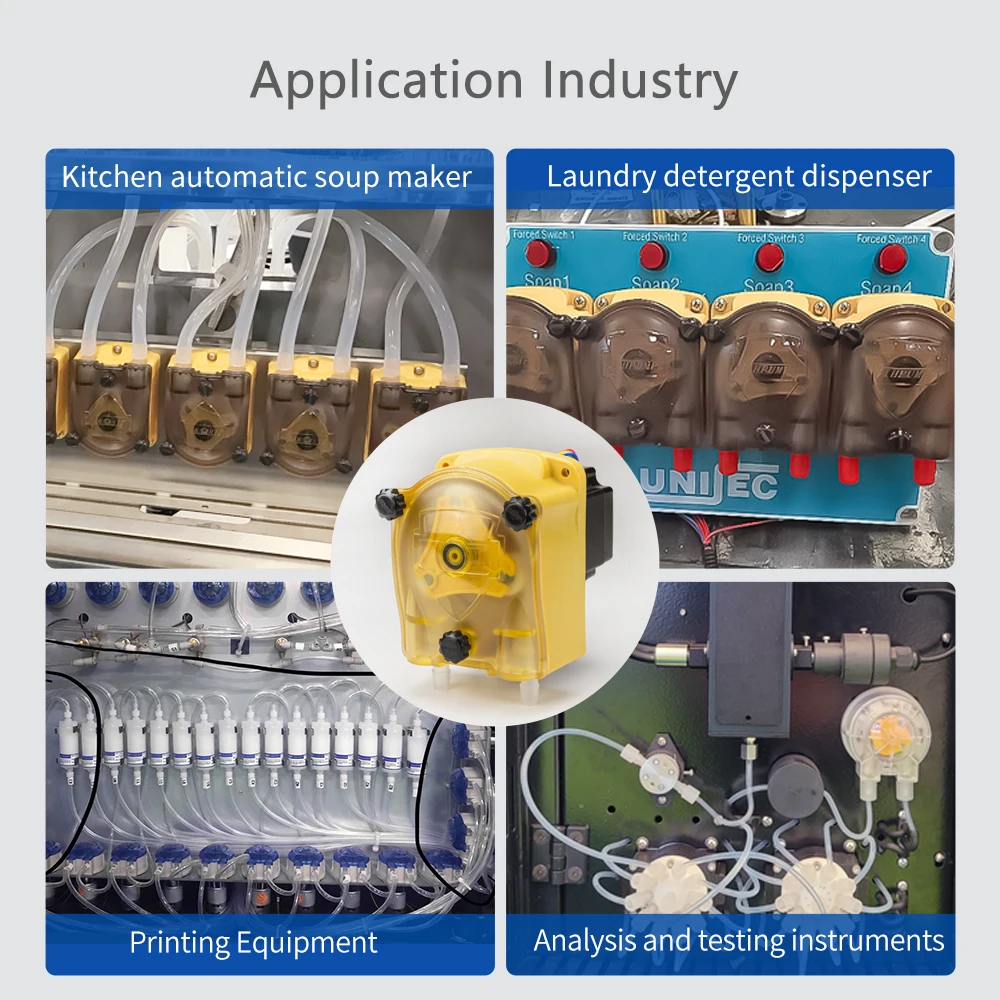

Common Applications: food machinery , analytical instruments , printing equipment , detergent delivery ，Drip irrigation system，food and beverage etc.
Applications Industry: detergent delivery, analytical instruments, printing equipment, food machinery, kitchen equipment, laundry equipment etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

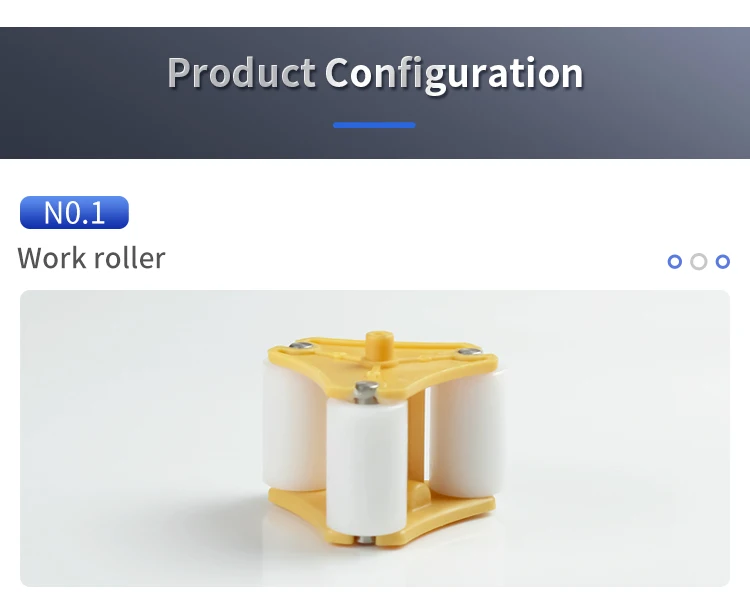

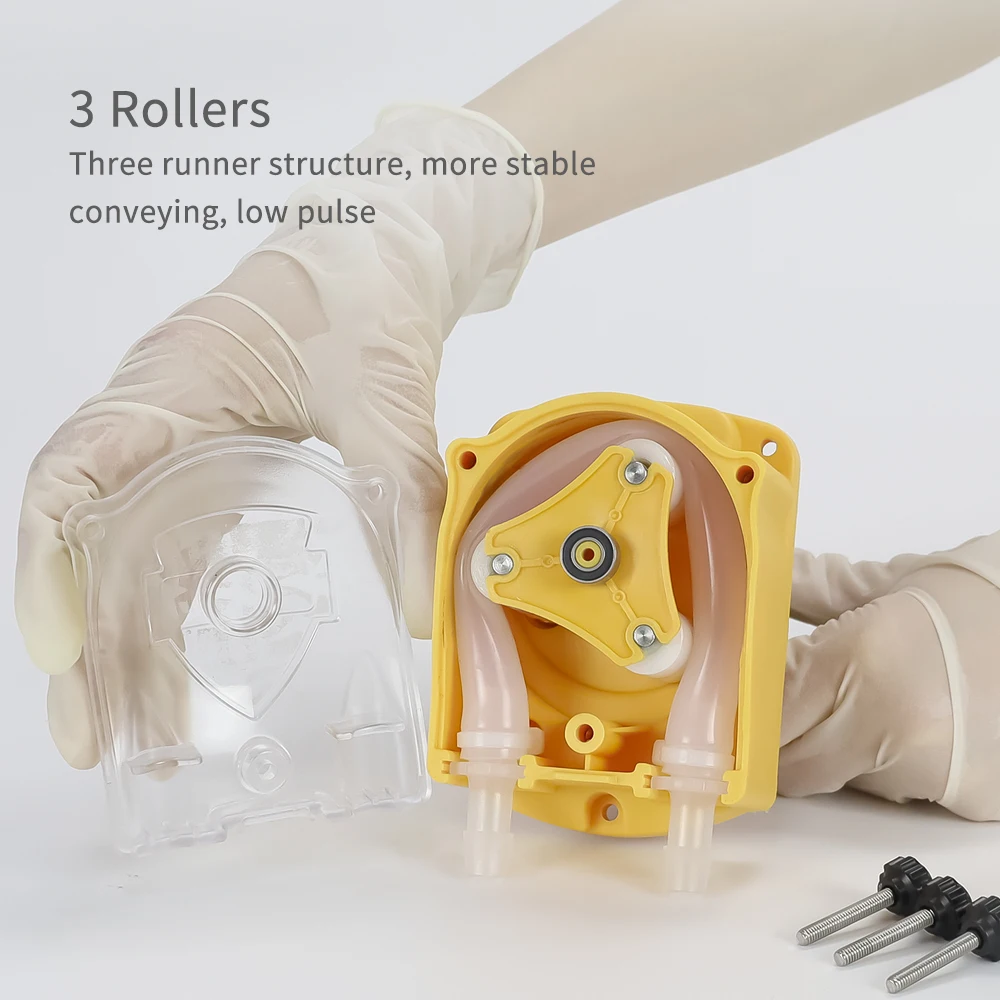

Work roller: Runner structure, more stable transmission, low pulse.Imported wear-resistant self-lubricating bars and rollers processed by high-precision CNC lathes are more accurate and wear-resistant.

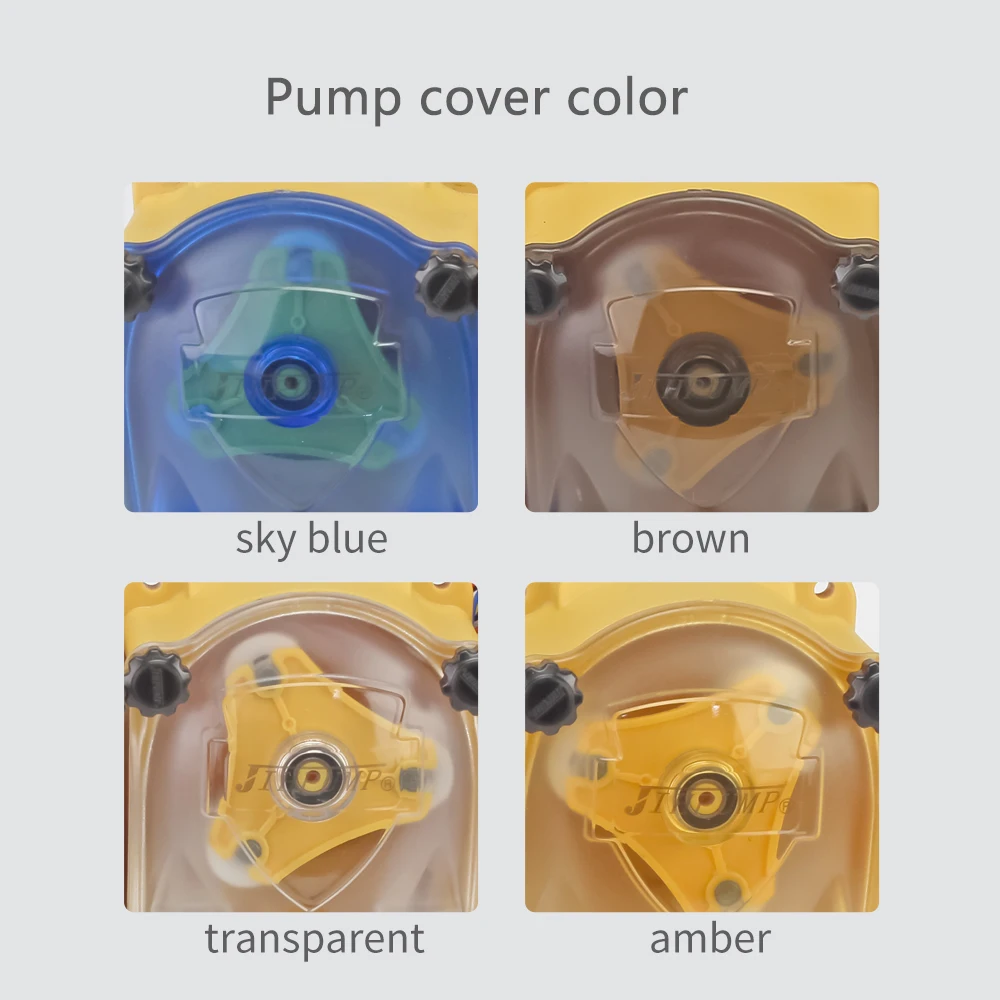

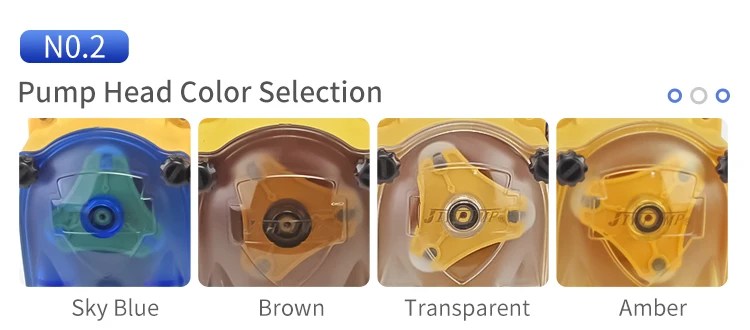

Pump Head Color Selection: Translucent pump cover, easy to observe the operation of the pump.Multiple color pump covers meet the matching of different colors, which is convenient for visual management.

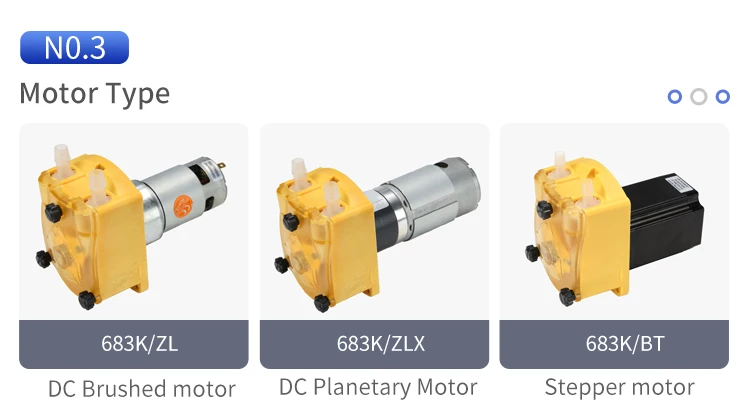

DC Brushed motor: The accuracy requirements are not high, and the operation is performed in a short time interval, otherwise the temperature will burn out the motor, and the price is cheap. It can be equipped with a JIHPUMP DC speed control board to fine-tune the speed.
DC Planetary Motor: DC planetary Motor its accuracy is around 3~5%; It is suitable for running at interval, otherwise, it may be burn out because of high heat and temperature; Low cost; With JIHPUMP DC motor driver,clients can fine-tune its speed.DC planetary motors have a slightly longer service life than DC Geared motors.
Stepper motor: Stepper motor Accurate flow, long working life, suitable for long-term operation, you can choose any speed control board of JIHPUMP, the price is higher.

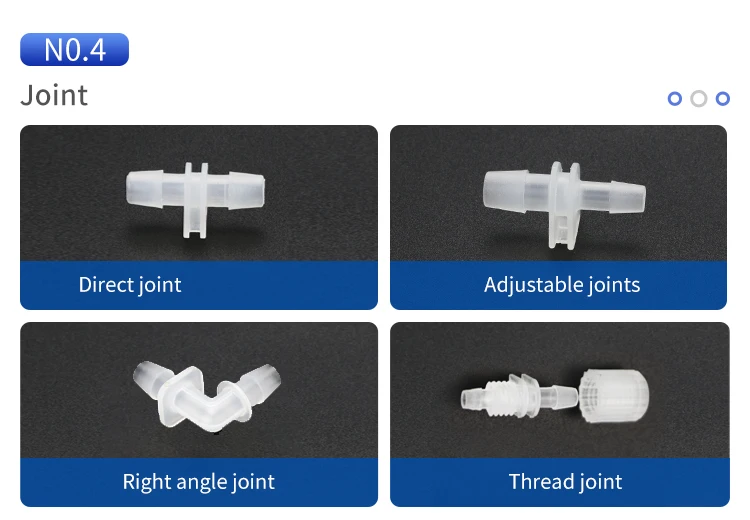

Joint Name | Inner tube size | Connect Size | Connection Description |
Direct joint | internal diameter:6.4mm/7.9mm | internal diameter:6.4mm/7.9mm | Connect the hose |
Reducer joint | internal diameter: 6.4mm to 7.9mm | internal diameter: 6.4mm to 7.9mm | |
Right angle joint | internal diameter: 6.4mm/7.9mm | internal diameter: 6.4mm/7.9mm | |
Thread joint | internal diameter: 6.4mm/7.9mm | internal diameter: 6mm/8mm wall thickness: 1mm | Connect the hose or hard tube |
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
Chongqing Jieheng Peristaltic Pump Co., Ltd. is a leading peristaltic pump manufacturer in China and an expert in peristaltic pump fluid technology solutions. Specializing in the R&D, manufacturing and sales of peristaltic pumps, focusing on providing peristaltic pump solutions for OEM customers, with more than 16 years of application experience, more than 1 million pumps have been sold, jihpump has 60+ rich and mature product series, which can meet the needs of various Various industry application needs, and can provide customized development services, we are always ready to find a suitable solution for your needs, please contact us, thank you!
Packaging&Shipping
JIHPUMP Standard export packing for peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
