CACC A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core
CACC-A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core

CACC A Transformer Core For UPS Reactor Core For Inverter/Iron Based Amorphous C Type Cut Core/Nanocrystalline Core Split Core

Share on (1601043107902):


Price:$0.01 - $0.03

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Place of Origin
China
Guangdong
Brand Name
FX
Model Number
Split Core-Amorphous CACC-0.9~117
Type
Soft
Composite
Iron Based Amorphous
Shape
Block
Application
Industrial Magnet
Tolerance
±1%
Processing Service
winding
Grade
Iron Based Amorphous
Delivery Time
15-21 days
Saturation induction Bs(T)
1.56
Curie temperature ℃
400
Crystallization ℃
515
Hardness Hv
960
Density g/cm³
7.18
Resistivity  μΩ·cm
130
Magnetostriction λs
27*10-6


Amorphous alloy is a new soft magnetic material. It is produced through the advanced technology of rapid solidification of molten metal at a cooling rate of about a million C/sec. During this process the metal is rapidly quenched as a form of ribbon with 25-35 ym thickness, and the micro-structure of the alloy is the amorphous due to the high quenching rate. Iron-based amorphous ribbon has many advantages, such as high permeability, high saturate induction, high electrical resistivity, high density, Iow core loss and good stability. It can replace the materials of silicon steel, permalloy and ferrite. It is widely used in electronics products that high accuracy and good stability are the most required.

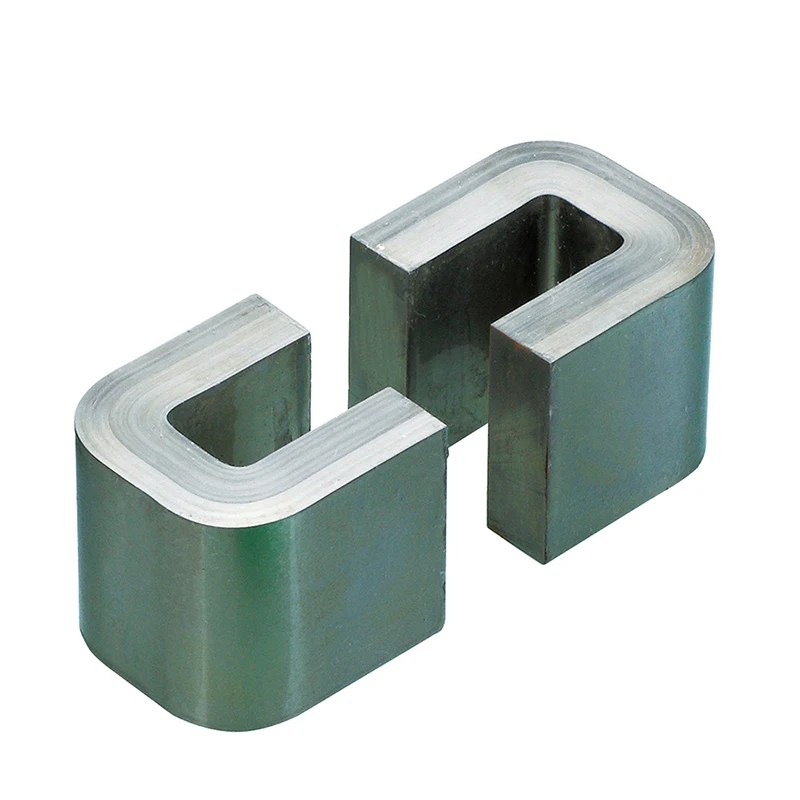

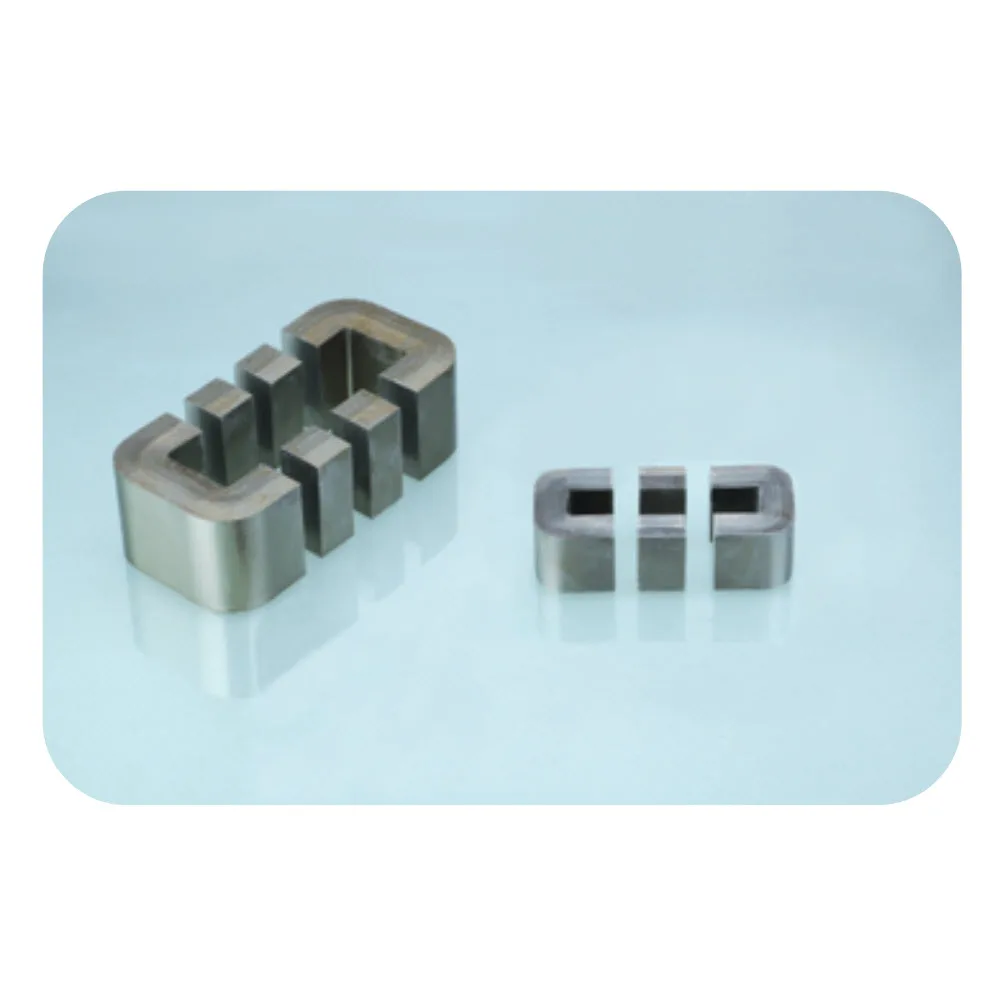

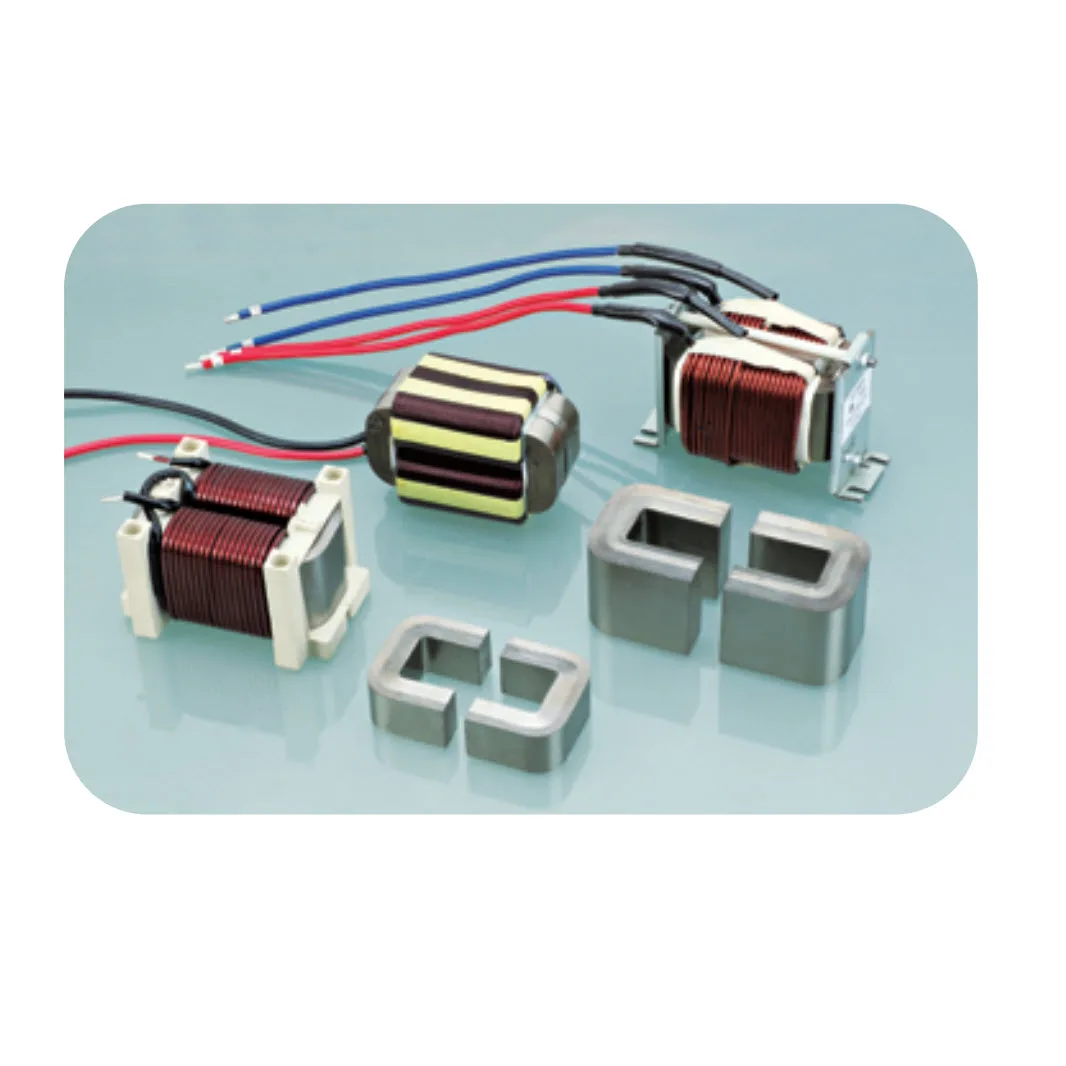

Amorphous C-Type Split (Cut) core is formed by wrapping amorphous strip around the desired shape mold, and then after heat treatment, it is divided according to the needs of the drawing.

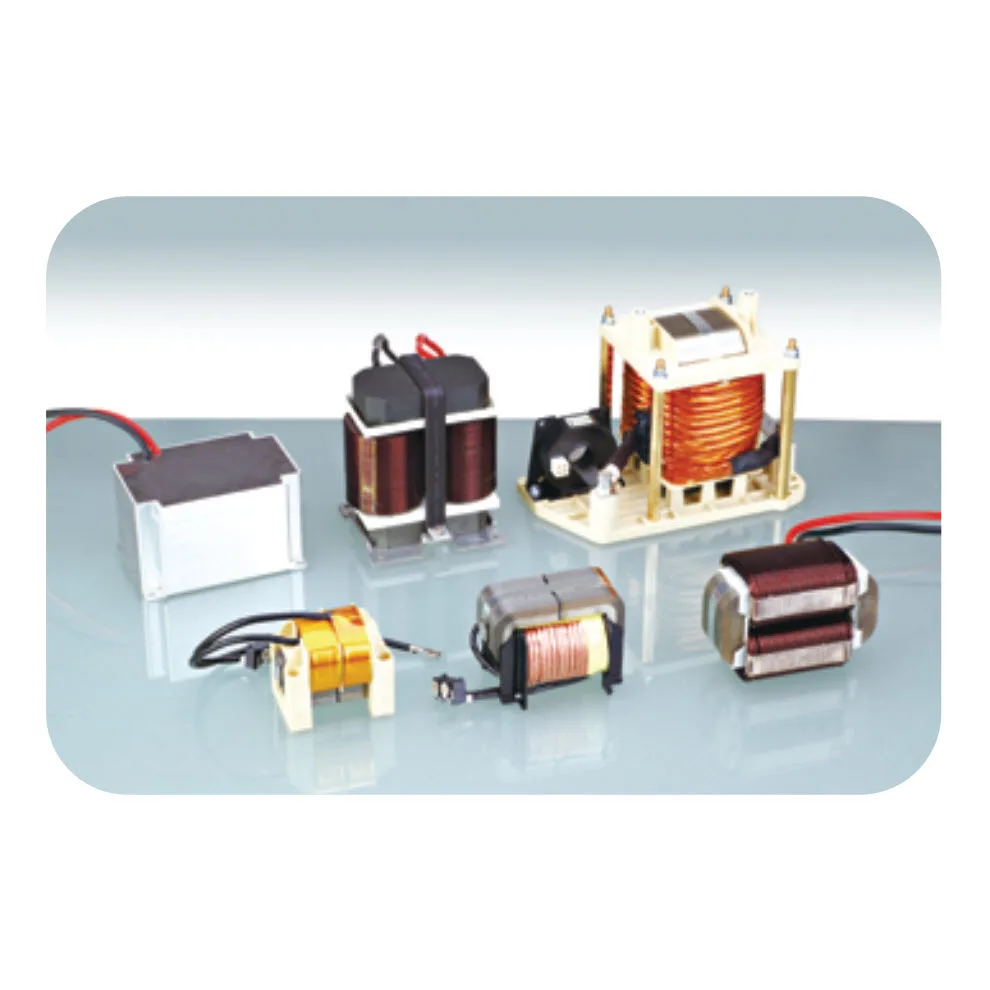

Application
Reactor cores for PV inverter
Filter reactor of high-frequency super switching power supply
Mid-high frequency switching power supply
Major transformer of UPS power supply


Characteristics
High saturate induction--Reducing core volume
Rectangular structure--Easy for coil assembling

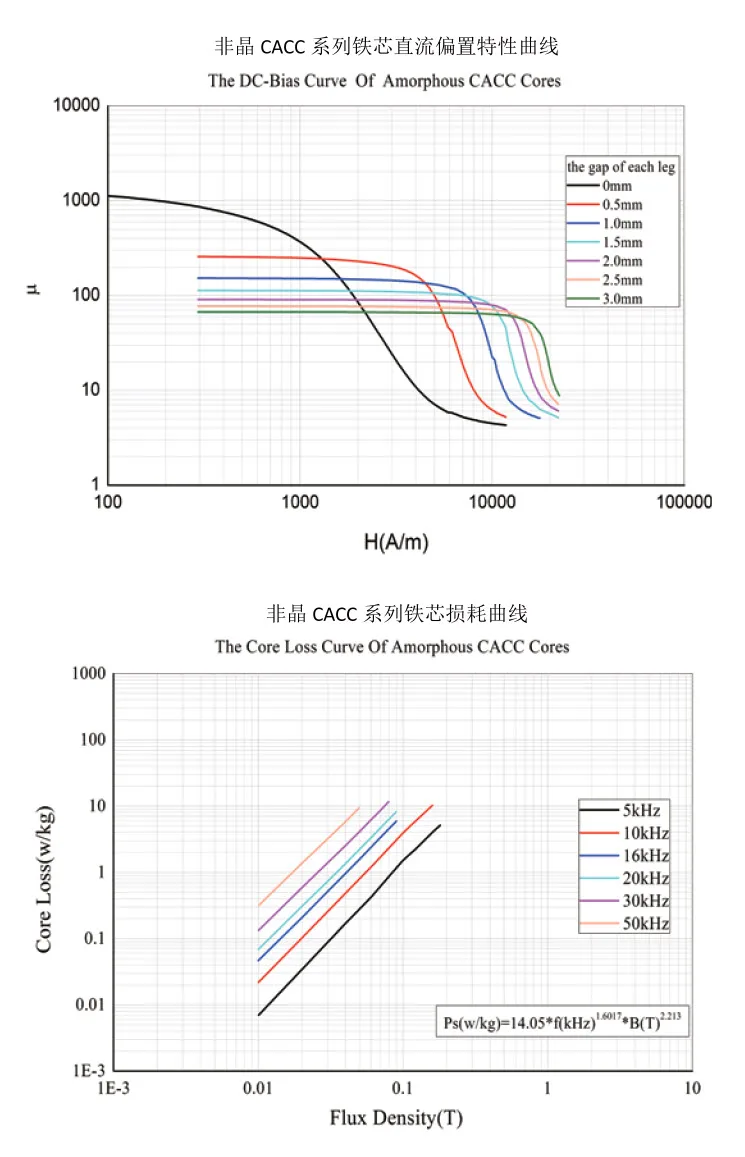

Core Cutting--Good for anti-DC-bias-saturation
Low core loss-- anti-termperature-rising (1/5-1/10 compared to silicon steel)
Good stability--Stable working from -50'C to 130'C

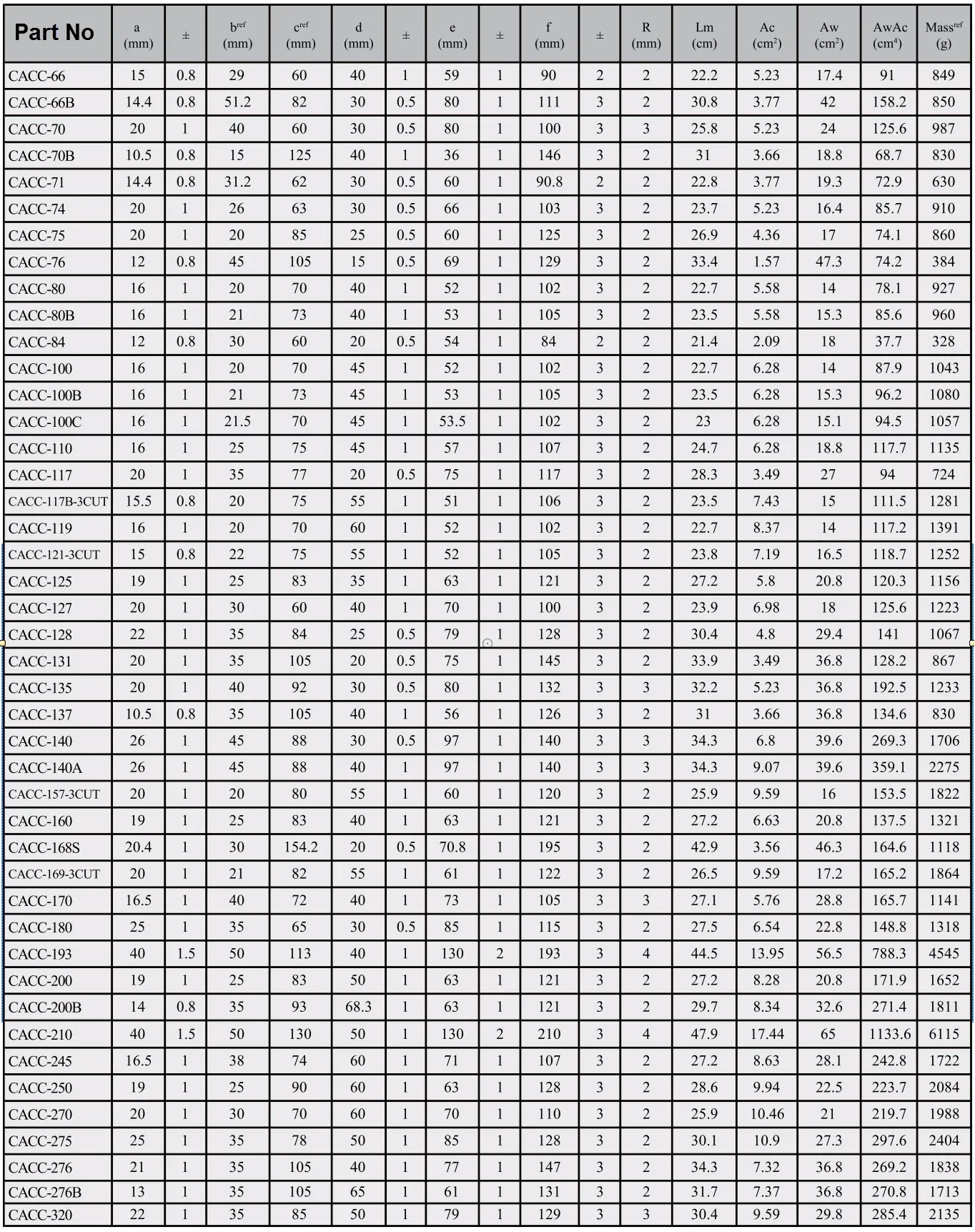

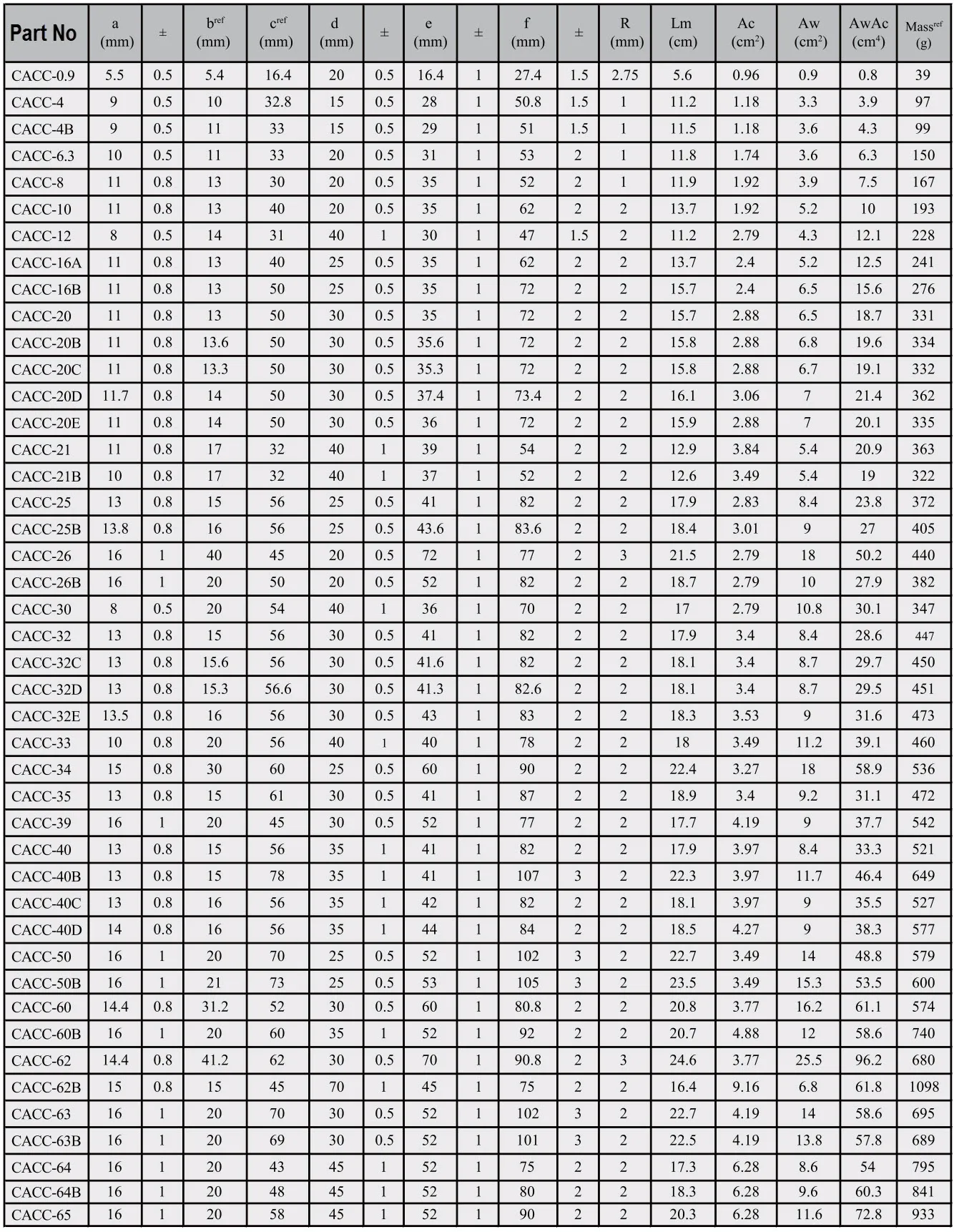

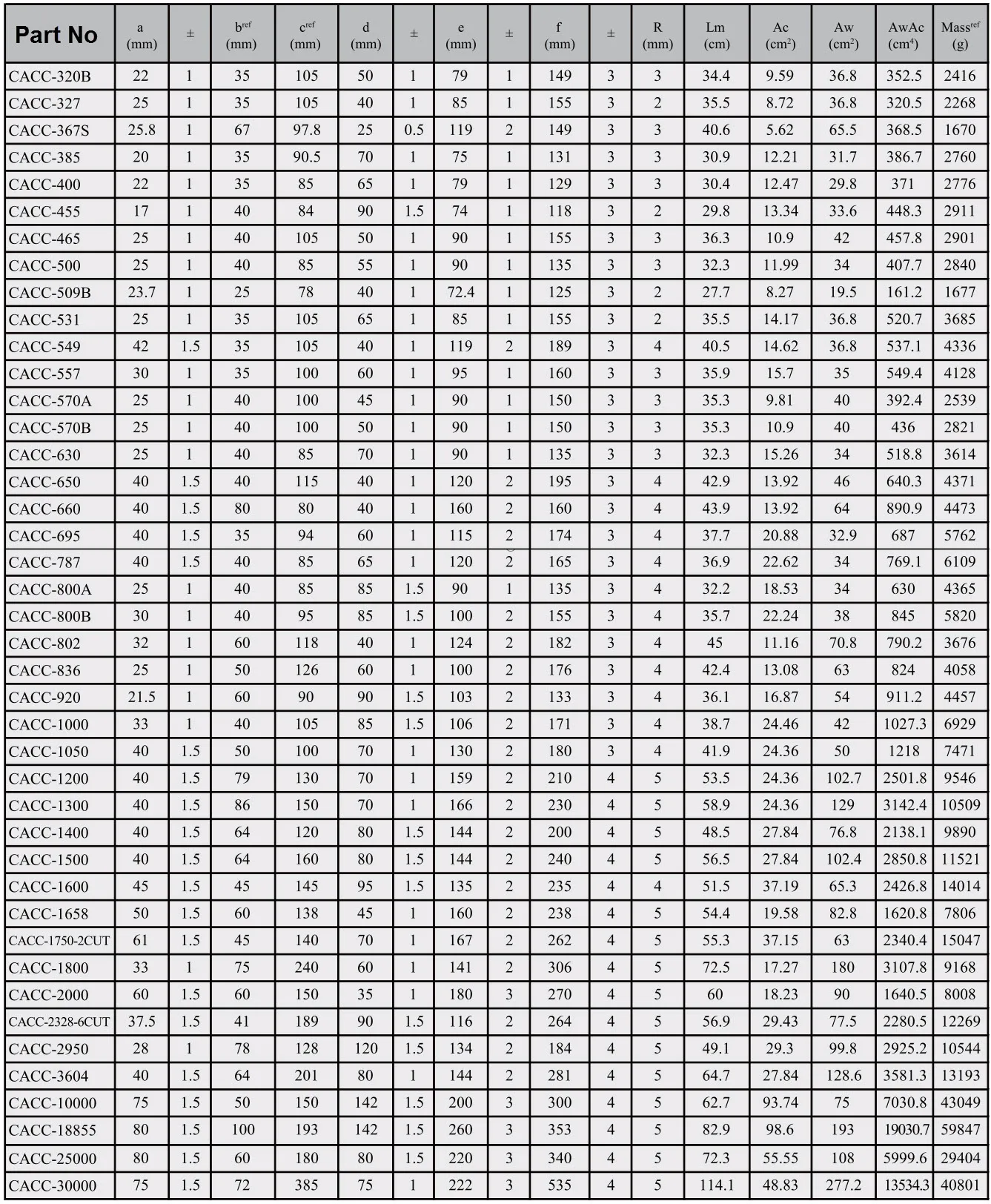

Amorphous C Cores Specification sheet

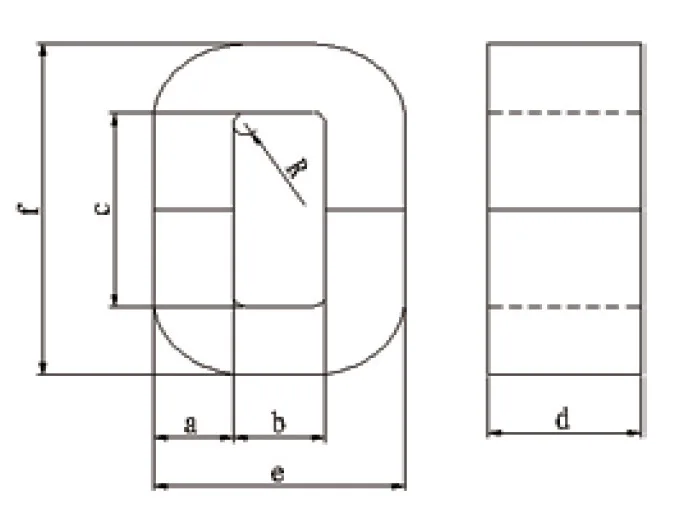

commentary
a-core build;
b-window width;
c-window height;
d-strip width;
e-core width;
f-core length;
Lm-length of magnetic path;
Ac-section area;
Aw-window area;
AwAc-Area product;
Mass-weight

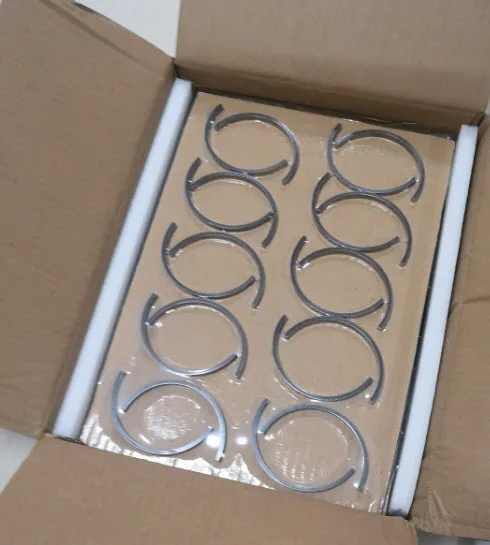

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Dongguan Feixia magnetoelectric Co., Ltd
Address: 2 muchang street, shilong town, dongguan city, guangdong province, China
Email: tfw13728469619@163.com
Mobile phone: +86 13728469619 WhatsApp:+86 13728469619
Contact person: tang xihua(mount hua)


FAQ


1. who are we?
We are based in Guangdong, China, start from 2019,sell to North America(30.00%),Mid East(30.00%),Western Europe(20.00%),Oceania(10.00%),Southeast Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sendust Core, FeSi Core, MPP Molypermalloy Powder Core, Manganese Zinc Ferrite Core,Nanocrystalline core/Amorphous core/Electrical steel coil core /EI UI type electrical steel Motor And Motor Accessories

4. why should you buy from us not from other suppliers?
Have a strong r & d technical team and advanced production equipment and inspection equipment and testing personnel.Can be customized according to customer requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese,Arabic
