POWTRAN 0.75kw 1.5kw 2.2kw 5.5kw Solar Water Pump Inverter DC AC 220v 380v MPPT Solar Inverter without Battery
- Category: >>>
- Supplier: Guangdong Powtran Power Electronics Co. Ltd.
Share on (1601043553282):
Product Overview
Description
Product Overview
PI500-S Solar Pump inverter
P1500-S series solar inverter special for PV water pump adopts the highaccuracy fast MPPT algorithms, tracking the PV array output by the maximum power point,driving the pump motor as much as possible to meet various pumping applications. The solarinverter special for PV water pump can support AC input besides support PV array DC input.When the PV array can not drive the motor or does not have output, it can also accept the gridDC input or other AC motor to supply the power to meet various emergency needs.P1500-S series solar inverter special for PV water pump provides fullprotection, maximizing the life of motor and pump.
Technical Features
- Built-in high precision PV array maximum powerpoint tracking
- MPPTalgorithms
- Dry running mode monitoring,treatment

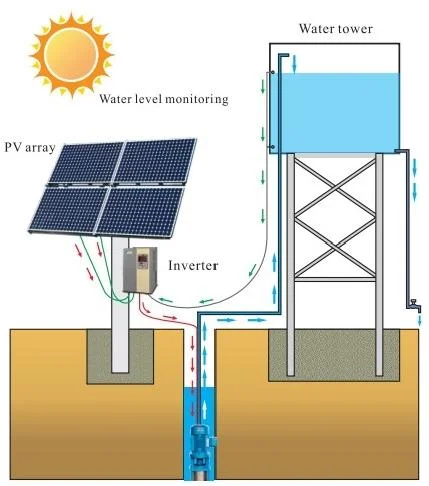

- Tank water level control
- Accept DC/AC input
- LED displays the real time situation and the parameter of system
- Based on RS485 real time remote control system
- Fast installation design,no need extra maintenance
- Built-in full protection and diagnostic mechanism
- With AC-DC automatic witching function
- Auto switch between DC and AC can be realized through auto switcher for PI500A-S and PI500-S solar inverters only.
- Built in communication function Rs485
- External GPRS device optional for remote monitoring and parameter setting

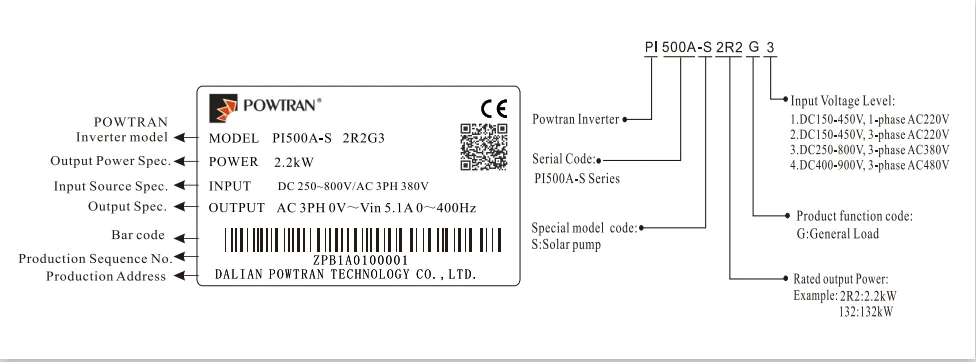

Nameplate
Specification
| Items | Specification | |
| Power Input | Input AC voltage frequency | AC 1PH 220V(-15%)~240V(+10%) AC 3PH 220V(-15%)~240V(+10%) AC 3PH 380V(-15%)~440V(+10%) AC 3PH 480V(-15%)~480V(+10%) |
| Recommend solar input DC voltage range | G1/G2:DC 150~450V; G3:DC 250~800V G4:DC 400~900V | |
| Control system | Control system | High performance vector control inverter based on DSP |
| Control method | V/F control, vector control W/O PG | |
| Over load capability | G type:rated current 150%-1 minute, rated current 180%-2 second | |
| Maximum frequency | 1: Vector control:0~300Hz; 2: V/F control: 0~3200Hz | |
| Protection function | Inverter protection | Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, losing phase protection(optional), communication error, PID feedback signal abnormalities, PG failure and short circuit to ground protection |
| Protection degree | IP20 | |
| Display | LED display | Display parameters |
| OLED display | Optional, prompts operational content in Chinese/English text | |
| Communication | RS485 | RS485 |

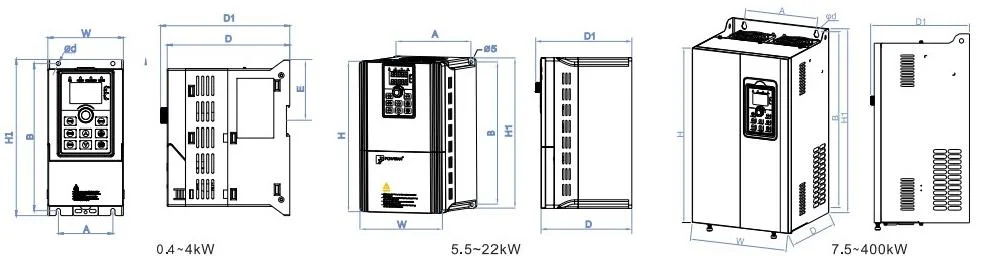

Technical Specification
| Model | Power(kw) | Input Voltage(v) | Current(A) | Dimension (H1*W*D1mm) | Installation Dimension (A*B*dmm) | N.W (kg) |
*PI500A-S 0R4G1 | 0.4 | 1-phase AC 220V±10% DC200~440V | 2.5 | 185*90*154 | 65*174*Ø5 | 1.6 |
*PI500A-S 0R7G1 | 0.75 | 4 | ||||
*PI500A-S 1R5G1 | 1.5 | 7 | 185*90*174 | 65*174*Ø5 | 1.8 | |
*PI500A-S 2R2G1 | 2.2 | 10 | ||||
| *PI500A-S 004G1 | 4 | 16 | 260*120*190 | 90*250*Ø5 | 2.7 | |
| *PI500A-S 5R5G1 | 5.5 | 25 | 300*190*198 | 140*285*Ø6 | 7.2 | |
*PI500A-S7R5G1 | 7.5 | 32 | ||||
PI500-S 011G1 | 11 | 45 | 350*210*198 | 150*335*Ø6 | 9.5 | |
PI500-S 015G1 | 15 | 60 | 400*240*223 | 180*385*Ø7 | 13 | |
PI500-S 018G1 | 18.5 | 75 | ||||
PI500-S 022G1 | 22 | 90 | 520*300*283 | 220*500*Ø10 | 41.2 | |
*PI500A-S 0R4G2 | 0.4 | 3-phase AC 220V±10% DC200~440V | 2.5 | 185*90*154 | 65*174*Ø5 | 1.6 |
*PI500A-S 0R7G2 | 0.75 | 4 | ||||
*PI500A-S 1R5G2 | 1.5 | 7 | ||||
*PI500A-S 2R2G2 | 2.2 | 10 | 185*90*174 | 65*174*Ø5 | 1.8 | |
*PI500A-S 004G2 | 4 | 16 | 260*120*190 | 90*250*Ø5 | 2.7 | |
*PI500A-S 5R5G2 | 5.5 | 25 | ||||
PI500-S 7R5G2 | 7.5 | 32 | 300*190*198 | 140*285*Ø6 | 7.2 | |
PI500-S 011G2 | 11 | 45 | 350*210*198 | 150*335*Ø6 | 9.5 | |
PI500-S 015G2 | 15 | 60 | 400*240*223 | 180*385*Ø7 | 13 | |
PI500-S 018G2 | 18.5 | 75 | ||||
PI500-S 022G2 | 22 | 90 | 520*300*283 | 220*500*Ø10 | 41.2 | |
PI500A-S 0R7G3 | 0.75 | 3-phase AC 380±10% DC350-780v | 2.5 | 185/90/154 | 65/174/∅5 | 1.6 |
| PI500A-S 1R5G3 | 1.5 | 3.8 | ||||
| *PI500A-S 2R2G3 | 2.2 | 5.1 | ||||
| *PI500A-S 004G3 | 4 | 9 | 185/90/174 | 65/174/Ø5 | 1.8 | |
| *PI500A-S 5R5G3 | 5.5 | 13 | 260/120/190 | 90/250/Ø5 | 2.7 | |
| *PI500A-S 7R5G3 | 7.5 | 17 | ||||
| *PI500A-S 011G3 | 11 | 25 | ||||
| *PI500A-S 015G3 | 15 | 32 | 270/168/180 | 153/265/Ø5 | 5.8 | |
| *PI500A-S 018G3 | 18.5 | 37 | ||||
| *PI500A-S 022G3 | 22 | 45 | ||||
| PI500-S 011G3 | 11 | 25 | 300/190/198 | 140/285/Ø6 | 7.2 | |
| PI500-S 015G3 | 15 | 32 | ||||
| PI500-S 018G3 | 18 | 37 | 350/210/198 | 150/335/Ø6 | 9.5 | |
| PI500-S 022G3 | 22 | 45 | ||||
| PI500-S 030G3 | 30 | 60 | 400/240/223 | 180/335/Ø7 | 13 | |
| PI500-S 037G3 | 27 | 75 | ||||
| PI500-S 045G3 | 45 | 90 | 520/300/283 | 220/500/Ø10 | 41.2 | |
| PI500-S 055G3 | 55 | 110 | ||||
| PI500-S 075G3 | 75 | 150 | ||||
| PI500-S 093G3 | 93 | 176 | 575/355/328 | 250/555/Ø0 | 58 | |
| PI500-S 110G3 | 110 | 210 | ||||
| PI500-S 132G3 | 132 | 253 | 720/400/368 | 300/700/Ø10 | 72.5 | |
| PI500-S 160G3 | 160 | 304 | 820/480/398 | 370/800/Ø11 | 108 | |
| PI500-S 187G3 | 187 | 340 | ||||
| PI500-S 200G3 | 200 | 380 | ||||
| PI500-S 220G3 | 220 | 426 | ||||
| PI500-S 250G3 | 250 | 465 | 980/705/418 | 550/945/Ø13 | 190 | |
| PI500-S 280G3 | 280 | 520 | ||||
| PI500-S 315G3 | 315 | 585 | ||||
| PI500-S 355G3 | 355 | 650 | ||||
| PI500-S 400G3 | 400 | 725 | ||||
| *PI500A-S 0R7G4 | 0.75 | 3-phase AC480V±10% DC450-890V | 2.5 | 185/90/154 | 65/174/Ø5 | 1.6 |
| *PI500A-S 1R5G4 | 1.5 | 3.7 | ||||
| *PI500A-S 2R2G4 | 2.2 | 5.0 | ||||
| *PI500A-S 004G4 | 4 | 8 | 185/90/174 | 65/174/Ø5 | 1.8 | |
| *PI500A-S 5R5G4 | 5.5 | 11 | 260/120/190 | 90/250/Ø5 | 2.7 | |
| *PI500A-S 7R5G4 | 7.5 | 15 | ||||
| *PI500A-S 011G4 | 11 | 22 |
Remark:PI500A-S 0.4-22KW plastic shell, keyboard with single display,PI500-S 30KW-400KW Iron shell, Keyboard with double display.
