Product Overview

Description



Product Description


 Introduction & Parameter


G202 could be well integrated with most of the electronic locks,gate motors,gate operators.The users could dialthe SIM cardnumberto open thedoor,and no phone charges, no distance limits, no keyfobs,more convenient and friendly thananyother solutions in current market.





























































GSM/4G Frequency

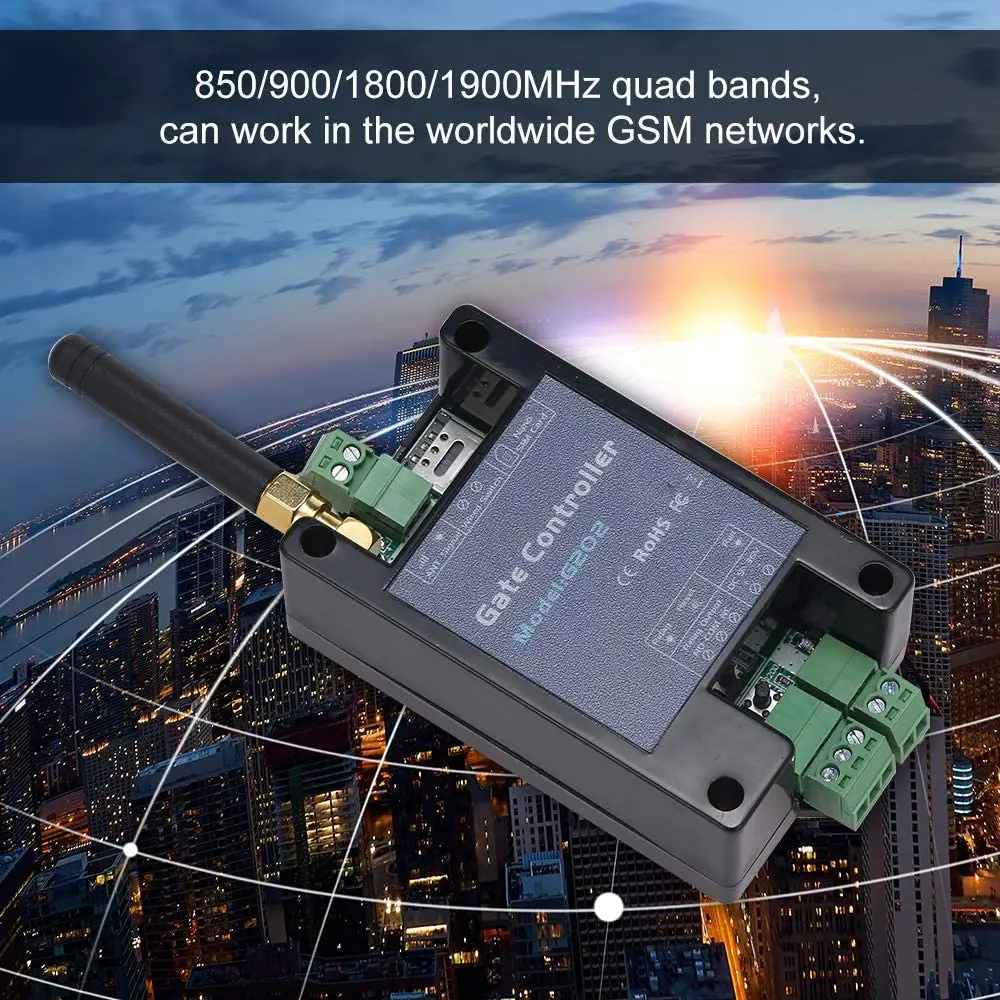

GSM: Quad-band 850/900/1800/1900MHz
4G WCDMA:900/2100MHz UMTS


4G CDMA:850/1900/2000MHz UMTS


4G :850/2100MHz UMTS


DC PowerDC9V– 30V/1A
Power consumptionMax.50mA/Average25mA
SIM CardNanotype,3V
Antenna50ΩSMA
Relay Specification3A/250VAC|20A/14VDC
Relay TypeNO/NC
Relay TimeMax. 0s -9.5 s
Users200
Wired SwitchSupports
Operating Temp-10℃~ + 60℃
Relative Humidity10% ~90%( RH)
Dimension96.5×50×31.5mm
Net Weight88g




Packaging & Shipping

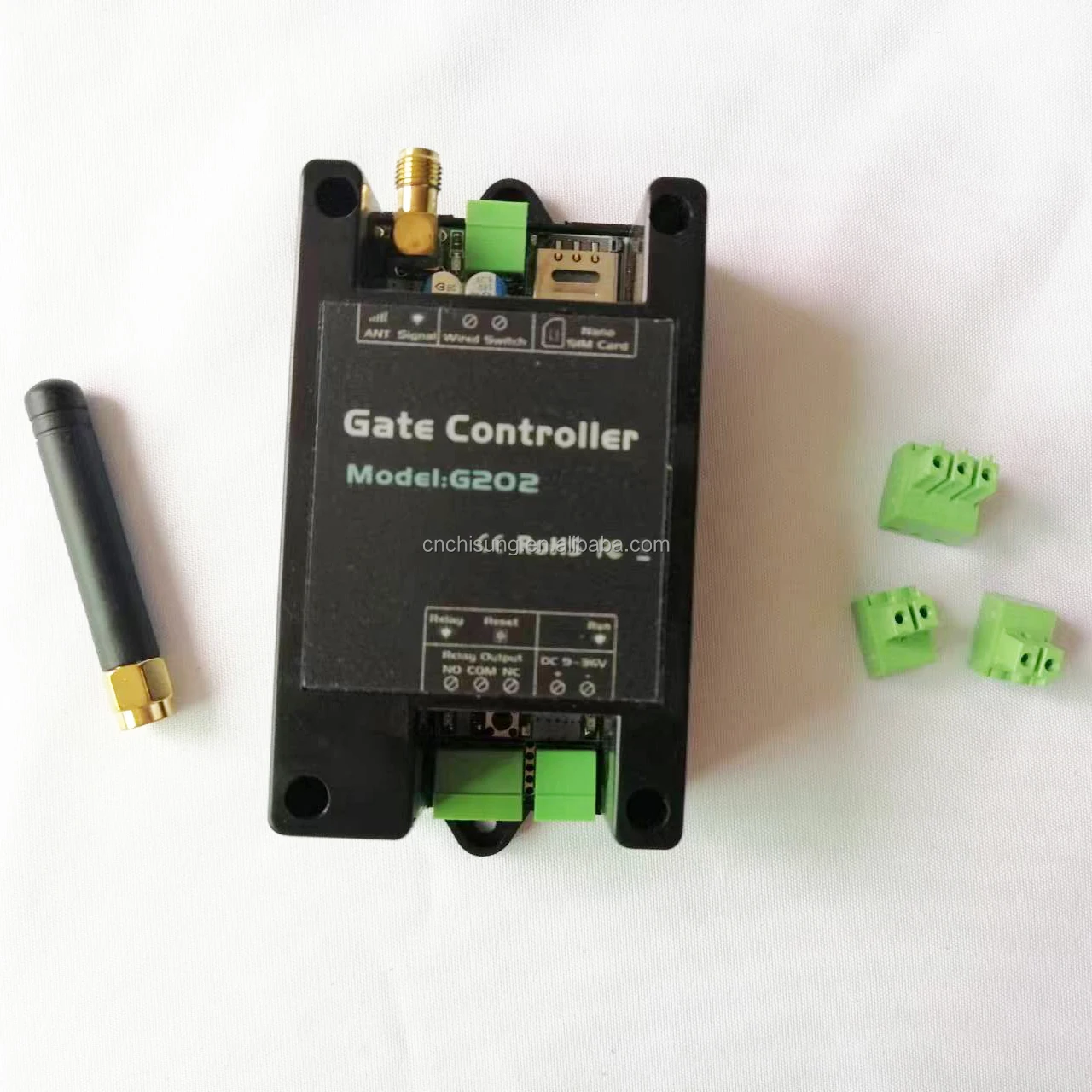

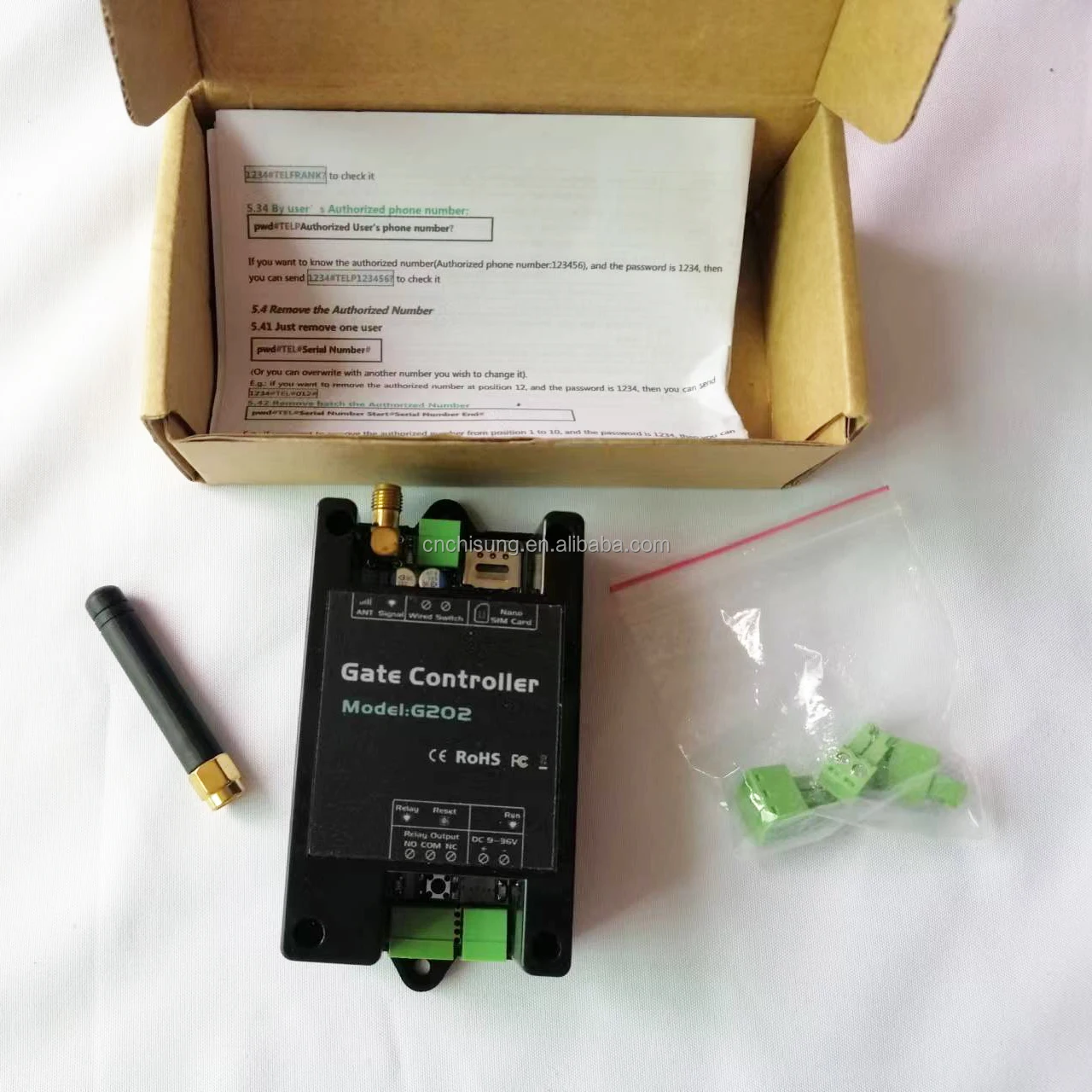

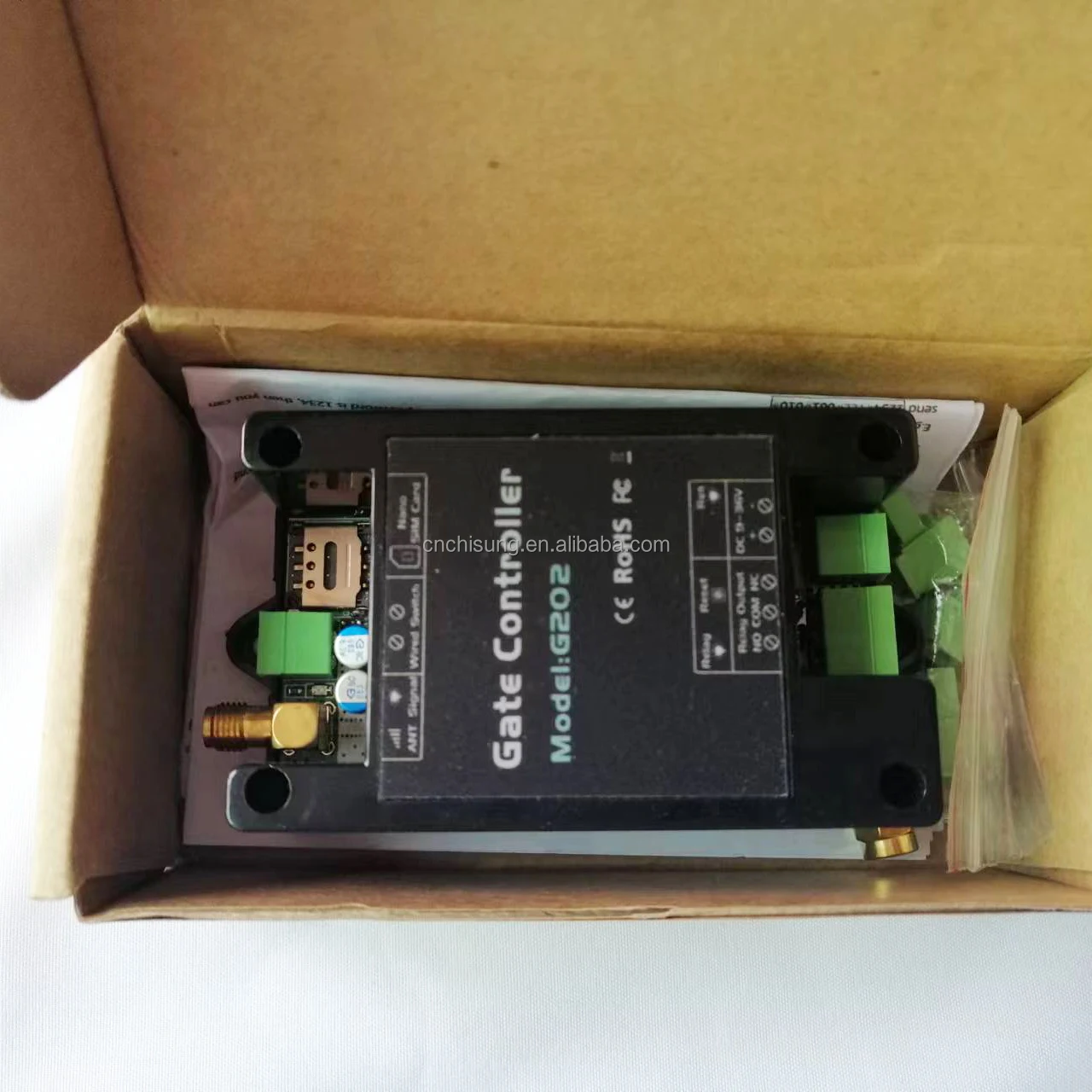

1).The Device *1pcs

2).TheAntenna *1 pcs

3).The Wiring Terminal * 3pcs

4).The Quick Guide Brochure * 1pcs

Notice:The package is WITHOUT Power Adapter and Push Button.The default device only supports GSM.

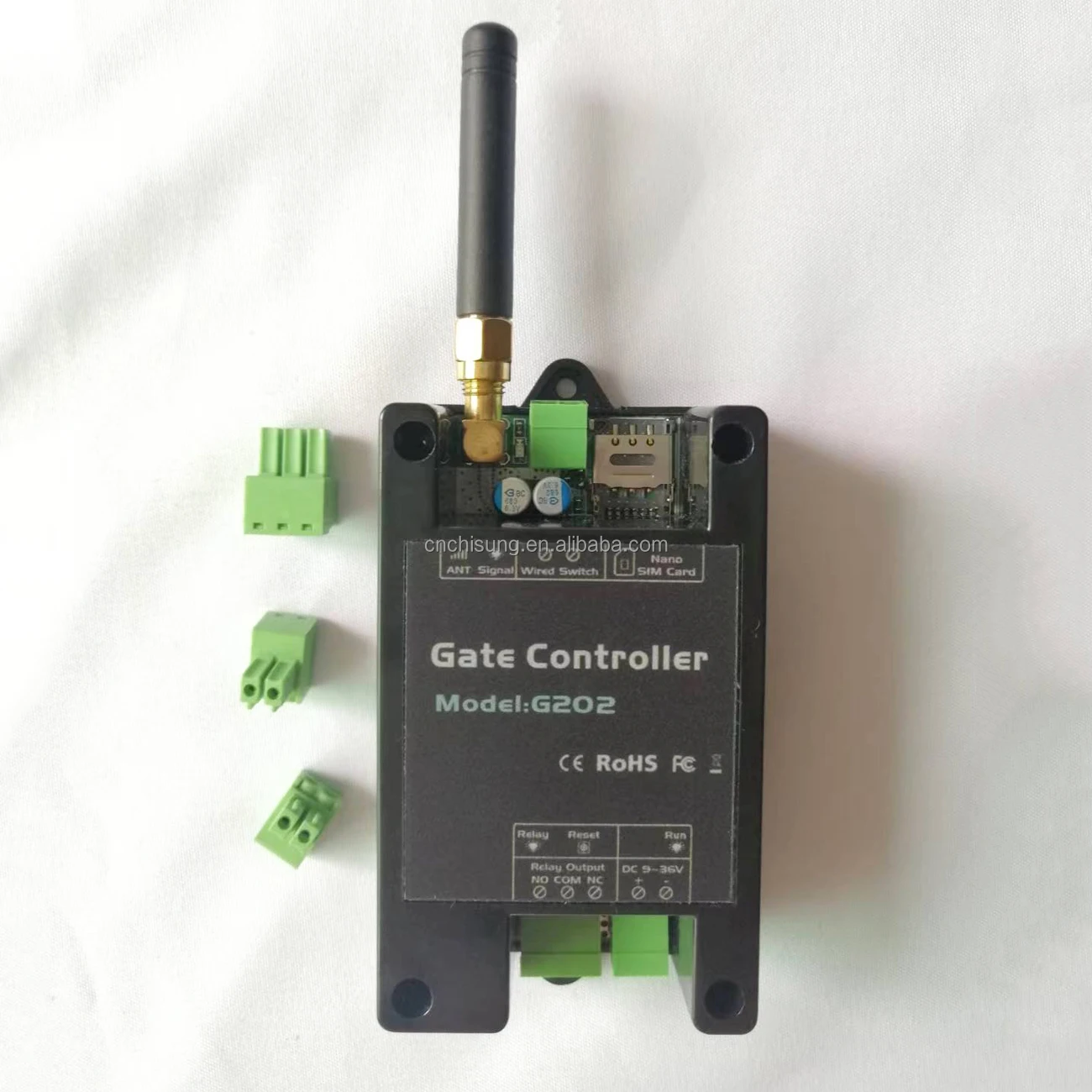

Product display

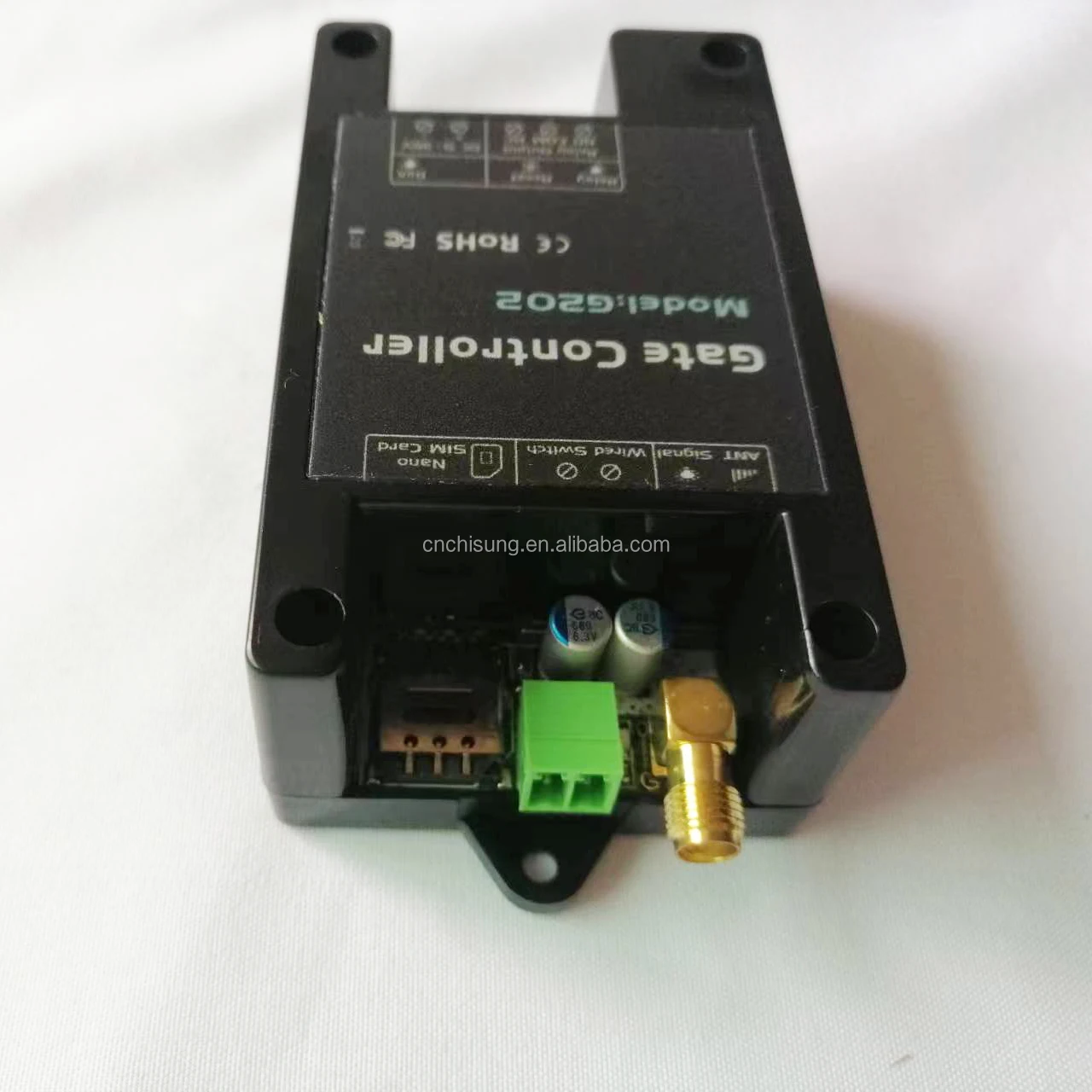

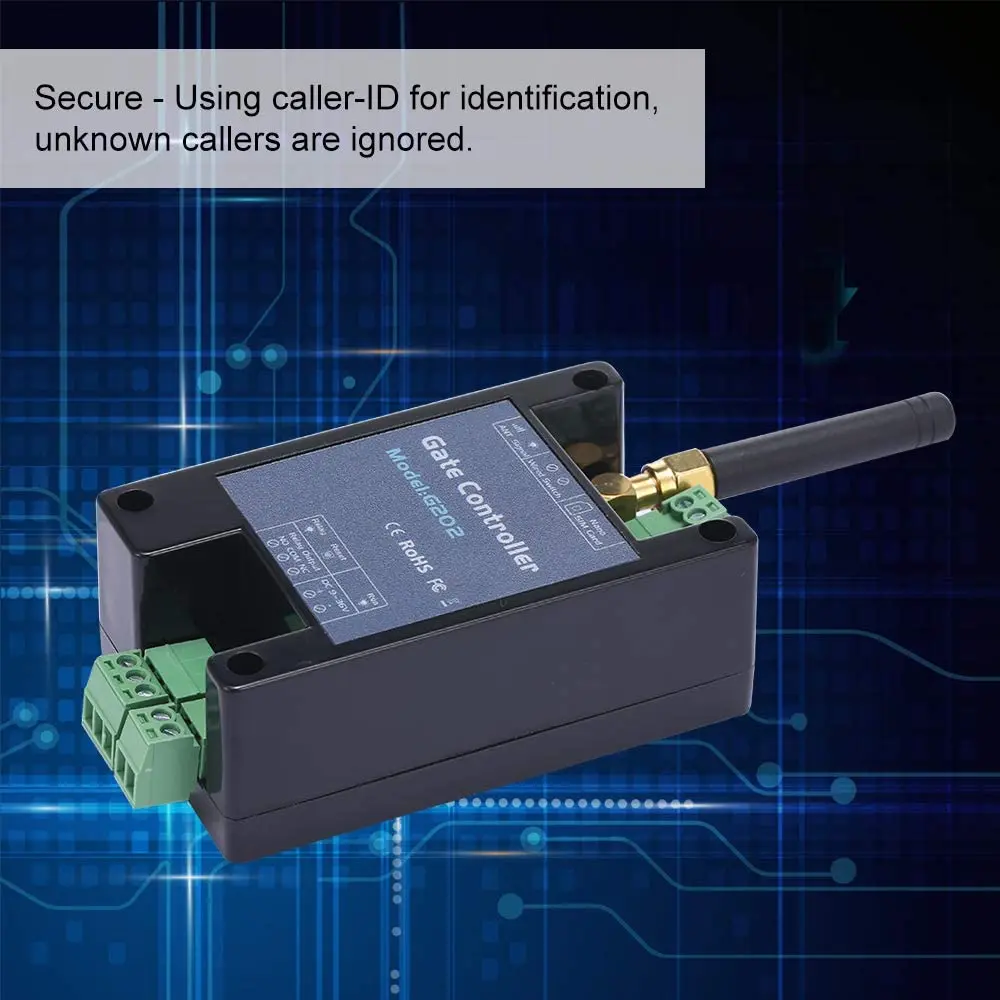

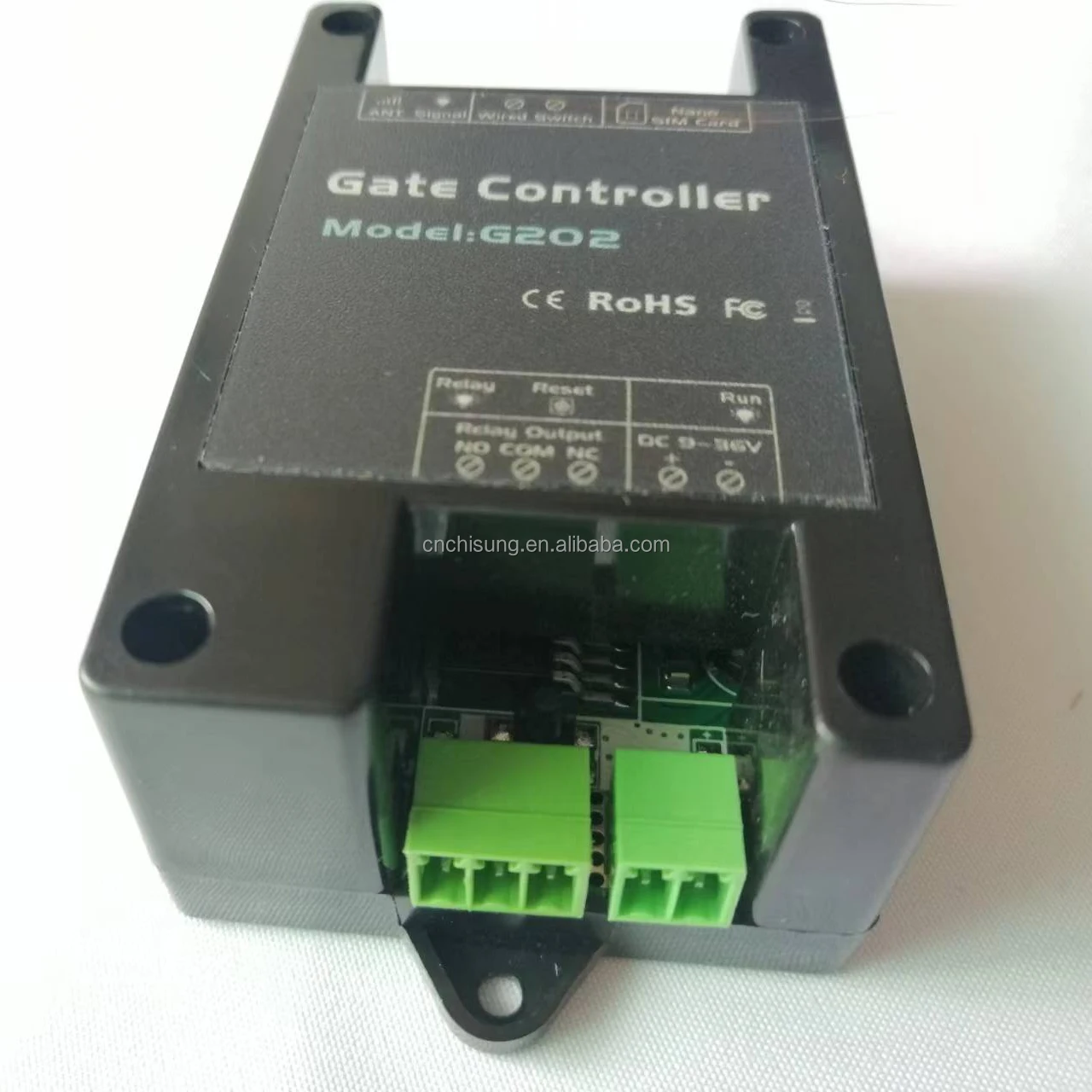

 G202 gate opener 1.jpgG202 gate opener 2.jpgG202 gate opener 3.jpgG202 gate opener 4.jpgG202 gate opener 5.jpgG202 4G.jpgG202 4G-1.jpgG202 4G-2.jpgG202 4G-3.jpgG202 4G-4.jpgG202 4G-5.jpg
