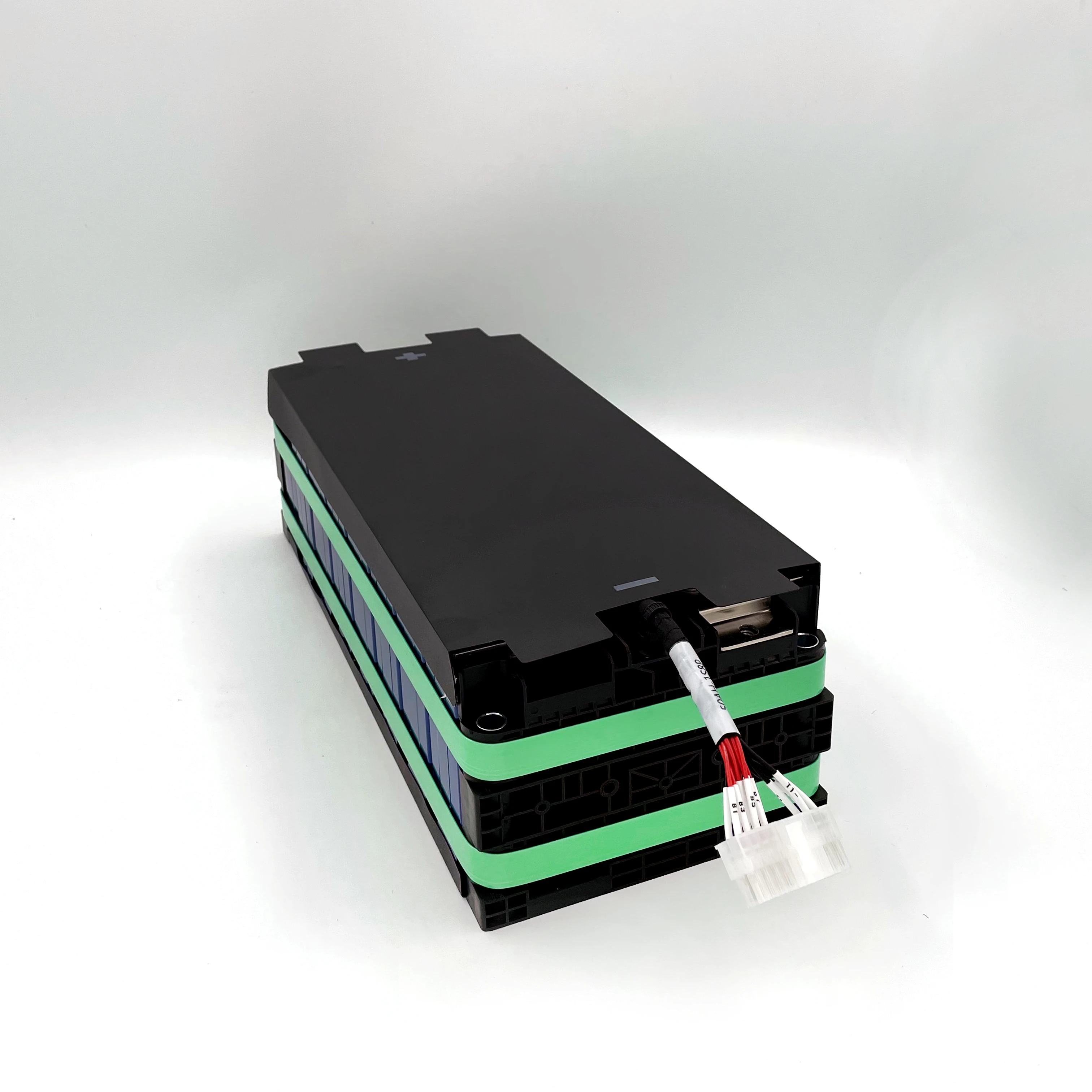

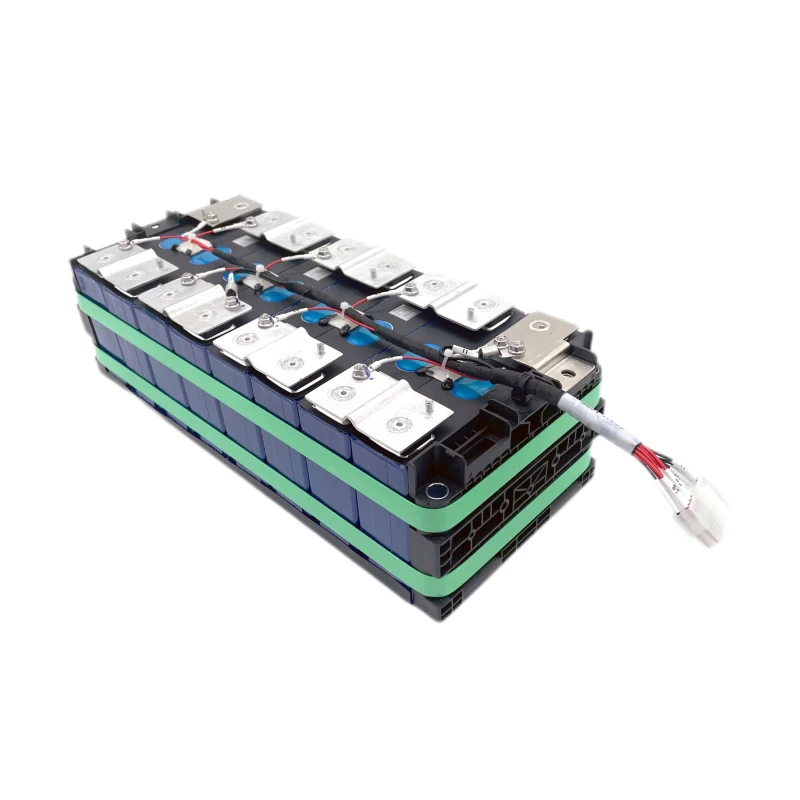

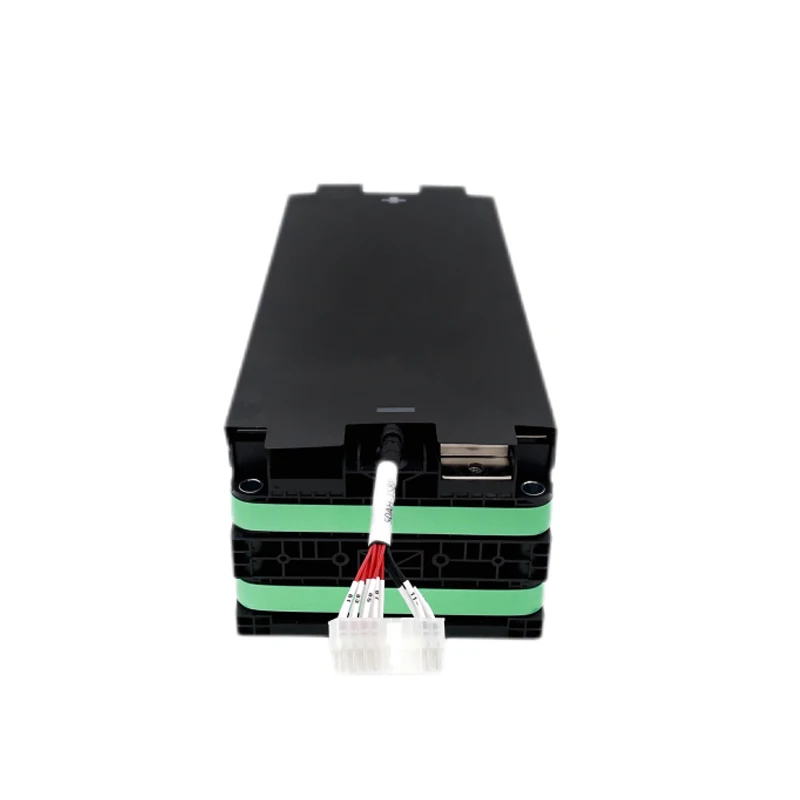

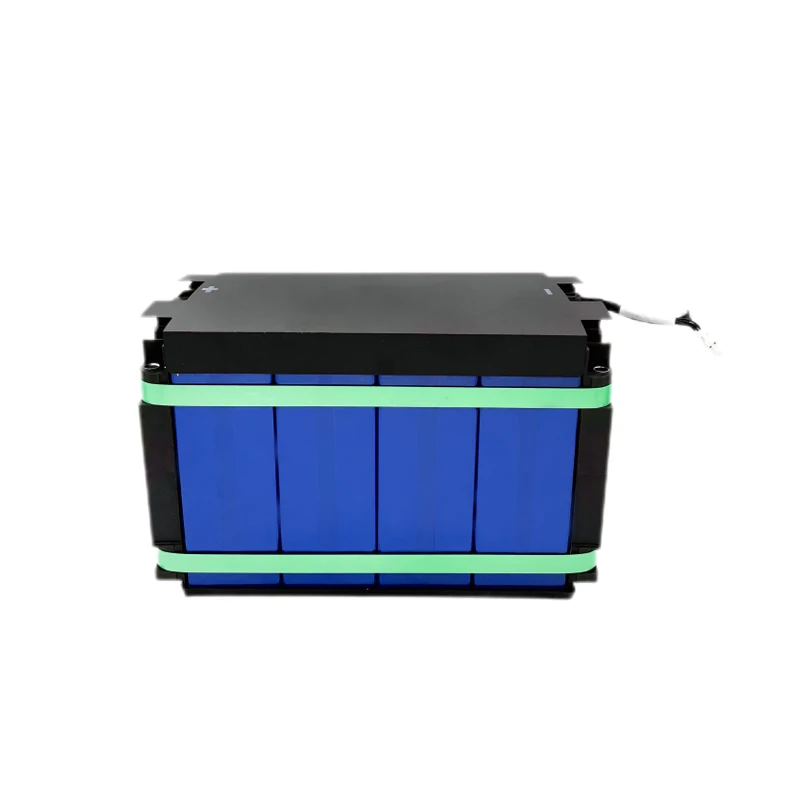

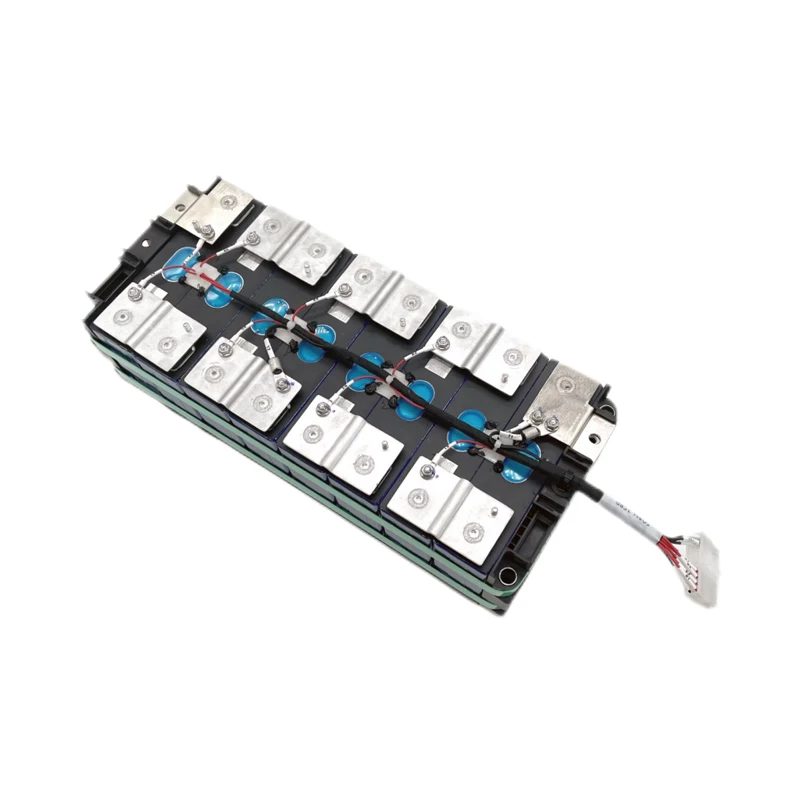

LFP100Ah Banding Lithium Battery Module Energy Storage System Catl Battery Module customized Module
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1601043601207):
Product Overview
Description
Products Description
Product parameter table | ||||||||
No. | Items | STANDARD MODULE | Note | |||||
LFP100Ah 1P8S | ||||||||
1 | Nominal Voltage (V) | 25.6 | ||||||
2 | Operating voltage (A) | min | 20 | T:25±3℃ | ||||
3 | max | 29.2 | T:25±3℃ | |||||
4 | Nominal capacity (Ah) | 100 | 1/3C,100%DOD | |||||
5 | Nominal energy (KWh) | 2.56 | 1/3C,100%DOD | |||||
6 | Group mode | 1P8S | ||||||
7 | Module weight (kg) | 19.74 | ||||||
8 | Maximum continuous charge current (A) | 100 | ||||||
9 | Maximum continuous discharge current (A) | 100 | ||||||
10 | Maximum pulse chare current (A) | 200 | @10S, SOC≤70% | |||||
11 | Maximum pulse discharge current (A) | 200 | @10S, SOC≥30% | |||||
12 | SOC operating range（%） | 10~90 | ||||||
13 | Module cooling method | Natural cooling | ||||||
14 | Module heating method | No | Or heating film | |||||
15 | Temperature detector qty. | 2 | ||||||
16 | Shipping capacity (SOC) | 50%±5 | SOC is consistency in the same batch | |||||
17 | Temp. Condition（℃） | Charge | 0~55 | |||||
Discharge | -20~55 | |||||||
Storage | -30~55 | |||||||
18 | Dimension L （mm） | 273.5 | ||||||
19 | Dimension W （mm） | 177 | ||||||
20 | Dimension H （mm） | 220 | ||||||
21 | Relevant product standard | GB/T 31484—2015 GB/T 31485—2015 GB/T 31486—2015 | ||||||
Product Accessories
Wring&Connector
It is available to customize wiring&connector of connecting battery mdoules with BMS. The wring end of batteyr module will follow module connector and wiring end of BMS terminals can be nude or customized against your BMS.
Connector&PIN Needle
Lithium Storage provides the corresponding connector&PIN Needle to suit our battery modules. Generally, one module will match 1pc connector+12pcs Pin Needles.
Product Application
Company Profile
Certifications
Exhibition
Product packaging
Shipping option | Delivery period | Transportation period |
Air shipment | 5-10 working days | 7-10 days |
Sea shipment | 5-10 working days | 30-35 days |
