1kw to 5kw industry solar energy system 50kw solar power energy system for commercial use china factory manufacture

Product Overview

Description

 Product Description

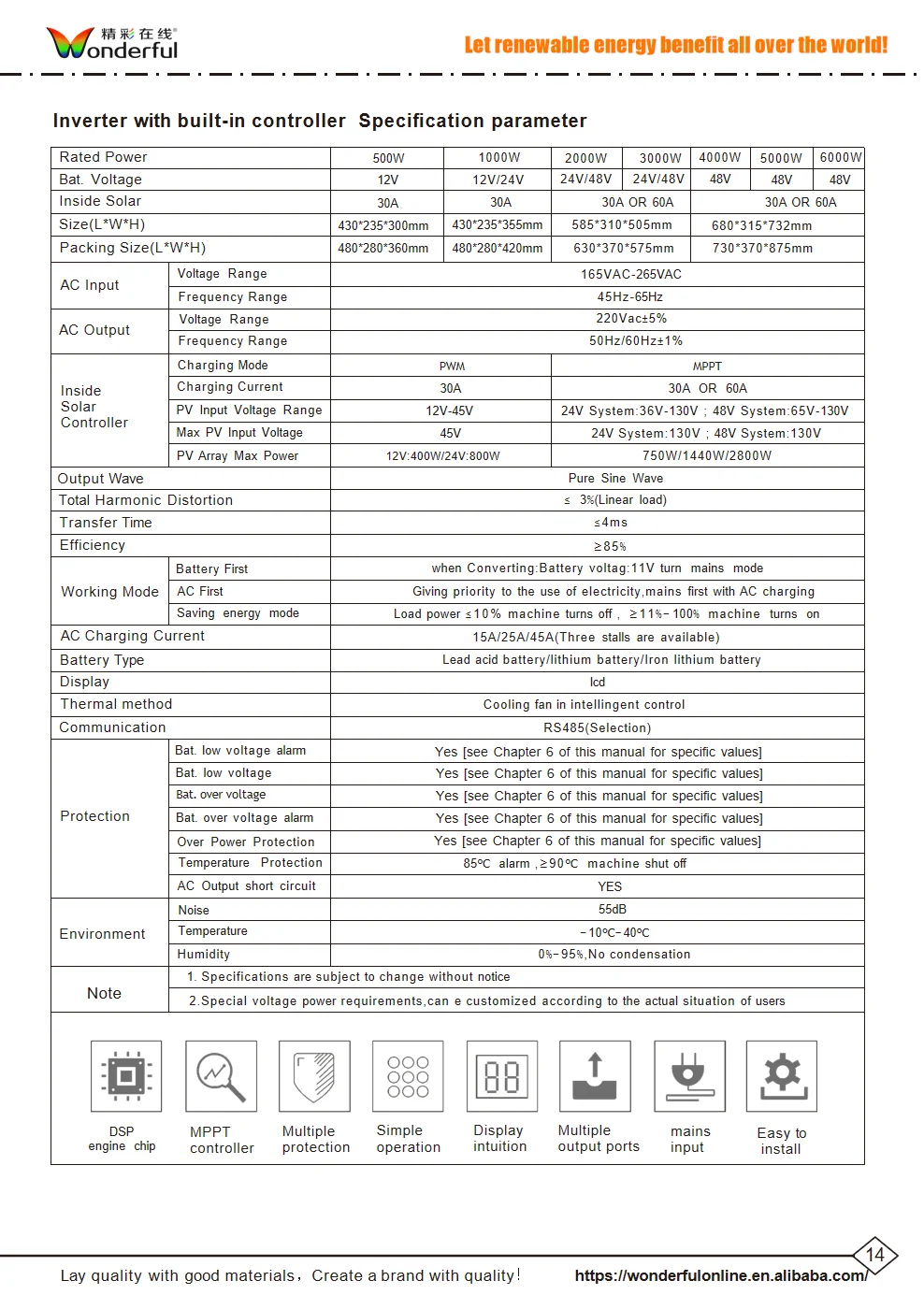

Specifications

Solar Panel
Solar Panel	High efficiency monocrystalline 300W36V 8pcs 4 parallel 2series total 2400W
Lifespan of solar panel	25 years
Solar Controller Charging Mode	MPPT
Charging MAX Current	30A
PV Input Voltage Range	24V
System	36V-130V
Max PV Input Voltage	24V
System	130V
PV Array Max Power	1440W
Power generation	about 8400WH/day(Taking the average daily  light duration of 3.5hr as an example)
With photovoltaic activated lithium battery function
With complementary function of power grid
With mains charging function
AC Input Voltage Range	165VAC-265VAC
AC Input Frequency Range	45Hz-65Hz
AC Charging Current	15A/25A/45A(Three stalls are available)
Transfer Time	≤4ms
Solar Energy System
Battery Type	Lead acid /lithium battery/Iron lithium battery
Battery capacity	8704WH (51.2V170AH 16 series 200A BMS)
Battery voltage	48V
Working Mode available	Battery First/AC First/Saving energy mode
Battery protection	low voltage alarm, low voltage, over voltage, over voltage alarm
Lifespan of battery	6 years
Warranty	2 years
Inside MPPT controller Frequency Inverter integrated control  system
Rated Power	6000W
Output Wave	Pure Sine Wave
25.6V inverter 110V/220V
AC Output Voltage Range	220Vac±5%
AC Output Frequency Range	50Hz/60Hz±1%
5V-USB output: 2	12V-DC output: 2
Display	Lcd
Thermal method	Cooling fan in intellingent control
Over Power Protection
Work temperature	- 10℃- 40℃
Temperature Protection(85℃ alarm ,≥90℃ machine shut off)
Total Harmonic Distortion	≤ 3%(Linear load)
Efficiency	≥85%
Environment Noise	55dB
Accessories	15m Photovoltaic cable +10m AC plug





Animation Demonstration

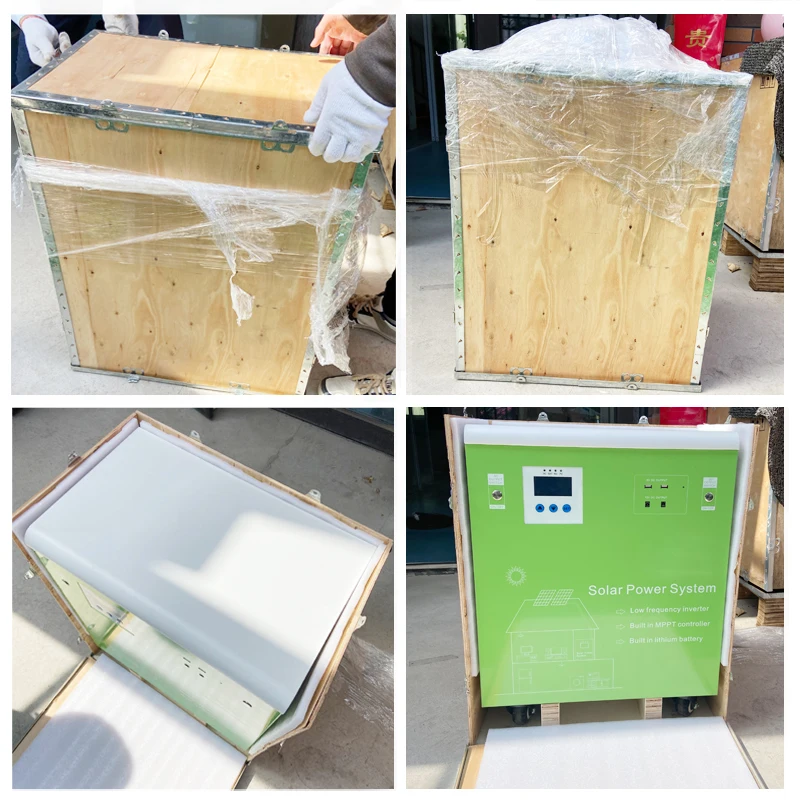

Packing&Shipping

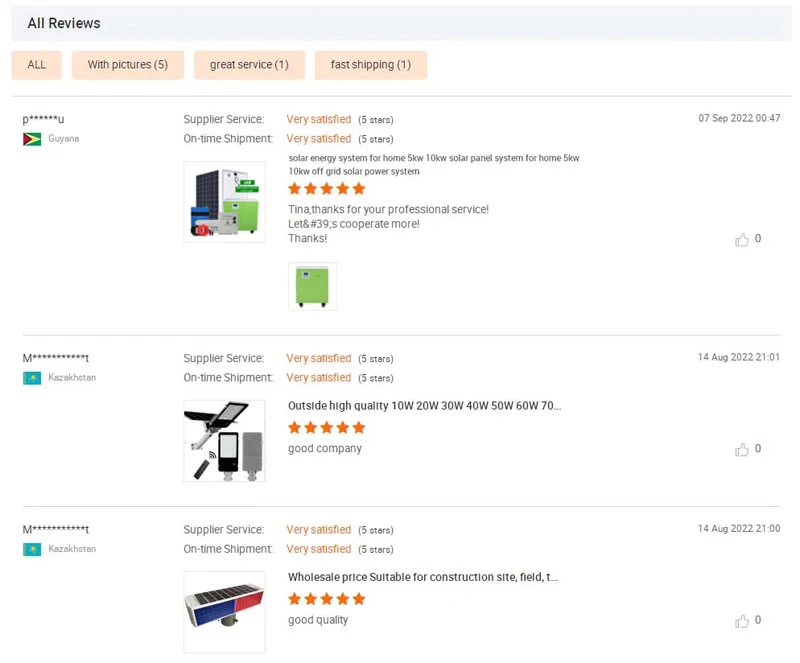

Feedback

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2013,sell to Domestic Market(52.00%),Northern Europe(9.00%),Mid East(5.00%),South America(5.00%),Western Europe(5.00%),South Asia(5.00%),Eastern Europe(5.00%),Southern Europe(4.00%),North America(4.00%),Southeast Asia(3.50%),Eastern Asia(3.00%),Africa(2.00%),Central America(1.60%),Oceania(1.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Solar Energy System, Inverter, Wind Turbine, Wind Solar Hybrid Power System.

4. Why should you buy from us not from other suppliers?
We have ten years of experience in the research and development of LED lighting,Alternative Energy Generators and Solar Energy Systems , the integration of a variety of resources to provide the highest cost-effective energy-saving products, has accumulated.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;

Accepted Payment Currency:

USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Accepted Payment Type:

T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;



Language Spoken:

English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
