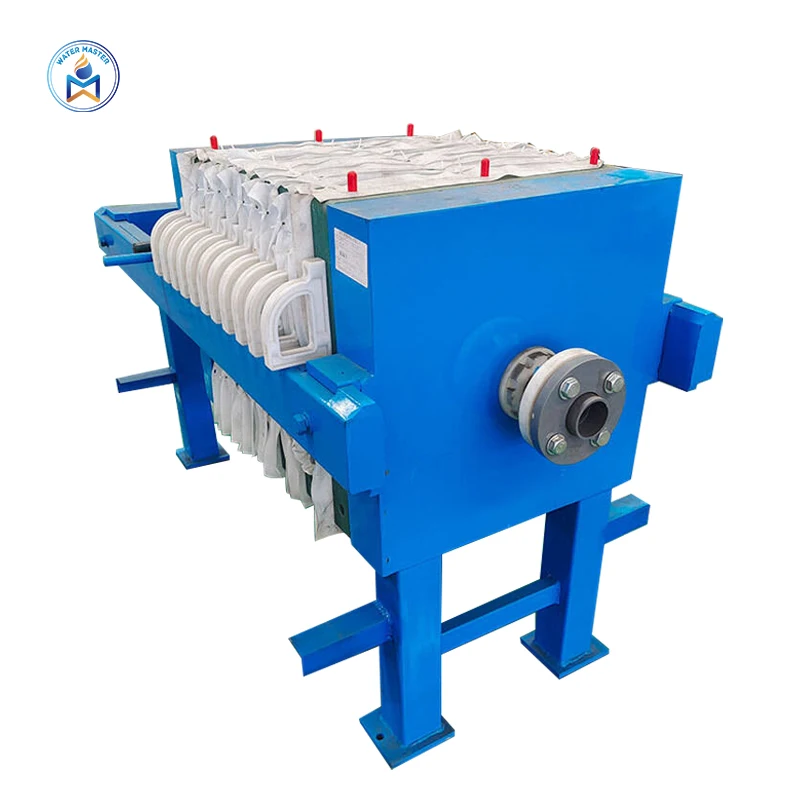

Sludge Treatment Equipment Filter Press Plate And Frame Filter Press for Wastewater
- Category: >>>
- Supplier: Shanghai Water Master Co. Ltd.
Share on (1601043661236):
Product Overview
Description
Products Description

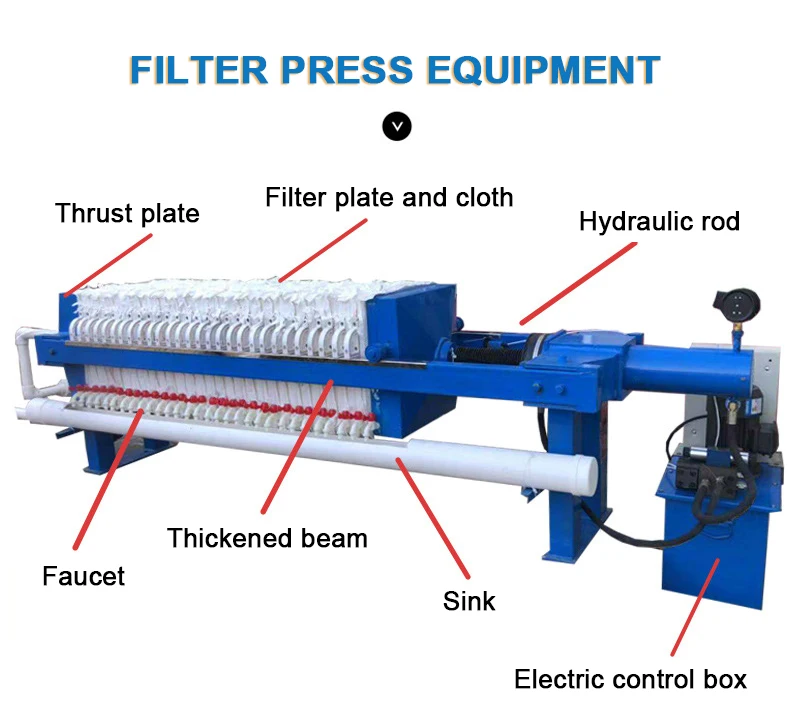

Filter presses separate suspended solids from liquids.What are the Four Main Components of a Filter Press? 1.Frame2.Filter Plates3.Manifold (piping and valves)4.Filter Cloth (This is key for optimizing filter press operations.

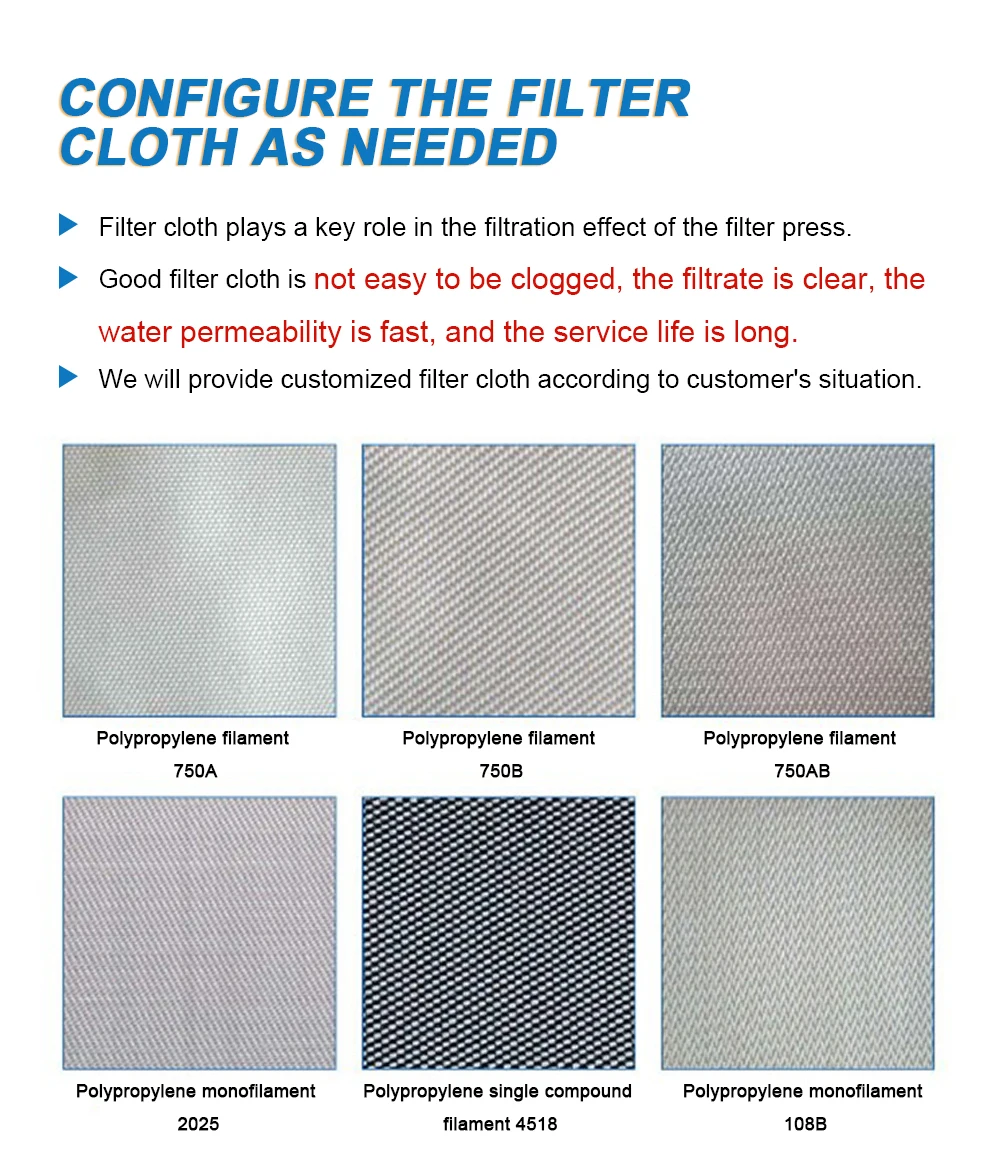

Filter presses result in the driest cake with the cleanest filtrate when compared to other dewatering equipment for a respective application. Proper selection of cloths, plates, pumps and ancillary equipment/process, such as precoat, cake wash and cake squeeze is critical to optimal operation of the dewatering system.Holly Filter Press is divided into Fast open filter press, High pressure filter press, Frame filter press, Membrane filter press with there are also dozens of filtering cloth types such as multifilament polypropylene filter cloth, polypropylene Mono/ multifilament filter cloth, polypropylene Monofilament filter cloth and Fancy twill weave filter cloth.
Filter presses result in the driest cake with the cleanest filtrate when compared to other dewatering equipment for a respective application. Proper selection of cloths, plates, pumps and ancillary equipment/process, such as precoat, cake wash and cake squeeze is critical to optimal operation of the dewatering system.Holly Filter Press is divided into Fast open filter press, High pressure filter press, Frame filter press, Membrane filter press with there are also dozens of filtering cloth types such as multifilament polypropylene filter cloth, polypropylene Mono/ multifilament filter cloth, polypropylene Monofilament filter cloth and Fancy twill weave filter cloth.
How it works
During the fill cycle, the slurry pumps into the filter press and distributes evenly during the fill cycle. Solids build up on the filter cloth, forming the filter cake in the void volume of the plate. The filtrate, or clean water, exits the filter plates through the ports and discharges clean water out the side of the plates.Filter presses are a pressure filtration method. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of solids. This forms the cake. The filter cakes release when the plates are full, and the cycle is complete.
Model | Filter Area(²) | Filter Chamber Volume(L) | Capacity(t/h) | Weight(kg) | Dimension(mm) |
HLFP50 | 50 | 748 | 1-1.5 | 3456 | 4110*1400*1230 |
HLFP80 | 80 | 1210 | 1-2 | 5082 | 5120*1500*1400 |
HLFP100 | 100 | 1475 | 2-4 | 6628 | 5020*1800*1600 |
HLFP150 | 150 | 2063 | 3-5 | 10455 | 5990*1800*1600 |
HLFP200 | 200 | 2896 | 4-5 | 13504 | 7360*1800*1600 |
HLFP250 | 250 | 3650 | 6-8 | 16227 | 8600*1800*1600 |
