Tools Fiber Optical Power Meter

Product Overview

Description



JW3216 handheld OPM is newly designed fiber optic instrument, it aims at fiber network installation,

fiber network engineering acceptance and fiber network maintenance. Combined usage with

JW3116 handheld optical light source, it offers a quick and accurate testing solution on fibers work.



1.Wave ID—Automatic wavelength identification and switching (when used with JW3116 handheld light source

2.Frequency ID/Tone detection---Automatic frequency identification

3.Intelligent backlight control (light intensity can be adjusted properly according to ambient light,

which greatly reduced power consumption)

4.Data storage function, up to 1000 test record

5.USB communication port for saved testing records download

6.Reference power level can be set up and stored

7.User self-calibration function

8.Auto-off function can be activated or deactivated.

9.AA alkaline and AC adapter for power supply

10.Low battery indication

Type	JW3216A	JW3216C
Calibrated(nm)	850, 1300,1310,1490,1550,1625
Detector type	InGaAs
Measurement Range(dBm)	-70~+6	-50~+26
Uncertainty (dB)	±0.15(3.5%)
linearity (dB)	±0.02 dB
Display resolution(dB)	0.01 dB
Frequency ID(Hz)	270,330,1K,2K
Wave ID(nm)	1310,1490,1550,1625
Date storage capacity	1000
Communication Port	USB
Optical Connector type	FC,SC,ST interchangeable
Alkaline battery	3*AA,1.5V
Power Supply Adaptor(V)	8.4V
Battery Operating time (h)	200h
Operation Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
Outline size(mm)/weight	180*90*45(250g)

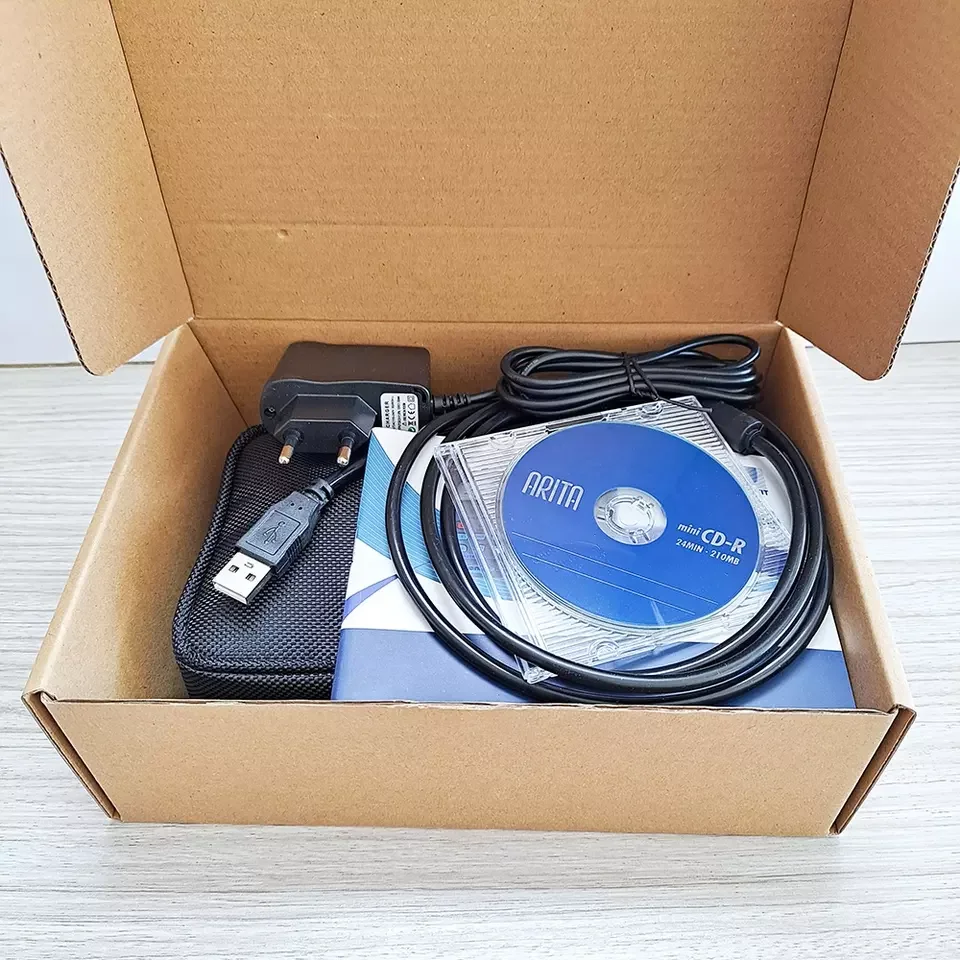

Standard Packages

MODEL	INCLUDES
All JW3216 MODEL	JW3216 opm, 3pcs 1.5V batteries, AC Adaptor, CD,USB cable,User Manual, Cotton swabs and Soft carrying case.
